Size: 3.8mm X 60mm
Fit For: FTTH Drop Cable, Round Cable, Flat Cable
Inner Diameter: 3.8mm
Use: FTTH Drop Cable Joint Protect

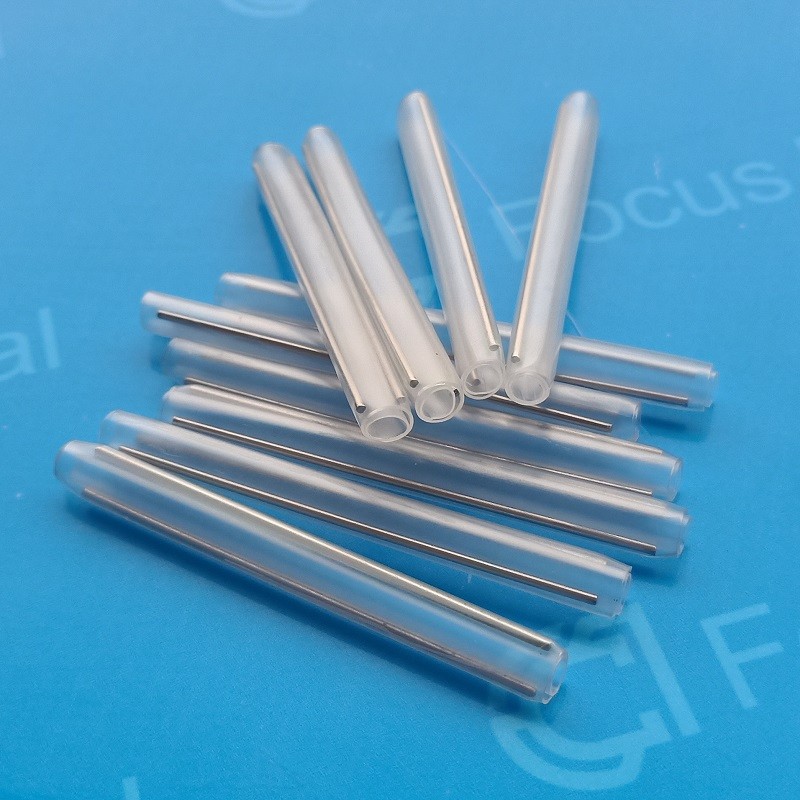

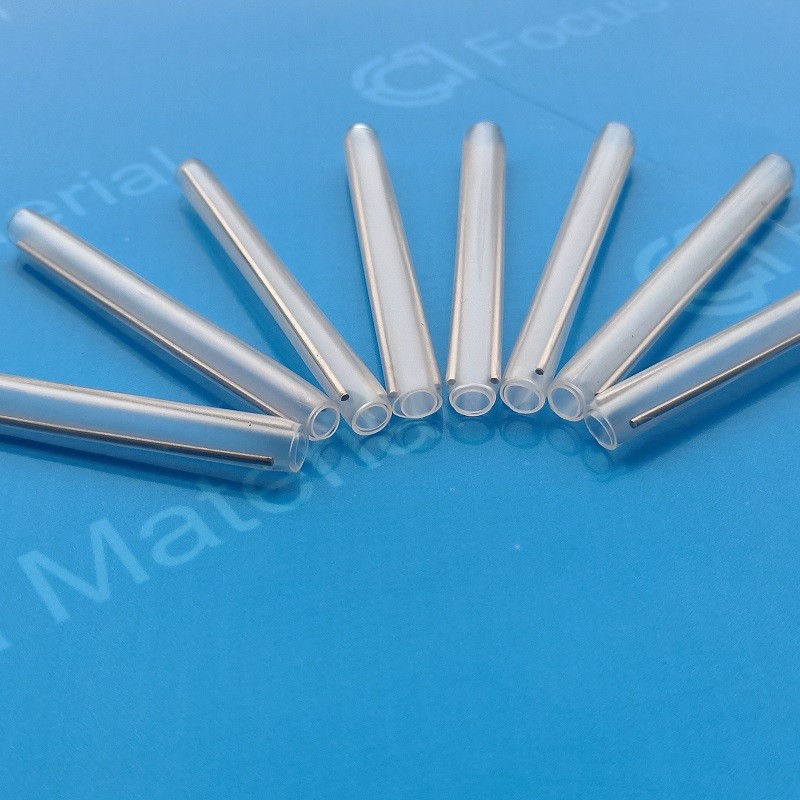

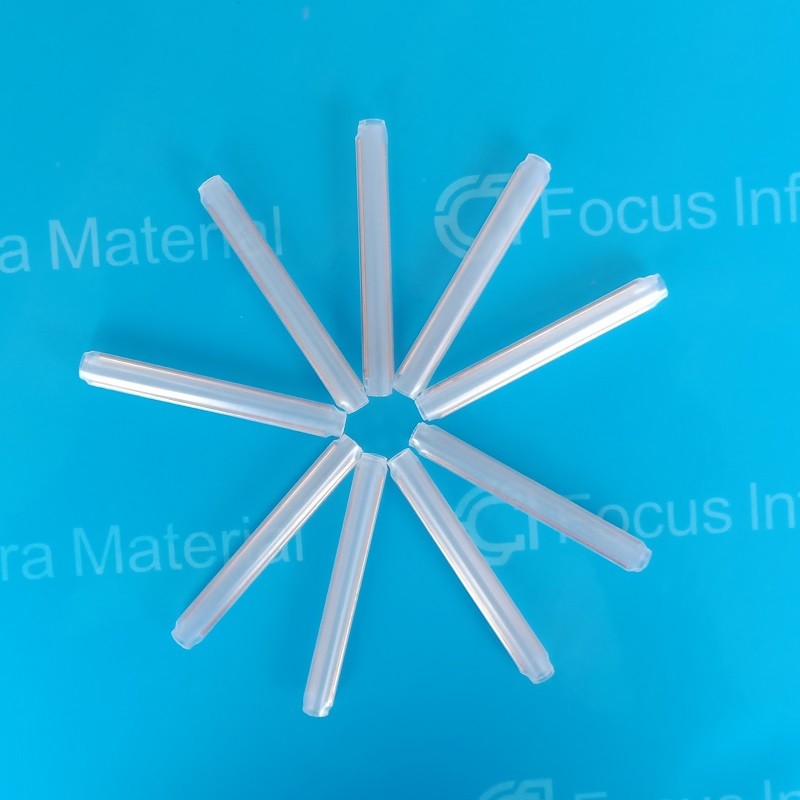

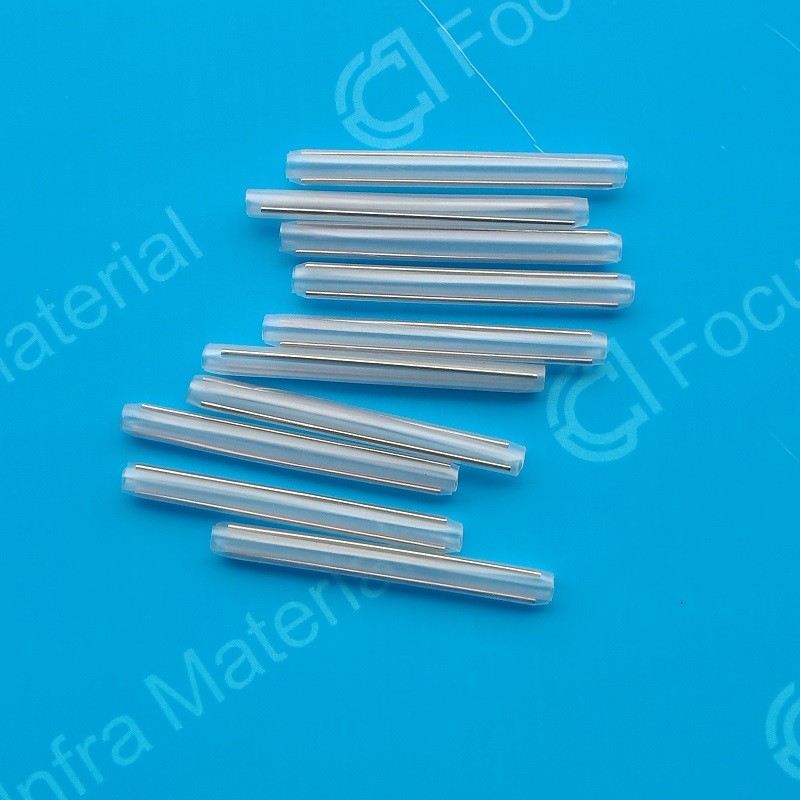

FTTH Fiber Optic Splice Protector 60MM Drop Fiber Cable Sleeve
Description:
Drop Cable Joint Protective Optical Fiber Cable Heat Shrink Protector is used to protect the FTTH Drop Cable Joint Connection Protective. The construction of the three protective and strengthening elements of the Drop Cable Joint Protective Optical Fiber Cable Heat Shrink Protector is distinctive in the function that each provides. The inner stainless steel pin keeps the sleeve rigid and stable. The pin is vibratory tumbled with a special medium. This eliminates the possibility of fiber scarring or material penetration, both of which could damage the sensitive glass fibers. The inner tube is made of a specially designed material that compresses. The fiber splice becomes encapsulated within the inner tube. The outer tube is made of a heat-shrinking polyolefin.
Features:
1. Bare fiber hot melt, stainless steel needle, protect fiber cable
2. Industrial sealing treatment at both ends of the tube to ensure that the steel needle does not falling out
3. Selected high-quality stainless steel, not easy to rust, corrosion-resistant, and anti-aging
4. The double-layer shell is made of environmentally friendly PE and has a long service life
5. Better protection of bare fiber and prolong the service life of fiber
6. Clear sleeve make it easy to detect splice before shrinkage
7. Airproof structure keeping the splice point's good resistance of humidity and temperature
8. Single holed(preshrunk) ends eliminates improper fiber threading
9. Easy to operate, reducing the risk of fiber damage during installation
10. Transparent tube, it is easy to see the status of spliced fiber connection
Technical Parameters:
Specification | Test method | Typical data |
Tensile strength(MPa) | ASTM D 2671 | 18 |
Elongation at Break (%) | ASTM D 2671 | 700 |
Density(g/cm2) | ISO R1183D | 0.94 |
Dielectric strength (KV/mm) | IEC 243 | 20 |
Permittivity | IEC 243 | 2.5 |
Length rate of change (%) | ASTM D 2671 | +5 |
