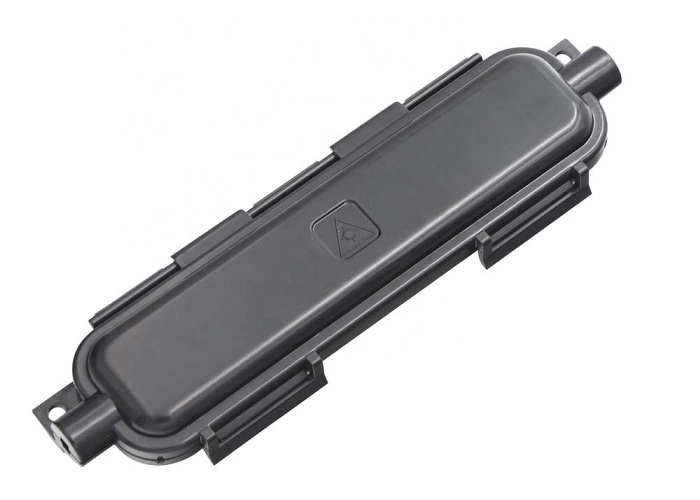

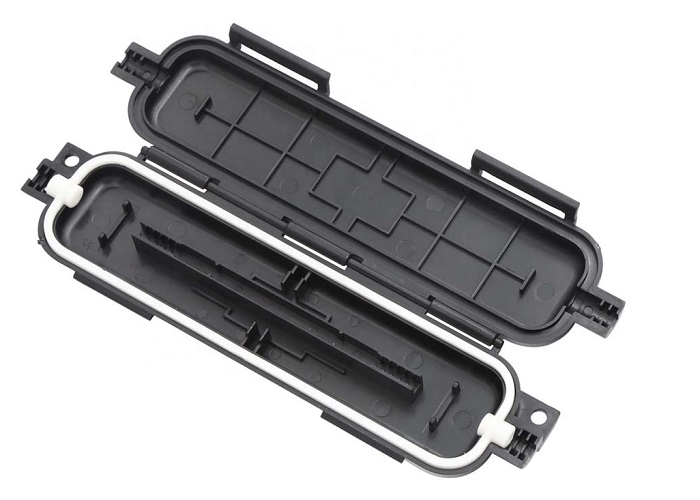

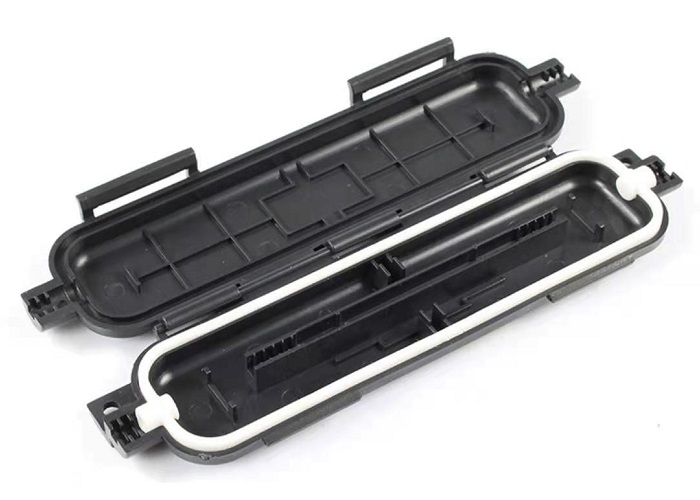

1 Core Fiber Optic Drop Cable Fusion Splice Protection Box Outdoor Mini Closure Junction Box

Introduction:

This new type butterfly fiber optic cable protective box is a case to put in a butterfly cable with a thermal protection tube after hot melting, so that the splice spot can get a better protection.Relative to the cold welding, the hot one can improve the optical performance of connector, make the effective connection rate increased to one hundred percent, prolong the service life of the product and lower maintenance costs.

This Fiber Drop Splice Closure is used in FTTH connection, we use this Fiber Drop Repair Splice Closure to make heat Shrinkable Splice with 2pcs Drop Cable (Or Drop Cable SC Connector Terminated one side).
It's designed for either Flat Drop Cable or Round Drop Cable.
This Fiber Drop Repair Splice Closure is installed indoor or outdoor, it provide good connection and protection in FTTH Constructions.

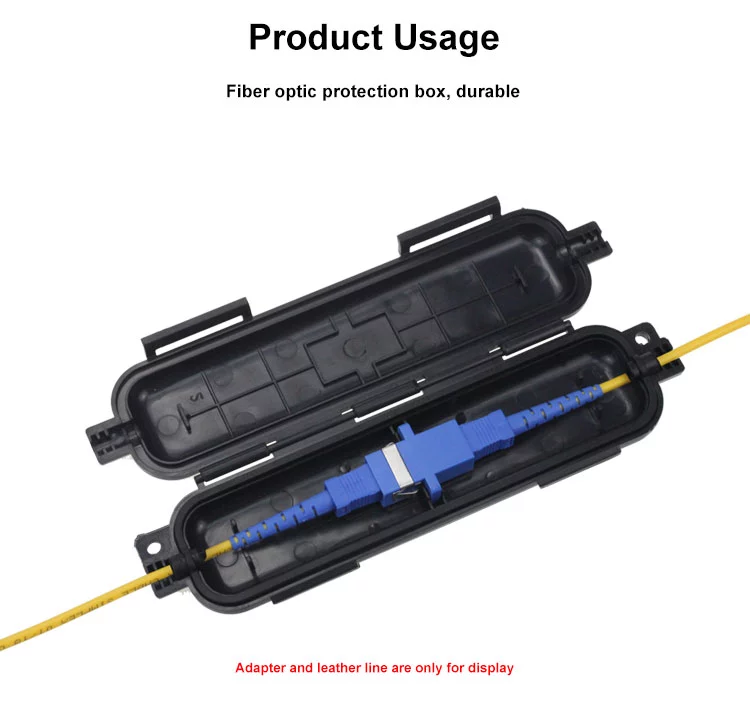

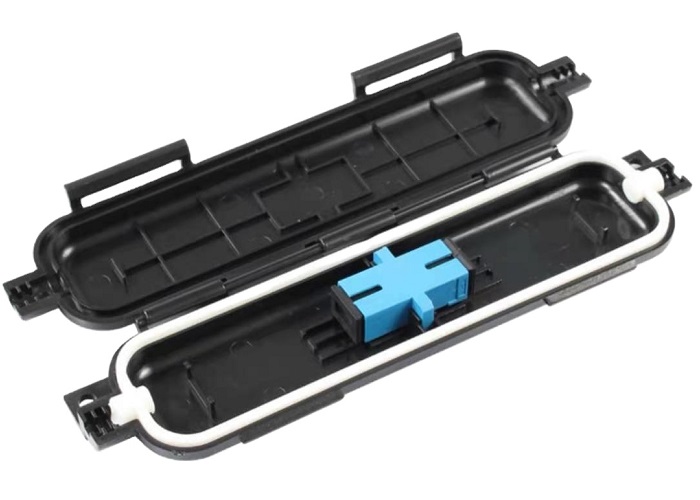

Drop Cable Protect box is used for drop cable connecting, splice and protection. It can hold 1pce SC Simplex adapter, 2pcs SC fast connectors, suitable for FTTH. It could be indoor or outdoor use, with good waterproof capacity. It is compact size, good appearance. Provides extremely economical and optimal protection for exposed single fiber connectors.

Product Features :

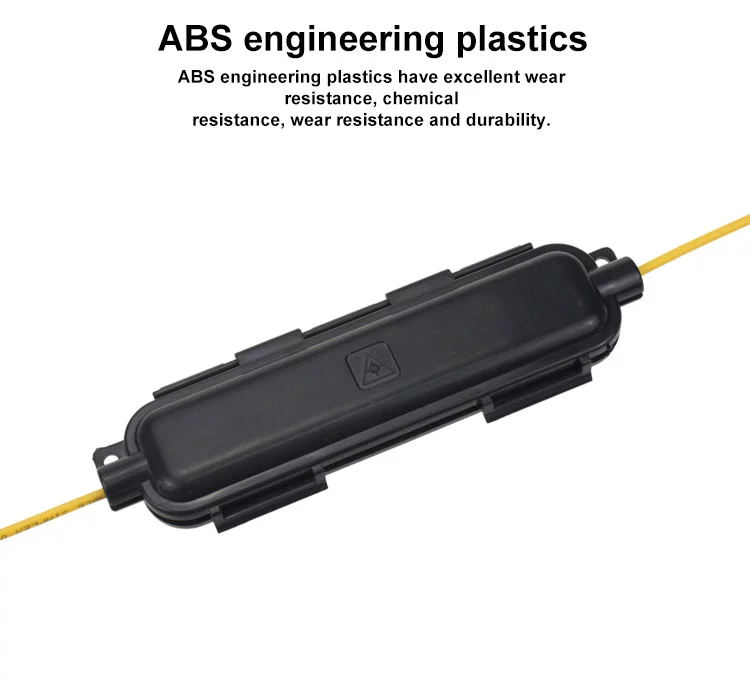

1. ABS material used ensures the body strong and light.
2. Water-proof design for outdoor uses.
3. Easy installations
4. Protection Level: IP65.
5. Adapter Type:SC Simplex Adapter; LC Duplex Adapter
6. Waterproof and Dustproof design

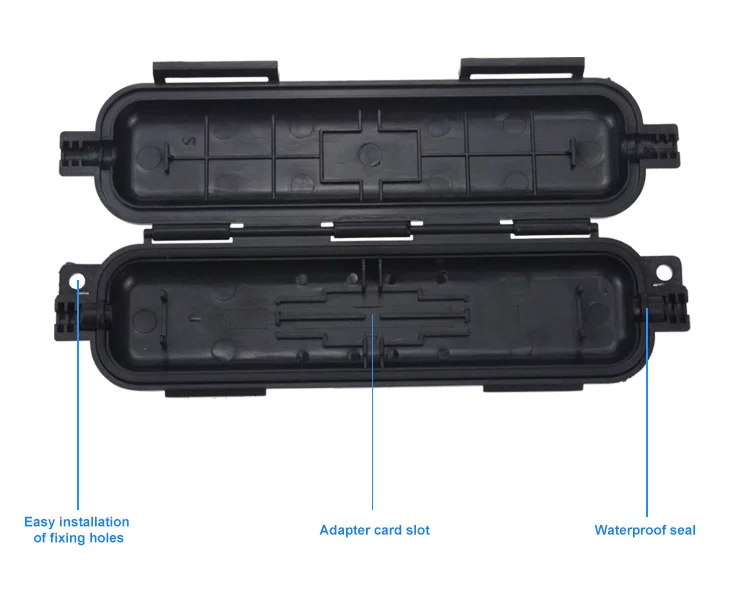

7. Cable fixing units provided for fixing the outdoor optical cable.

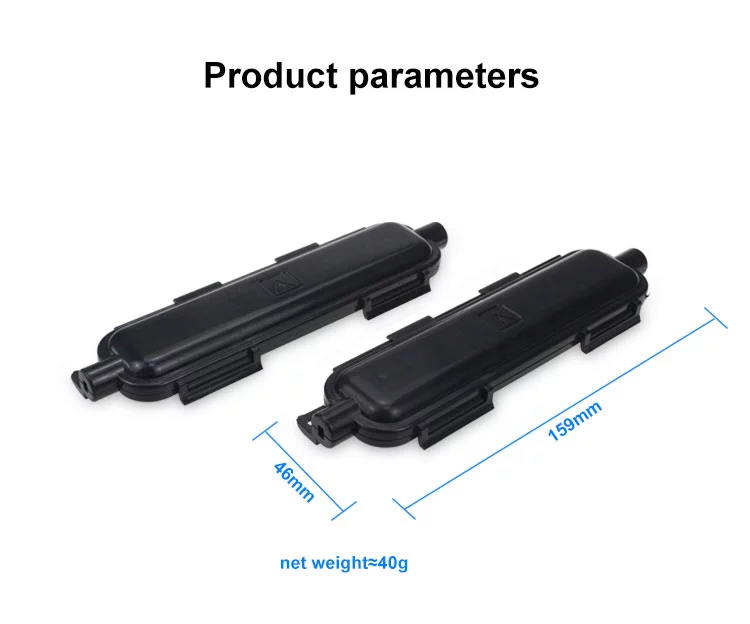

8. Product Size:160*47*17mm (W x H x D)

Operation conditions:
Storage/Operating Temperature: -40°C to + 60°C
