Model Number: SC APC
Insertion Loss: ≤0.3dB
Return Loss Of Pigtail: ≥55dB
Application: FTTH FTTB FTTX Network

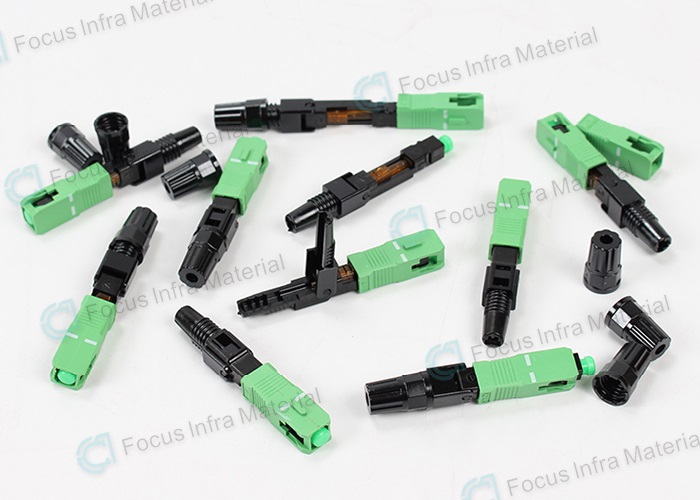

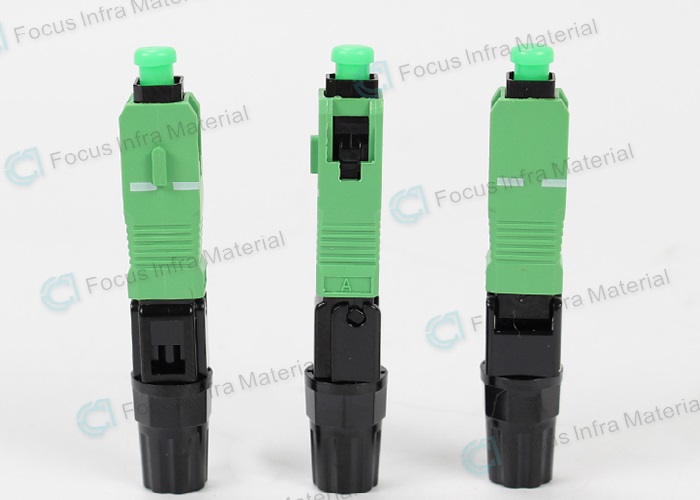

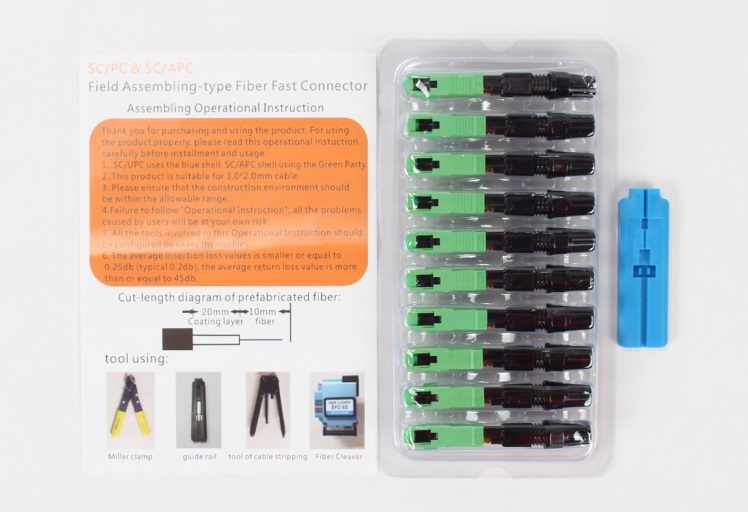

Embed cable fast connector Singlemode Optic sc apc green for Field Assemble ftth fiber to the home
Description

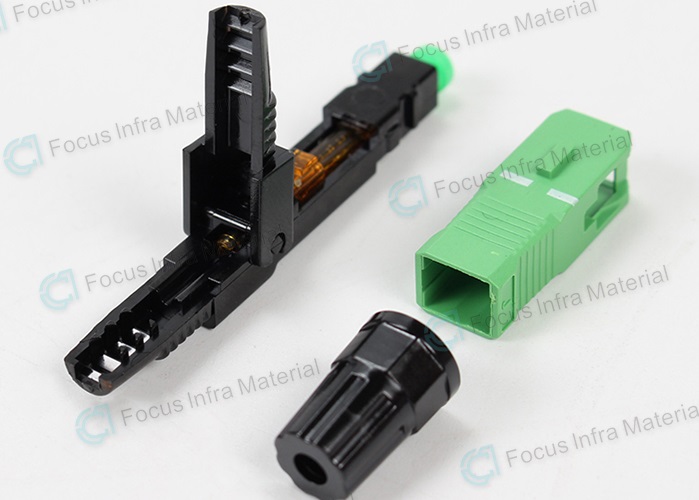

Embed cable fast connector Singlemode Optic sc apc green for Field Assemble ftth fiber to the home (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
High Quality IR 0.3dB FTTH Fiber Optic SC Fast Connector takes use of the latest generation of Rapid Ready-Terminal technology. After terminating, both the optical and mechanical performances reach the standard for patchcord and meet the demand for making patch cord on site by mechanical splicing.
Feature:
1. Fast and easy termination of rectangular section FTTH drop cable
2. No polishing or adhesives required
3. Terminate cable to exact required length
4. Can be re-opened up to 5 times
5. Simple to assemble with our guide rail tool
6. Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;
7. Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
Product name | Fiber Optic Fast Connector SC/APC |
Product size | 55mm*9mm |
Shell material | Flame retardant(PEI) |
Insertion Loss | ≤0.3dB |
Return Loss of pigtail | ≥55dB |
Type | Singlemode |
Suit cable diameter | 0.9/2.0/3.0mm |
Application scope | FTTH FTTB FTTX Network |
Applicable temperature | -40℃~+85℃ |
tensile strength | 30N |
