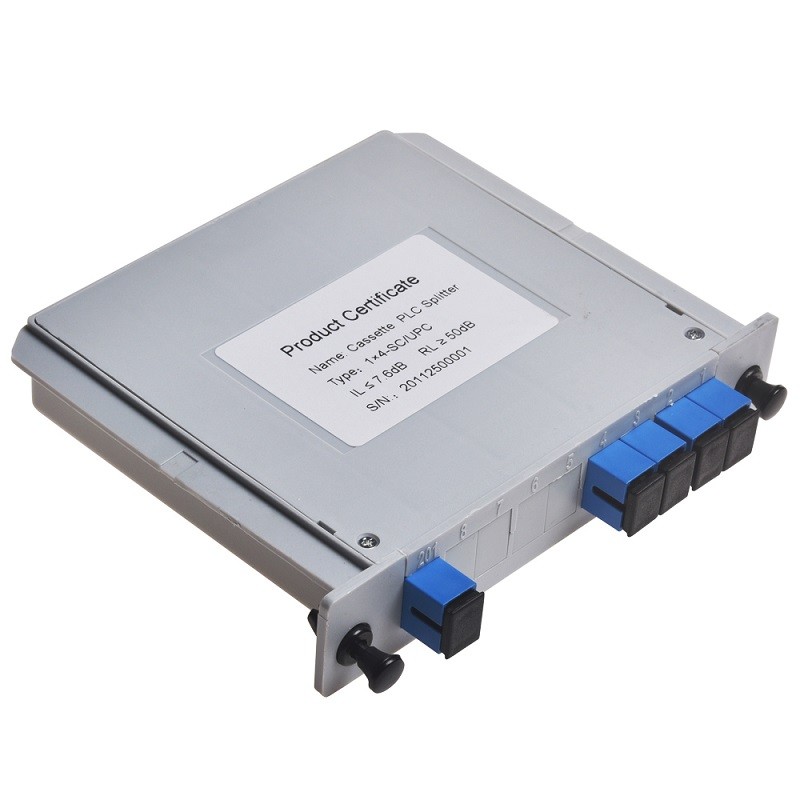

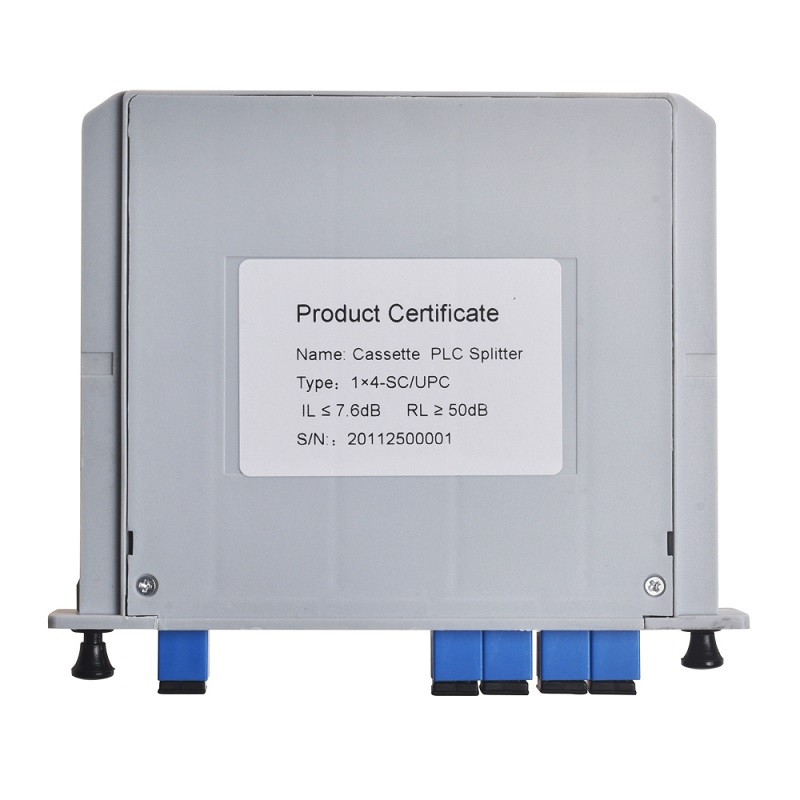

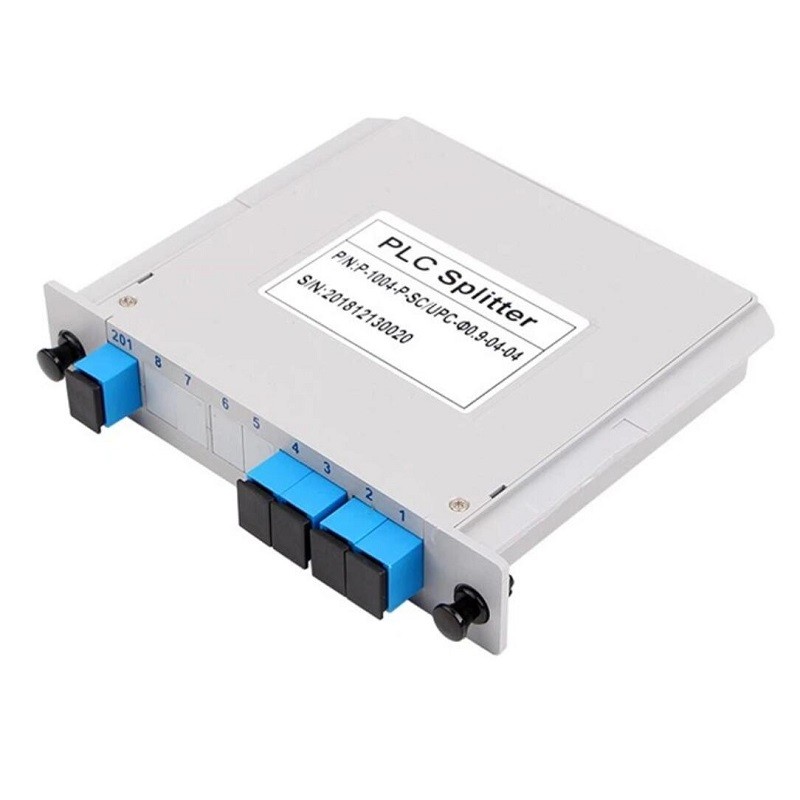

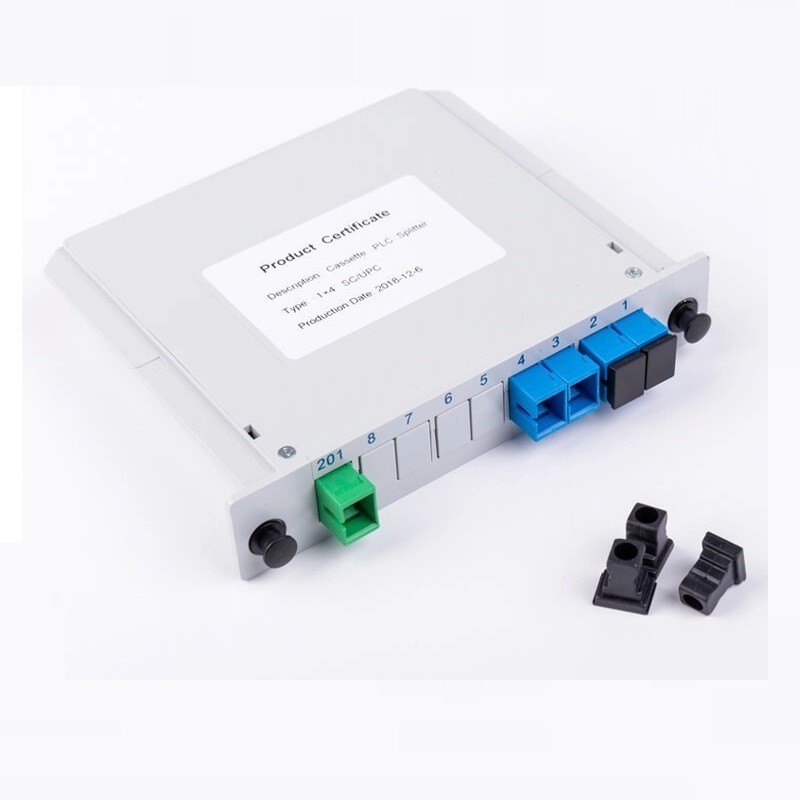

Fiber Optic Mini Plug-in Module Type PLC Splitter
Package Style: ABS Module
Configuration Type: 1xN, 2xN
Fiber Type: Singlemode G.657A1
Connector Type: LC/SC/FC
Fiber Diameter: 0.9mm/2.0mm/3.0mm
Polish Type: UPC/APC
Input/Output Fiber Length: 0.5m/1m/1.5m
Operating Bandwidth: 1260~1650nm
Fiber Optic Mini Plug-in Module Type PLC Splitter
Description:
PLC splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. CDF's PLC Splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.
Fetures:
Product Type Plug-in /Module
Application FTTx Cable television (CATV) Local area networks (LAN) Test equipment Passive optical networks(PON)
Material ABC+PC
Weight 80 Grams (g)
Coverage Area Wave Length: 1260-1650nm ㎡
Application:
Fiber to The Home (FTTH)
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
Parameter | Specification | ||||||||
Operating Wavelength (nm) | 1260 ~ 1650 | ||||||||
Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 |
Insertion Loss (dB) Max. | ≤4.2 | ≤7.5 | ≤10.6 | ≤13.7 | ≤17.2 | ≤21 | ≤7.8 | ≤10.8 | ≤13.9 |
Uniformity (dB) Max | ≤0.6 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 | ≤1.0 | ≤1.5 | ≤2.0 |
PDL(dB)Max | <0.2 | <0.2 | <0.2 | <0.3 | <0.3 | <0.4 | <0.3 | <0.3 | <0.4 |
Directivity (dB) Min | 55 | ||||||||
Return Loss (dB) Min | 55(50) | ||||||||
Operating Temperature (°C) | -45~ +85 | ||||||||
Storage Temperature (°C) | -5~ +75 | ||||||||
Fiber length | 1m or custom length | ||||||||
Fiber Type | Corning G656A1 or Fiberhome G657A1 | ||||||||
Connector Type | Custom specified | ||||||||
Power Handling (mW) | 300 | ||||||||
