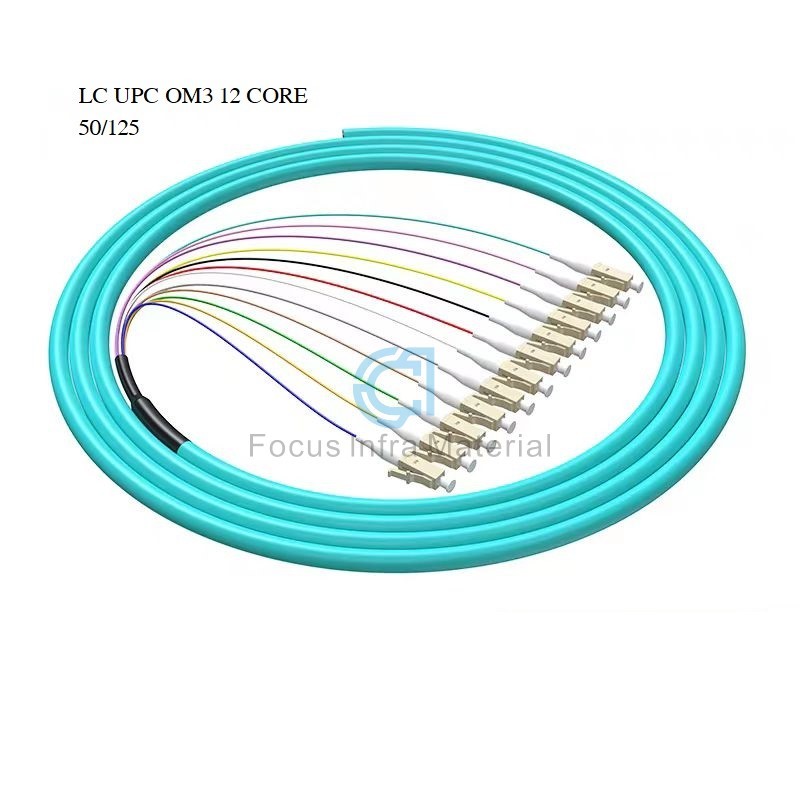

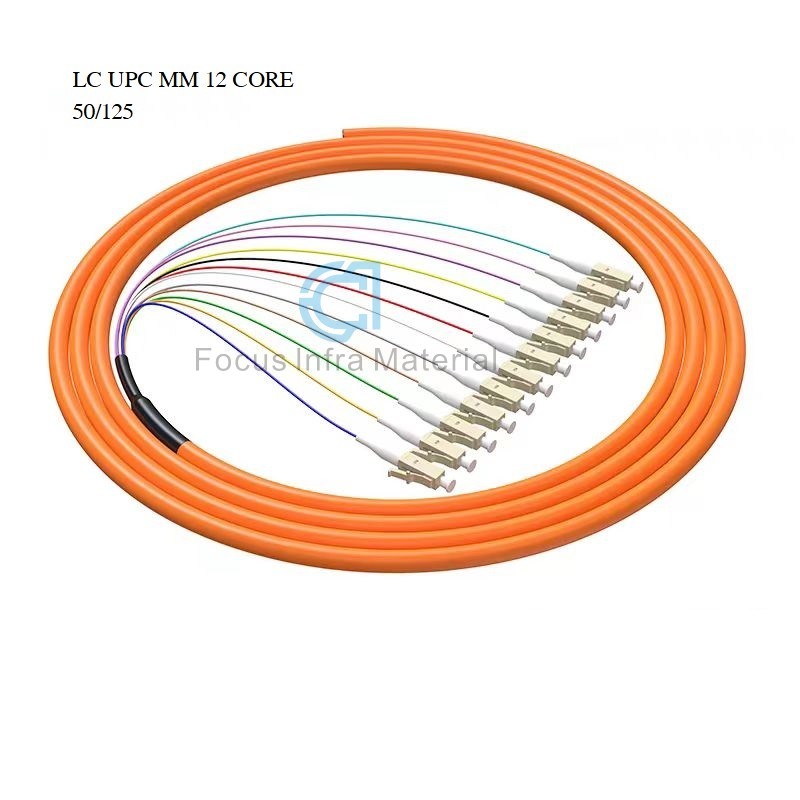

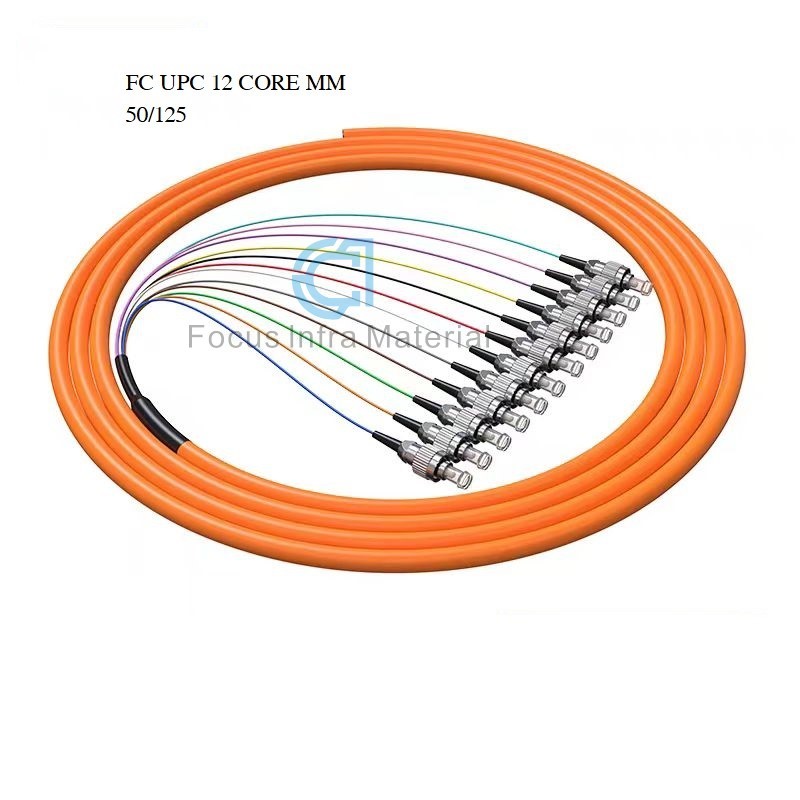

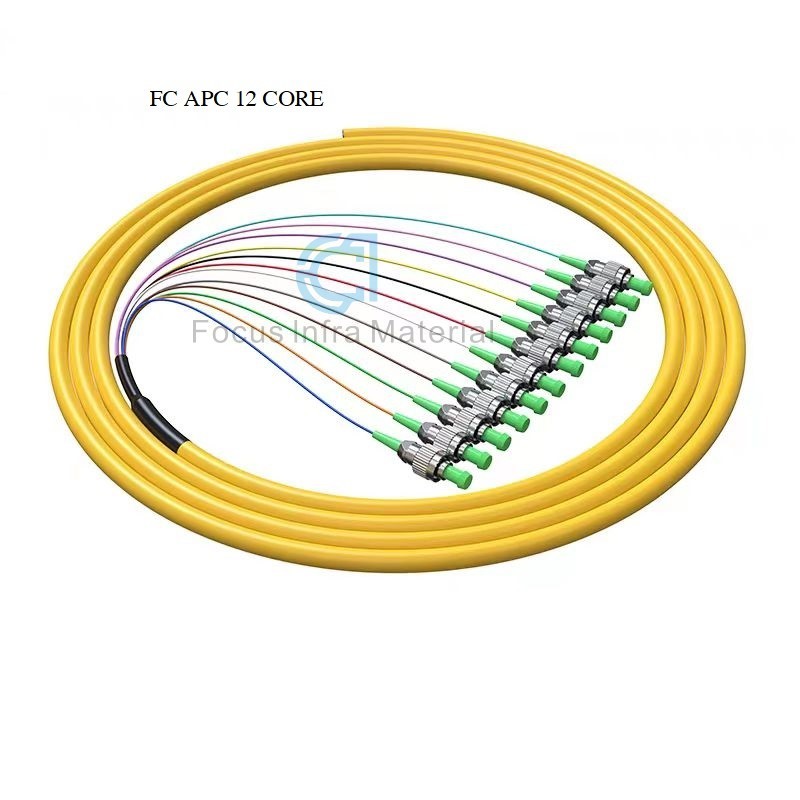

Fiber Optic Pigtail LSZH Jacket Cable Patch Cord 12 Fibers SC/APC LC/UPC ST/UPC APC Waterproof Bunch Fiber Optic Pigtail

Fiber Optic Pigtail LSZH Jacket Cable Patch Cord 12 Fibers SC/APC LC/UPC ST/UPC APC Waterproof Bunch Fiber Optic Pigtail

Description:

The optical fiber jumper is used as a jumper from the equipment to the optical fiber wiring link. It has a thick protective layer, which is generally used for the connection between optical transceiver and terminal box. It is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and LAN.

Fiber optic pigtail is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".

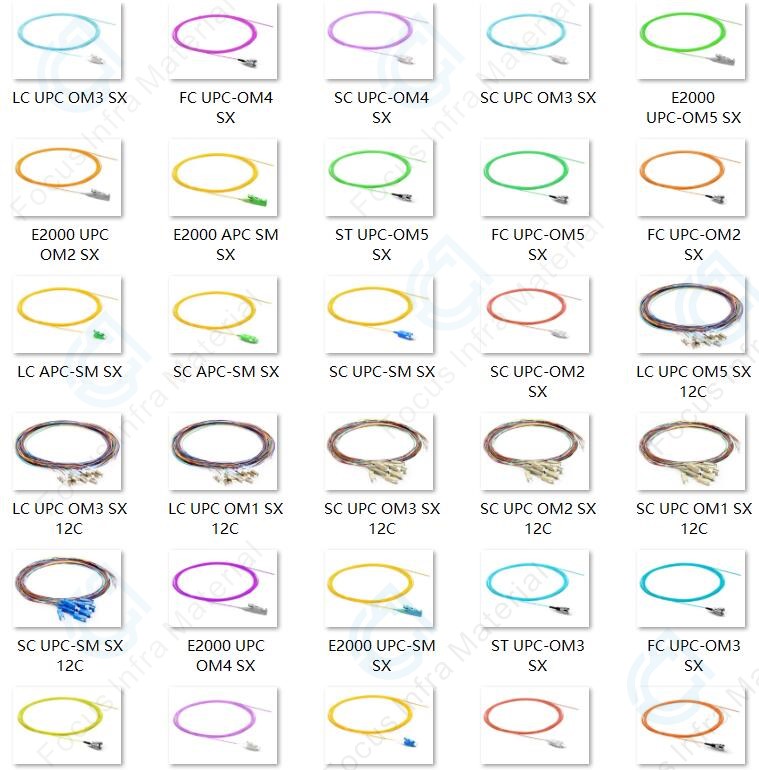

   Fiber optic patch cord are with various kinds of cables, PVC, Riser, Plenum, OFNR, OFNP, LSZH (LSOH), 10 Gig Aqua, there are simplex fiber optic patch cord and duplex fiber optic patch cord and multi fiber cable assemblies, and there are ribbon fan out fiber cable assemblies and bundle fiber optic cable assemblies. Typical fiber optic patch cord cable diameter can be 0.9mm, 2mm, or 3mm.

   Each cable has strain relief boots to prolong and maintain performance levels of the assembly, transmit and receive legs of each duplex cable are identified by means of ring type cable marker fixed to each end the assembly. A short distance from these identification rings heat shrink is applied to maintain an easy to manage bonded two fibre cable, finally a label containing a unique batch number is fixed to the center of cable for quality and traceability purpose.

  Fiber optic patch cord is one of most commonly used components in fiber optic network. Chengdu Focus Infra Materials offers different types of fiber optic patch cord to meet the market requirements.
