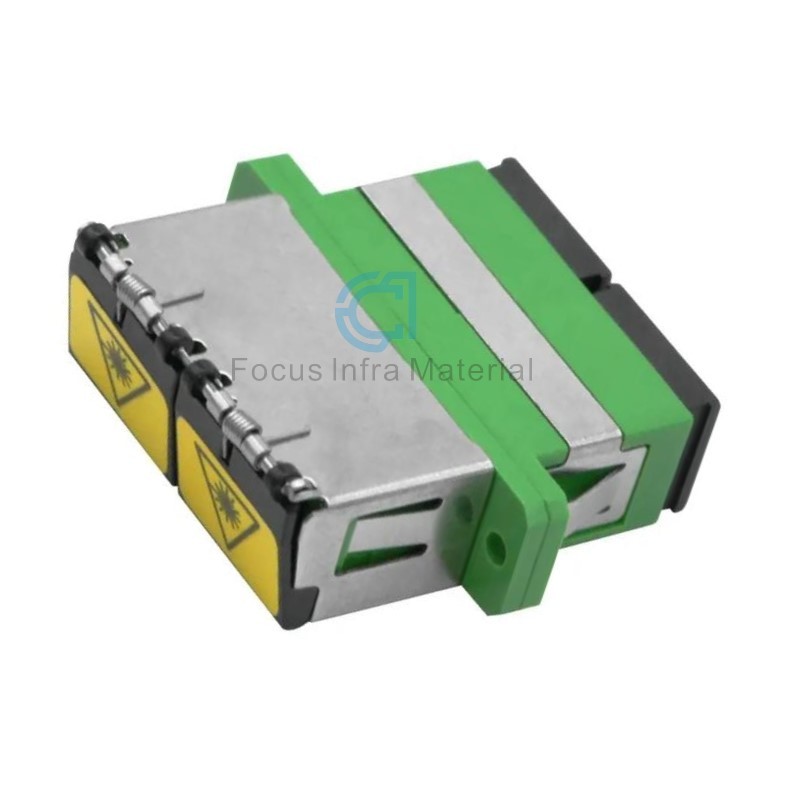

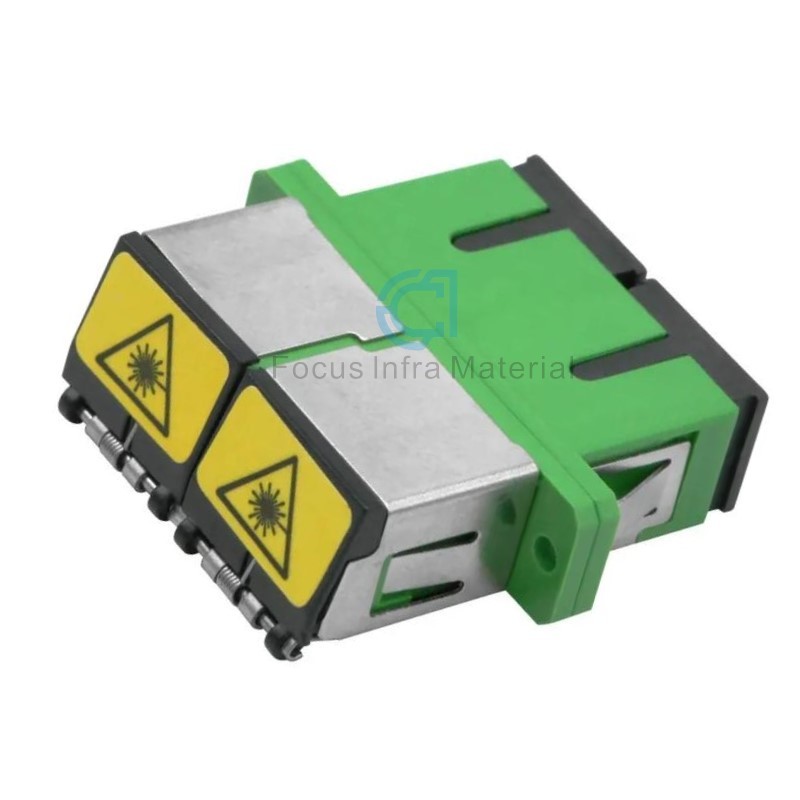

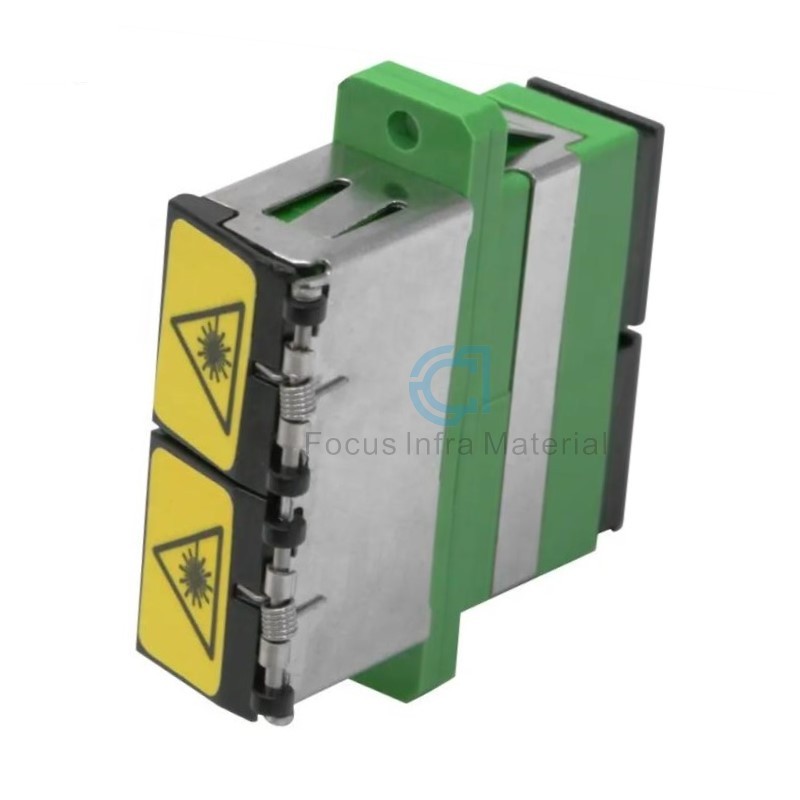

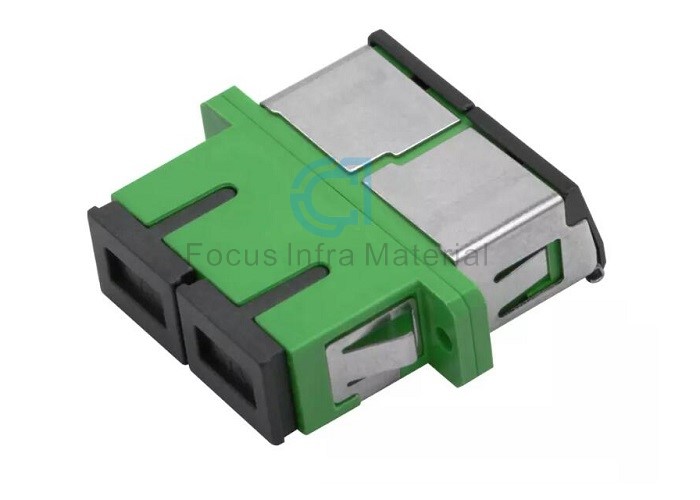

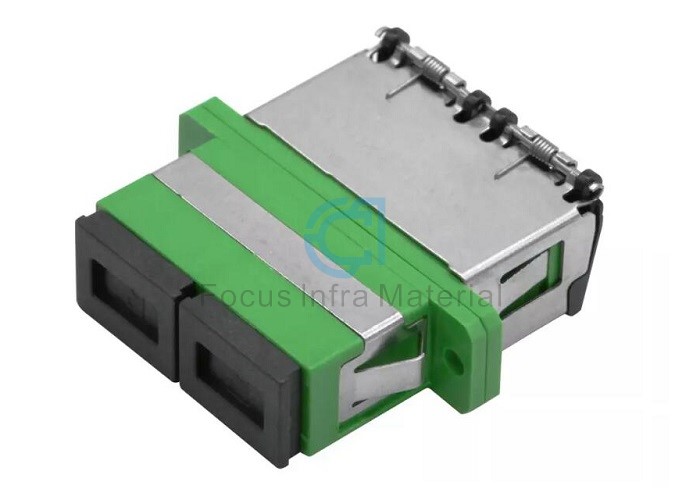

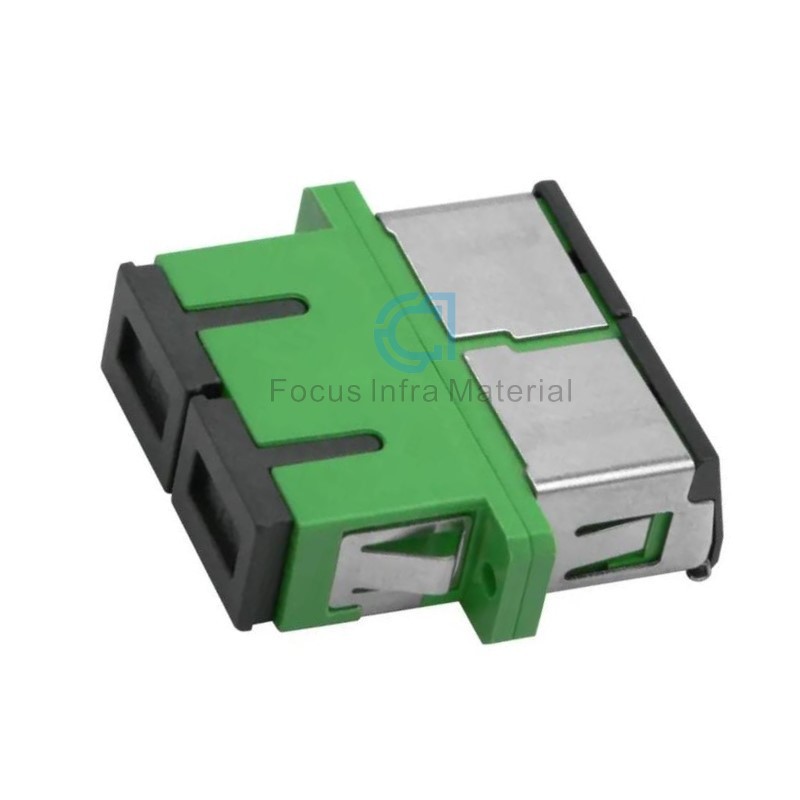

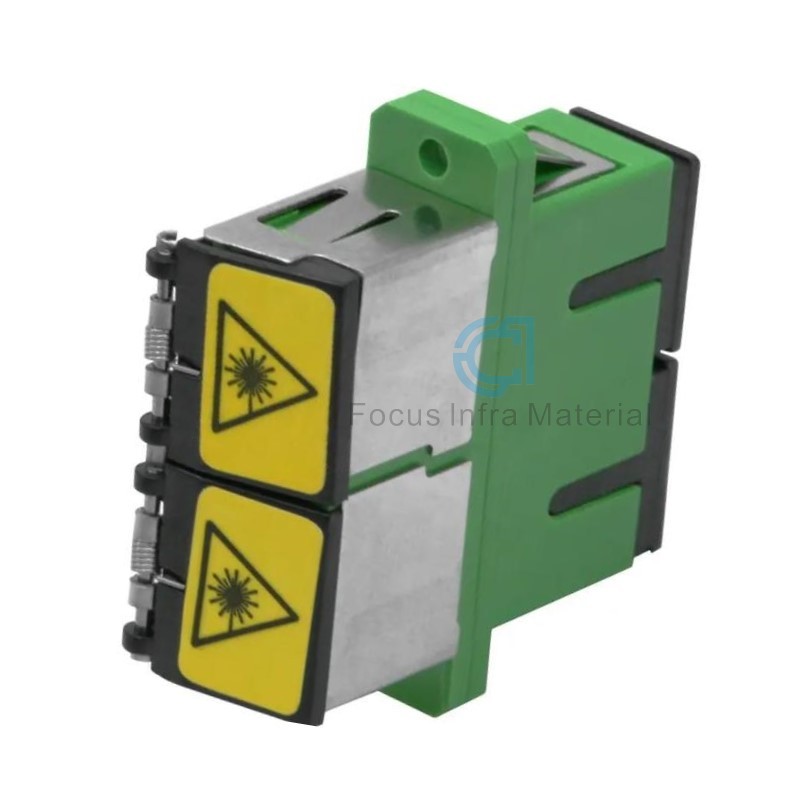

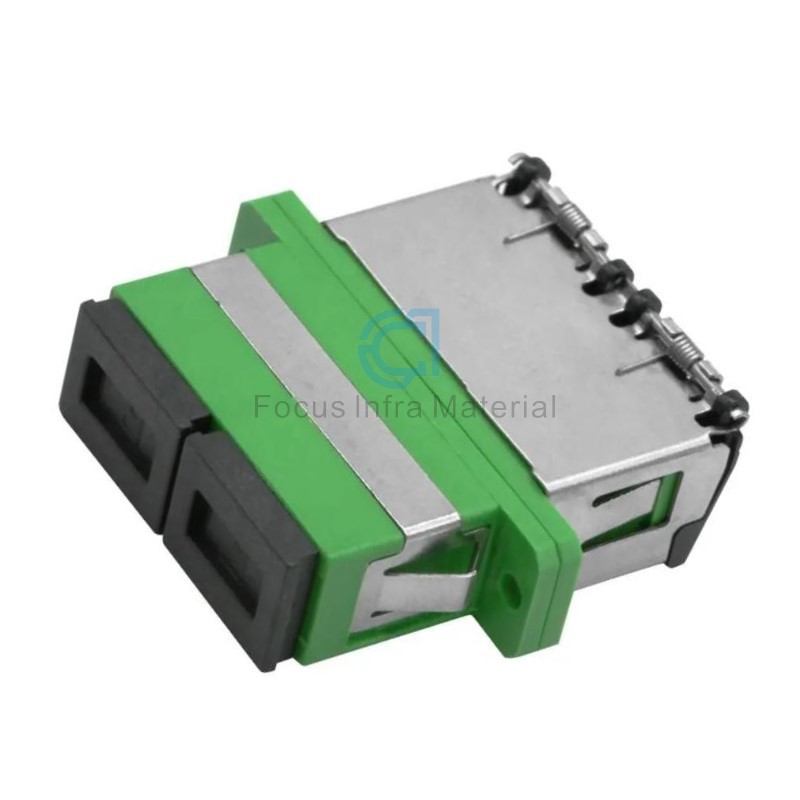

Fiber Optical Adapter Metal Adapter SC APC SM DX Coupler

Model Number: SC/APC
Insertion Loss:<0.2db
Return Loss: >50db
Use: FTTH, FTTX, FTTA, CATV, lAN'S

Fiber Optical Adapter Metal Adapter SC APC SM DX Coupler


Description:


   Focus Infra’s Fiber Optical Adapter Metal Adapter SC APC SM Duplex Coupler is used for Single Mode Fiber Connection. The "SC" connector is a standard square connector, using engineering plastics, which has the advantages of high temperature resistance and not easy to oxidize. The optical interface on the transmission equipment side generally uses an SC connector. The Fiber Optic Coupler is a device for detachable (movable) connection between an optical fiber and an optical fiber.


Specification:


Type Insertion loss(db) Tensility resist(g) Inser and pull times Temperature(℃)
FC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
SC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
ST < 0.2 200-600 1000 -40-+80
LC < 0.2 200-600 1000 -40-+80
MU < 0.2 200-600 1000 -40-+80
MIRJ < 0.2 200-600 1000 -40-+80
E-2000 < 0.2 200-600 1000 -40-+80
FC-SC < 0.2 200-600 1000 -40-+80
FC-ST < 0.3 200-600 1000 -40-+80
SC-ST < 0.2 200-600 1000 -40-+80
