LC PC Om1 0.9mm Optical Fiber Connector for Pigtail Optical Network Accessories FTTX Connection Parts

Model Number: SC PC
Insertion Loss: ≤0.3dB
Return Loss Of Pigtail: ≥55dB
Application: FTTH FTTB FTTX Network

Product Description

Optical fiber connector is used to connect two fiber or cable, and can be repeated use of passive components.It makes two of the optical fiber end face precision docking, so that the optical output of light energy can maximize the coupling to the receiving optical fiber,and make to minimize the effects on the system, it is the basic requirement of optical fiber connector. To a certain extent, fiber optic connectors affect the reliability and the performance of optical transmission system. At present, it has been widely used in optical fiber transmission lines, ODF and fiber optic test instruments, meters, is currently using the largest number of optical passive components.

The optical fiber connector is one of the most basic passive components in the optical fiber communication. There are difference ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment,Active device termination and so on.

Technical Parameter:

Fiber Type SM MM
Connector Type SC,FC,ST,E2000,LC,MU,DIN MTRJ SC,FC,ST,E2000,LC,MU MTRJ
Insertion Loss(Typical) ≤ 0.2dB ≤ 0.4dB ≤ 0.2dB ≤ 0.4dB
Insertion Loss(Max) ≤ 0.3dB ≤ 0.5dB ≤ 0.3dB ≤ 0.5dB

Return Loss(Typical)
PC ≥ 50dB ≥ 35dB -
UPC ≥ 55dB - -
APC ≥ 65dB - -
Durability(500ºC) 0.2dB
Temperature Stability 0.3dB
Operation Temperature -40ºC~+85ºC
Storage Temperature -40ºC~+85ºC


Application:
1. CATV
2. Telecom Network
3. Metro
4. Data processing


Features:
1. Low insertion Loss and Back reflection loss
2. RJ-45 style interface
3. Polarized and color coded (TIA568-A&ISO 11801)
4. UL-rated plastic housing and boot
5. Compact, pull-proof design
6. Behind-the-Wall style short connector

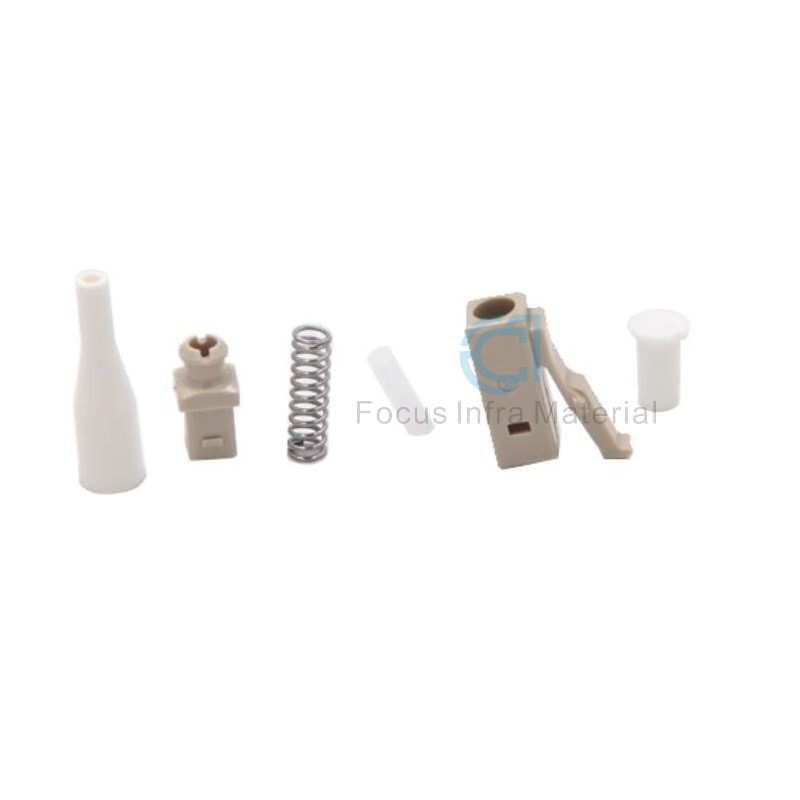

Fiber Optic Patch Cord Connector Parts

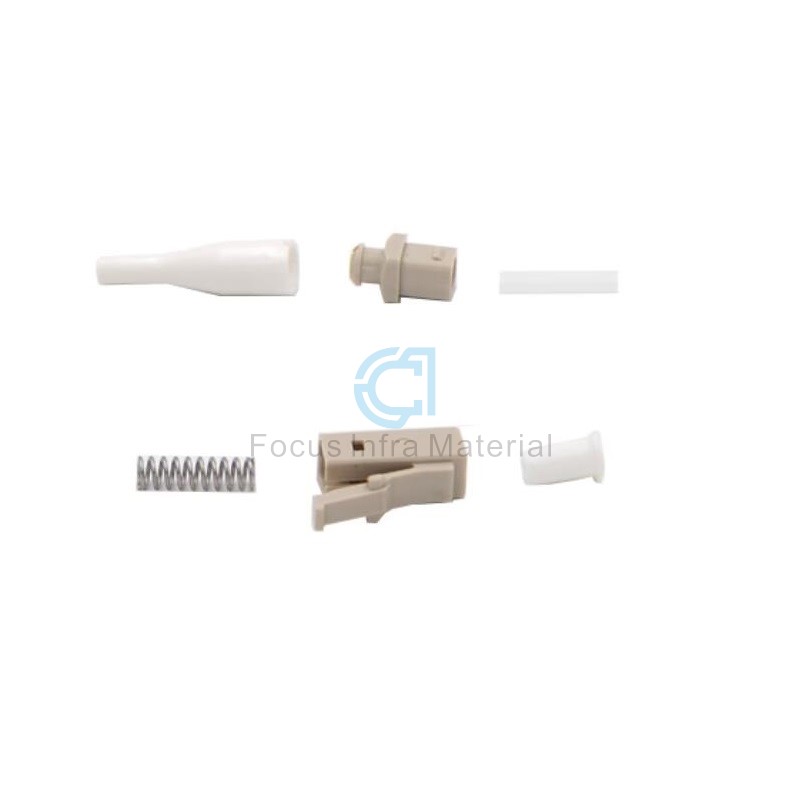

Fiber Optic Patch Cord Connector Parts

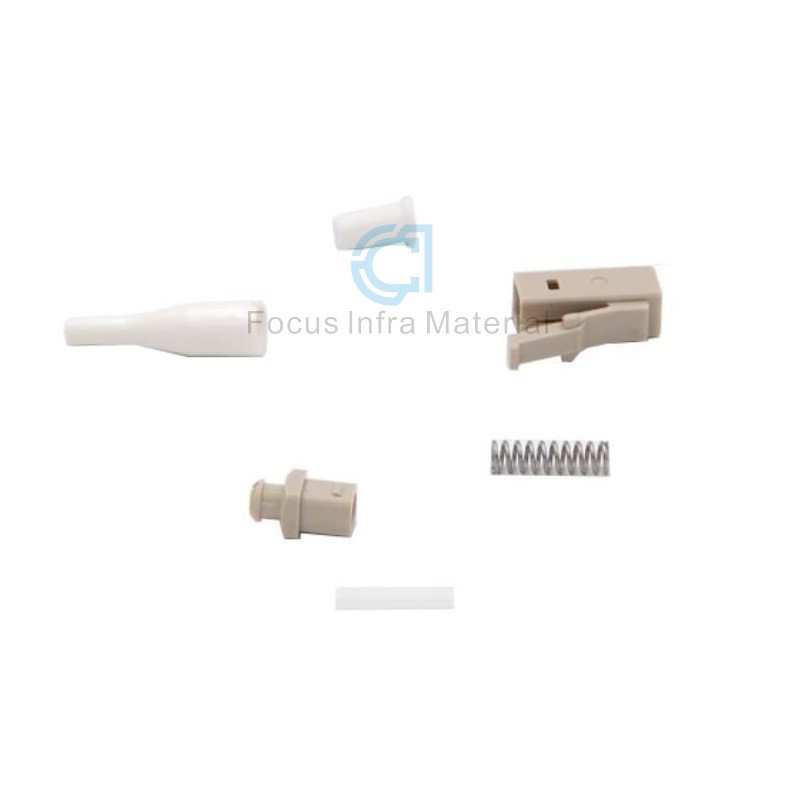

Fiber Optic Patch Cord Connector Parts
