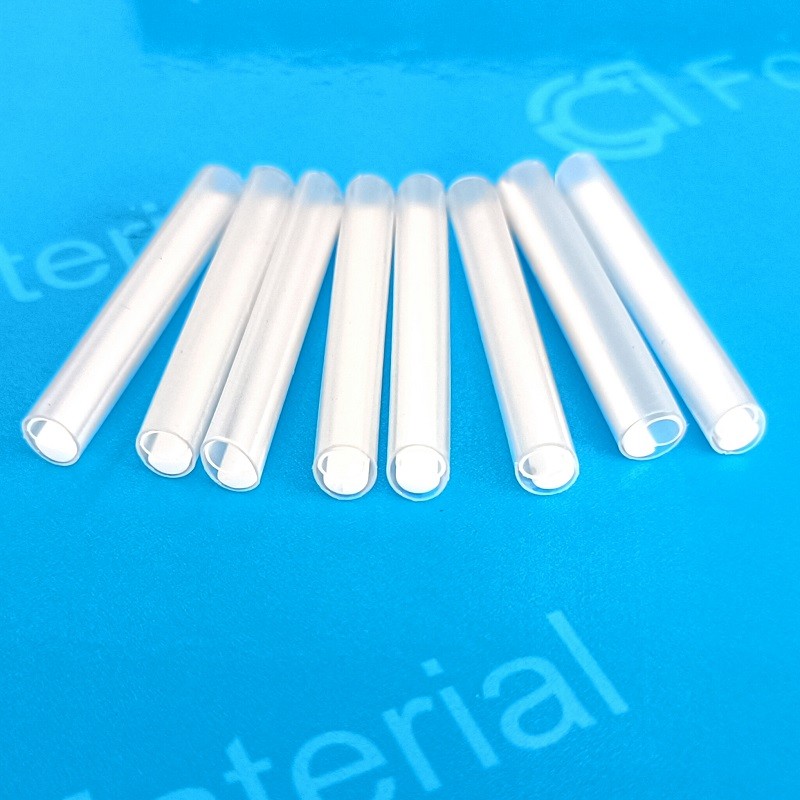

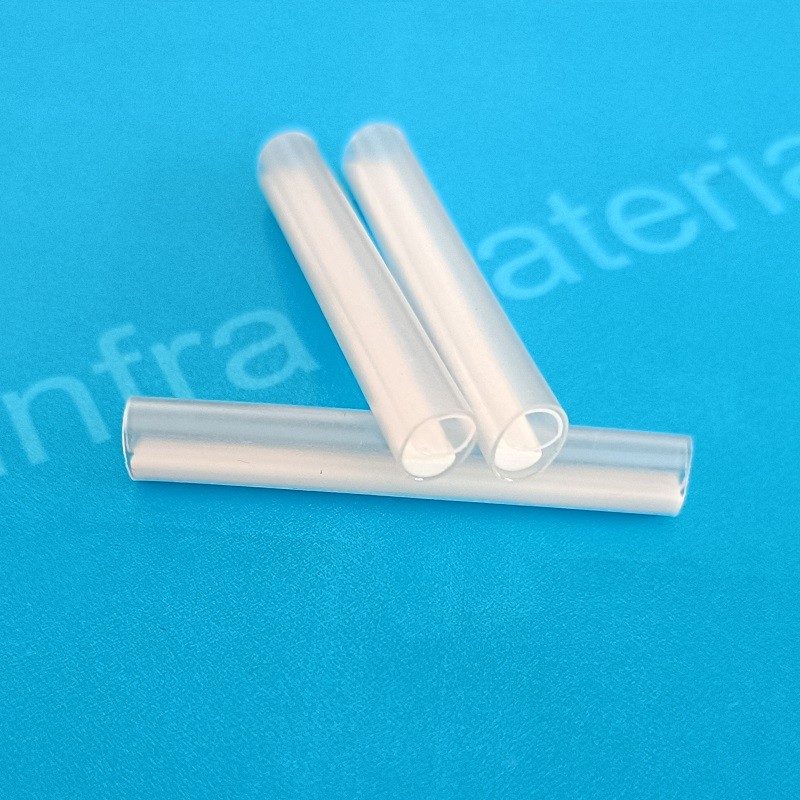

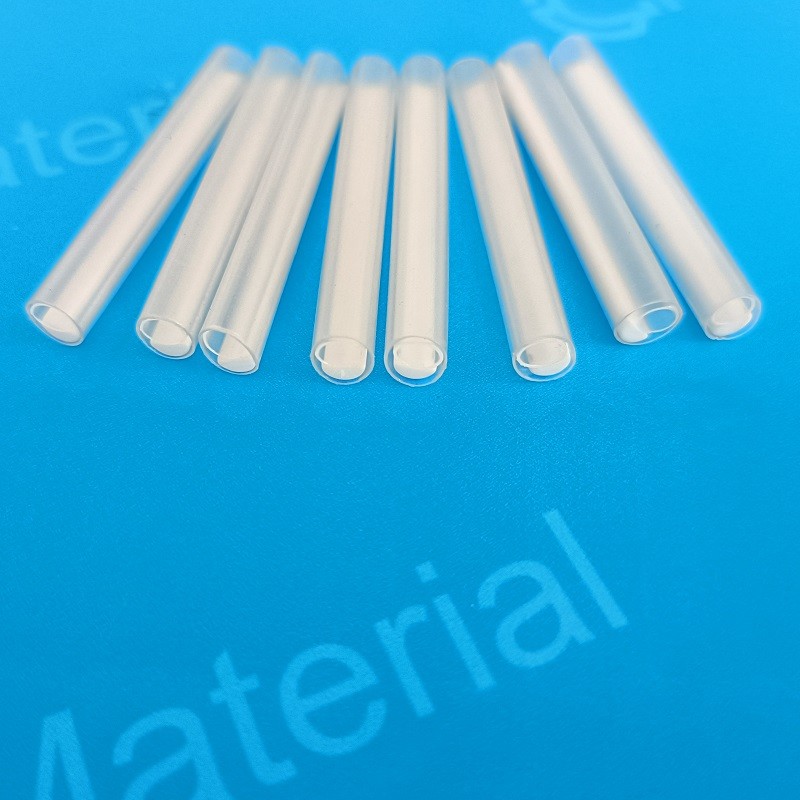

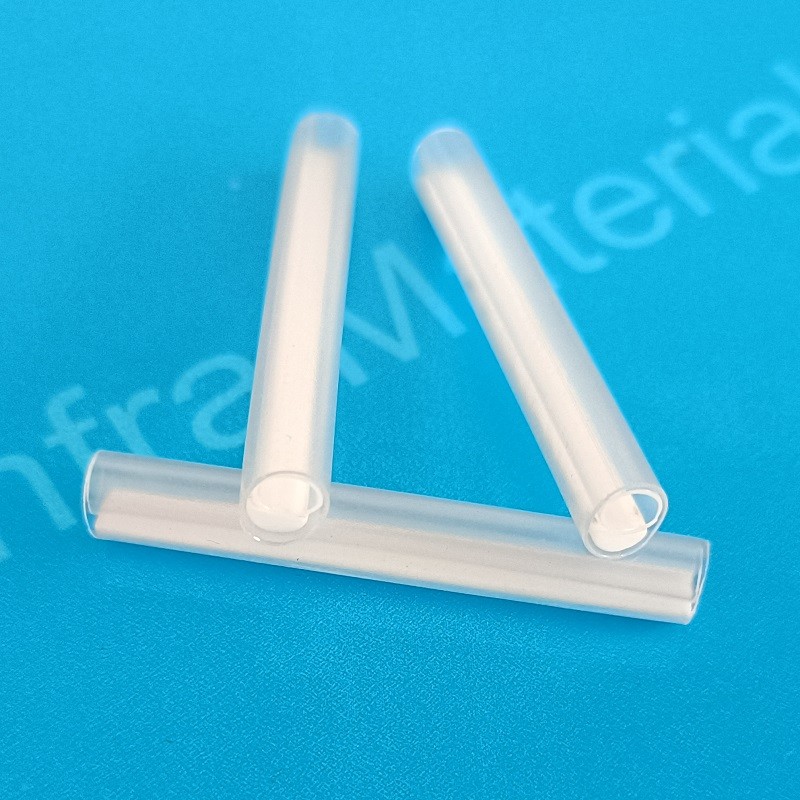

8F Ribbon Fiber Splice Protective Sleeves 40mm Single Ceramic Rod Heat Shrink Sleeves

Description:

8F Ribbon Fiber Splice Protective Sleeves 40mm Single Ceramic Rod Heat Shrink Sleeves is applied to the optical fiber closure to fix and protect the optical fiber when splicing. 8F Single Ceramic Heat Shrink Protective Ribbon Fiber Splice Sleeve can be divided into two types (single rod and ribbon rods) according to the function.

 8F Single Ceramic Heat Shrink Protective Ribbon Fiber Splice Sleeve is constructed with an inner EVA meltable adhesive tube, a polyolefin heat shrink outer tube and either single or dual strength members. Our single strength member sleeve which has become an industry standard, has an after shrink diameter of 4.9 X 4.4 mm, and utilizes a special glass member.

Feature:

1. Single holed (preshrunk)ends eliminates improper fiber threading
2. Smooth, deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation.
3. Extended liner length prevents contact between the fiber and ther backbone
4. Clear sleeve design persign permits easy centering of splice before heating
5. Sealing structure makes the splice free from effect of temperature and humidity from environment

6. Protecting splicing point
7. Improve mechanical strength
8. Simple operation, reducing the risk of fiber damage during installation.
9. Does not affect the optical characteristics of the optical fiber.
10. Sealing structure to have good resistance of temperature and humidity performance

Applications:

1.Fusion splicing
2.Fiber cable protecting

3.FTTH system

4.Rack-mount & Wall-mount terminal box

5. Fiber Opitc Splice Closure

6. optical fiber switch box and so on continue protection
