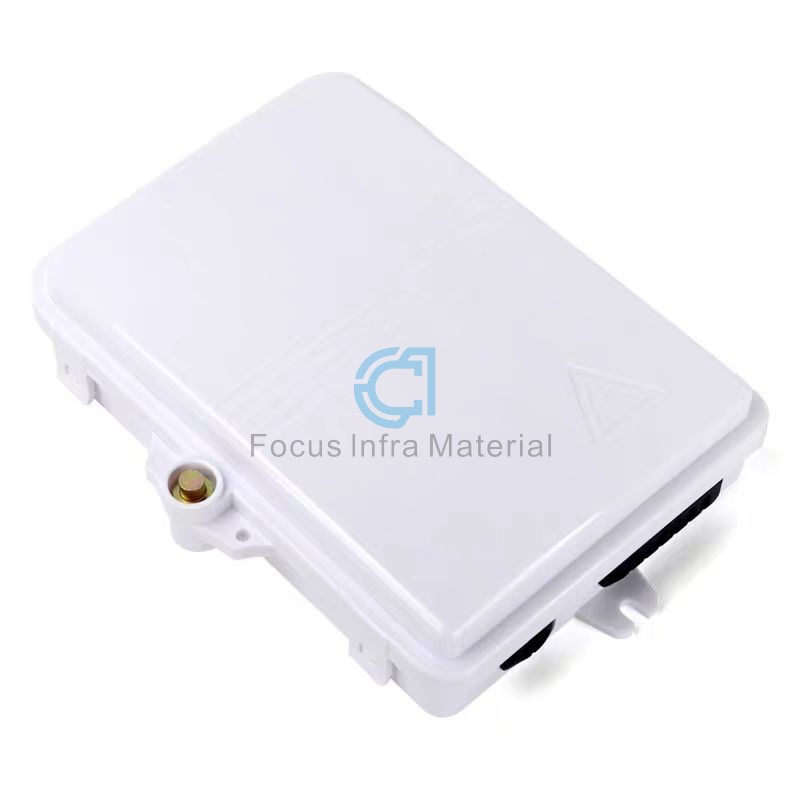

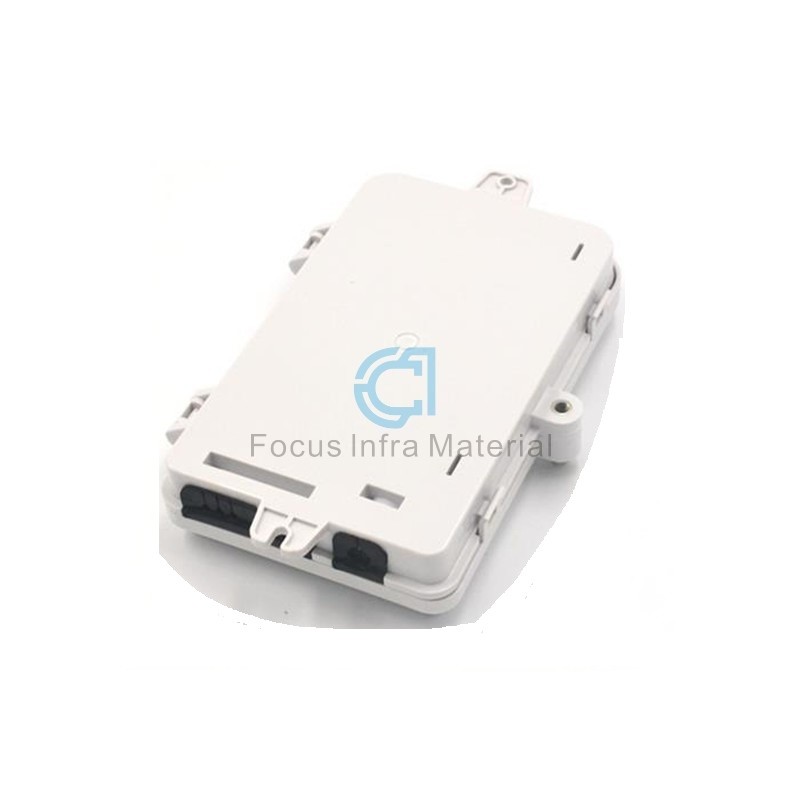

6 Core Plastic Distribution Box Fiber Optic Termination Box

6 Core Plastic Distribution Box Fiber Optic Termination Box

Description:

6 Core Plastic Distribution Box Fiber Optic Termination Box is used for outdoor, corridor or indoor connection trunk optical cable and cable distribution interface equipment. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.The fiber distributor box must be able to work reliably in the specified environment, and its box can withstand a vertical pressure of not more than 500N.

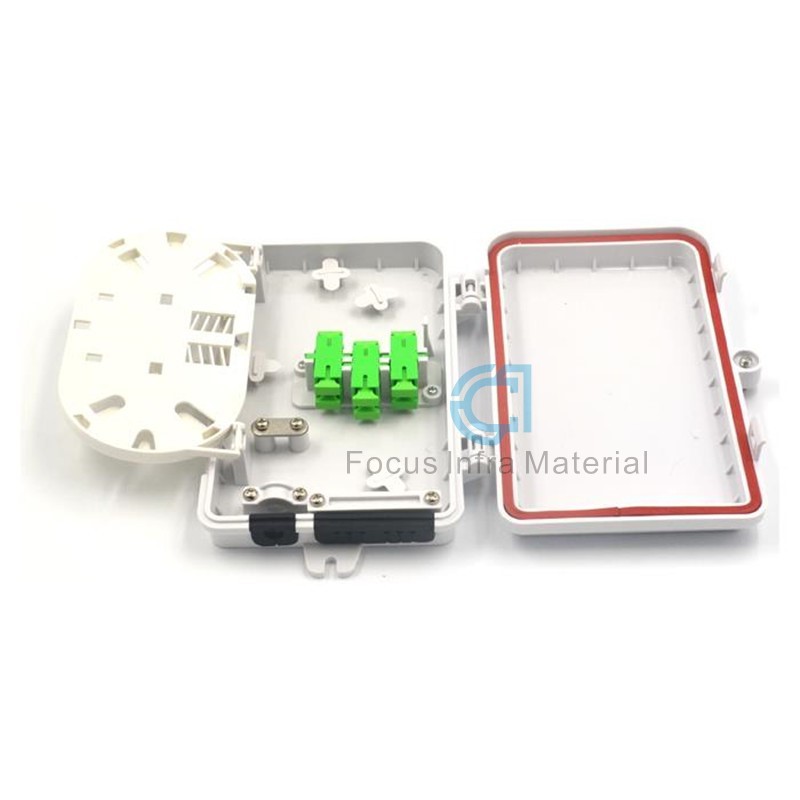

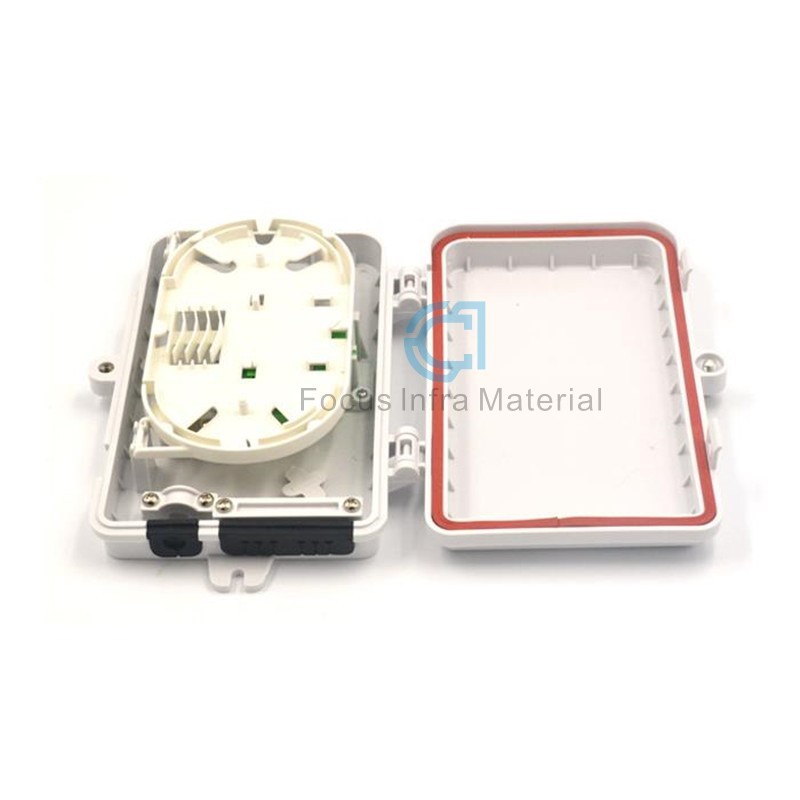

The optical fiber terminal box is the terminal joint of an optical cable. With one end of optical cable and the other end is a pigtail, which is equivalent to the equipment for splitting an optical cable into a single optical fiber. The user optical cable terminal box installed on the wall is used to provide the fusion of optical fiber and optical fiber, the fusion of optical fiber and pigtail, and the handover of optical connectors. It also provides mechanical and environmental protection for the optical fiber and its components, and allows appropriate inspection to maintain the highest standard of optical fiber management.

Specification:
