FTTA LANs CATV Fiber Optic Adapters APC With Flange

Model Number: SC/APC
Insertion Loss:＜0.2db
Return Loss: ＞50db
Use: FTTH, FTTX, FTTA, CATV, lAN'S

FTTA LANs CATV Fiber Optic Adapters APC With Flange

Description:

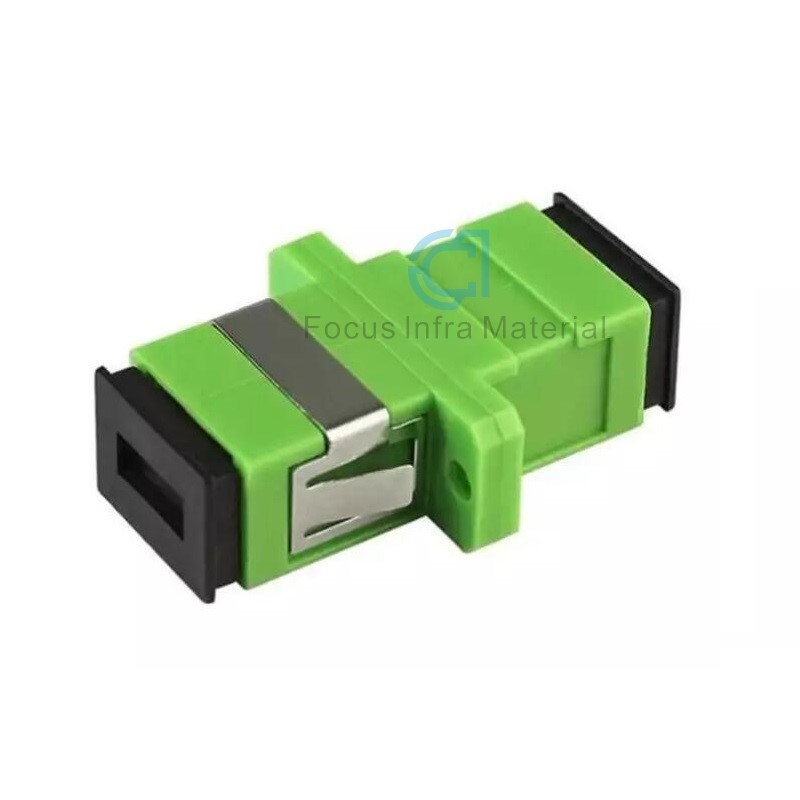

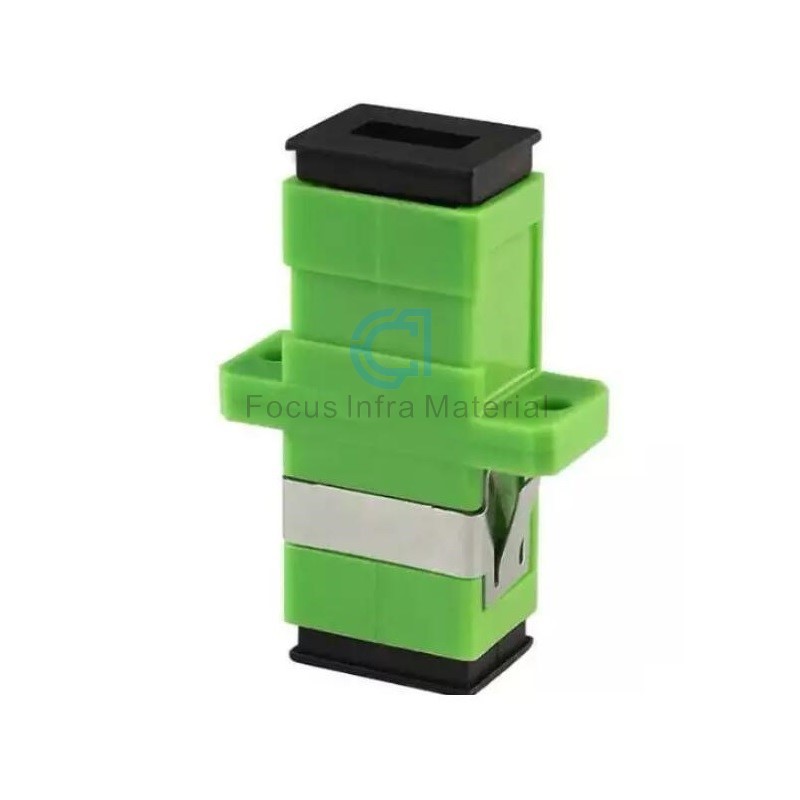

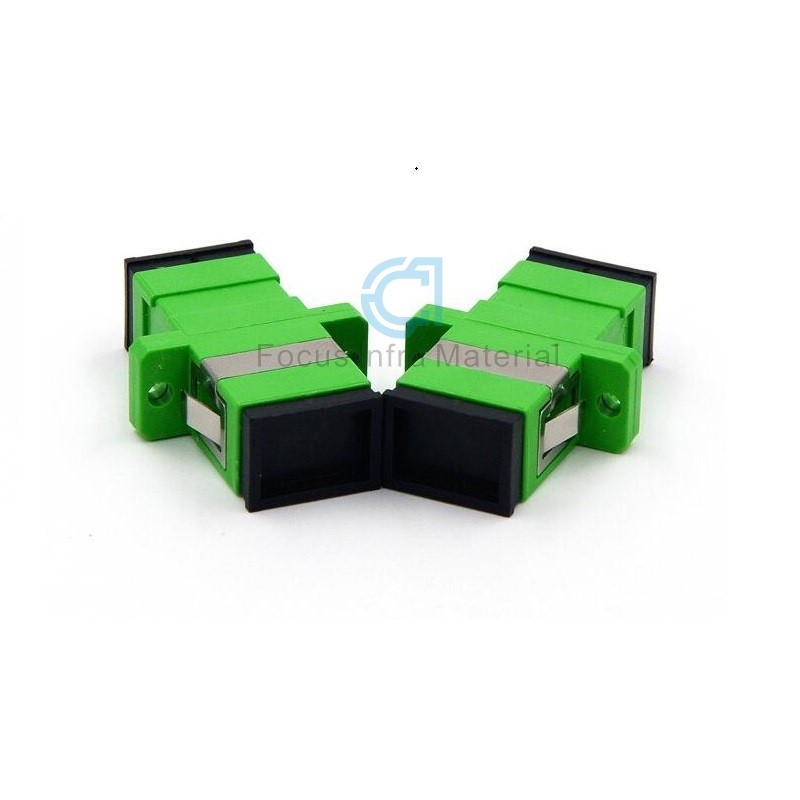

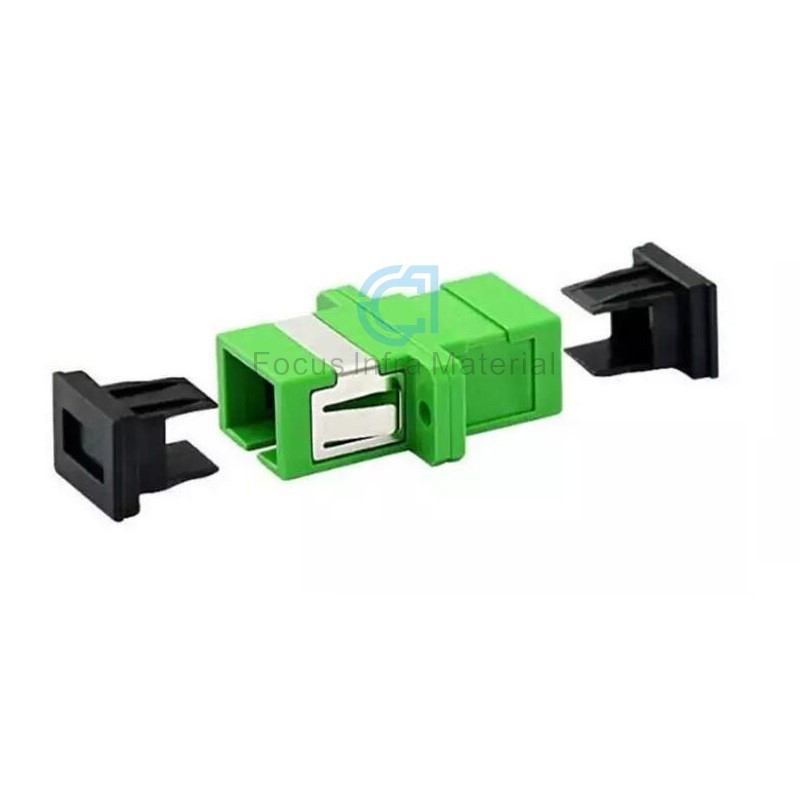

Focus Infra's Optical Fiber SM SX SC APC with Flange Fiber Optic Coupler is used for Single Mode Fiber Connection. The "SC" connector is a standard square connector, using engineering plastics, which has the advantages of high temperature resistance and not easy to oxidize. The optical interface on the transmission equipment side generally uses an SC connector. The Fiber Optic Coupler is a device for detachable (movable) connection between an optical fiber and an optical fiber.

SC type is an optical fiber connector developed by NTT Corporation of Japan. Its shell is rectangular, and the structural dimensions of the pins and coupling sleeves used are exactly the same as those of the FC type. Among them, the end face of the pin mostly adopts the PC or APC type grinding method; the fastening method is the plug-in latch type, without rotation. This type of connector is cheap, easy to plug and unplug, small fluctuations in insertion loss, high compressive strength, and high installation density.

Specification:

Type		Insertion loss(db)	Tensility resist(g)	Inser and pull times	Temperature(℃)
FC	PC	< 0.2	200-600	1000	-40-+80
FC	APC	< 0.2	200-600	1000	-40-+80
SC	PC	< 0.2	200-600	1000	-40-+80
SC	APC	< 0.2	200-600	1000	-40-+80
ST		< 0.2	200-600	1000	-40-+80
LC		< 0.2	200-600	1000	-40-+80
MU		< 0.2	200-600	1000	-40-+80
MIRJ		< 0.2	200-600	1000	-40-+80
E-2000		< 0.2	200-600	1000	-40-+80
FC-SC		< 0.2	200-600	1000	-40-+80
FC-ST		< 0.3	200-600	1000	-40-+80
SC-ST		< 0.2	200-600	1000	-40-+80
