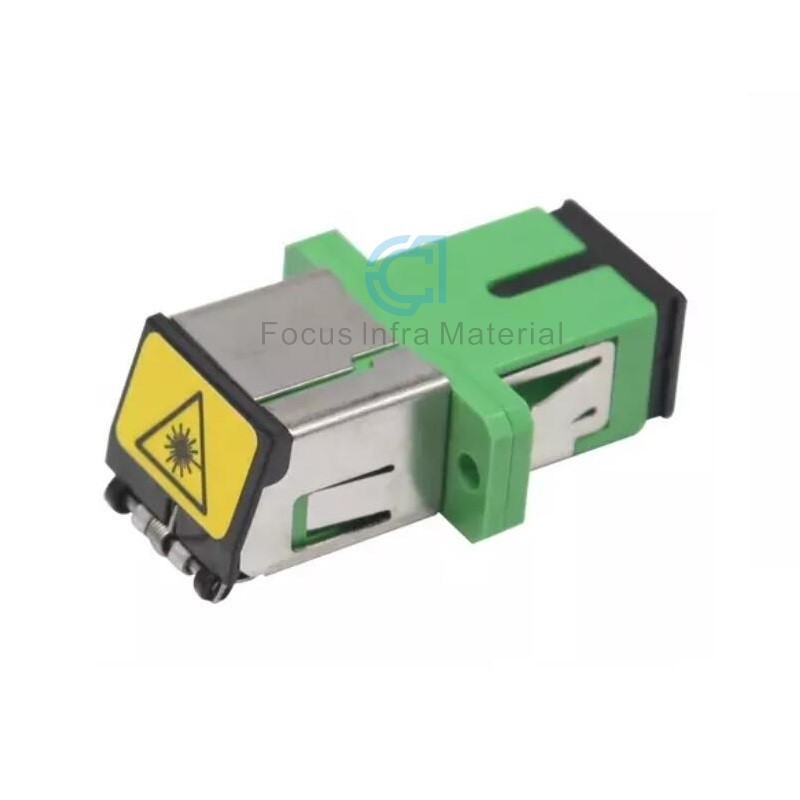

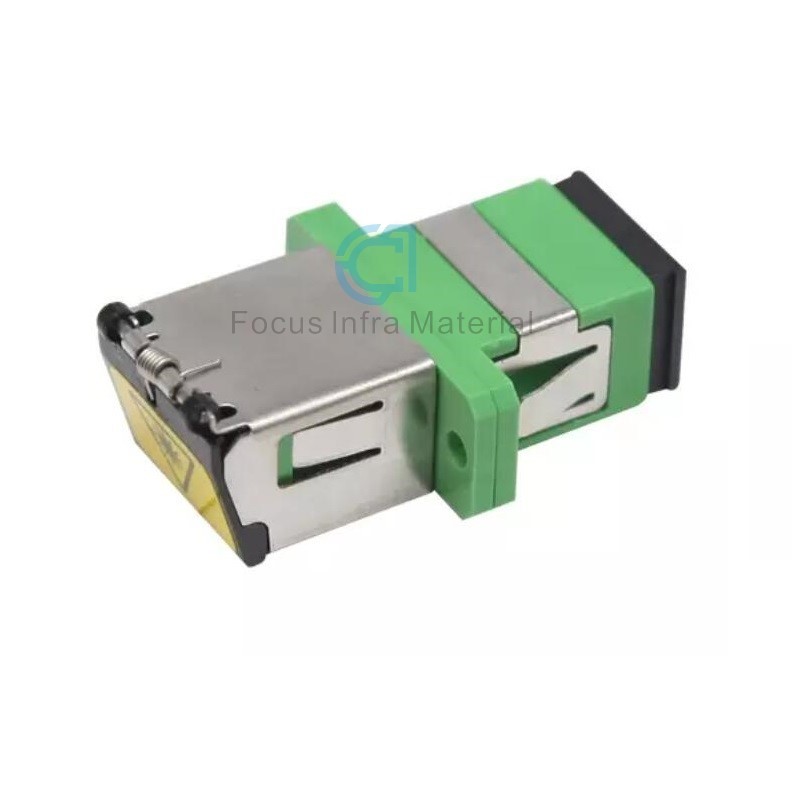

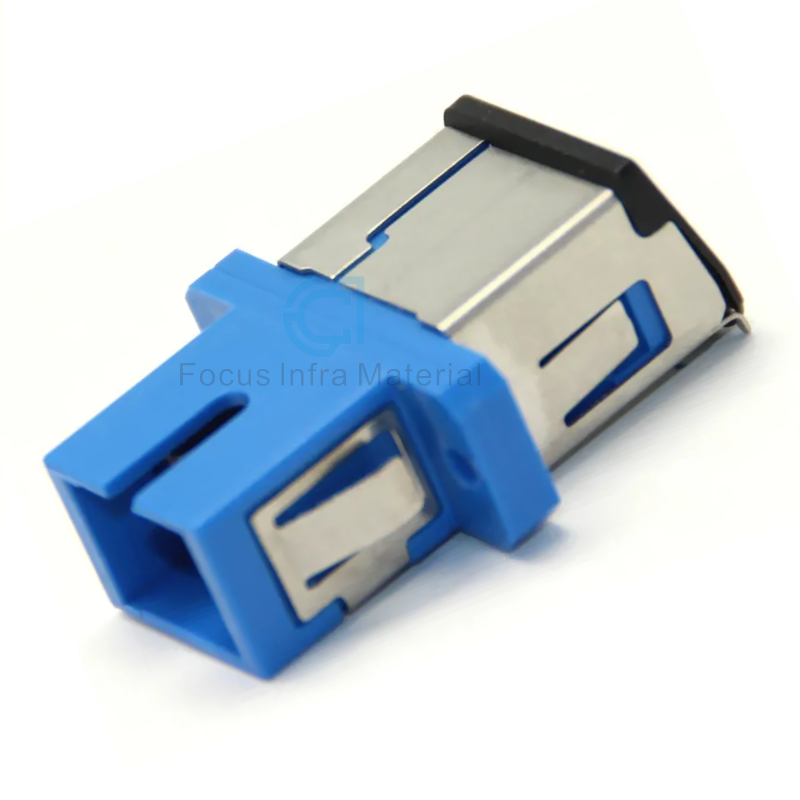

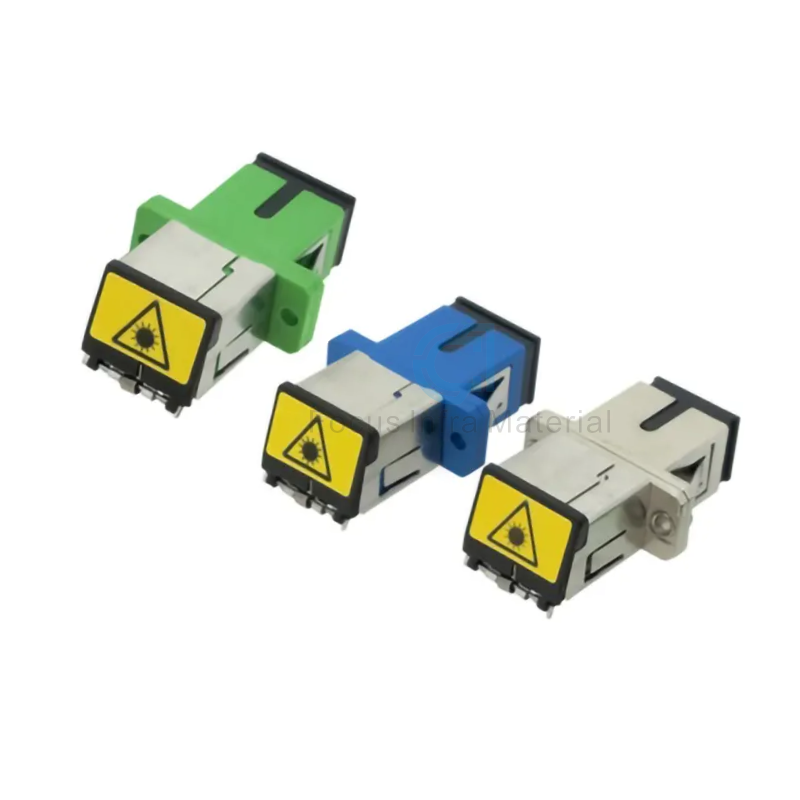

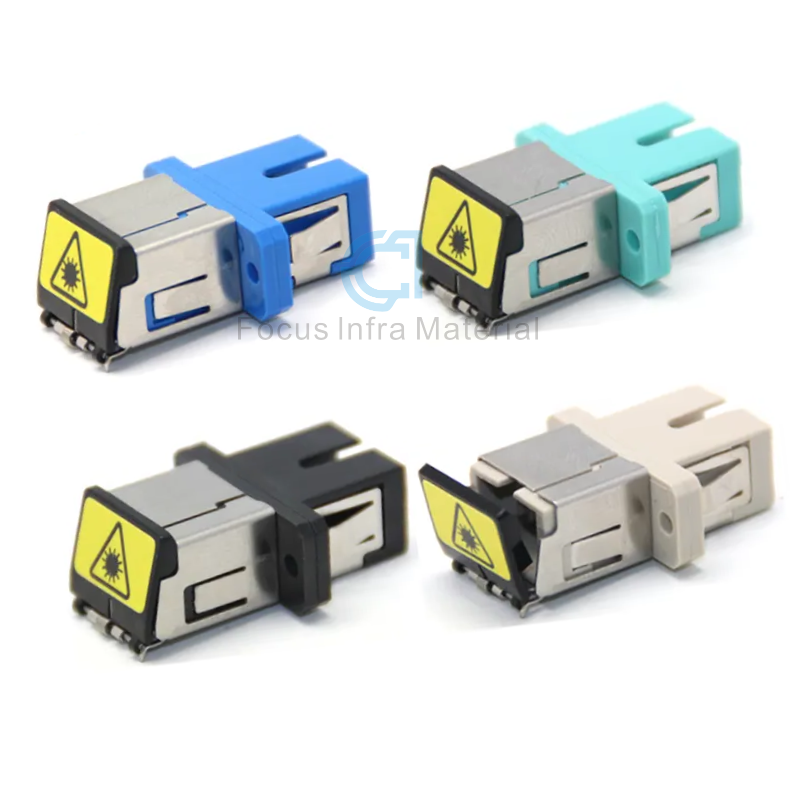

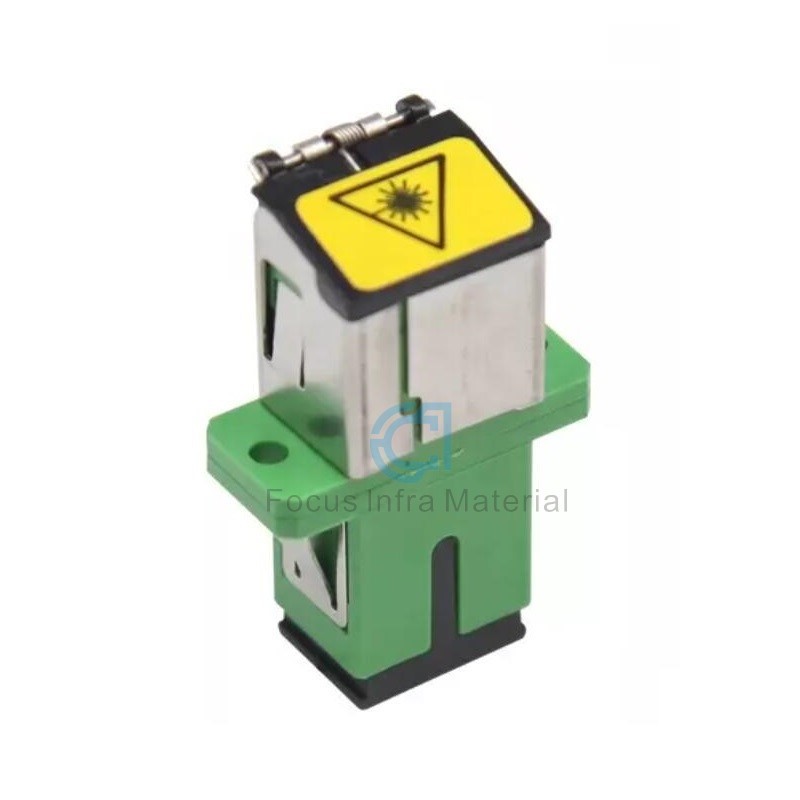

Fiber Optical Adapter Metal Adapter SC APC SM SX Coupler
Model Number: SC/APC
Insertion Loss:＜0.2db
Return Loss: ＞50db
Use: FTTH, FTTX, FTTA, CATV, lAN'S
Description:
Focus Infra’s Fiber Optical Adapter Metal Adapter SC APC SM Simplex Coupler is used for Single Mode Fiber Connection. The "SC" connector is a standard square connector, using engineering plastics, which has the advantages of high temperature resistance and not easy to oxidize. The optical interface on the transmission equipment side generally uses an SC connector. The Fiber Optic Coupler is a device for detachable (movable) connection between an optical fiber and an optical fiber.
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
