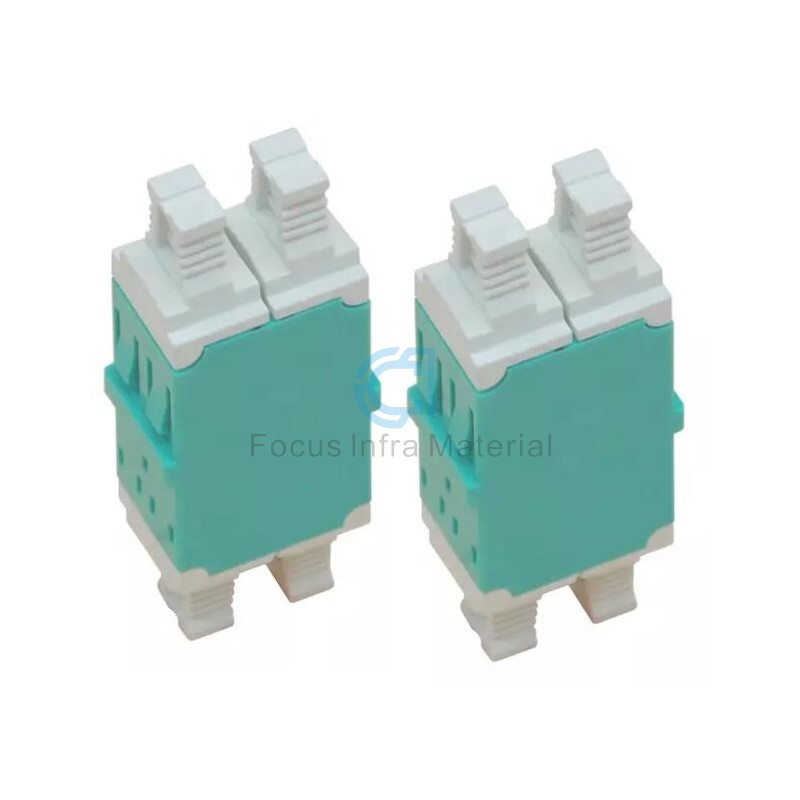

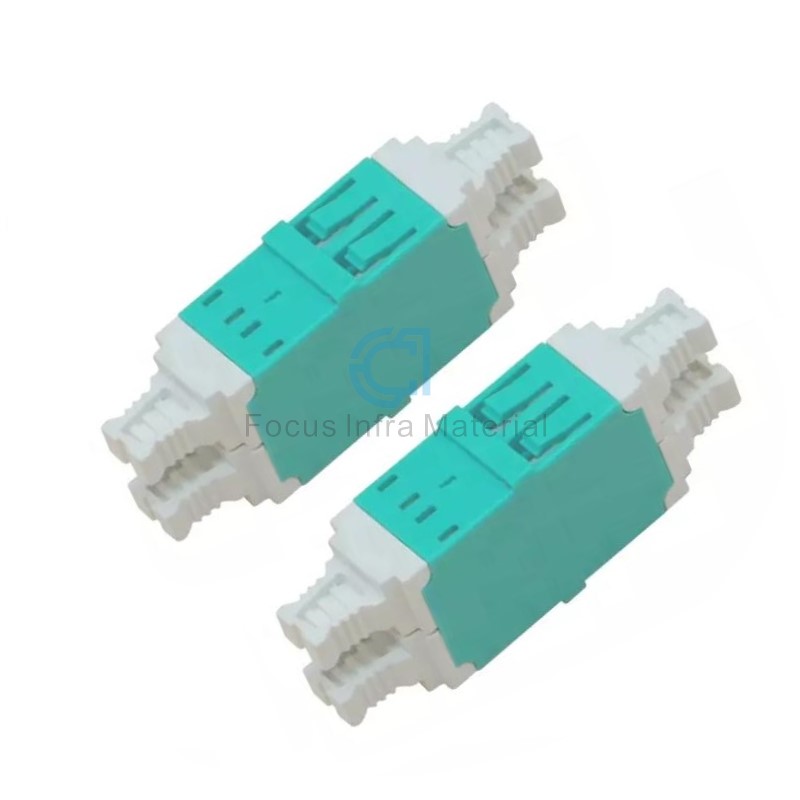

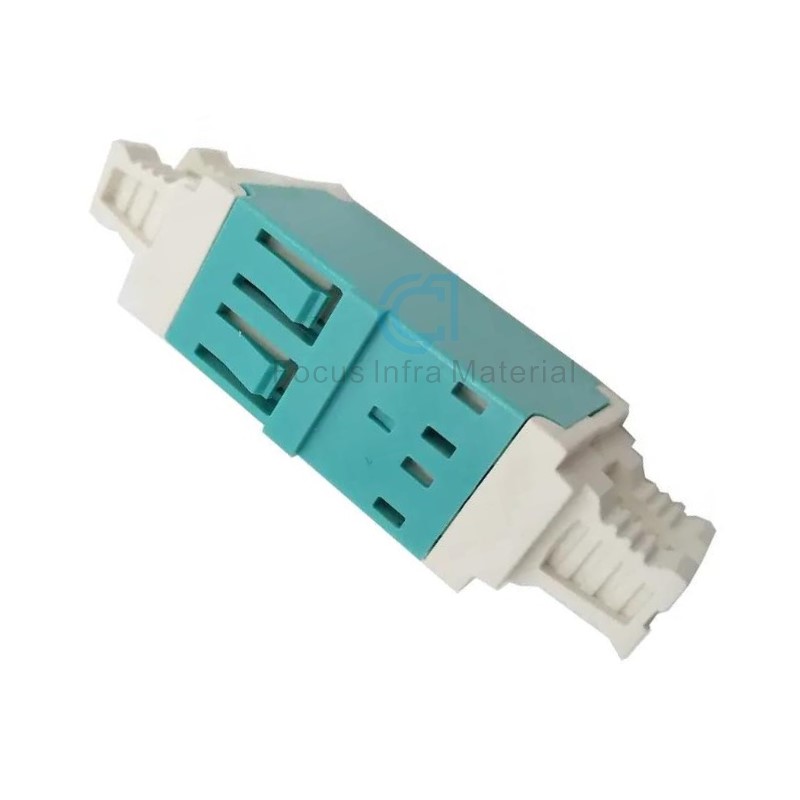

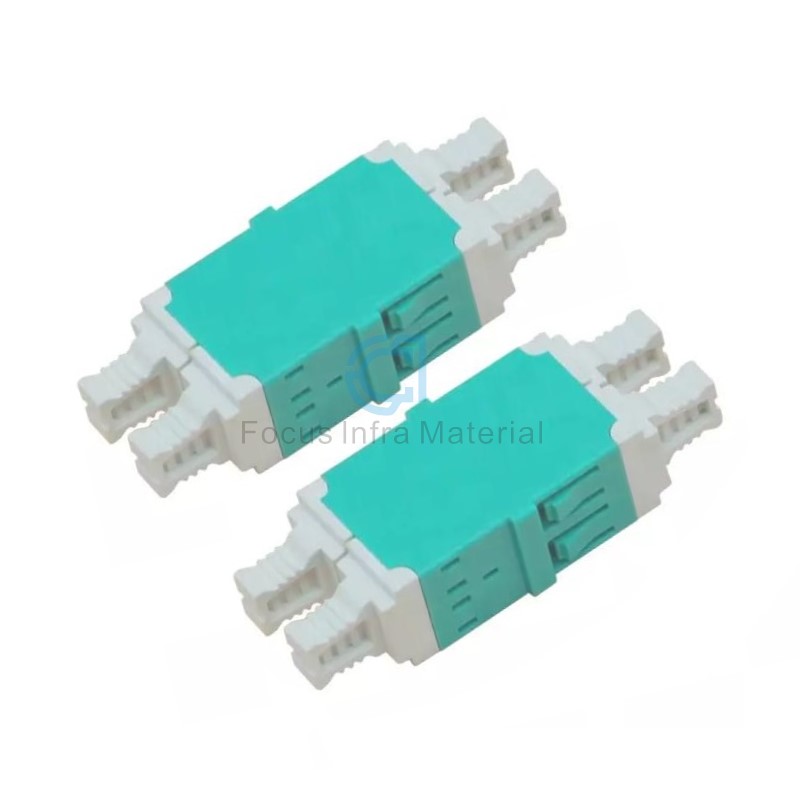

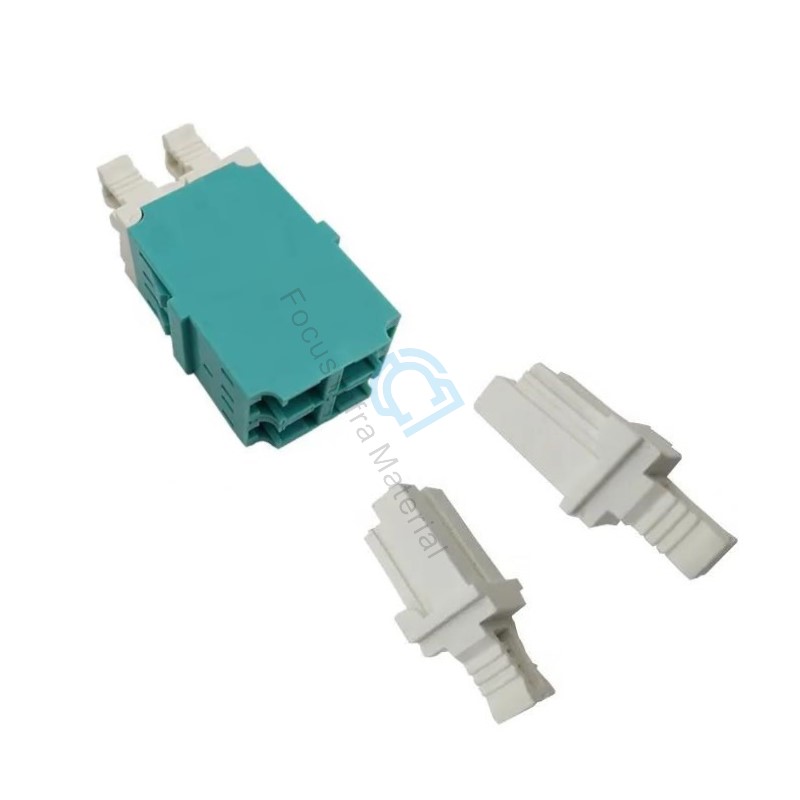

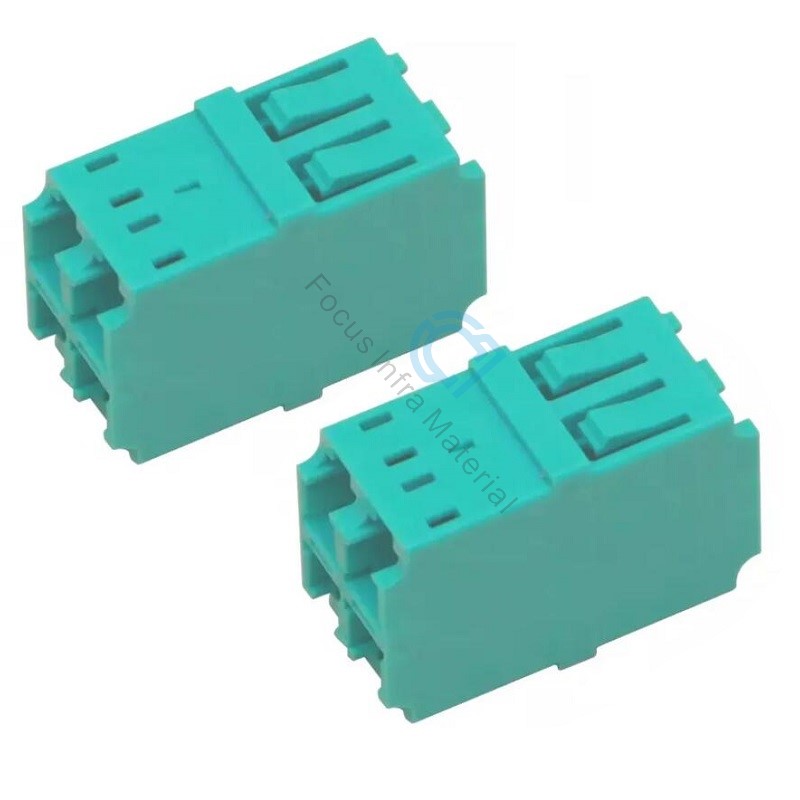

FTTH Fiber Optic Adapter LC Quad Double Deck 2 Port Sm 2 Core Upc Om3 Om4 Fiber Optic Adapter for Network Adapter

Insertion Loss: <0.2db
Return Loss: >50db
Durability: >1000 Matings
Use: FTTH, FTTX, FTTA, CATV

FTTH Fiber Optic Adapter LC Quad Double Deck 2 Port Sm 2 Core Upc Om3 Om4 Fiber Optic Adapter for Network Adapter


Description:

   Fiber optic adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection.

Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).

   LC fiber optic adaptors are all plastic housing; there are simplex LC adaptors and duplex LC adaptors, usually duplex LC fiber adaptors are with SC footprint. The LC fiber adaptors colors are same as SC fiber optic adaptors: blue for single mode PC, beige for multi mode PC and green for single mode APC. LC fiber optic adaptors are with bronze sleeve for multimode and zirconia sleeve for single mode.


Features:

Low insertional loss and back reflection loss

High prcision alignment

Telcordia, ANSI, TIA/EIA, NTT and JIS

compliance

Compact design

Plastic housing


Application:

CATV

Telecommunication networks

Test equipment

Metro

Local Area Networks(LANs)

Data processing networks

Multimedia

Gigabit Ethernet

Active device/Transceiver


Specification:


Type Insertion loss(db) Tensility resist(g) Inser and pull times Temperature(℃)
FC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
SC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
ST < 0.2 200-600 1000 -40-+80
LC < 0.2 200-600 1000 -40-+80
MU < 0.2 200-600 1000 -40-+80
MIRJ < 0.2 200-600 1000 -40-+80
E-2000 < 0.2 200-600 1000 -40-+80
FC-SC < 0.2 200-600 1000 -40-+80
FC-ST < 0.3 200-600 1000 -40-+80
SC-ST < 0.2 200-600 1000 -40-+80
