Model Number: LC UPC
Model Number: Quad
Insertion Loss: <0.2db
Return Loss: >50db

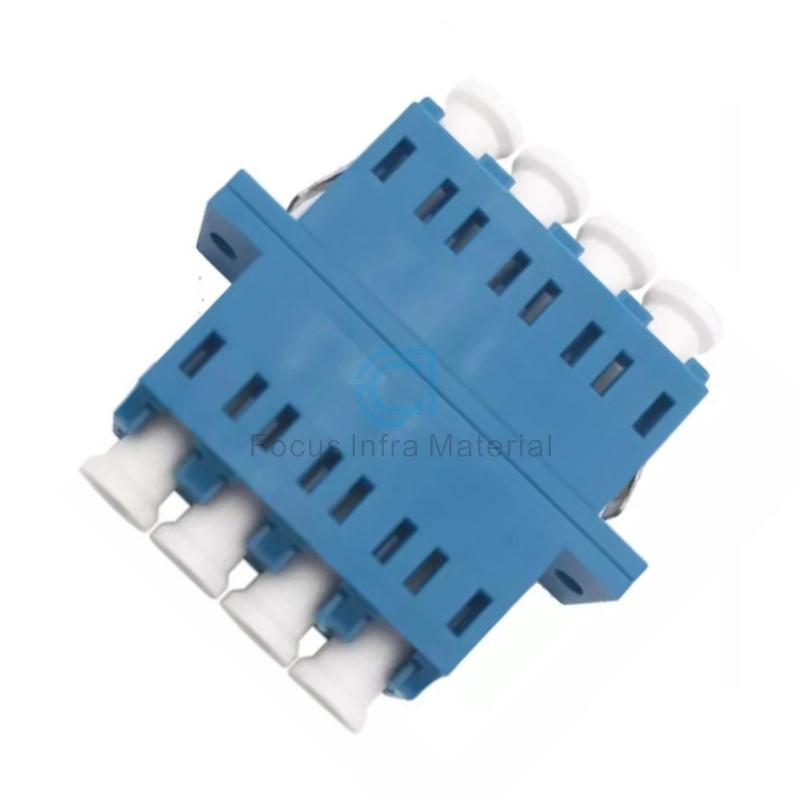

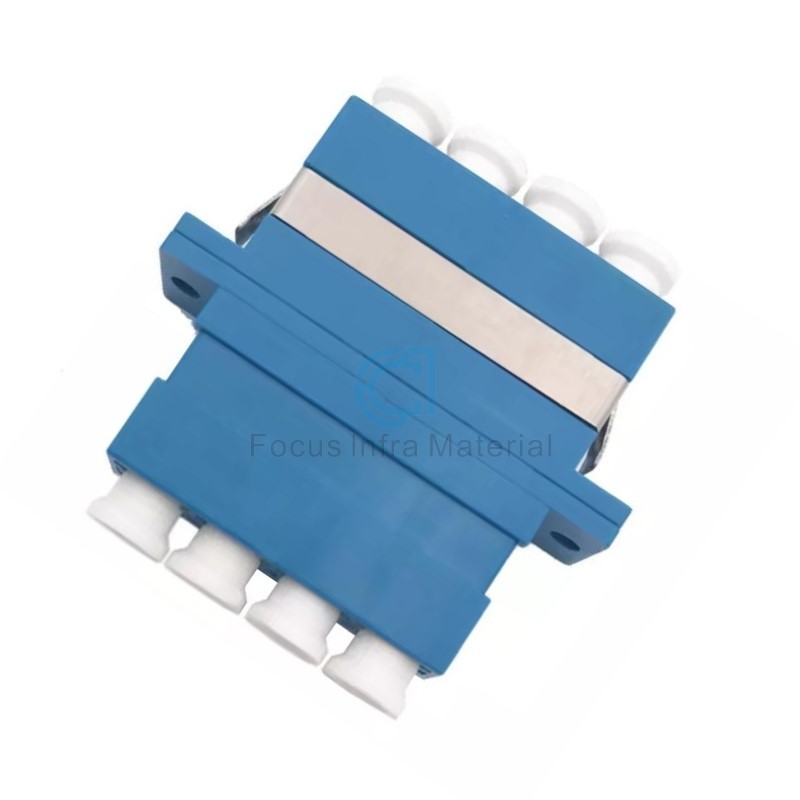

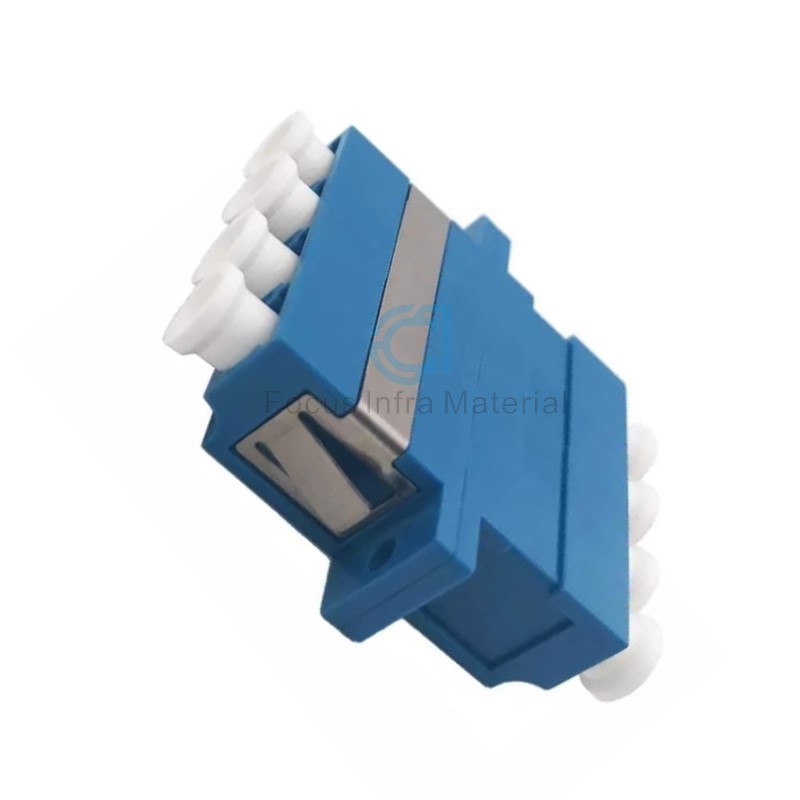

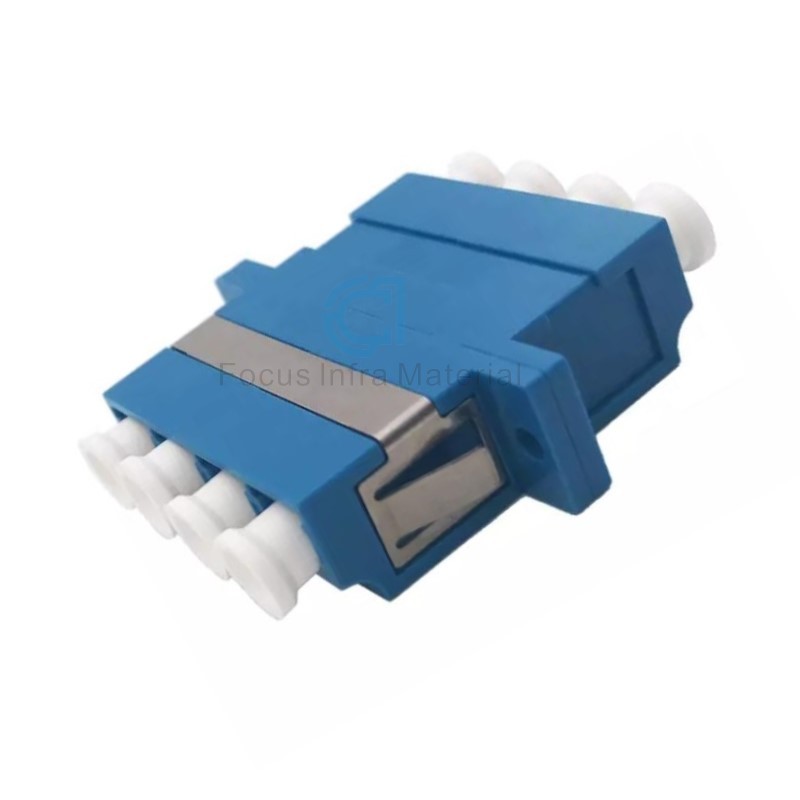

Quad Fiber Optic Adapters CATV Lc To Lc Coupler Fiber Connector
Description:
Fiber optic adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. SC fiber optic adaptors are all with plastic housing, there are different colors: blue for single mode PC, green for single mode APC and beige for multimode PC. All SC fiber optic adaptors are flange type, single mode adaptors are with zirconia sleeve while multimode fiber adaptors are with bronze sleeve. SC fiber optic adaptors are available with both simplex adaptors and duplex adaptors.
LC fiber optic adaptors are all plastic housing; there are simplex LC adaptors and duplex LC adaptors, usually duplex LC fiber adaptors are with SC footprint. The LC fiber adaptors colors are same as SC fiber optic adaptors: blue for single mode PC, beige for multi mode PC and green for single mode APC. LC fiber optic adaptors are with bronze sleeve for multimode and zirconia sleeve for single mode.
Features:
Low insertional loss and back reflection loss
High prcision alignment
Telcordia, ANSI, TIA/EIA, NTT and JIS
compliance
Compact design
Plastic housing
Application:
CATV
Telecommunication networks
Test equipment
Metro
Local Area Networks(LANs)
Data processing networks
Multimedia
Gigabit Ethernet
Active device/Transceiver
Specification:
Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
APC | < 0.2 | ||||
SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
APC | < 0.2 | ||||
ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 |
