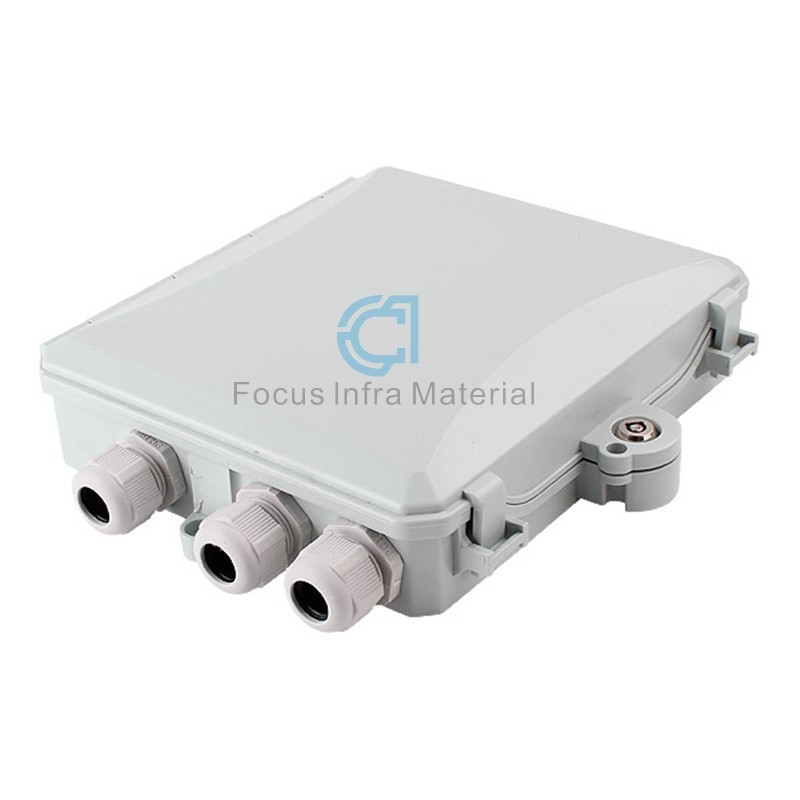

FTTH Terminal Box 8 Port Fiber Distribution Box With LGX PLC Splitter

Model Number : FOCC-F-04
Cores: 8 Cores
Cable Port: 1 IN 2 OUT
Texture Of Material: ABS, PC

FTTH Terminal Box 8 Port Fiber Distribution Box With LGX PLC Splitter


Description:

 Fiber Terminal boxes designed to meet the market demand are divided into direct fusion type, adapter type, box type and insert type. High quality cold rolled steel, stainless steel or composite materials are used in the box. It is mainly applicable to the corridor or outdoor splitting points under FTTH access mode. It is suitable for primary or secondary spectroscopy of FTTH. The advantages of secondary spectroscopy are particularly obvious. Bypass fiber connection function is also introduced.

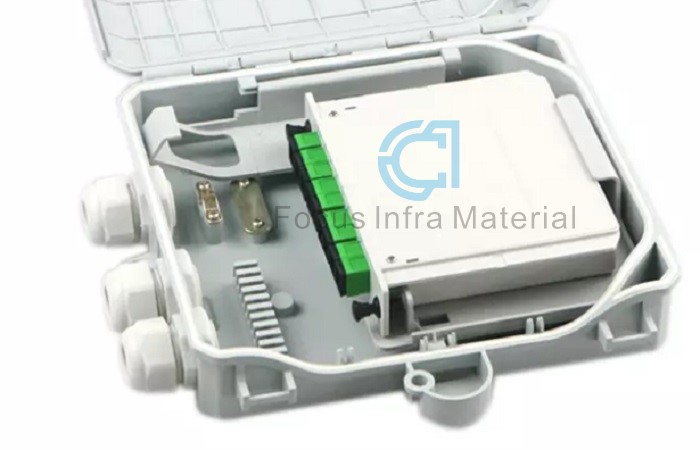

 The socket type optical splitter box adopts modular design and has two to four (eight) expansion slots. It can insert the optical splitter into the slot. By flexibly increasing the number of optical splitters to achieve port expansion, optical splitting modules with different capacities have versatility and interchangeability. A fused fiber disc is also provided for the connection of the up-link optical cable. The storage of tail fiber is fixed by adapter, and no jump connection is realized. High quality cold rolled steel or stainless steel is used for the material of the box. The product is mainly used in the FTTH access mode of the corridor splitting points. It is suitable for primary or secondary spectroscopy of FTTH. The advantages of secondary spectroscopy are particularly obvious.  The flexible configuration of clip splitters can save initial investment for operators.



Specification:

Focus Infra Materials

FOCC-F-04

8 port fiber distribution box

Product dimensionsmm

230*205*55

In and out port

1 in, 2 out

Material

PC, ABS, customizable

Color

Black, gray, white,   customizable

Install the   application (applicable environment)

Indoor, outdoor. (wall   mount, pole mount, aerial)

NET weight of   product(kg)

0.6

Number of boxes packed

20

Dimensions of   cartons(cm)

48.5*23.5*48

Gross weight (kg)

14
