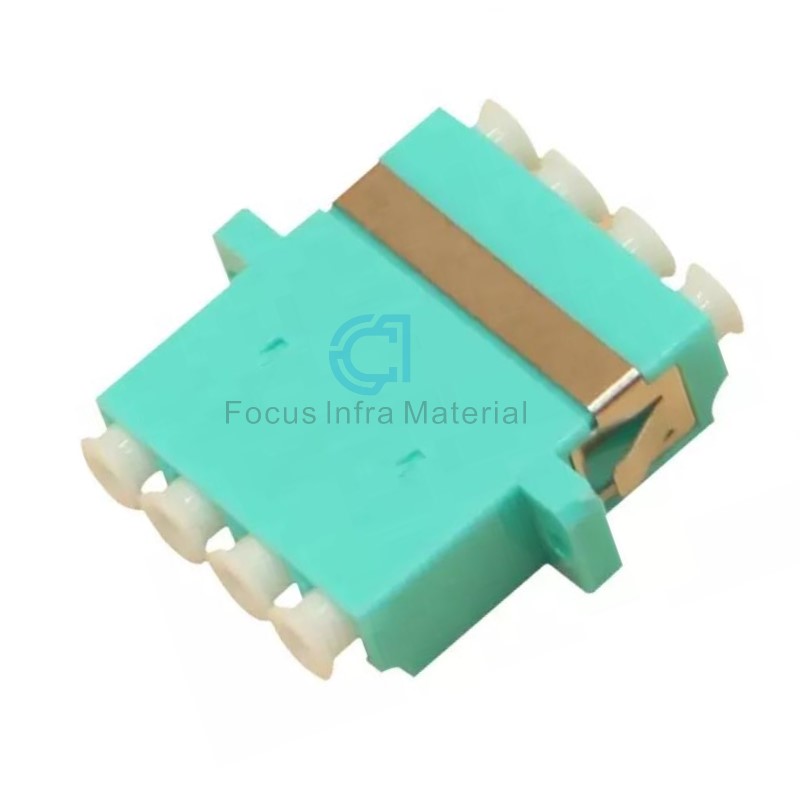

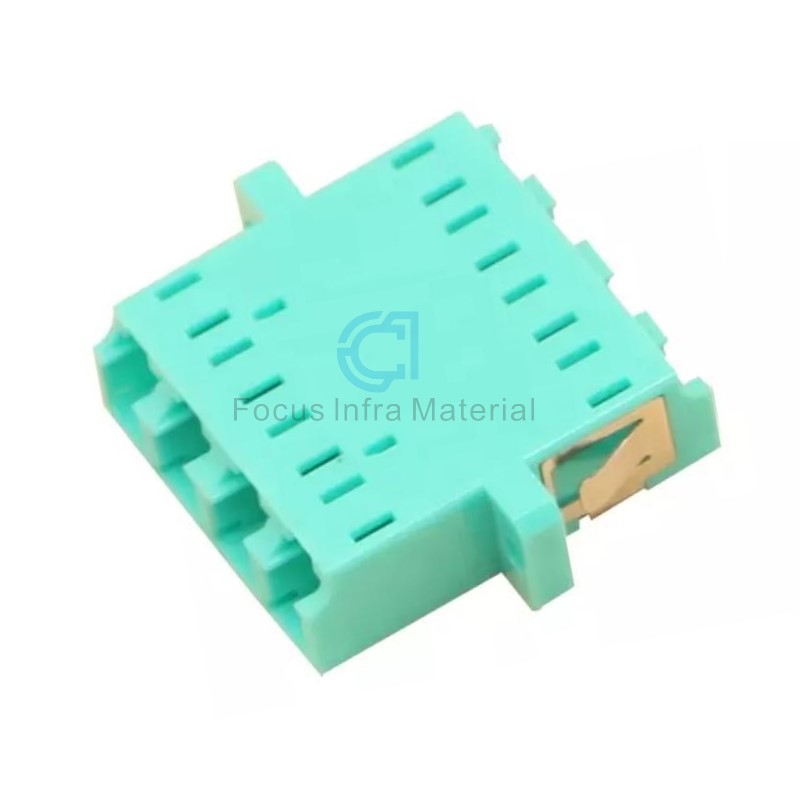

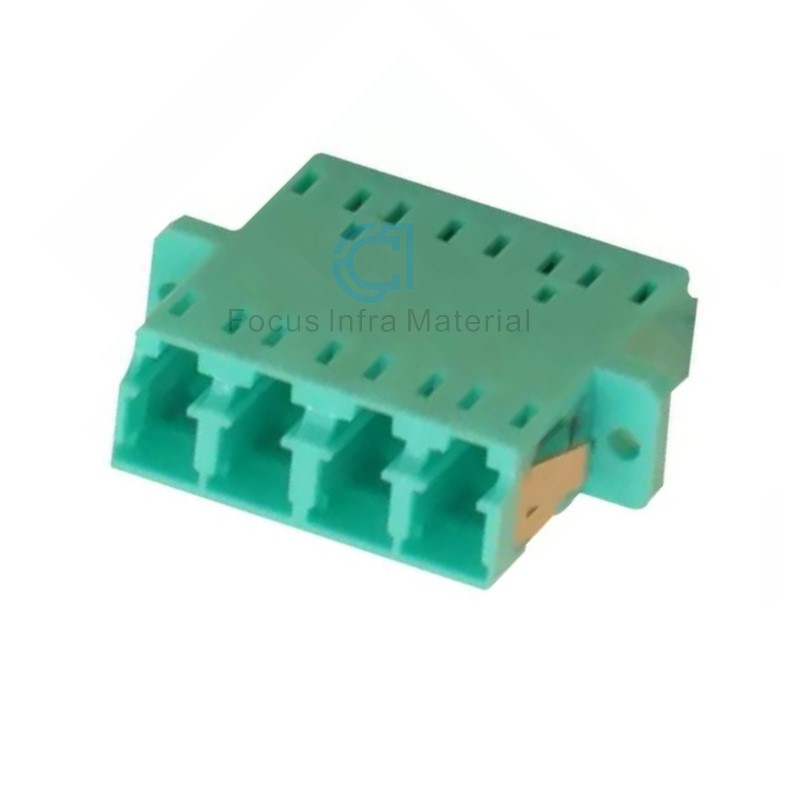

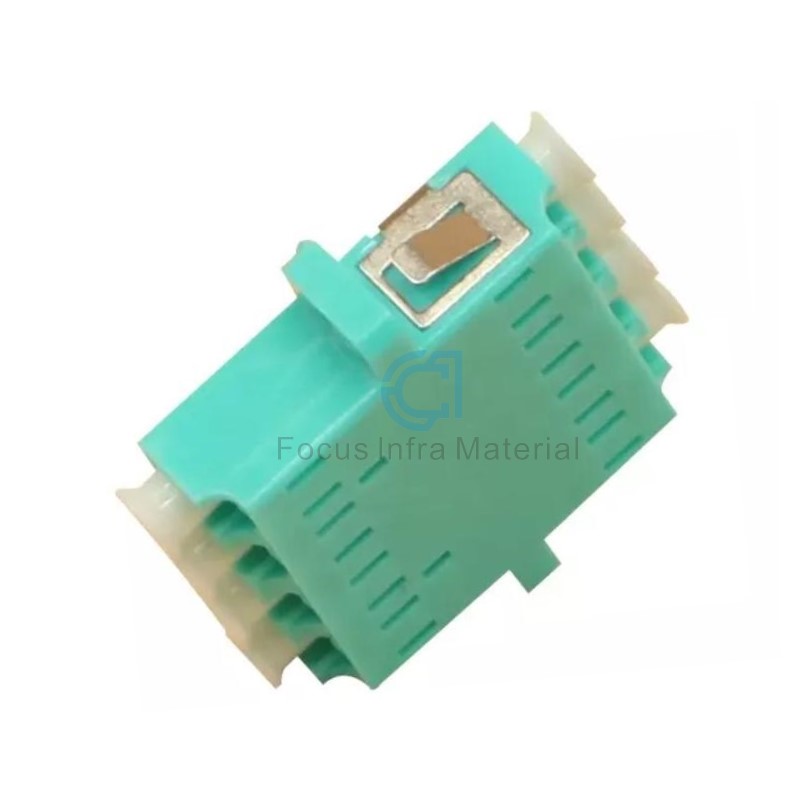

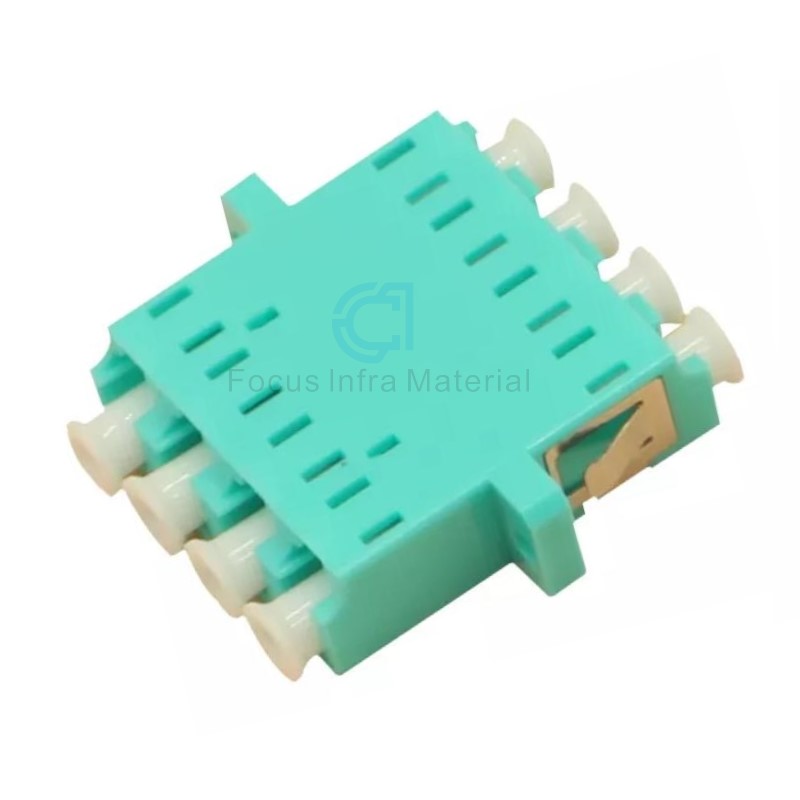

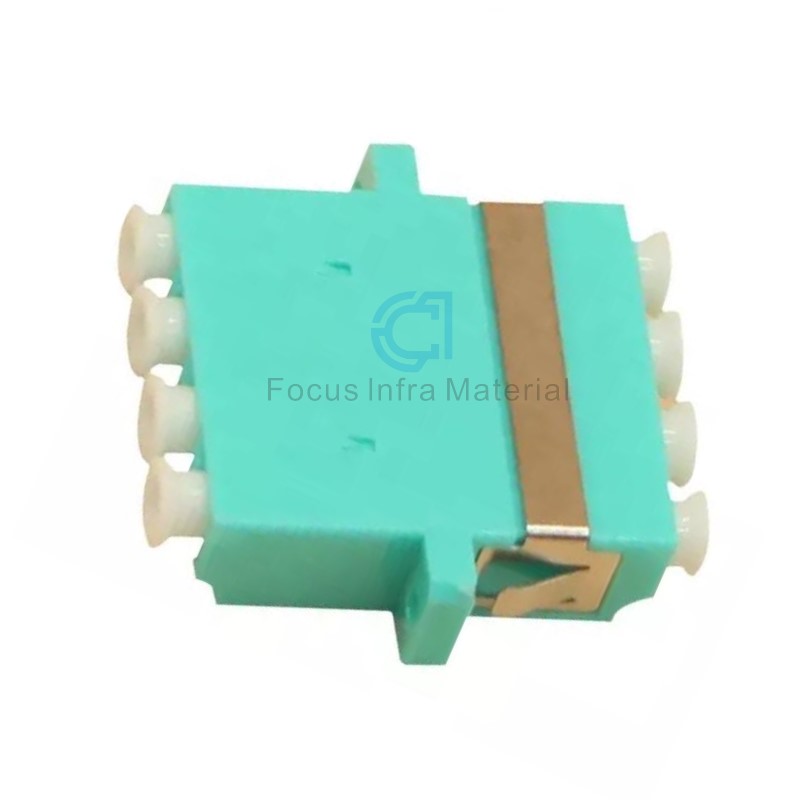

Fiber Opptical Adapter FTTH Fiber Optic Connector LC PC Multimode Fiber Optic Coupler Fiber Adapter Quad Adapter with Flange Metal Clips

Insertion Loss: <0.2db
Return Loss: >50db
Durability: >1000 Matings
Flange: With Flange,without Flange

Fiber Opptical Adapter FTTH Fiber Optic Connector LC PC Multimode Fiber Optic Coupler Fiber Adapter Quad Adapter with Flange Metal Clips


Description:

  Optical fiber connectors are the most widely used optical passive components in optical fiber communication systems. Most optical fiber connectors are composed of three parts: two optical fiber connectors and a coupler. It is widely used in optical fiber distribution frames (ODF), optical fiber communication equipment, Instruments, etc., superior performance, stable and reliable. The optical fibers are connected by the adapter through the internal open sleeve to ensure the highest connection performance between the optical fiber connectors. In order to be fixed on various panels, a variety of fine fixing flanges are also designed.


Features:

  1. Standardization and Uniformization of Metal Casing

  2. Good repeatability, interchangeability and environmental stability

  3. Zirconia or Bronze Sleeve

  4. Precision mechanical dimension

  5. Low Insertion Loss, high Return loss

  6. Ferrule end surface pre-domed

  7. Precision anti-rotation key and corrosion resistant body

  8. UL-rated plastic housing

  9. Telcordia style boots

  10. Free-floating ceramic ferrule

  11. Zirconia sleeves or Phosphor bronze sleeves

  12. D-shaped easily installs into panel mount


Application:

  1. Equipment Test

  2. Local Area Network

  3. Optic instrumentation

  4. CATV system, Optic LAN

  5. Telecommunication Networks

  6. Fiber optic communication network

  7. Optical Broadband Access Network


Specification:

Type Insertion loss(db) Tensility resist(g) Inser and pull times Temperature(℃)
FC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
SC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
ST < 0.2 200-600 1000 -40-+80
LC < 0.2 200-600 1000 -40-+80
MU < 0.2 200-600 1000 -40-+80
MIRJ < 0.2 200-600 1000 -40-+80
E-2000 < 0.2 200-600 1000 -40-+80
FC-SC < 0.2 200-600 1000 -40-+80
FC-ST < 0.3 200-600 1000 -40-+80
SC-ST < 0.2 200-600 1000 -40-+80
