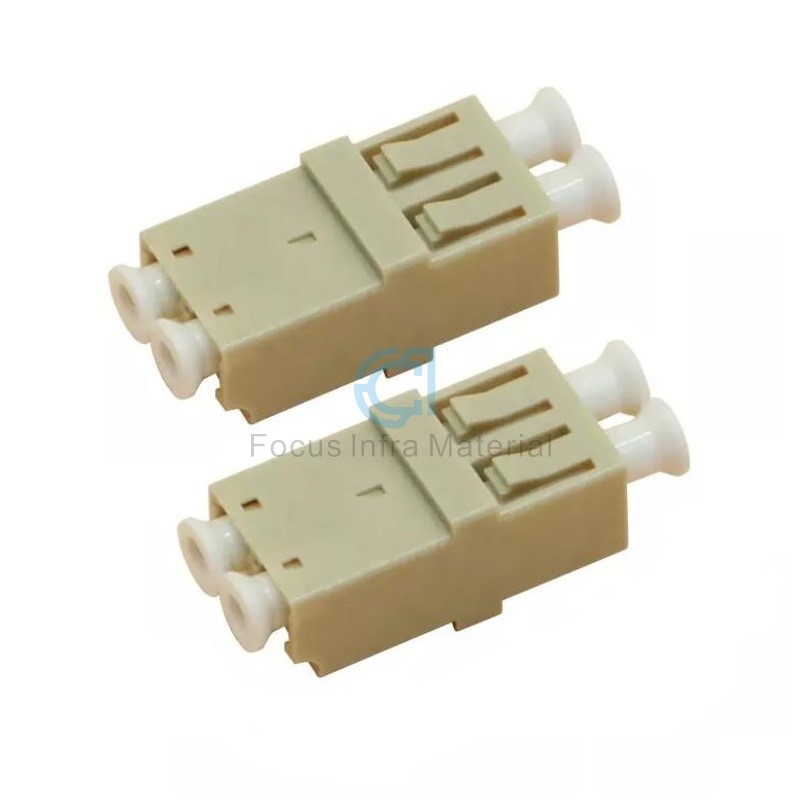

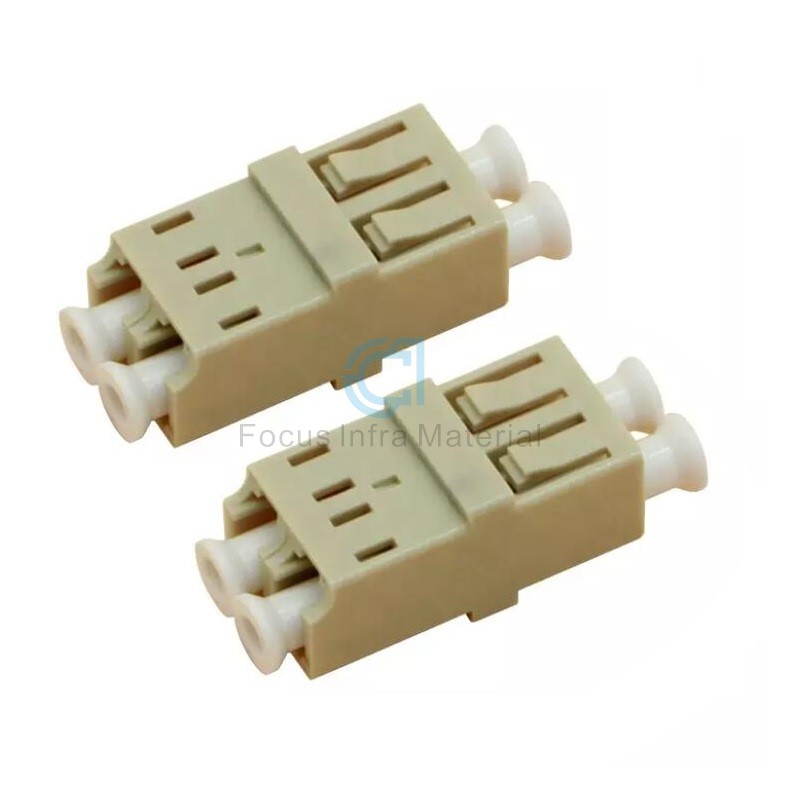

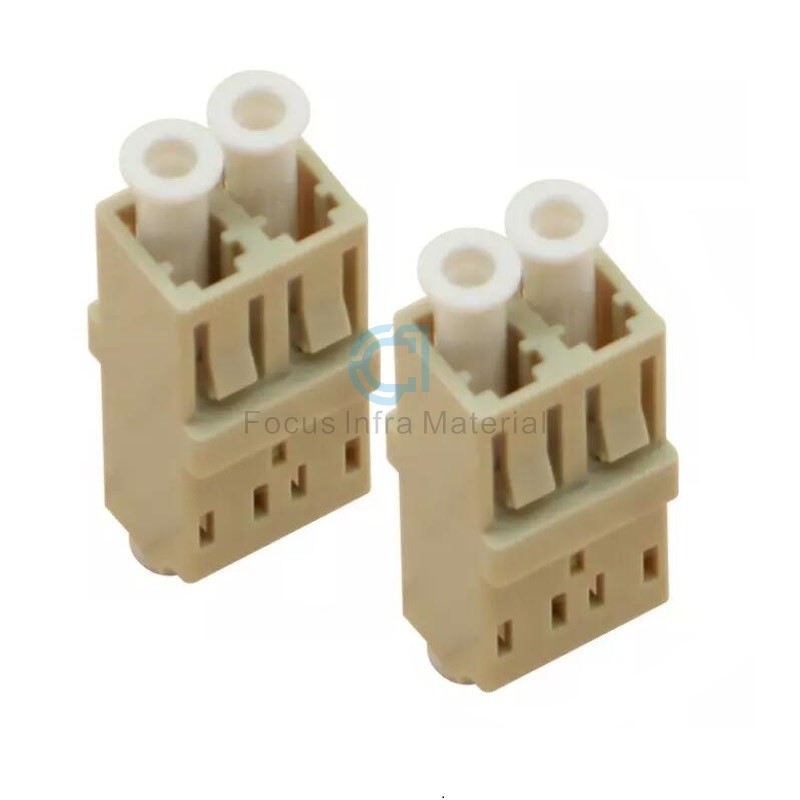

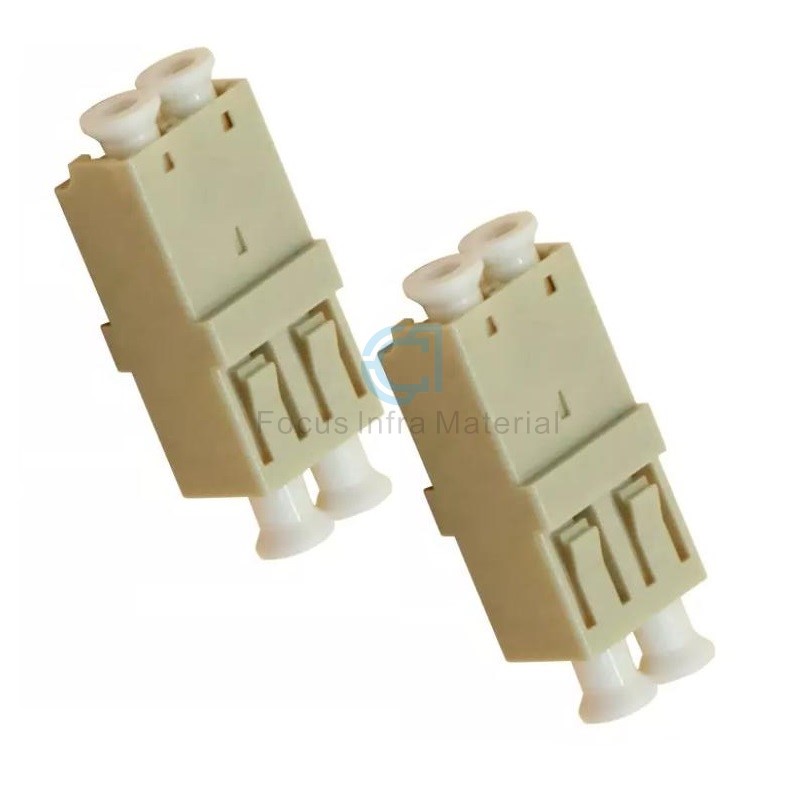

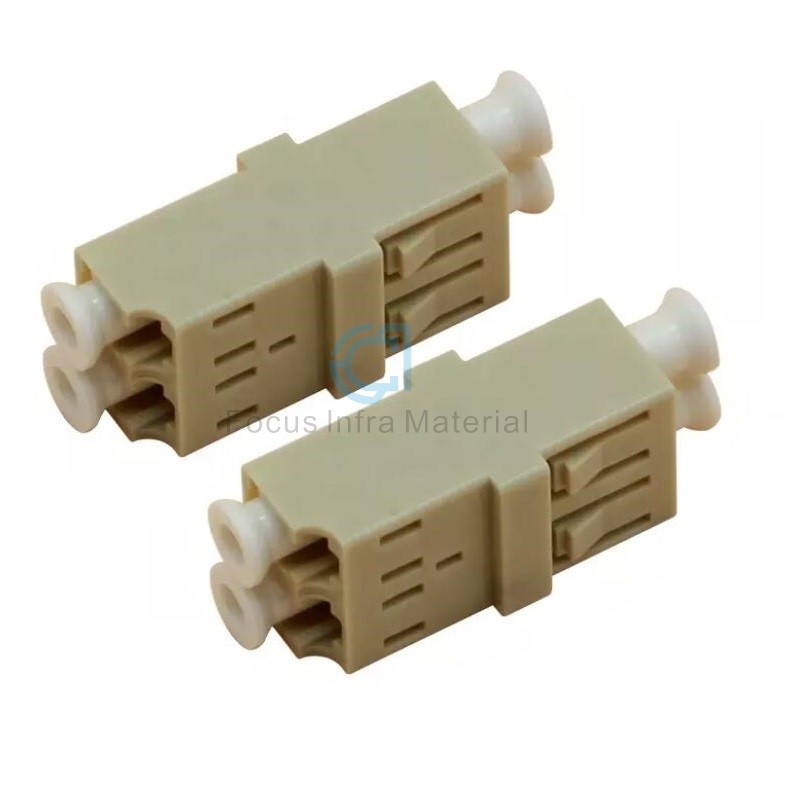

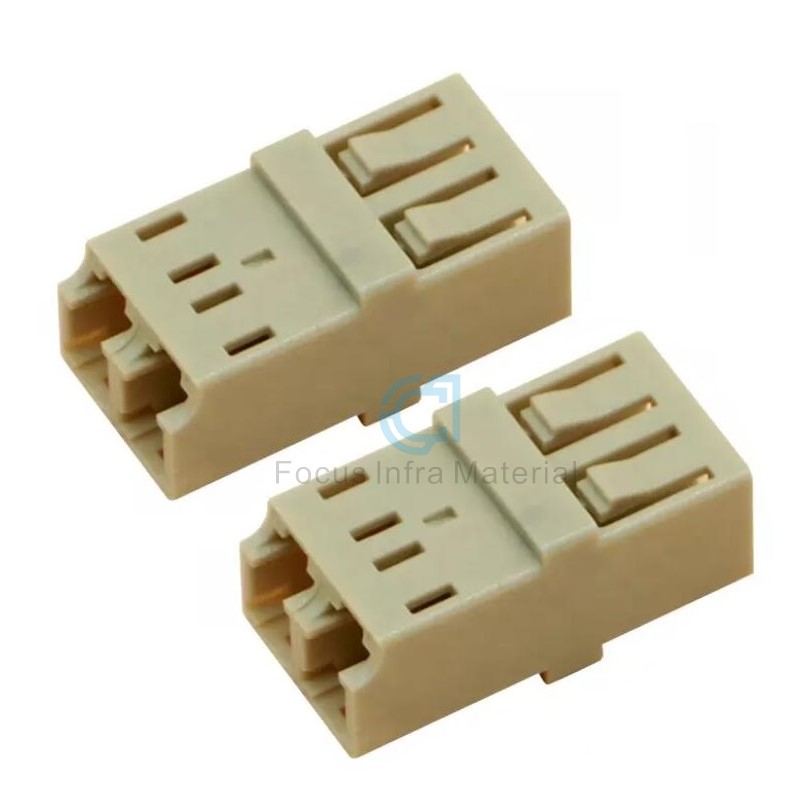

Fiber Optic Adapter Coupler LC PC MultiModeDuplex Fiber Optic Connector Simplex, Optic Adapter No Ear Without Flange Connector Adapter
Model Number: LC
Insertion Loss: <0.2db
Return Loss: >50db
Use: FTTH, FTTX, FTTA, CATV, LANs
Description:
The optical fiber connector is a device for detachable (movable) connection between an optical fiber and an optical fiber. It precisely connects the two end faces of the optical fiber so that the light energy output by the transmitting fiber can be coupled to the receiving fiber to the maximum extent. And to minimize the impact on the system due to its intervention in the optical link, which is the basic requirement of optical fiber connectors. To a certain extent, the optical fiber connector also affects the reliability and performance of the optical transmission system.
The "LC" connector is similar in shape to the SC connector, but smaller than the SC connector.
The "FC" connector is a metal connector, which is generally used on the ODF side. The metal connector can be plugged in more times than plastic. There are many types of connectors, in addition to the three introduced above, there are MTRJ, ST, MU, etc., the specific appearance.
Specification:
| Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
| FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
| APC | < 0.2 | ||||
| ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
| LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
| MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
| E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
| FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
| SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
