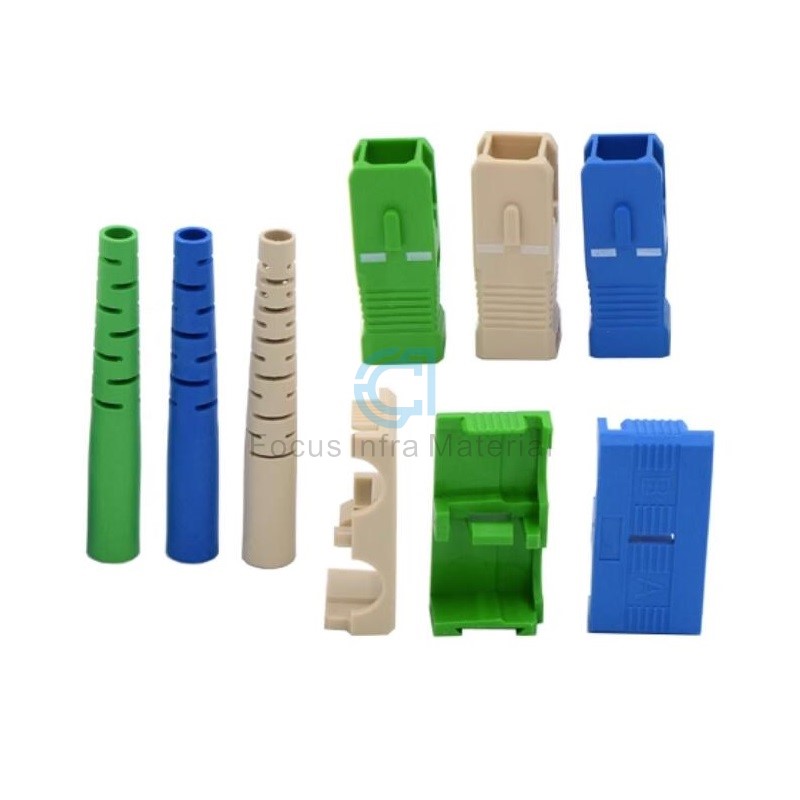

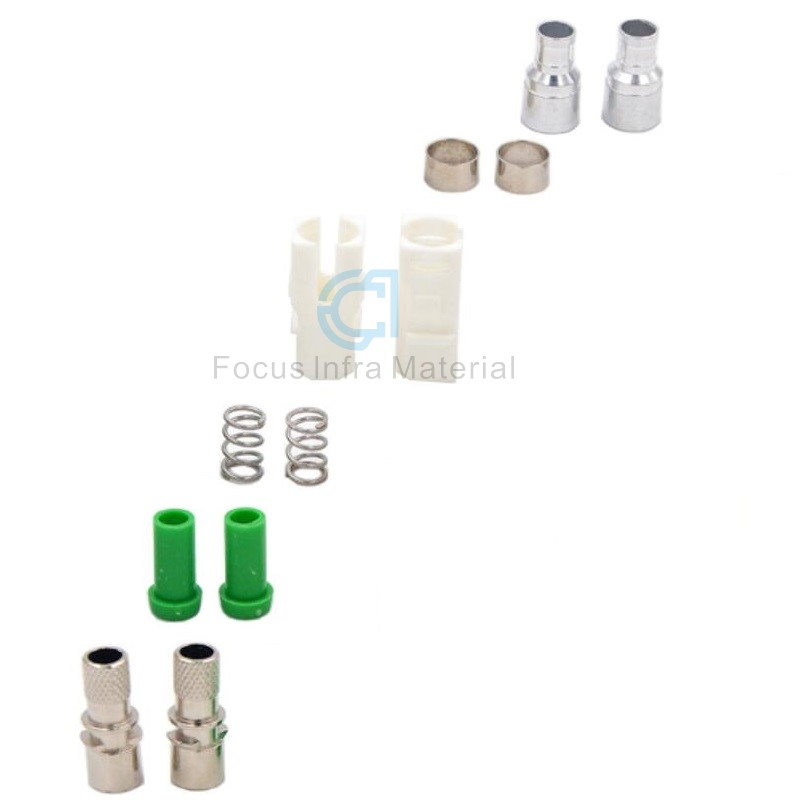

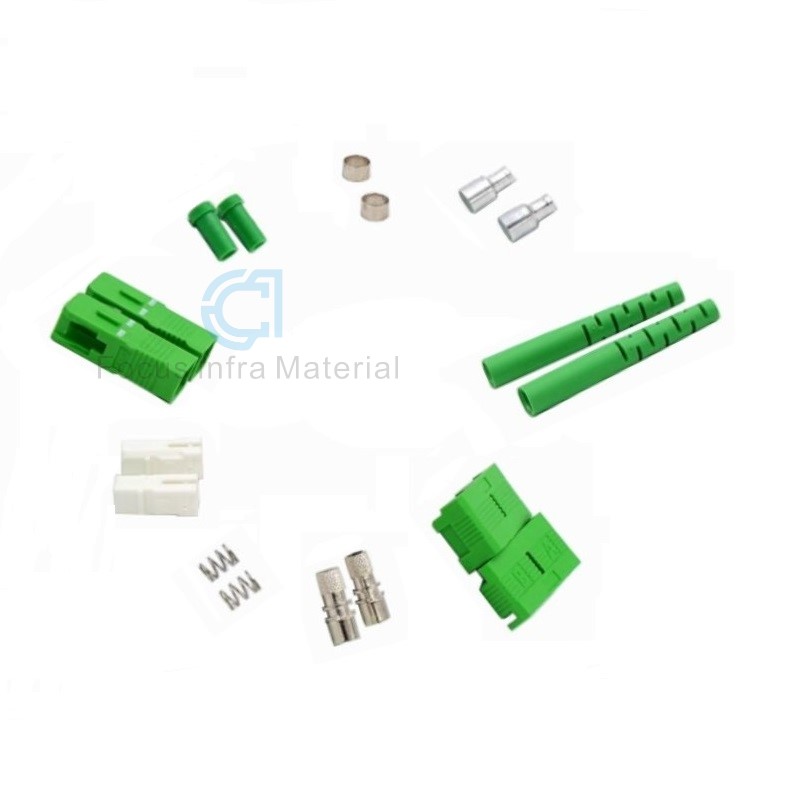

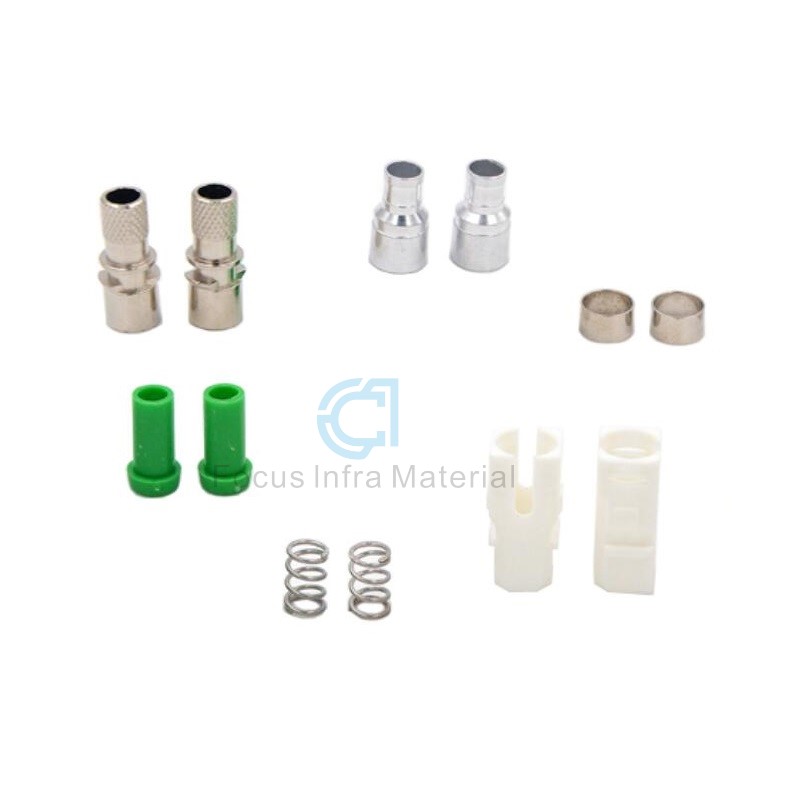

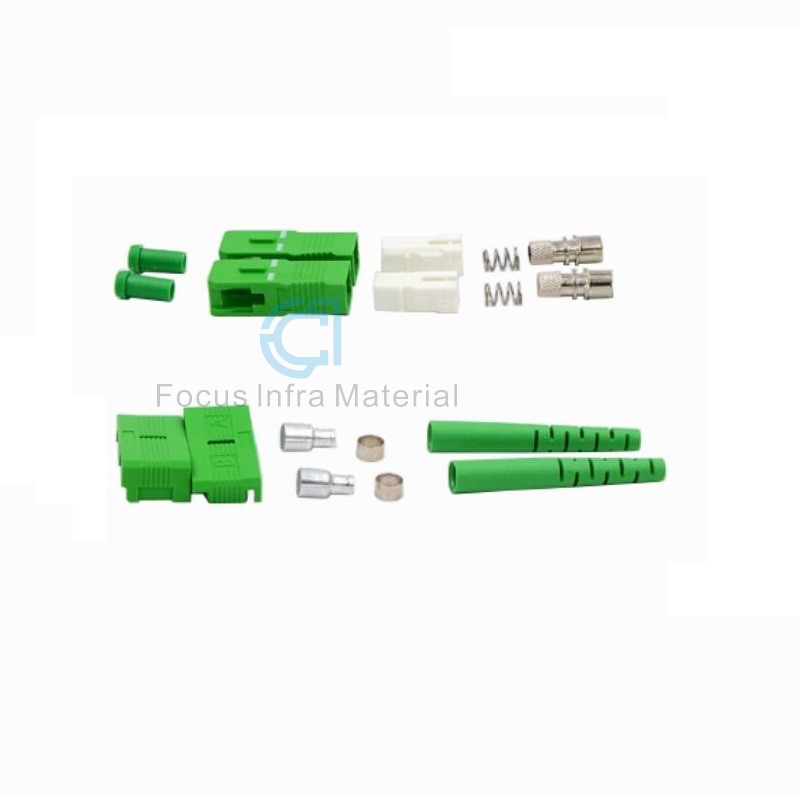

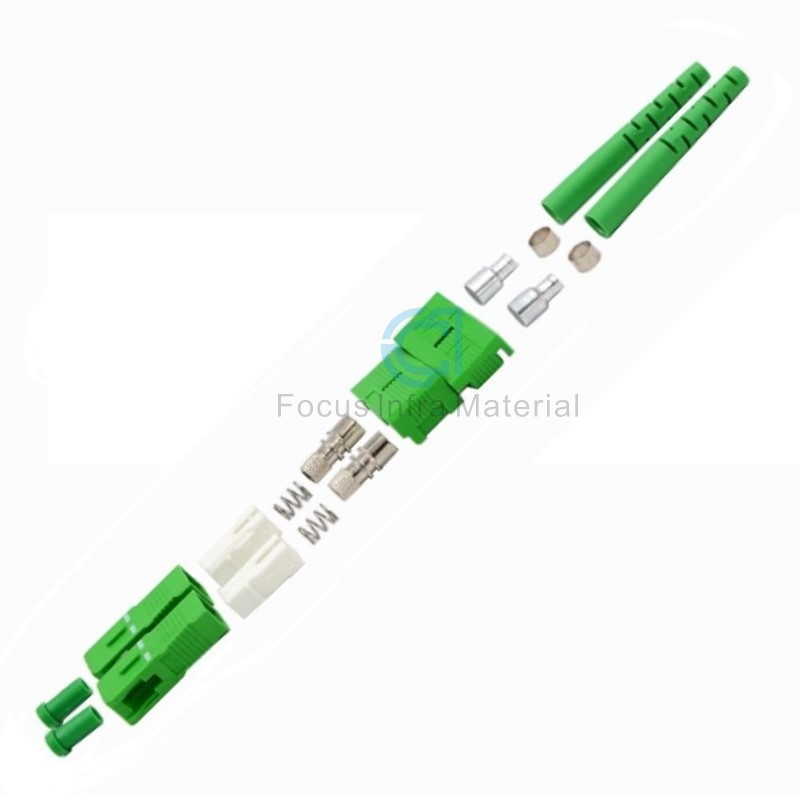

Fiber Optical Network Connetion for Patch Cord Sc APC Sm Duplex 3.0mm 2.0mm Connect Parts

Model Number: SC APC SM DX
Insertion Loss: ≤0.3dB
Return Loss Of Pigtail: ≥55dB
Application: FTTH FTTB FTTX Network

Fiber Optical Network Connetion for Patch Cord Sc APC Sm Duplex 3.0mm 2.0mm Connect Parts


Description:

The optical fiber connector is one of the most basic passive components in the optical fiber communication. Chengdu Focus Infra Materials Company is manufacturing difference ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment,Active device termination and so on.


Technical Parameter:

Fiber Type SM MM
Connector Type SC,FC,ST,E2000,LC,MU,DIN MTRJ SC,FC,ST,E2000,LC,MU MTRJ
Insertion Loss(Typical) ≤ 0.2dB ≤ 0.4dB ≤ 0.2dB ≤ 0.4dB
Insertion Loss(Max) ≤ 0.3dB ≤ 0.5dB ≤ 0.3dB ≤ 0.5dB

Return Loss(Typical)
PC ≥ 50dB ≥ 35dB -
UPC ≥ 55dB - -
APC ≥ 65dB - -
Durability(500ºC) 0.2dB
Temperature Stability 0.3dB
Operation Temperature -40ºC~+85ºC
Storage Temperature -40ºC~+85ºC


Applications:

1. Local Area Networks (LANs) and Wide Area Networks (WANs)
2. Fiber Optic CATV, FTTH, FTTB, FTTP etc
3. Fiber Optic telecommunication systems
4. Transmission Mode (ATM)
5. Fiber Optic Backbone
6. Military Instrumentation


Features:

1. Low insertion Loss and Back reflection loss
2. RJ-45 style interface
3. Polarized and color coded (TIA568-A&ISO 11801)
4. UL-rated plastic housing and boot
5. Compact, pull-proof design
6. Behind-the-Wall style short connector
