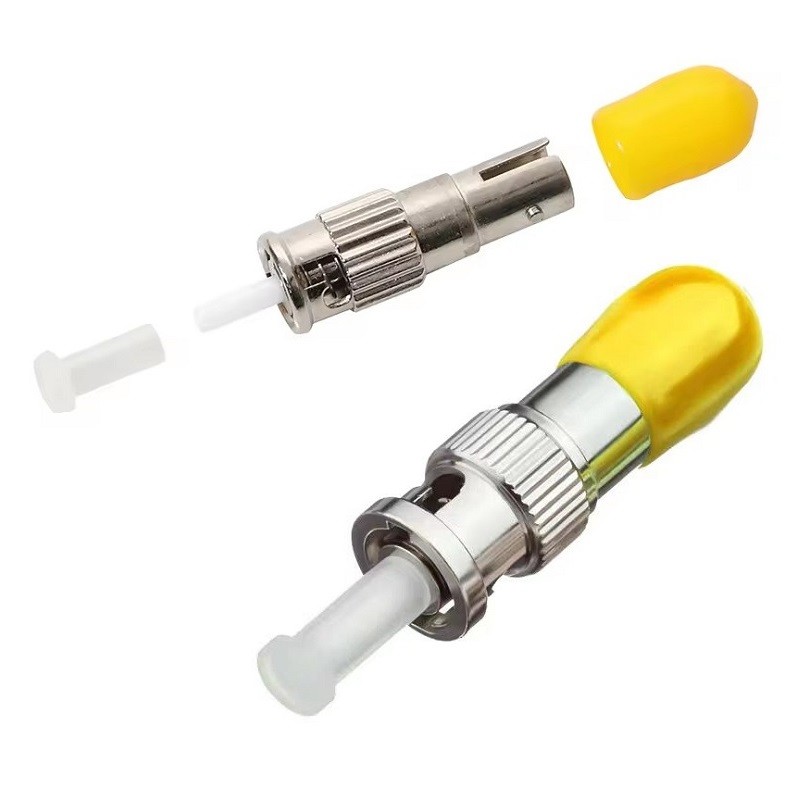

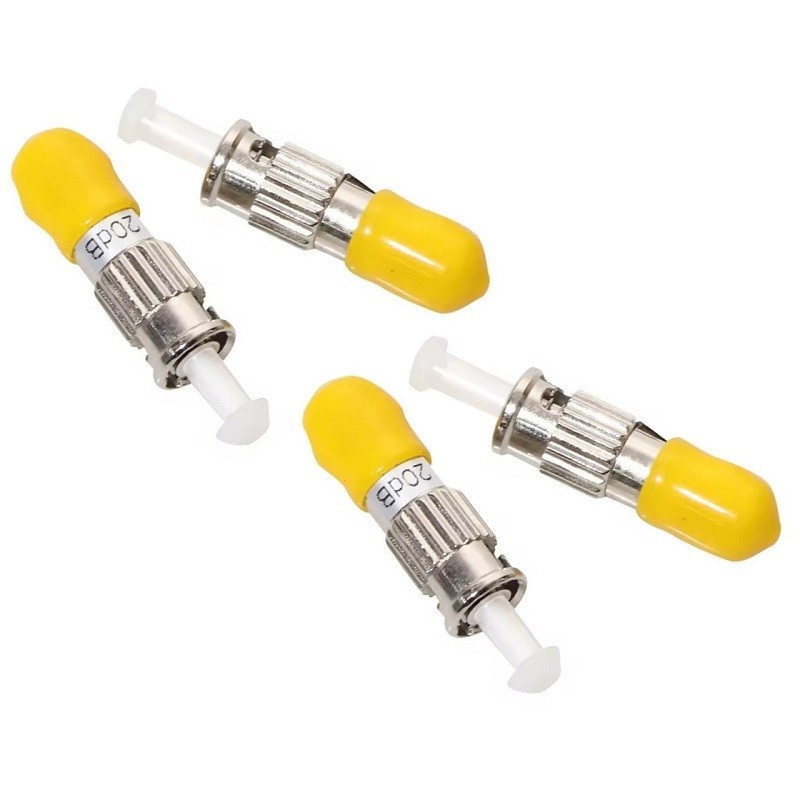

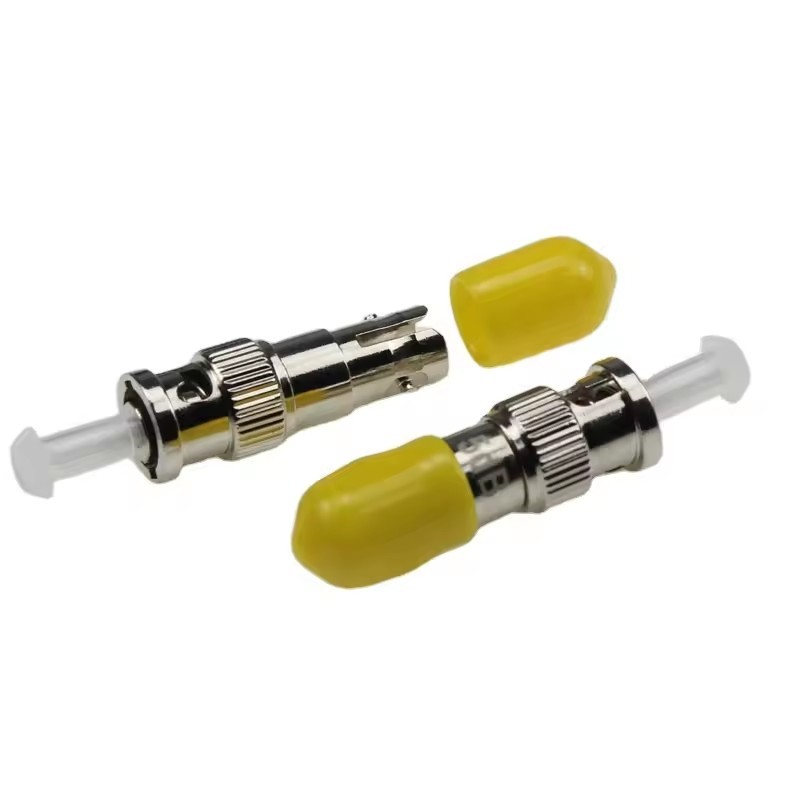

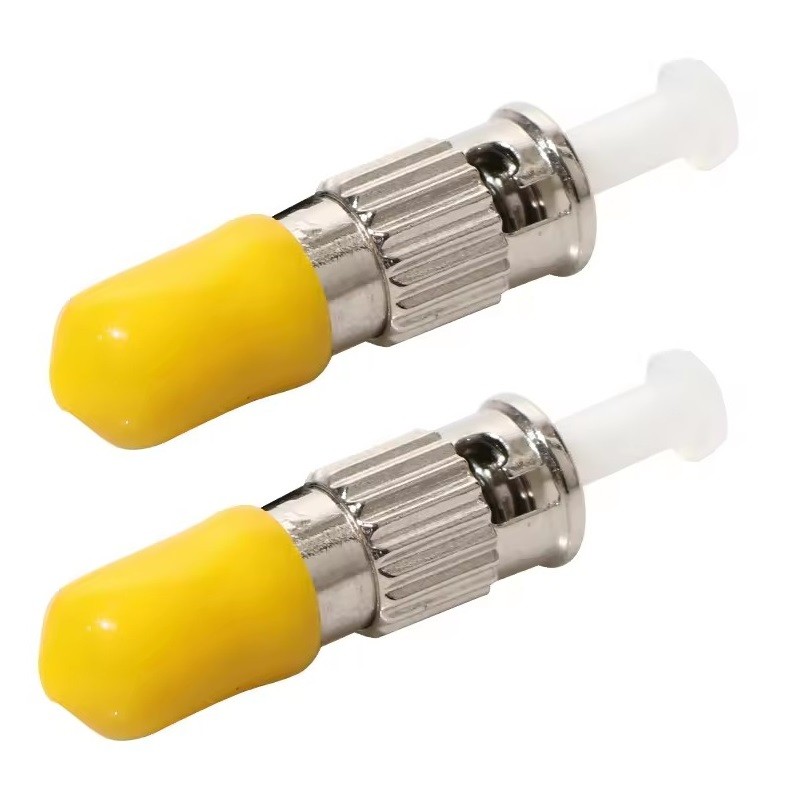

Fixed In-line Attenuator for Single-mode ST Fiber Optic Attenuator

Model: Fiber Optic Attenuator
Use: FTTH, FTTX, FTTA, CATV, lAN'S
Network: Wireless Lan, bluetooth, Wired LAN, ONVIF, SDK, TCP, Ip, POE, GPRS, wifi, 4g, GSM, 3G, Wiegand
Insertion Loss: IL<0.2db
Wavelength: 1260nm~1620nm
Attenuation value: 1-30 dB

Fixed In-line Attenuator for Single-mode ST Fiber Optic Attenuator


Description:

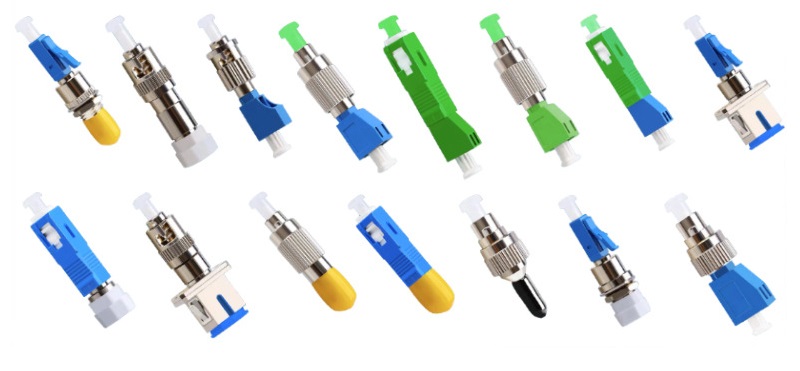

  The plug type male-female optical attenuator is characterized by different interfaces on both ends, one male (like fiber optical connector) and the other female (like fiber optical adapter), and fixed attenuation value. SC, FC, LC, ST, MU and E2000 type available. Chengdu Focus Infra Materials company offers attenuator features with high attenuation accuracy, reliable performance, low IL and high return loss, and is widely applied to test equipment, data center, CATV system etc.

  A Fixed In-line fiber optic ST 10dB attenuator that can be quickly installed in your single-mode (1310/1550nm) optical link to reduce optical power. This Simplex ST/Male to ST/Female premium grade attenuator (Return Loss: UPC ≤ -50dB, APC ≤ -60dB) can accommodate up to 200mw high power and offer very low attenuation tolerance of less than 0.5dB.


Feature:

Fixed In-line Attenuator for Single-mode fiber

Polarization Dependent Loss ≤0.1dB

10dB Attenuation (Accuracy +/-0.5)

Return Loss: ≤ -50dB (UPC), ≤ -60dB (APC)

High-precision doping technology & Premium Ceramic Ferrule
