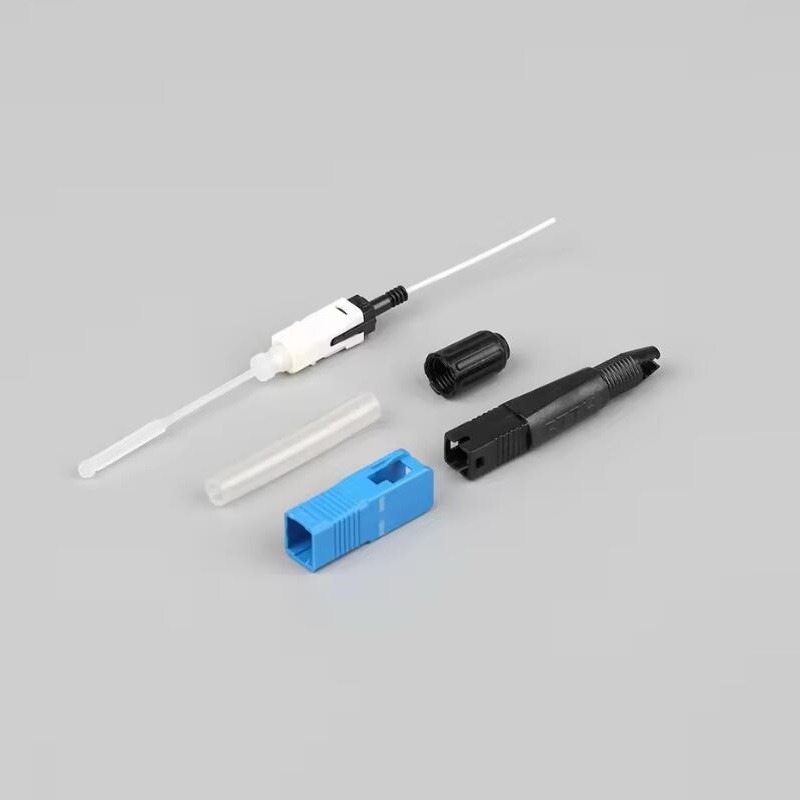

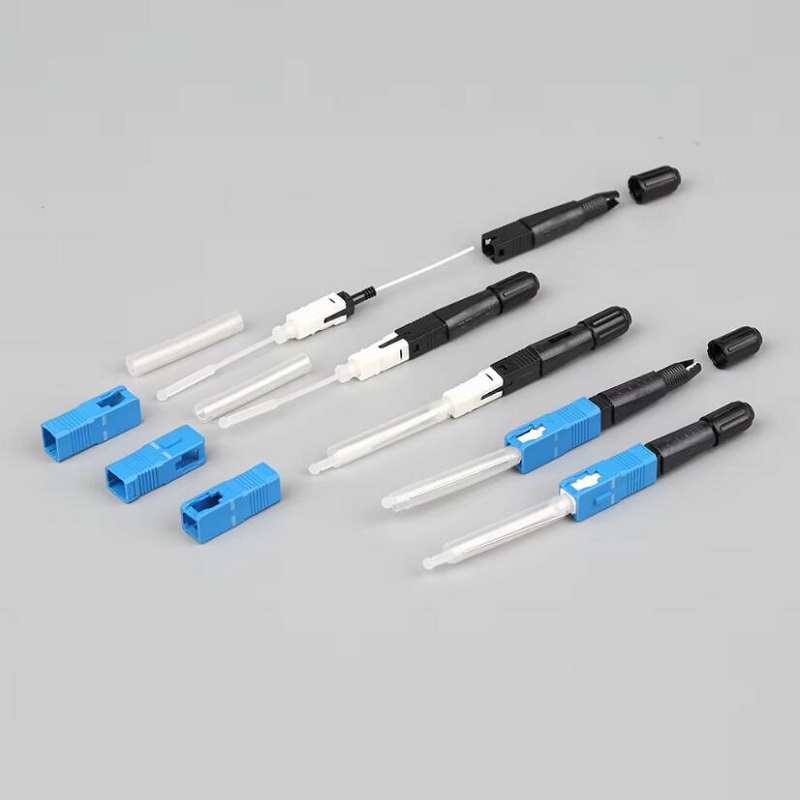

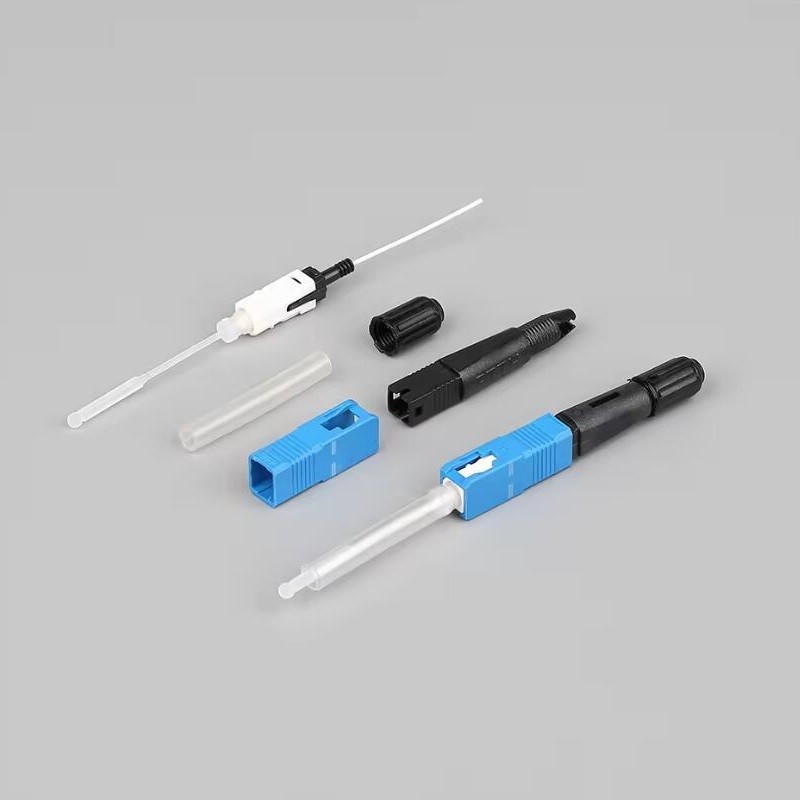

SC UPC Splice Connector SC Quick Connector Fiber Fusion for LSZH Cable FTTH Fiber Optic Cable

SC UPC Splice Connector SC Quick Connector Fiber Fusion for LSZH Cable FTTH Fiber Optic Cable

Description:

  This kind of Fusion Splice-on Connector is actually an optical fiber fusion, however the welding point is in the inner end of connector, which makes it no necessary for extra protection equipment, such as fiber protection plate(optical fiber splice tray), optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion. The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap. Compared to mechanical optical fast connector, this new practical connector save V-groove mechanical connector maintenance and can improve the span life of welding point of connector and reduce maintenance cost.

Application:

1.Fiber optic equipment
2Fiber optic communication system
3.FTTH optic fiber terminal connection
4Optical access network
5.Fiber optic data transmission
6.CATV
7.Central office connector replacement
8.Data center installation

ITEM	Technical Parameters
Applicable for	Drop cable / Indoor cable
	0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter	SM(9/125), MM(50/125, 62.5/125)
	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75°C
On-line tensile strength (20 N)	IL ≤ 0.5dB  RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.5dB  RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)	IL ≤ 0.5dB  RL ≤ 5dB
