Single Mode SC APC Fiber Optic Fast Connectors 0.9mm 2mm 3mm

Model Number : SC/ APC
Suit Cable Diameter: 0.9/2.0/3.0mm Ffiber Patch Cord
Durability: > 500 (Times)
Application: FTTH FTTB FTTX Network

Single Mode SC APC Fiber Optic Fast Connectors 0.9mm 2mm 3mm


Description:

   Conector Rapido De Fibra Optica Singlemode Sc Apc Fast Connector, commonly known as the union, commonly known as Conector Rapido De Fibra Optica Singlemode Sc Apc Quick Connector. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

  Quick Assembly SC optic fiber connector can provide quick and easy terminations of fibers in the field, and options are available for 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.



Application:

1. Optical communication network

2. Telecom network

3. Ethernet network
4. CATV network

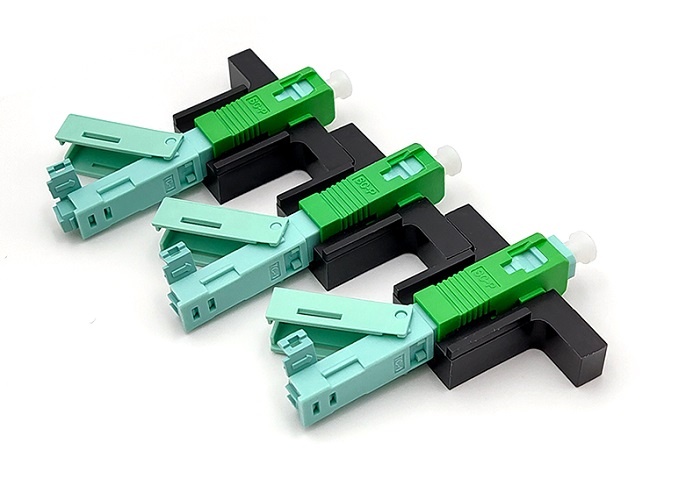

Single Mode SC APC Fiber Optic Fast Connectors 0.9mm 2mm 3mm 0

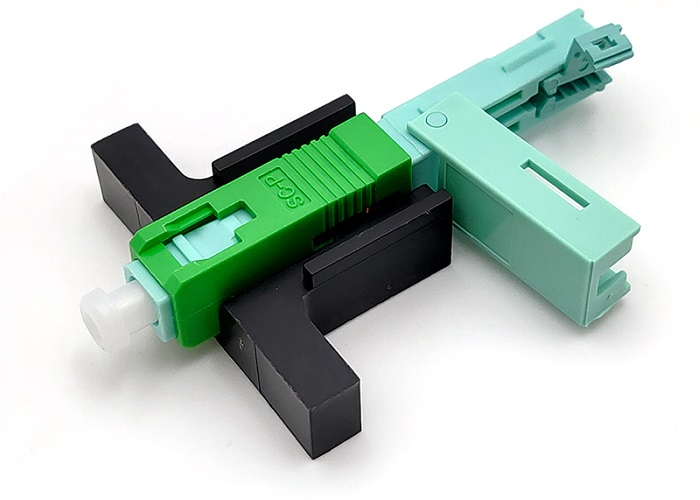

Single Mode SC APC Fiber Optic Fast Connectors 0.9mm 2mm 3mm 2

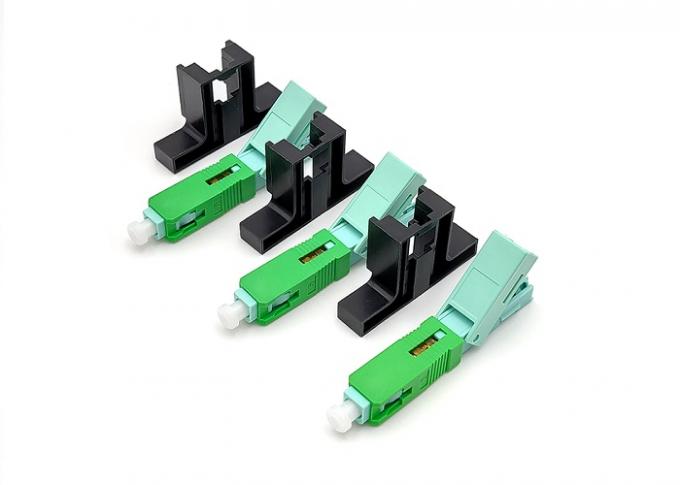

Single Mode SC APC Fiber Optic Fast Connectors 0.9mm 2mm 3mm 3

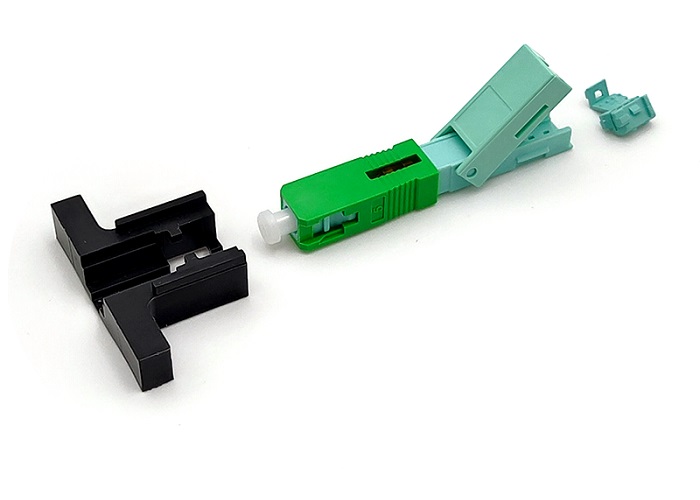

Single Mode SC APC Fiber Optic Fast Connectors 0.9mm 2mm 3mm 4
