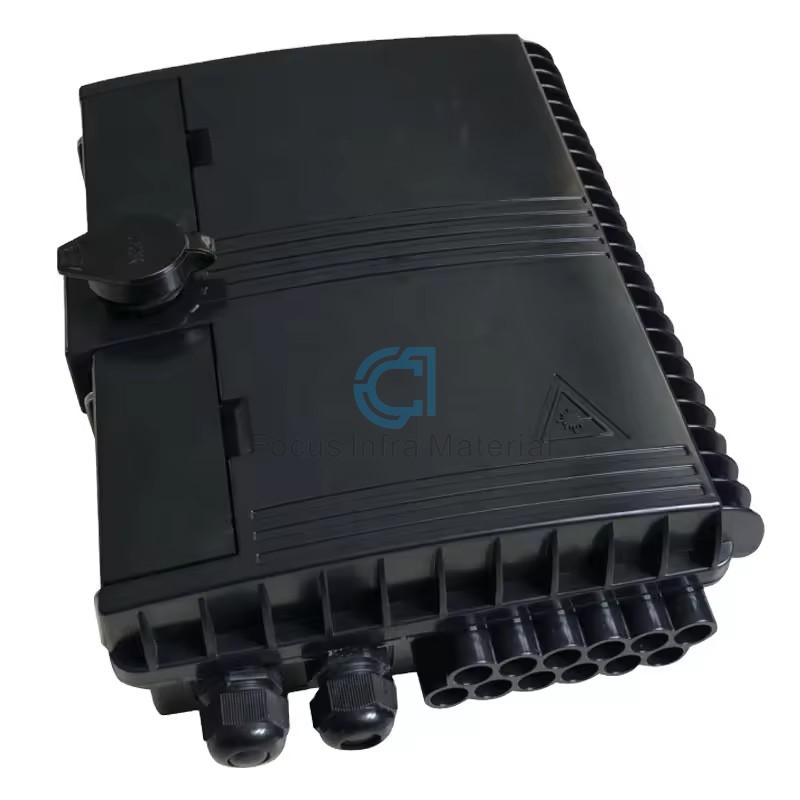

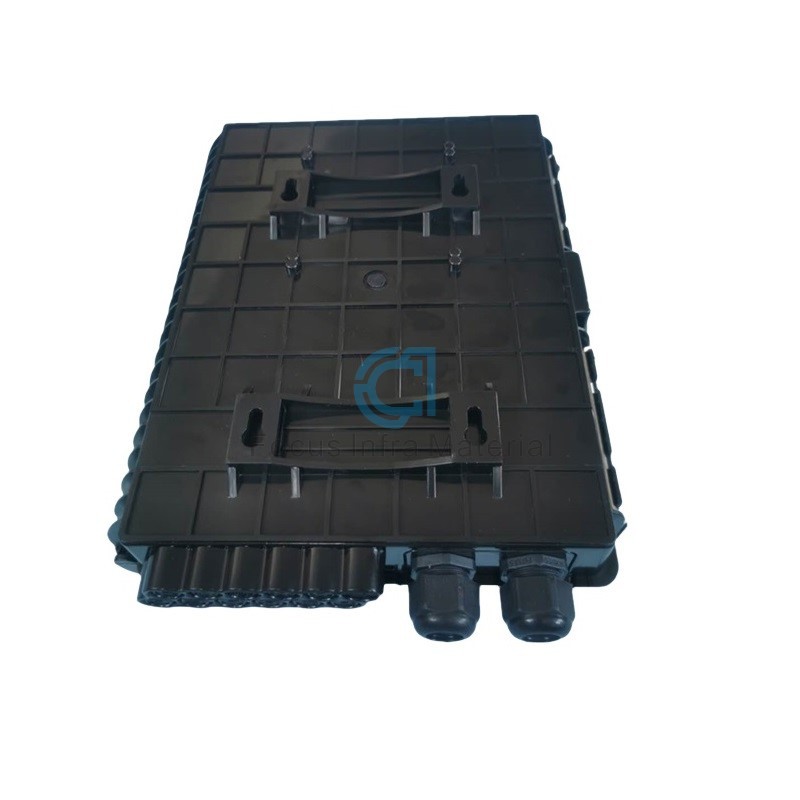

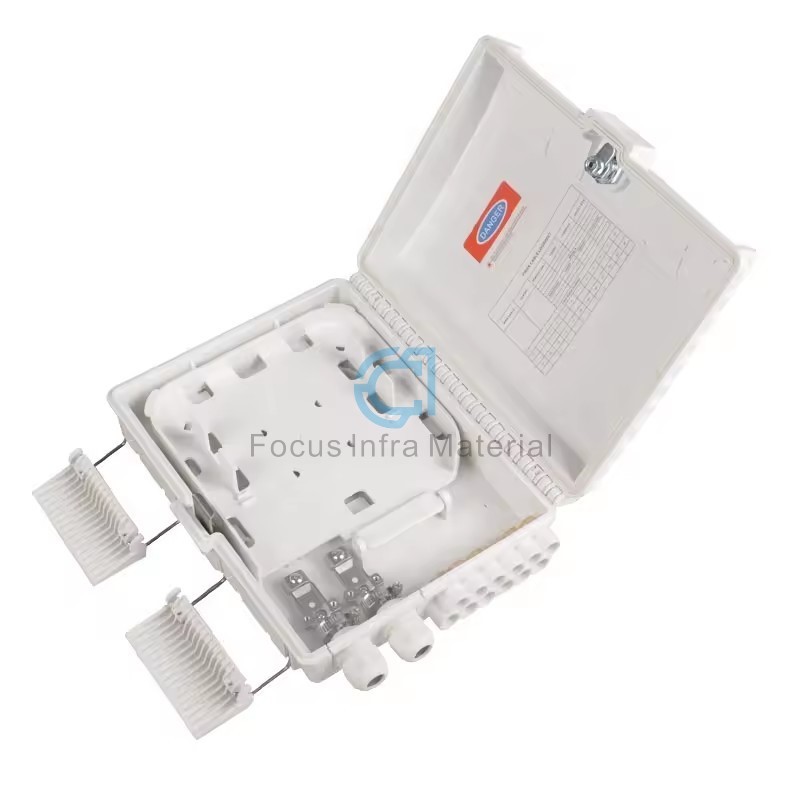

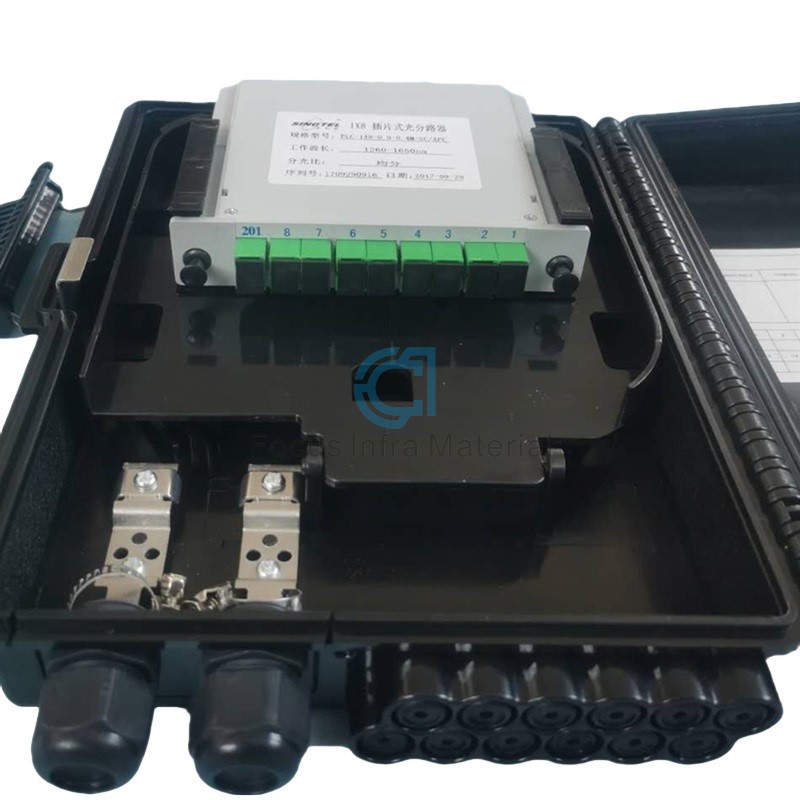

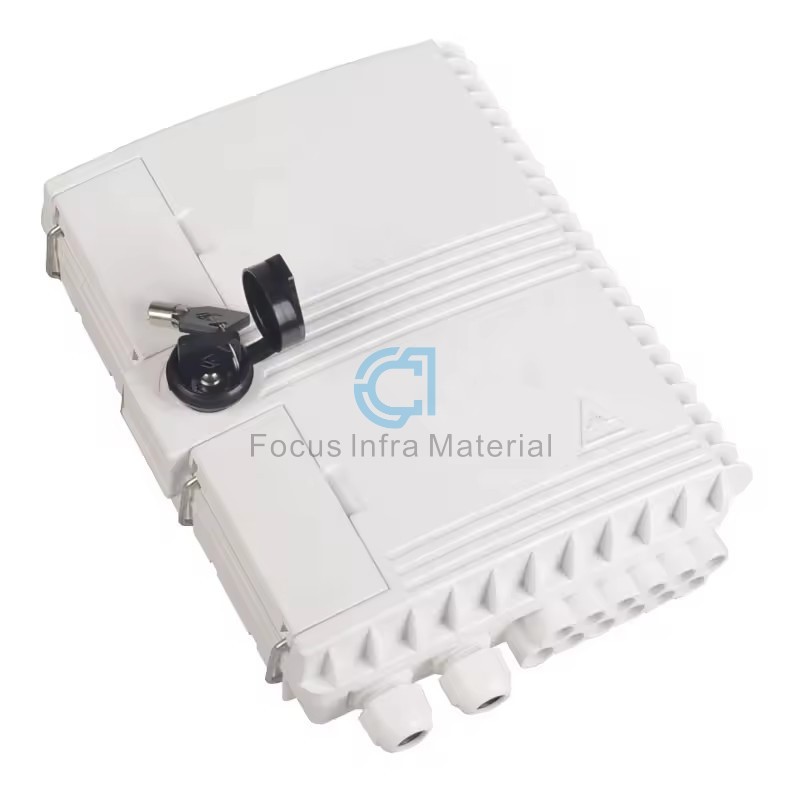

12 Core FDB Fiber Optic Distribution Box With 1:8 PLC Splitter

Model Number : FOCC-F-13
Cores: 12 Cores
Cable Port: 2 IN 12 OUT
Texture Of Material: ABS, PC

12 Core FDB Fiber Optic Distribution Box With PLC Splitter


Description:

Optic Fiber Terminal Closure optic provides space and protection for the fiber optic cable splicing and joint.

Optic Fiber Terminal Closure belongs to the accommodation of the optical fiber fusion splice section system.

It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.


Feature:

1: High quality PC, ABS, PC Alloys material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes.

2: Solid structure, perfect outline, thunder, erosion and adding resistance.

3: Strong and reasonable structure with mechanical sealing structure, can be opened after sealing and cab be reused.

4: Well water and dust proof, unique grounding device to ensure the sealing performance, convenient for installation.

5: The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength engineering plastic housing,

with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.


Applications:

1.Optical LAN & WAN & CATV
2.FTTH project & FTTX Deployments
3.Broadband High-bit rate data transmission
4.Active device terminations
5.Testing instruments
6.Optical fiber communication networks
7.PON Networks
8.Optical Signal Distribution


Specification:

Focus Infra Materials

FOCC-F-13

                                                           Outdoor 8 Core Fiber Optic Distribution Box

Product dimensionsmm

272*210*105

In and out port

2 in, 12 out

Material

PC, ABS, customizable

Color

Black, gray, white,   customizable

Install the   application (applicable environment)

Indoor, outdoor. (wall   mount, pole mount, aerial)

NET weight of   product(kg)

0.95

Number of boxes packed

15

Dimensions of   cartons(cm)

                       65.5*54.5*28.5

Gross weight (kg)

16
