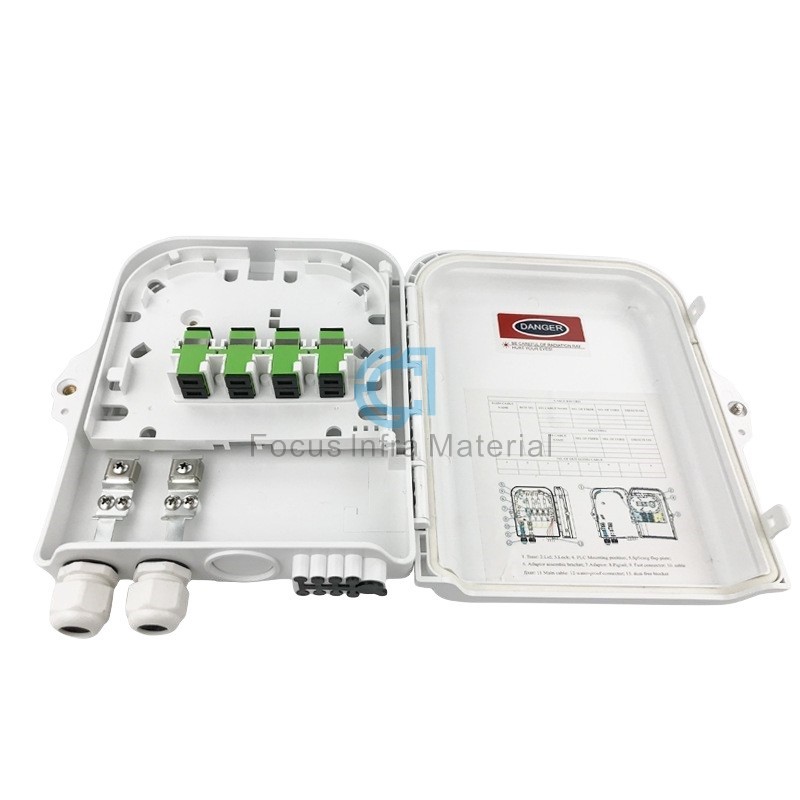

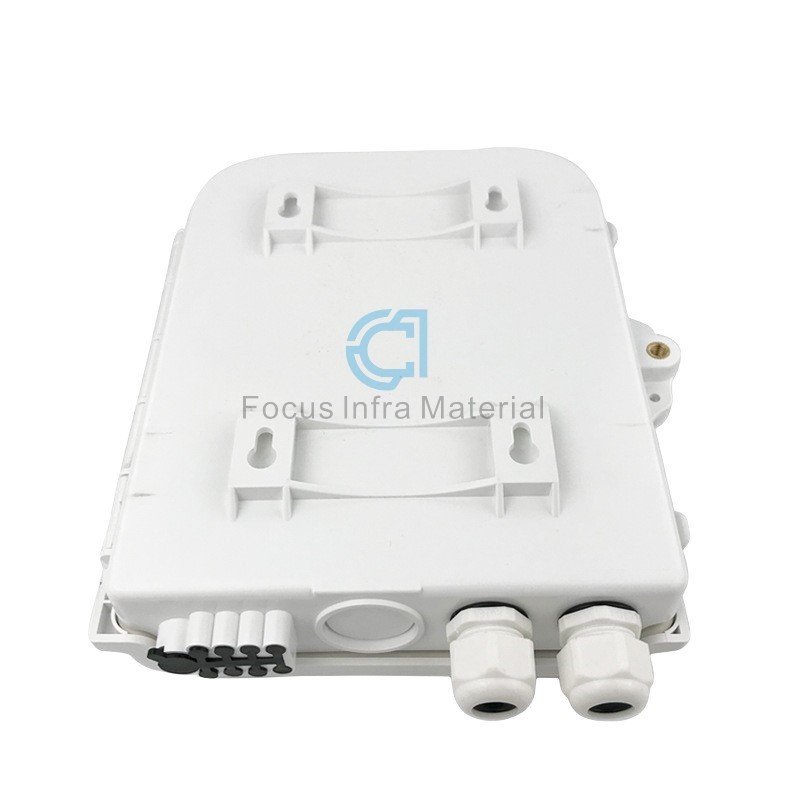

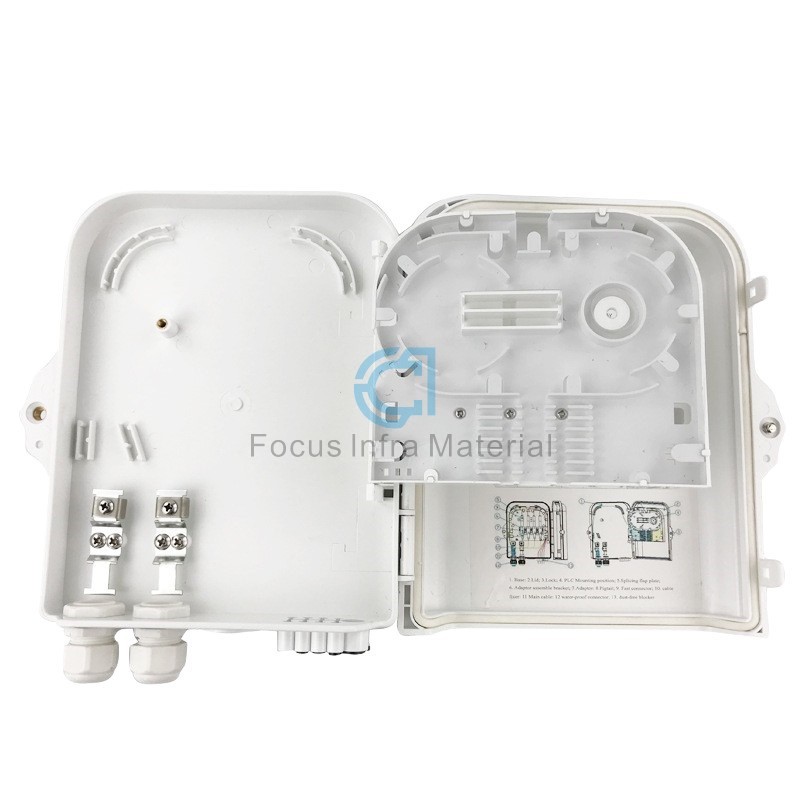

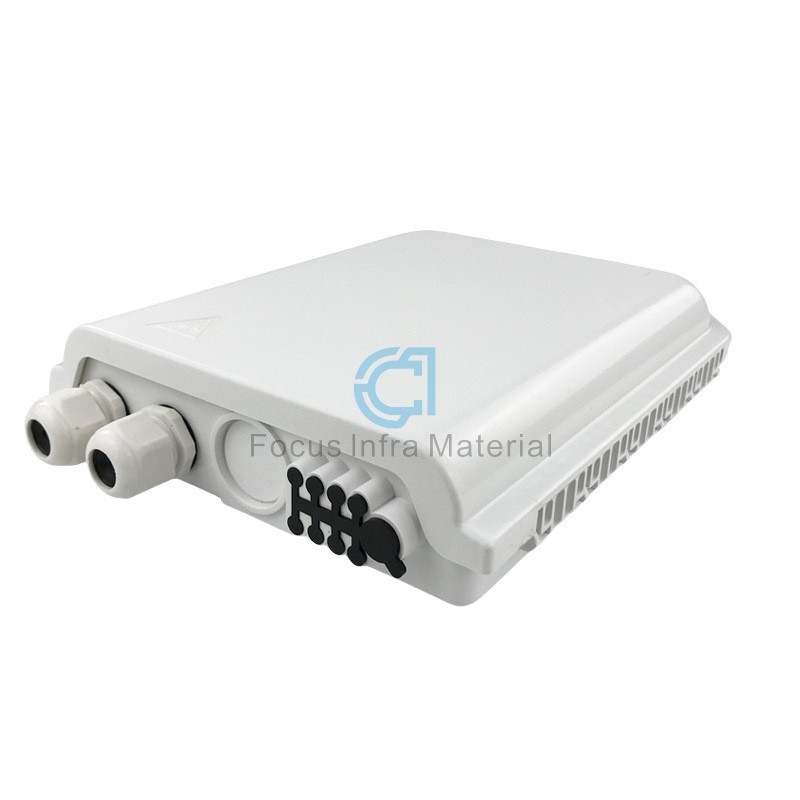

8 Port Terminal Distribution Box IP65 24 Fiber Cable Termination Box Fibra Optica Caja Nap

Model Number : FOCC-F-06
Cores: 8 Cores
Cable Port: 2 IN 8 OUT
Texture Of Material: ABS, PC

8 Port Terminal Distribution Box IP65 24 Fiber Cable Termination Box Fibra Optica Caja Nap


Description:

The equipment is used as a termination point for the feeder cable to connect withdrop cable in FTTx communication network system. The fiber splicing, splitting.distribution can be done in this box, and meanwhile it provides solid protectionand management for the FTTx network building.


Feature:

Material: ABS, wet-proof, water-proof, dust-proof, anti-aging, protectionlevel up to IP65.

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distri-bution...etc all in one.

Cable pigtails, patch cords are running through own path without disturbingeach other, cassette type SC adaptor installation, easy maintenance.

Distribution panel can be flipped up, feeder cable can be placed in a cup-jointway, easy for maintenance and installation.

Cabinet can be installed by the way of wall-mounted or poled-mounted, suitablefor both indoor and outdoor uses.


Specification:

Focus Infra Materials

FOCC-F-06

                           2 Ports Light and Compact 8 Core Fiber Optic Terminal Box

Product dimensionsmm

240*200*50

In and out port

2 in, 8 out

Material

PC, ABS, customizable

Color

Black, gray, white,   customizable

Install the   application (applicable environment)

Indoor, outdoor. (wall   mount, pole mount, aerial)

NET weight of   product(kg)

0.6

Number of boxes packed

20

Dimensions of   cartons(cm)

52*32*42

Gross weight (kg)

13
