Model Number : SC/ UPC
Suit Cable Diameter: 0.9/2.0/3.0mm fiber Patch Cord
Durability: > 500 (Times)
Application: FTTH FTTB FTTX Network

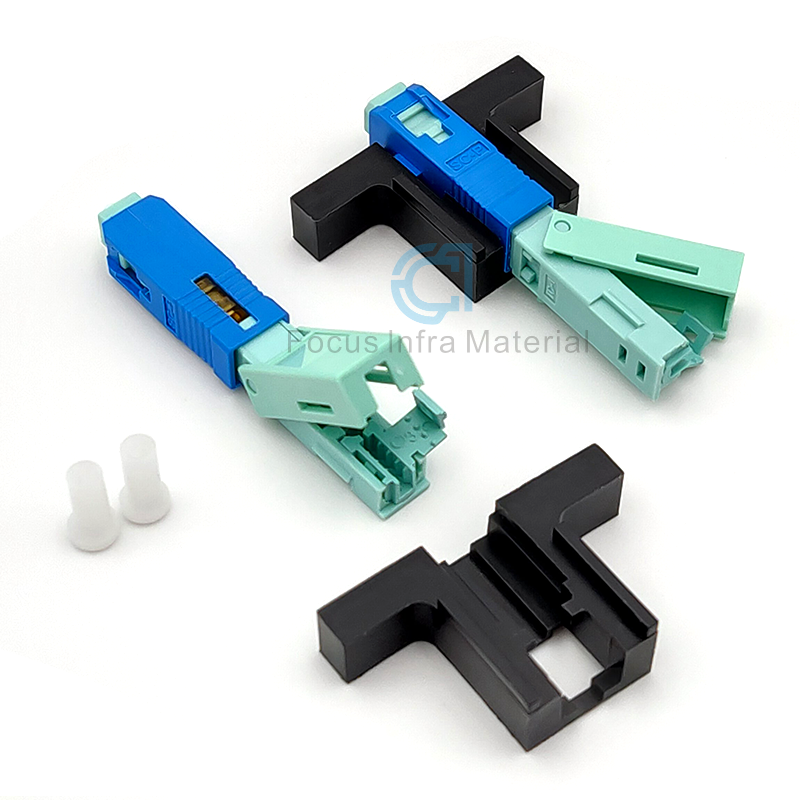

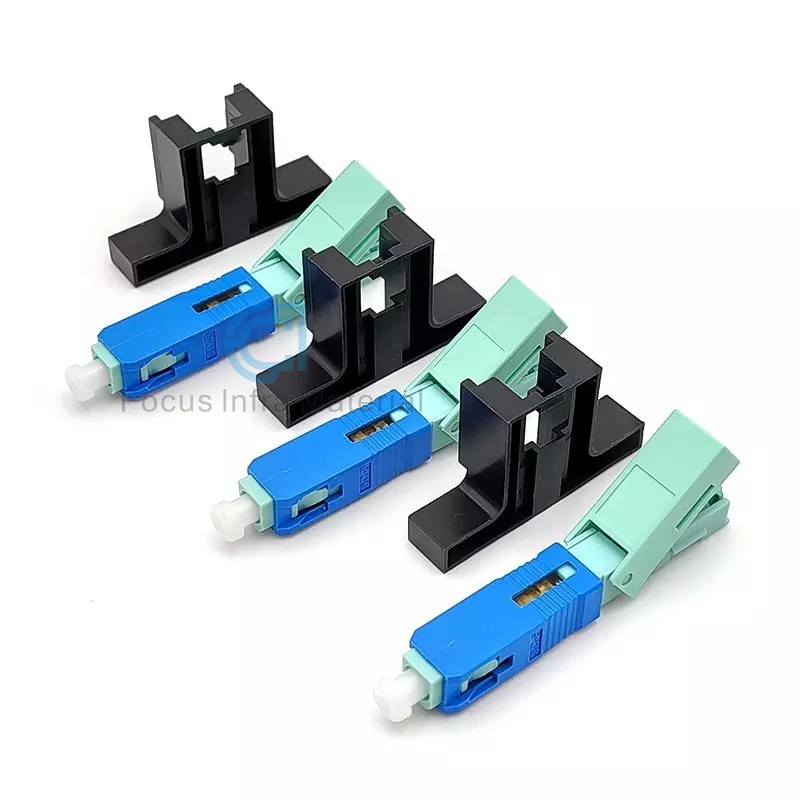

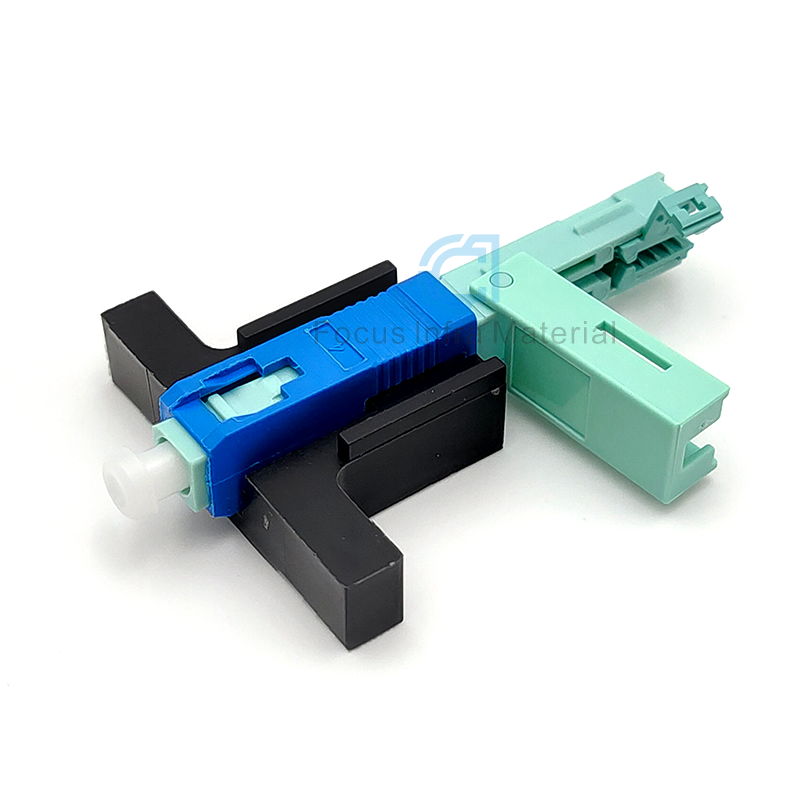

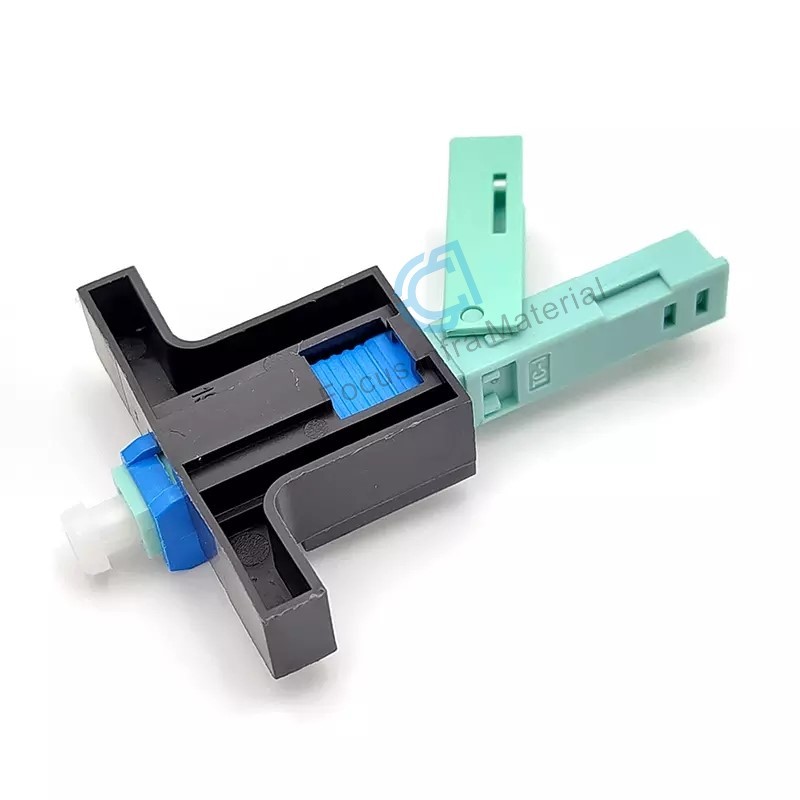

FTTH Fast Connector Field Connector SM SC/UPC H13 53mm Fiber Optic Fast Connector
Description:
Conector Rapido De Fibra Optica Singlemode Sc Apc Fast Connector, commonly known as the union, commonly known as Conector Rapido De Fibra Optica Singlemode Sc Apc Quick Connector. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.
Quick Assembly SC optic fiber connector can provide quick and easy terminations of fibers in the field, and options are available for 900 micron and 250 micron. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.
Chengdu Focus Infra Materials company is manufacturing a wide range of fiber optic products, welcome to contact us for more details.
Application:
1. Optical communication network
2. Telecom network
3. Ethernet network
4. CATV network
