FTTH IP65 Outdoor Box 8 Core FTTH Caja Fiber Optical Distribution Nap Box

Model Number : FOCC-F-07
Cores: 8 Cores

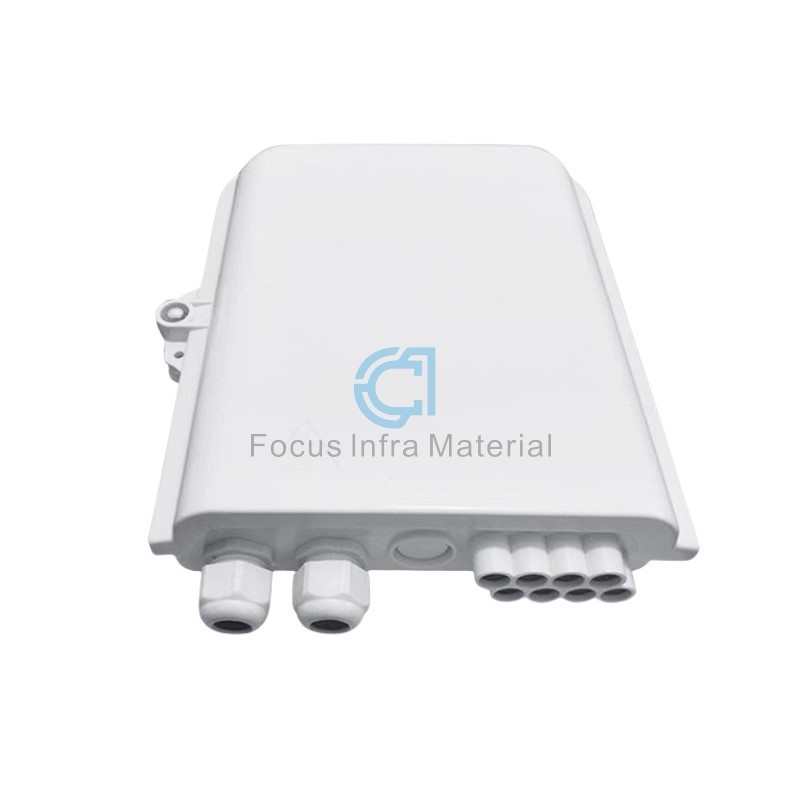

Cable Port: 2 IN 8 OUT
Texture Of Material: ABS, PC


FTTH IP65 Outdoor Box 8 Core FTTH Caja Fiber Optical Distribution Nap Box

Description:

The equipment is used as a termination point for the feeder cable to connect withdrop cable in FTTx communication network system. The fiber splicing, splitting.distribution can be done in this box, and meanwhile it provides solid protectionand management for the FTTx network building.


Feature:

Material: ABS,wet-proof、 water-proof、 dust-proof、 anti-aging, protectionlevel up to IP65.

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distri-bution...etc all in one.

Cable pigtails, patch cords are running through own path without disturbingeach other, cassette type SC adaptor installation, easy maintenance.

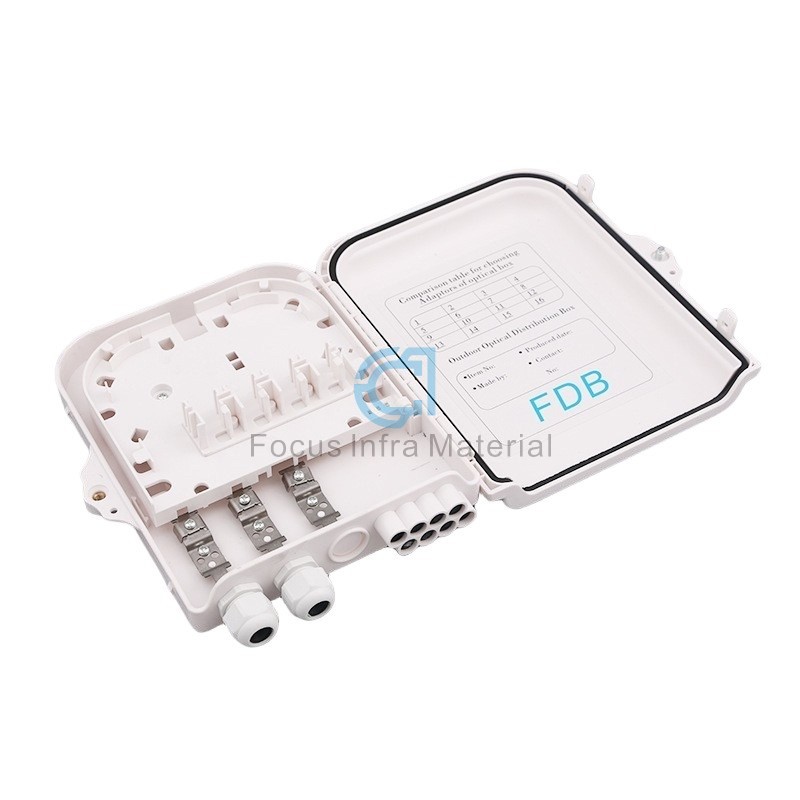

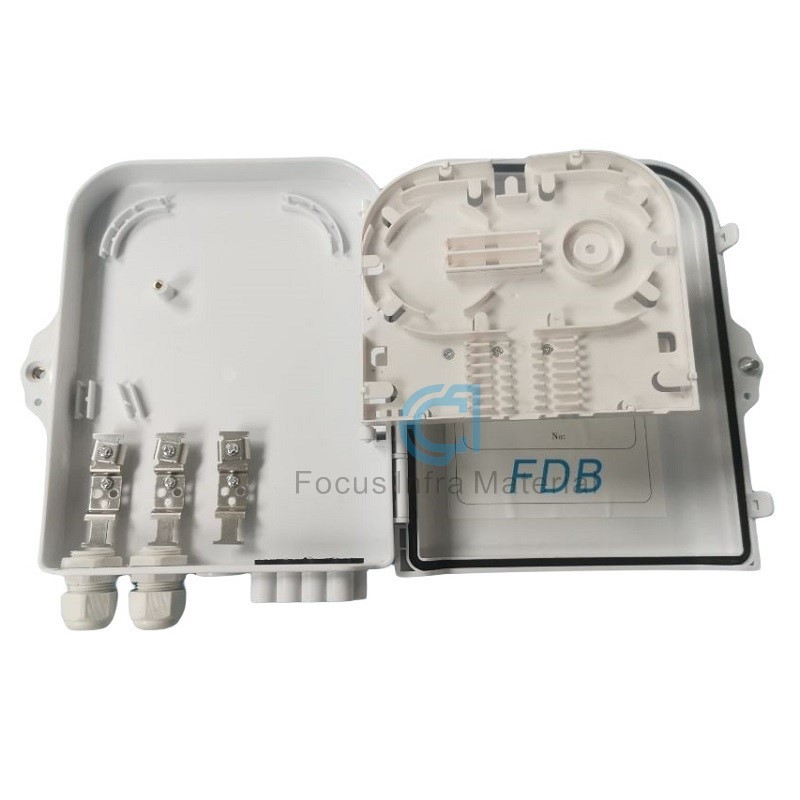

Distribution panel can be flipped up, feeder cable can be placed in a cup-jointway, easy for maintenance and installation.

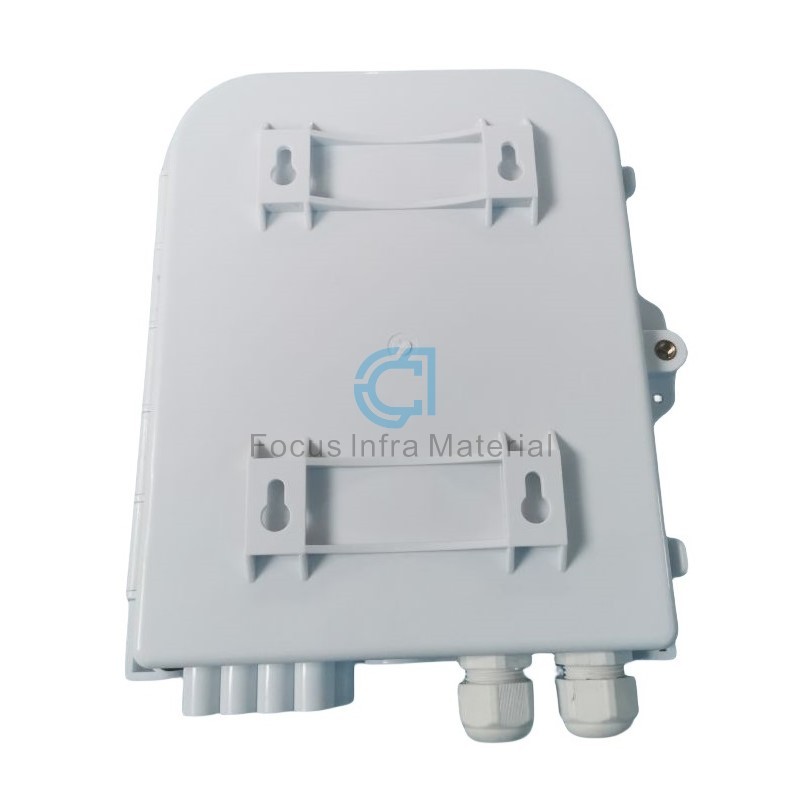

Cabinet can be installed by the way of wall-mounted or poled-mounted, suitablefor both indoor and outdoor uses.


Applications:

1.Optical LAN & WAN & CATV
2.FTTH project & FTTX Deployments
3.Broadband High-bit rate data transmission
4.Active device terminations
5.Testing instruments
6.Optical fiber communication networks
7.PON Networks
8.Optical Signal Distribution


Specification:

Focus Infra Materials

FOCC-F-07

                           2 Ports Light and Compact 8 Core Fiber Optic Terminal Box

Product dimensionsmm

240*200*50

In and out port

2 in, 8 out

Material

PC, ABS, customizable

Color

Black, gray, white,   customizable

Install the   application (applicable environment)

Indoor, outdoor. (wall   mount, pole mount, aerial)

NET weight of   product(kg)

0.6

Number of boxes packed

20

Dimensions of   cartons(cm)

52*32*42

Gross weight (kg)

13

Chengdu Focus Infra Materials company
