Model Number : FS-J-014
Cable Port: 3 Inlets 3 Outlets
Scope Of Application: 12 Core To 24 Core
Main Material: PC Alloy

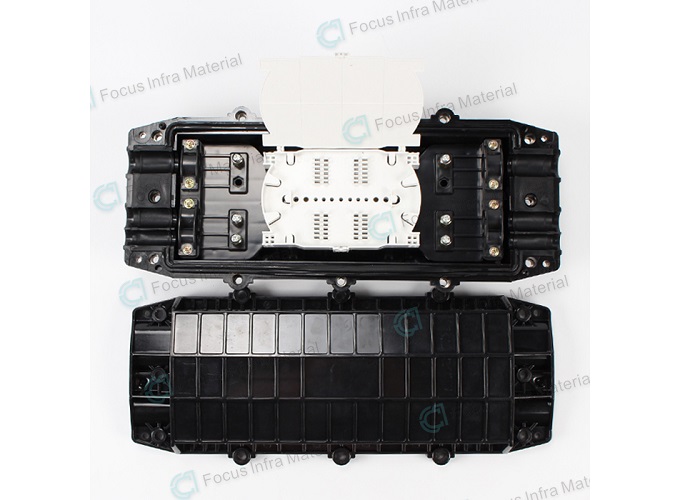

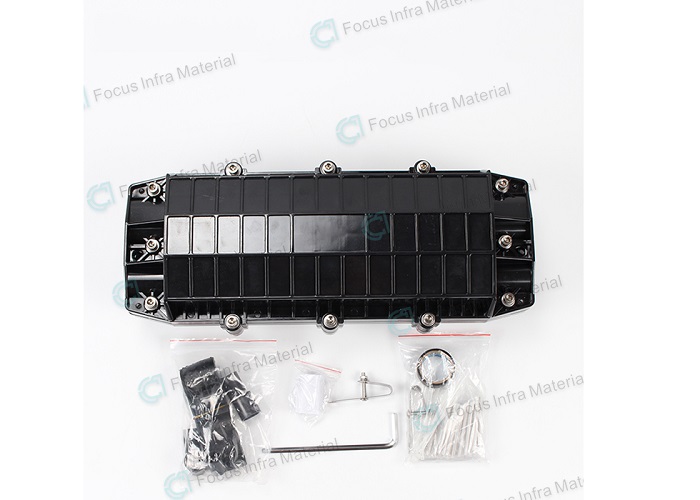

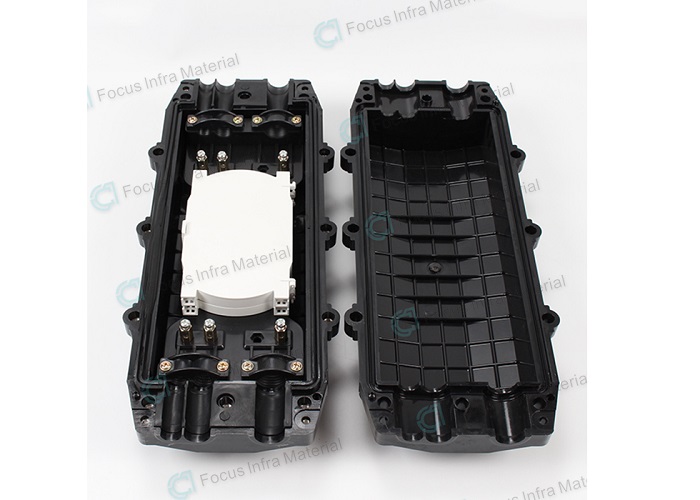

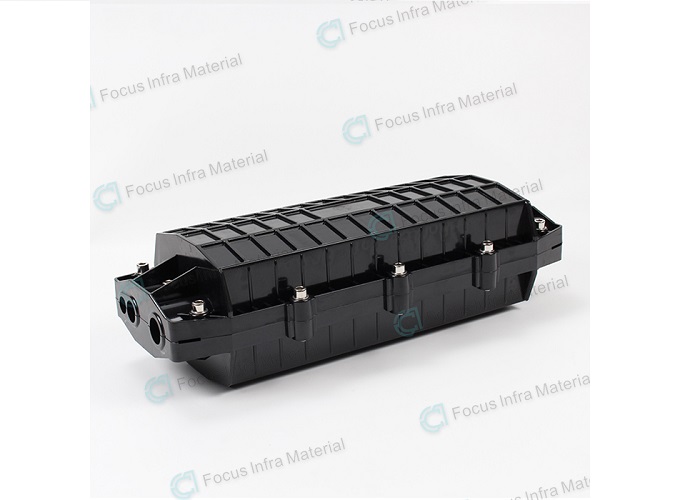

144Fibers FTTH PC Alloy Optical Fiber Splice Closure
Description:
Horizontal Type 3 Inlets 3 Outlets Fiber Optical Cable Splice Joint Box, also known as Horizontal Type 3 Inlets 3 Outlets Fiber Optical Cable Splice Joint Closure, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. Horizontal Type 3 Inlets 3 Outlets Fiber Optical Cable Splice Joint Box is widely apply for the connecting of optical cable. Horizontal Type 3 Inlets 3 Outlets Fiber Optical Cable Splice Joint Box is used for the protective connection and fiber distribution between two or more optical cables, it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.
Features:
Suitable for straight-through, diverging and connection of FTTH, FTTB all kinds of optical communication passive network
Used for direct transmission of outdoor cable in aerial,
duct and direct buried application
Easy and fast to increase and reduce.
The closure is spacious enough for winding and storing fibers
Specification:
Product name | Horizontal Type Vertical Fiber Optic Splice Box |
Protection level | IP68 |
Scope of application | 12 core to 144 core |
Gross weight | 2.8 kg |
Main material | PC alloy |
Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
Ambient temperature | - 40 °C ~ + 60 °C |
Service life | ≥20 years |
Application scope | FTTH FTTB FTTX Network |
Atmospheric pressure | 70kPa~106kPa |
Insulation resistance | >2*10MΩ/500V(pc) |
Tensile strength | >1200N |
