PP Dome Type Fiber Optic Splice Closure 2 Inlet 2 Outlet 288 Core

Model Number: FS-J-021
Model Number: 288 core Horizontal Type Cable Joint Box
Cable Port: 2 Inlets 2 Outlets
Product Size: 420*240*140mm

PP Dome Type Fiber Optic Splice Closure 2 Inlet 2 Outlet 288 Core


Description:

  According to the appearance structure can be divided into Dome type cable joint box and horizontal cable joint box. 288 Core Horizontal Type Outdoor Aerial Dome Fiber Optical Cable Splice Joint Storage Outlet Box, also known as 288 Core Horizontal Type Outdoor Aerial Dome Fiber Optical Cable Splice Joint Storage Outlet Closure, is the place where the end of optical cable is connected. 288 Core Horizontal Type Outdoor Aerial Dome Fiber Optical Cable Splice Joint Storage Outlet Box are widely apply for the connecting of optical cable.It Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network. it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.



Specification:

Product name 288 core Horizontal Type Cable Joint Box
Protection level IP68
Scope of application 12 core to 288 core
Gross weight  5 kg
Main material PP
Scope of use Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature - 40 °C ~ + 60 °C
Service life ≥20 years
Application scope FTTH FTTB FTTX Network
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1200N


Features:

IP66 Water-proof design for outdoor uses

Grouping function: 2 inlet 2 outlet can meet most requirements

Splice tray: using cascading structure, no need to take other splice tray when do operation



Applications:

Used for direct transmission of outdoor cable in aerial

duct and direct buried application
Used for branching connection and protect the joint

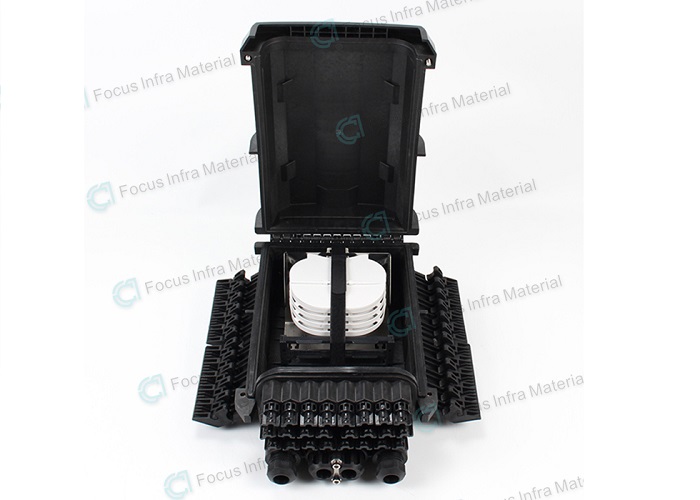

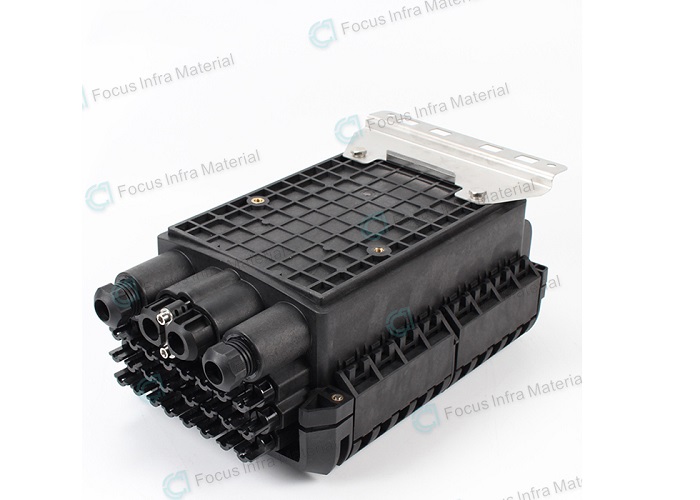

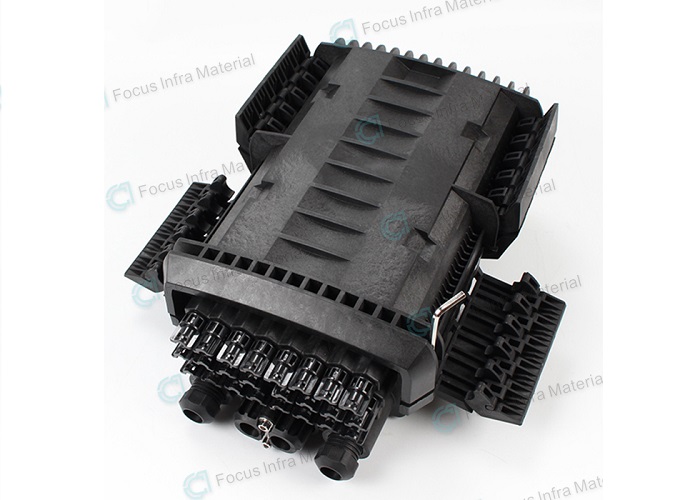

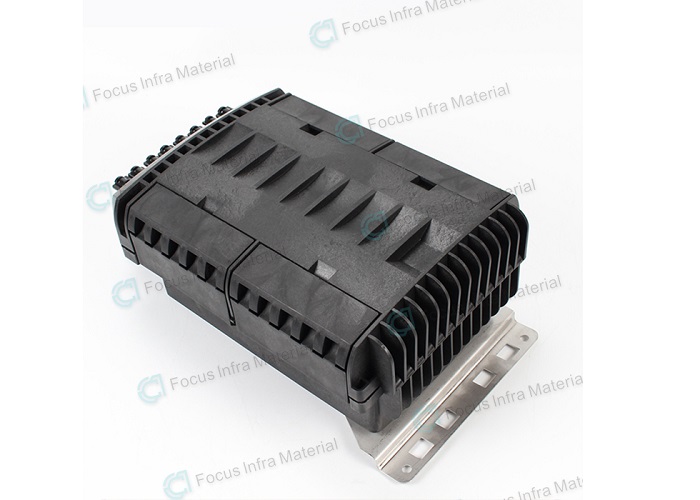

PP Dome Type Fiber Optic Splice Closure 2 Inlet 2 Outlet 288 Core 0PP Dome Type Fiber Optic Splice Closure 2 Inlet 2 Outlet 288 Core 1PP Dome Type Fiber Optic Splice Closure 2 Inlet 2 Outlet 288 Core 2PP Dome Type Fiber Optic Splice Closure 2 Inlet 2 Outlet 288 Core 3
