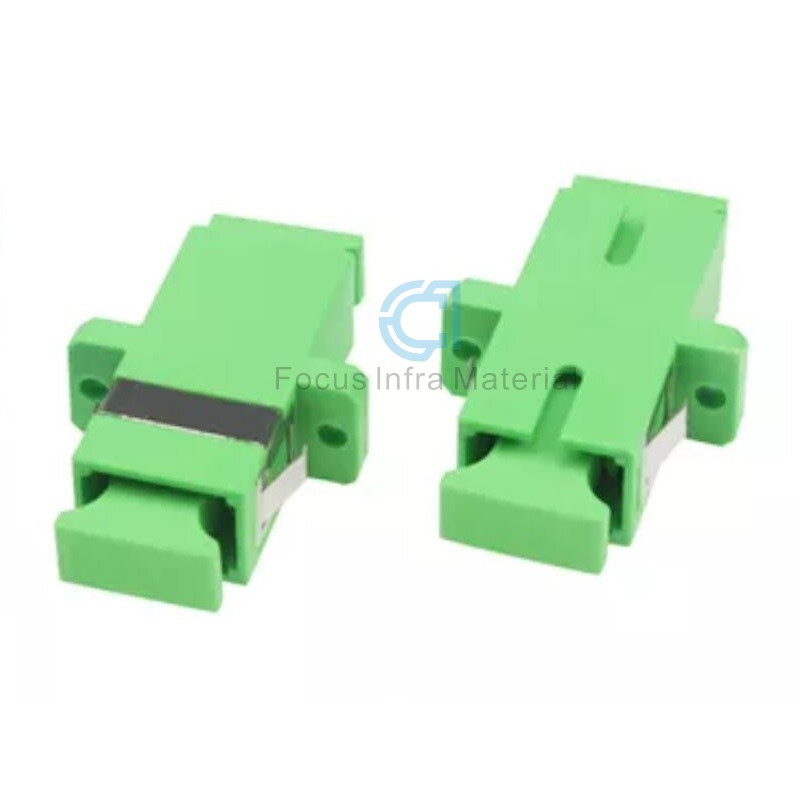

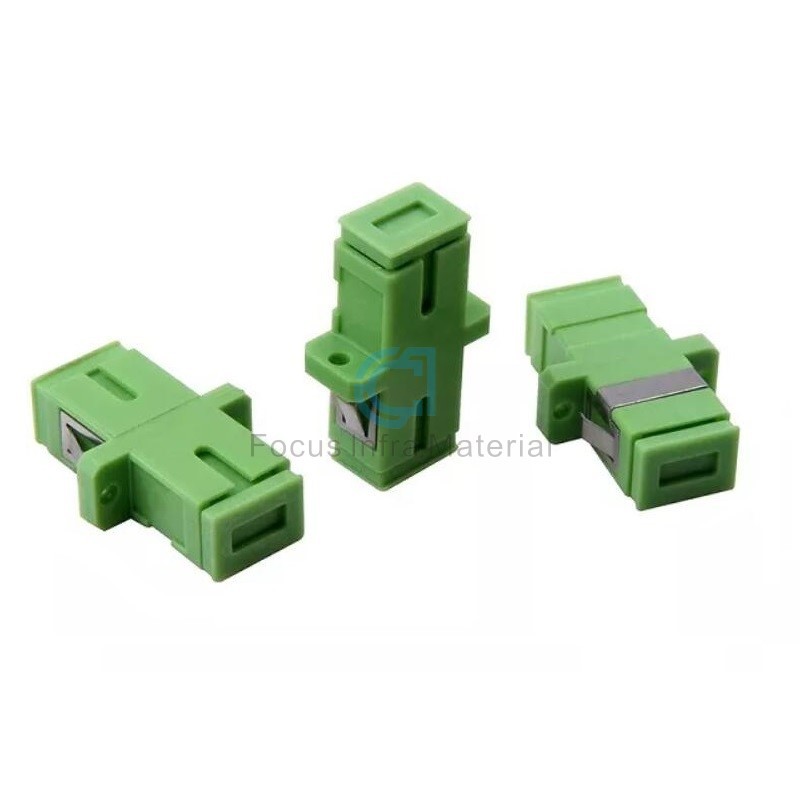

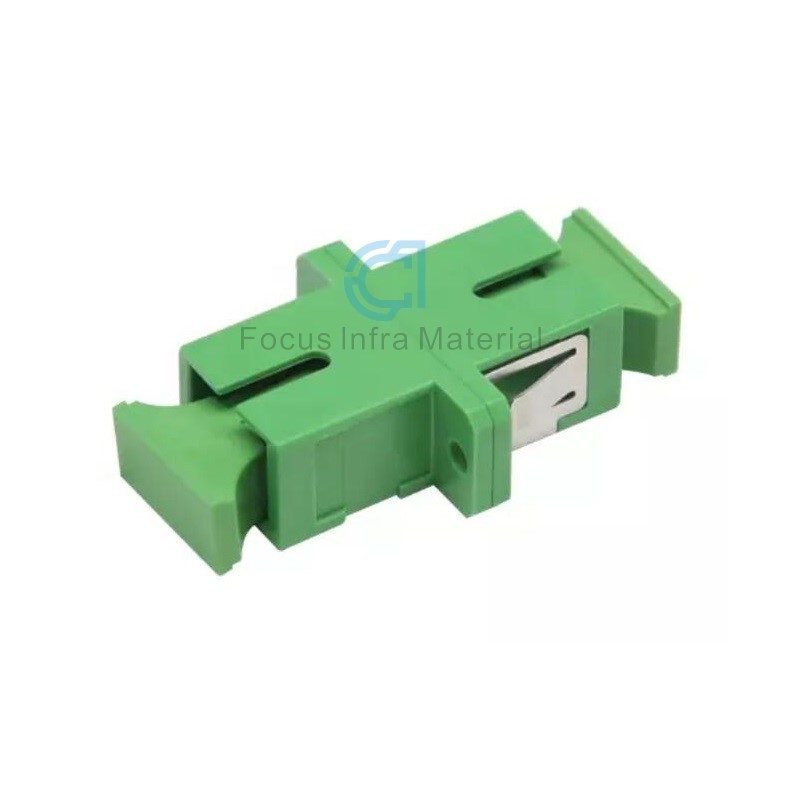

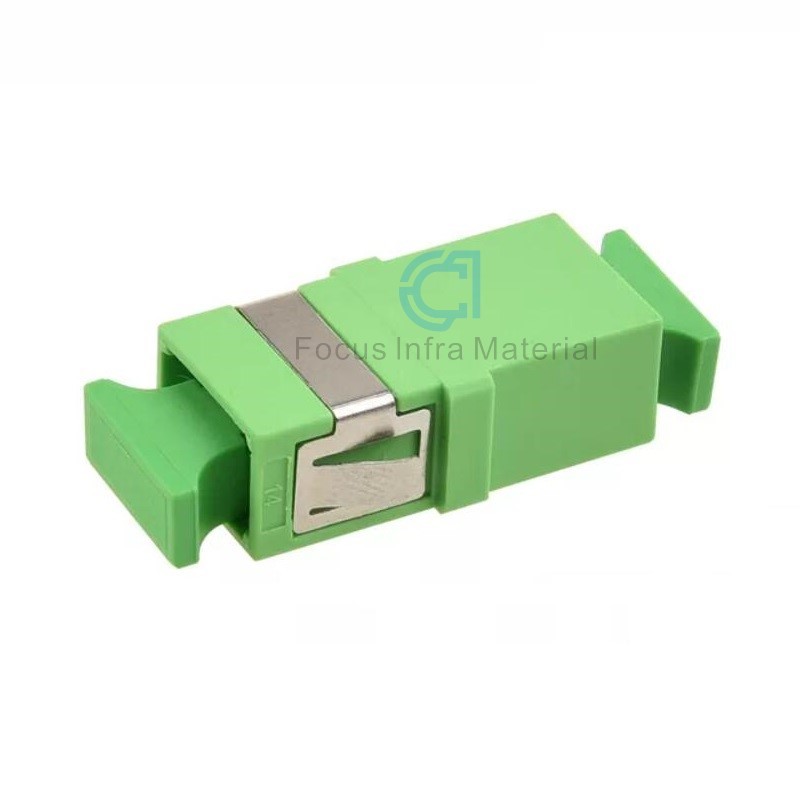

Fiber Optic Adapter Single Mode Simplex Optical Connector with Green Cap

Model Number: SC/APC
Insertion Loss:<0.2db
Return Loss: >50db
Use: FTTH, FTTX, FTTA, CATV, lAN'S

Fiber Optic Adapter Single Mode Simplex Optical Connector with Green Cap


Description:

  SC type is an optical fiber connector developed by NTT Corporation of Japan. Its shell is rectangular, and the structural dimensions of the pins and coupling sleeves used are exactly the same as those of the FC type. Among them, the end face of the pin mostly adopts the PC or APC type grinding method; the fastening method is the plug-in latch type, without rotation. This type of connector is cheap, easy to plug and unplug, small fluctuations in insertion loss, high compressive strength, and high installation density.

  Chengdu Focus Infra Materials company is manufacturing a wide range of fiber optic products to support optical distribution network projects. Welcome to contact us for more details.

Specification:

Type Insertion loss(db) Tensility resist(g) Inser and pull times Temperature(℃)
FC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
SC PC < 0.2 200-600 1000 -40-+80
APC < 0.2
ST < 0.2 200-600 1000 -40-+80
LC < 0.2 200-600 1000 -40-+80
MU < 0.2 200-600 1000 -40-+80
MIRJ < 0.2 200-600 1000 -40-+80
E-2000 < 0.2 200-600 1000 -40-+80
FC-SC < 0.2 200-600 1000 -40-+80
FC-ST < 0.3 200-600 1000 -40-+80
SC-ST < 0.2 200-600 1000 -40-+80
