MM Simplex Multimode Fiber Optic Cable OM1 LC UPC To LC UPC

Connector Type: LC UPC To LC UPC
Cable Diameter: 0.9mm/2.0mm/3.0mm Cable
Outer Jacket: PVC/LSZH/OFNP/OFNR
Application: FTTH System Connections To CATV Telecommunication Networks

MM Simplex Multimode Fiber Optic Cable OM1 LC UPC To LC UPC


Description:

 LC UPC-LC UPC Simplex 3.0mm OM1 Multimode Fiber Optic Patch Cord is used as a jumper from the equipment to the optical fiber wiring link. It has a thick protective layer, which is generally used for the connection between optical transceiver and terminal box. It is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and LAN.

 LC UPC-LC UPC Simplex 3.0mm OM1 Multimode Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box.

  Chengdu Focus Infra Materials company is manufacturing a wide range of fiber optic passive products, please contact us at yuki.hecy@cdfocusinfra.com.


Technical Parameters
PARAMETER UNIT FC,SC,LC ST,MU
SM MM SM MM
PC UPC APC PC PC UPC PC
Insertion Loss(Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30
Operating Wavelength nm 1310 1510
Exchangeability dB ≤0.2
Vibration dB ≤0.3
Operating Temperature -40℃ to 75℃
Storage Temperature -40℃ to 85℃
Cable Diameter mm Φ3.0 Φ2.0 Φ0.9 or customized
Material of the jacket   PVC or LSZH or customized
Color fo the jacket   SM yellow, OM1,OM2 orange, OM3 aqua,or customized
Single mode fibe   ITU-T G652, or G655, or G657
Multi monde fiber   ITU-TG.651
Fiber type   9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3)


Application:

1. Communication rooms

2. FTTH (Fiber to The Home)

3. LAN (Local Area Network)

4. FOS (fiber optic sensor)

5. Fiber Optic Communication System

6. Optical fiber connected and transmitted equipment



Features:

1. Standard & custom configurations

2. Meets Telecordia-GR-326-CORE specifications

3. Low insertion loss

4. Ultra low back reflection

5.  For 3.0mm, 2.0mm jacket or 900μm buffer

6. Good Repeatability

7. Low Insertion loss

8. .High return loss

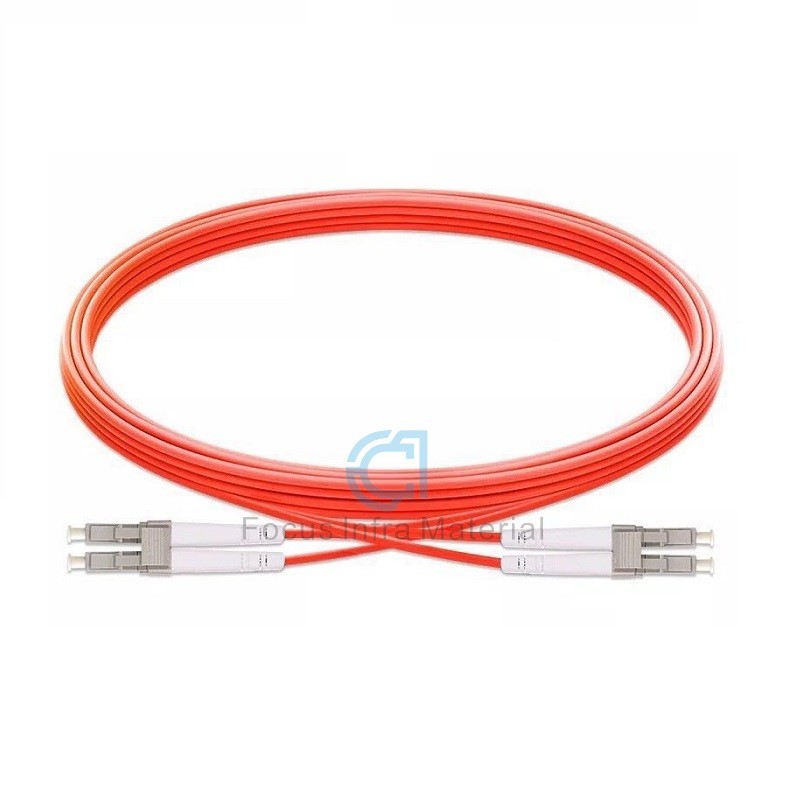

MM Simplex Multimode Fiber Optic Cable OM1 LC UPC To LC UPC 0

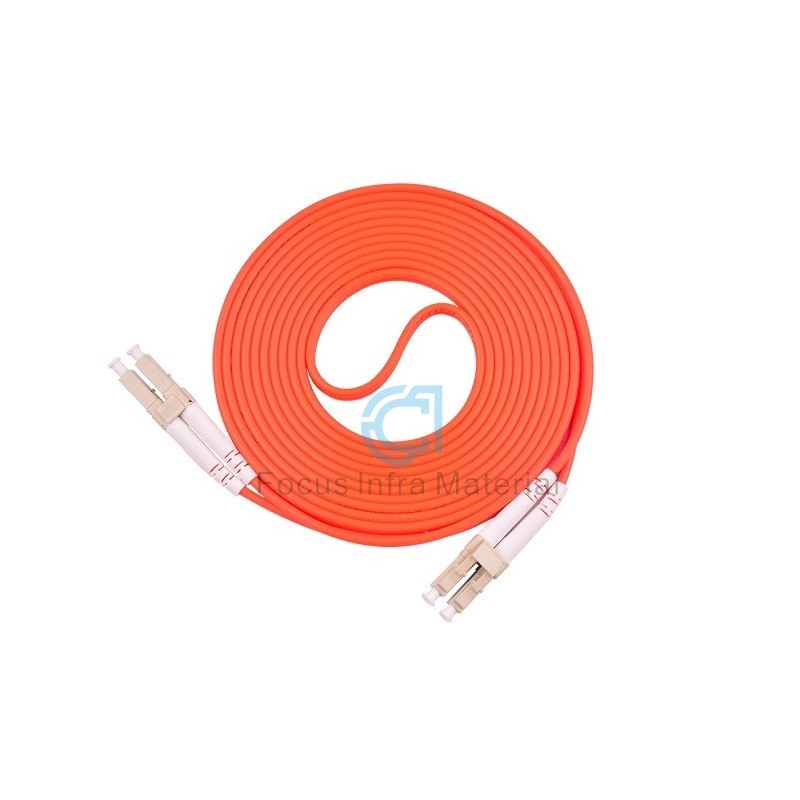

MM Simplex Multimode Fiber Optic Cable OM1 LC UPC To LC UPC 1

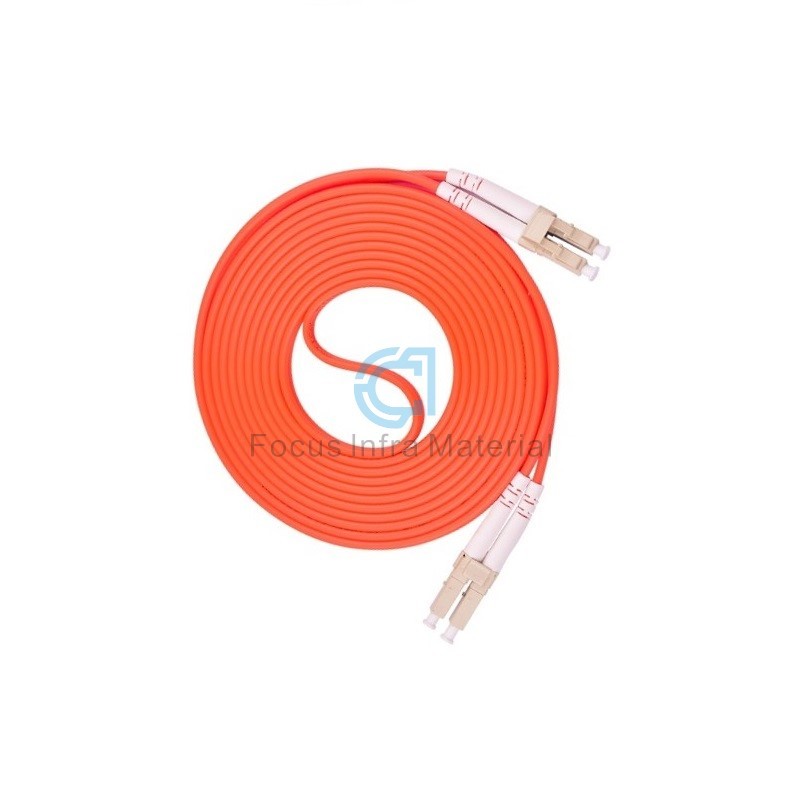

MM Simplex Multimode Fiber Optic Cable OM1 LC UPC To LC UPC 2

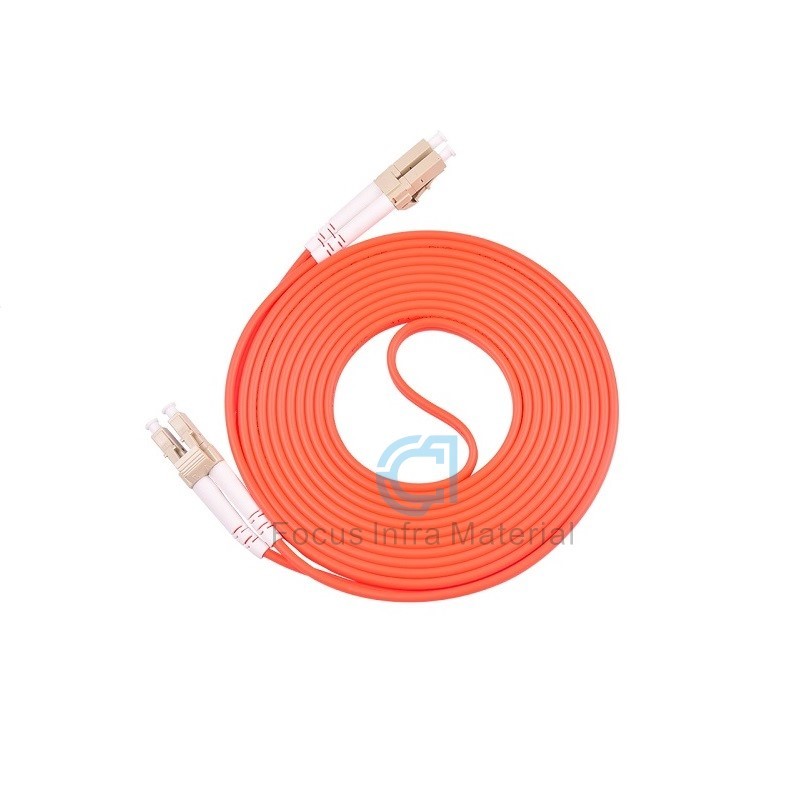

MM Simplex Multimode Fiber Optic Cable OM1 LC UPC To LC UPC 3
