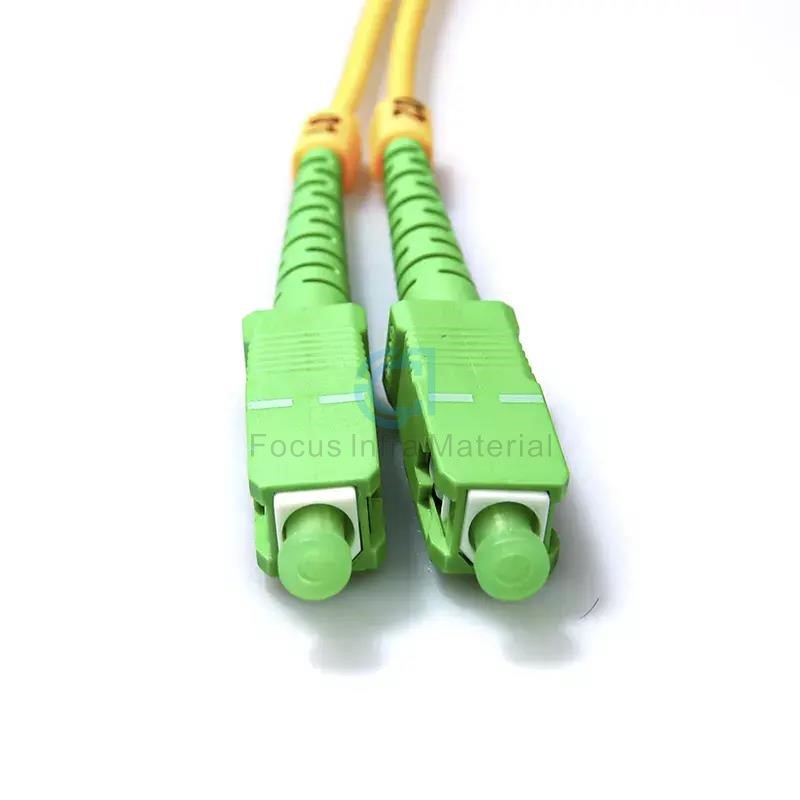

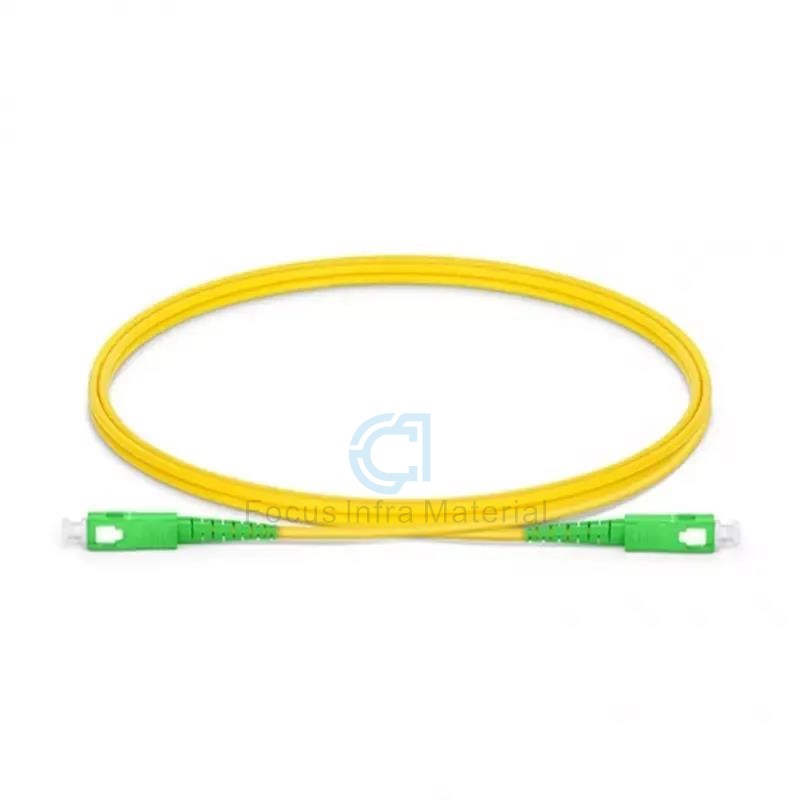

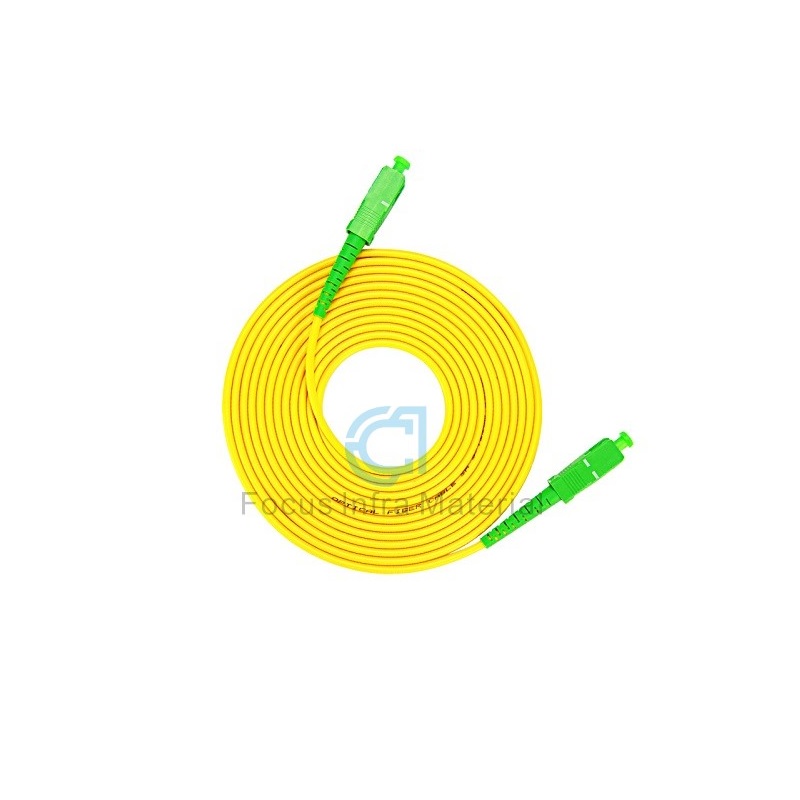

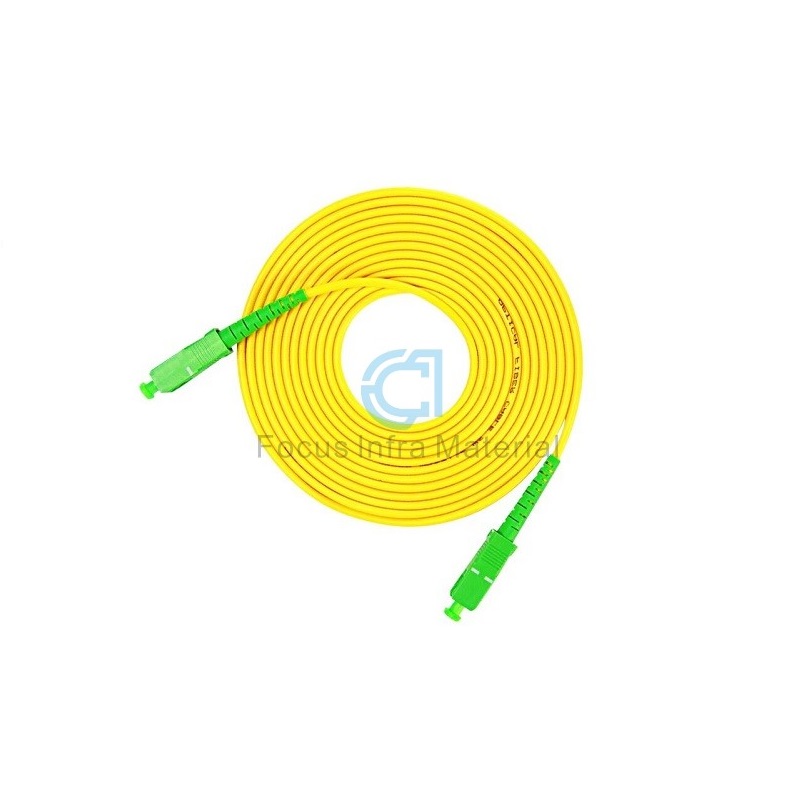

Sc APC Simplex Singlemode LSZH Fiber Optic Patch Cord for CATV Network FTTH Fiber Optic Jumper Pigtail 3.0mm Patch Cord

Model Number: SC APC to SC APC
Mode Type: SM SX Singlemode Simplex
Outer Jacket: LSZH
Cable Diameter: 2.0mm/3.0mm Cable

Sc APC Simplex Singlemode LSZH Fiber Optic Patch Cord for CATV Network FTTH Fiber Optic Jumper Pigtail 3.0mm Patch Cord


Description:

  Chengdu Focus Infra Materials Company is manufacturing a wide range of fiber optic patch cord and also offer different length cutomize service. Welcome to contact us for more details at yuki.hecy@cdfocusinfra.com. SC APC Simplex Singlemode 2.0mm or 3.0mm LSZH Fiber Optic Patch Cord Cable is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. SC type Simplex Singlemode 2.0mm or 3.0mm LSZH Fiber Optic Patch Cord Cable is with the connector connecting GBIC optical module. Its shell is rectangular.

 Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).


Technical Parameters
PARAMETER UNIT FC,SC,LC ST,MU
SM MM SM MM
PC UPC APC PC PC UPC PC
Insertion Loss(Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30
Operating Wavelength nm 1310 1510
Exchangeability dB ≤0.2
Vibration dB ≤0.3
Operating Temperature -40℃ to 75℃
Storage Temperature -40℃ to 85℃
Cable Diameter mm Φ3.0 Φ2.0 Φ0.9 or customized
Material of the jacket
PVC or LSZH or customized
Color fo the jacket
SM yellow, OM1,OM2 orange, OM3 aqua,or customized
Single mode fibe
ITU-T G652, or G655, or G657
Multi monde fiber
ITU-TG.651
Fiber type
9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3)


Application:

CATV

Telecommunication networks

Local Area Networks (LANs)

Metro networks

Data processing networks

Industrial, military and medical


Features:

1. Low Insertion loss

2. High return loss

3. Excellent Environmental Adaptability

4. SM & MM available

6. Standard & custom configurations

7. Meets Telecordia-GR-326-CORE specifications

8. Ultra low back reflection
