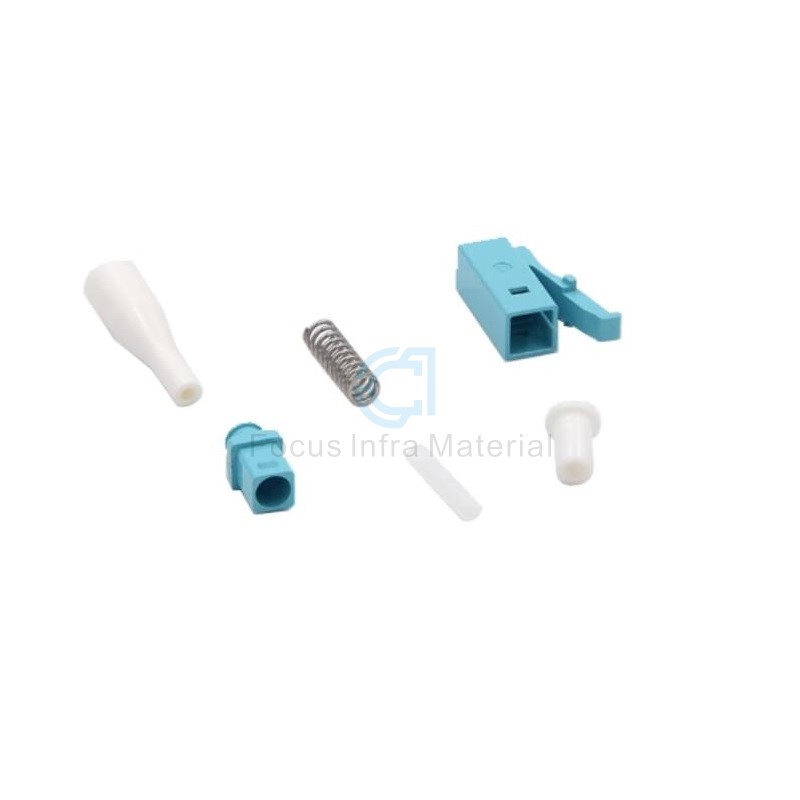

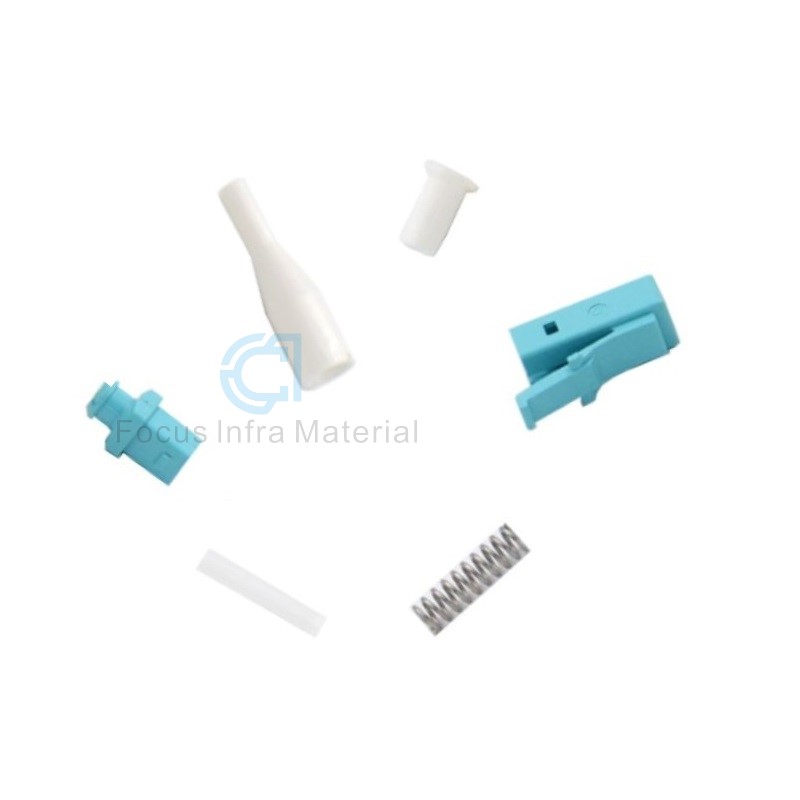

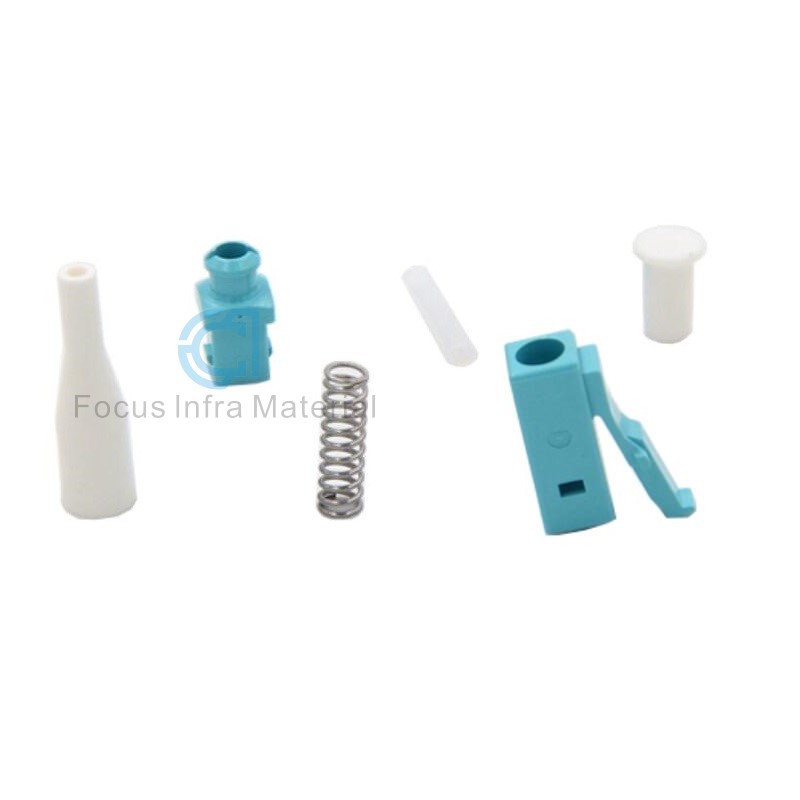

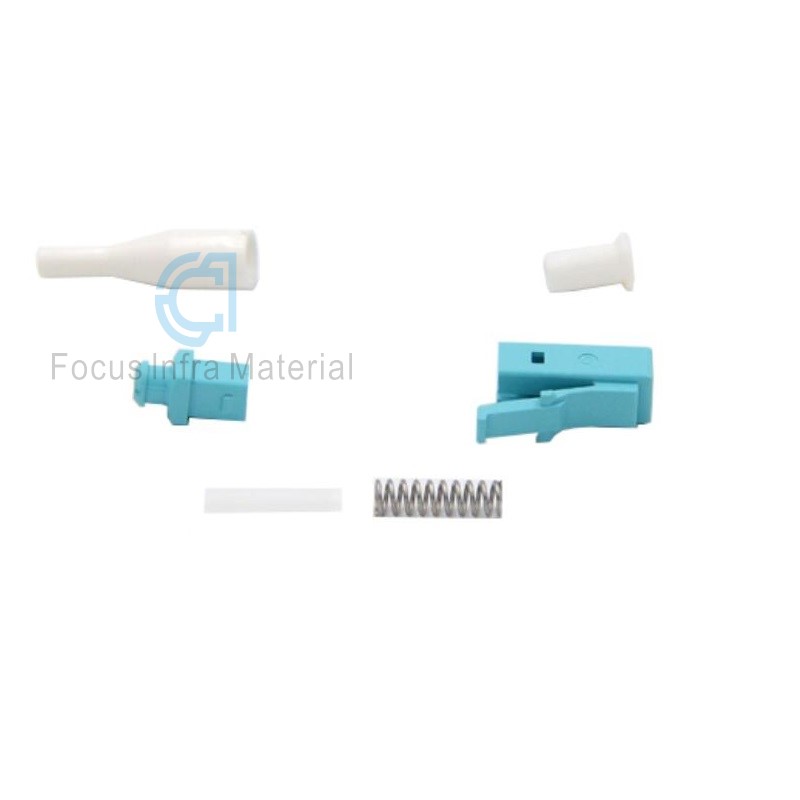

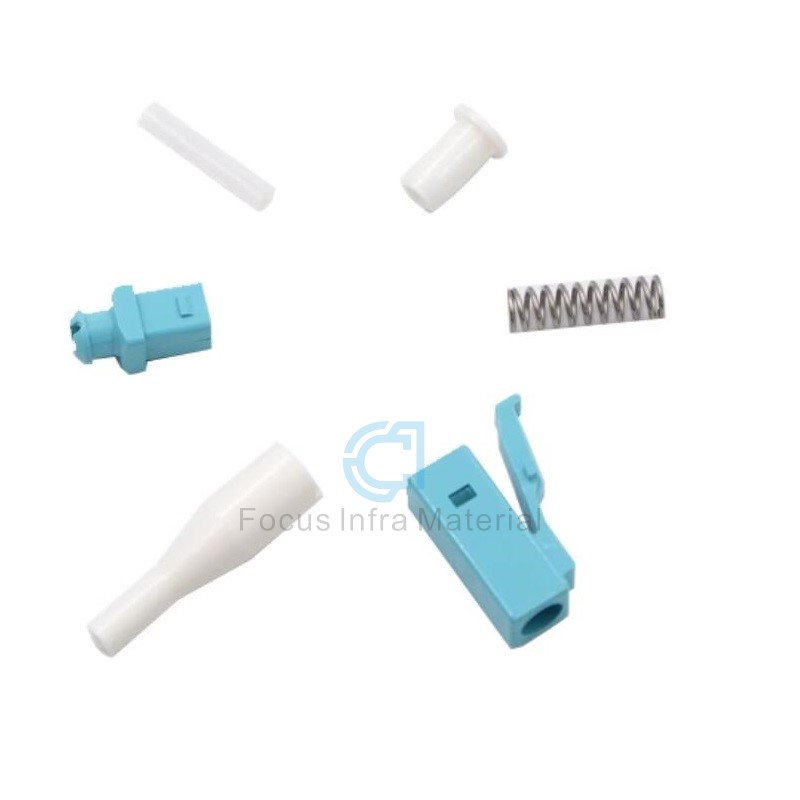

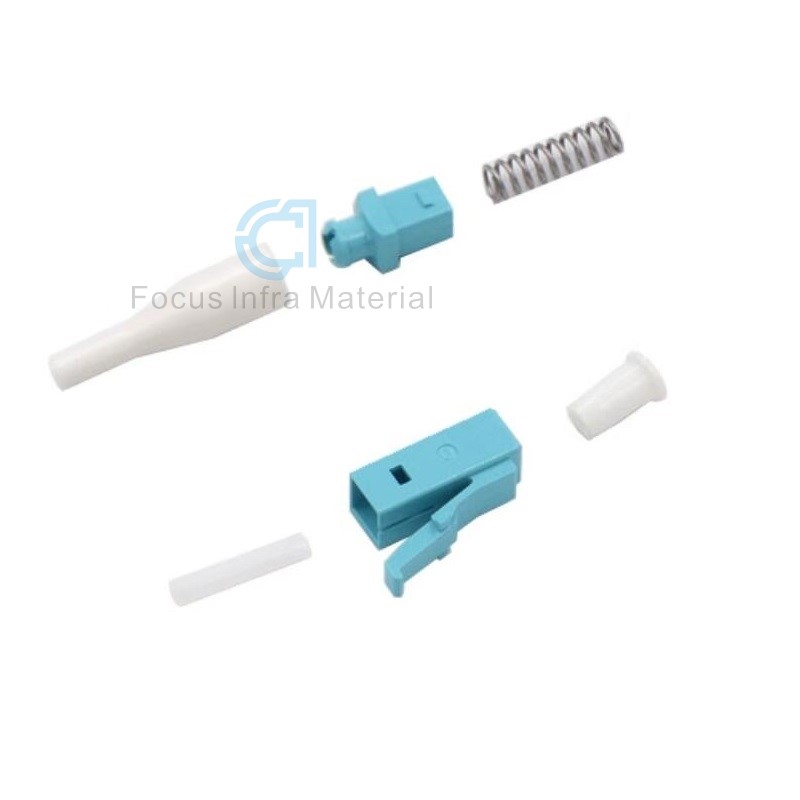

Model Number: LC PC
Insertion Loss: ≤0.3dB
Return Loss Of Pigtail: ≥55dB
Application: FTTH FTTB FTTX Network
The optical fiber connector is one of the most basic passive components in the optical fiber communication. Chengdu Focus Infra Materials Company is manufacturing a wide range of components for the patch cord parts, As there are difference ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose. Please contact us for more details at yuki.hecy@cdfocusinfra.com. Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment,Active device termination and so on.
Technical Parameter:
Fiber Type | SM | MM | ||
Connector Type | SC,FC,ST,E2000,LC,MU,DIN | MTRJ | SC,FC,ST,E2000,LC,MU | MTRJ |
Insertion Loss(Typical) | ≤ 0.2dB | ≤ 0.4dB | ≤ 0.2dB | ≤ 0.4dB |
Insertion Loss(Max) | ≤ 0.3dB | ≤ 0.5dB | ≤ 0.3dB | ≤ 0.5dB |
Return Loss(Typical) | PC ≥ 50dB | ≥ 35dB | - | |
UPC ≥ 55dB | - | - | ||
APC ≥ 65dB | - | - | ||
Durability(500ºC) | 0.2dB | |||
Temperature Stability | 0.3dB | |||
Operation Temperature | -40ºC~+85ºC | |||
Storage Temperature | -40ºC~+85ºC |
Application
1. CATV
2. Telecom Network
3. Metro
4. Data processing
Features
1. Low insertion Loss and Back reflection loss
2. RJ-45 style interface-
3. Polarized and color coded (TIA568-A&ISO 11801)
4. UL-rated plastic housing and boot
5. Compact, pull-proof design
6. Behind-the-Wall style short connector
