Model: SC/ UPC
Mode: OM3
Insertion Loss: <0.2db
Return Loss: >50db

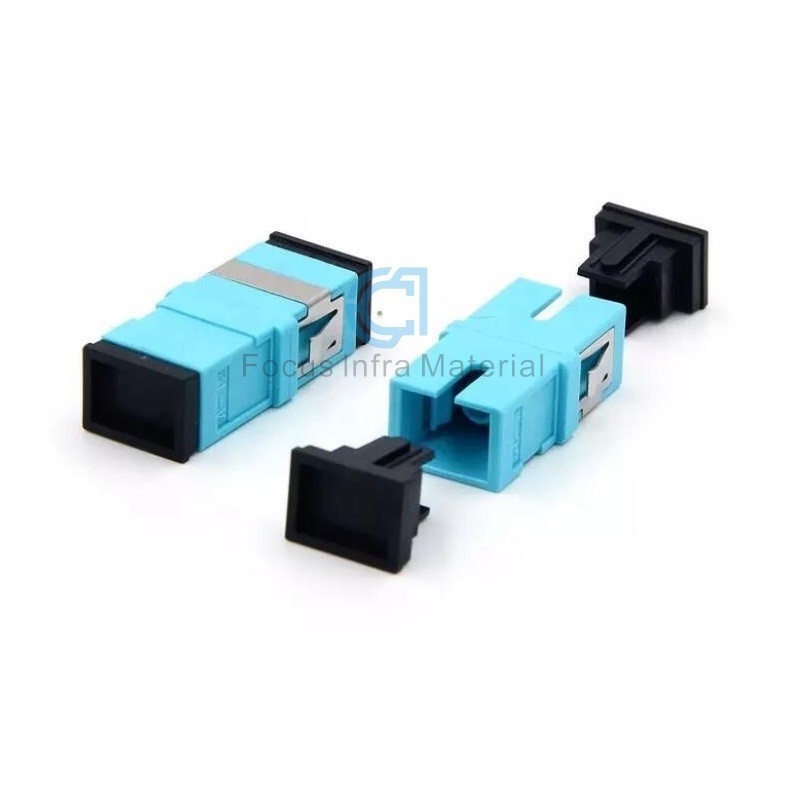

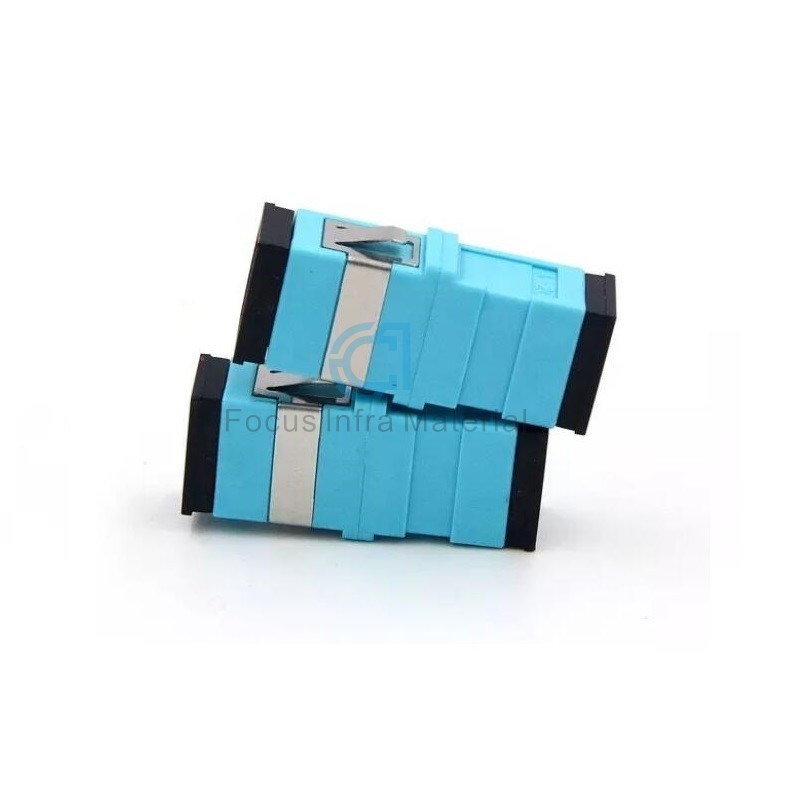

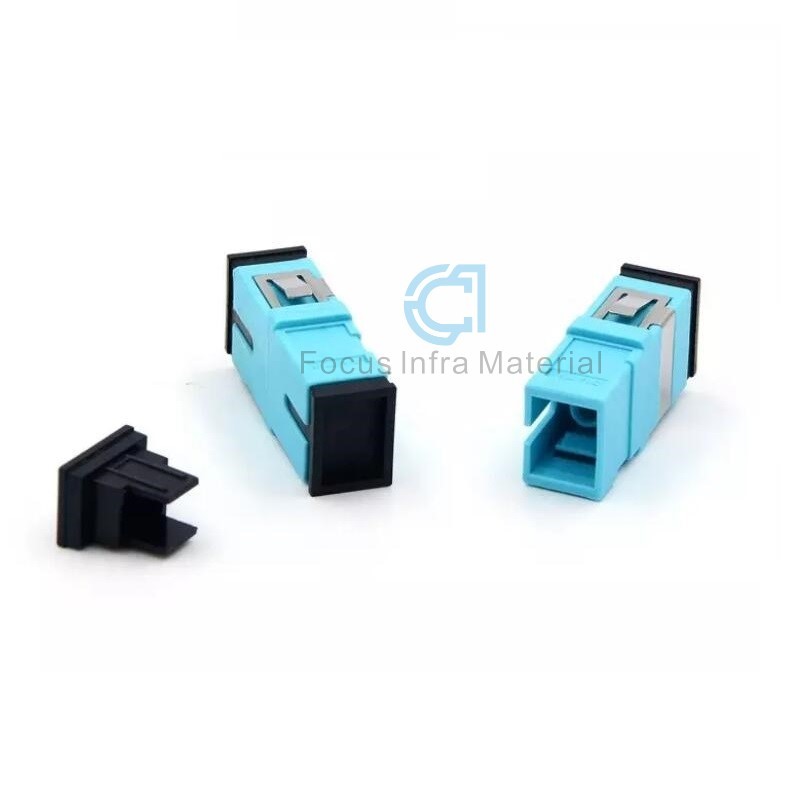

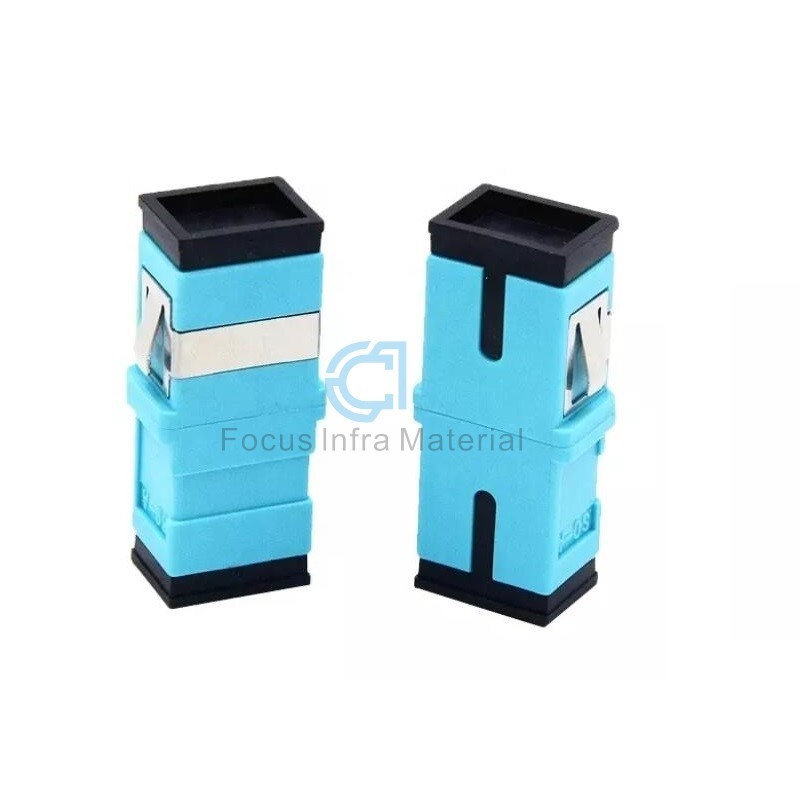

SC UPC OM3 Simplex SX Fiber Optic Connector Optical Adapter
Description:
SC UPC OM3 Simplex SX Fiber Optic Connector Optical Adapter is used in fiber connection. SC UPC OM3 Simplex SX Fiber Optic Connector Optical Adapter, we also call it as SC UPC OM3 Simplex SX fiber optic connector, Focus Infra has various types of fiber optic adapters. Focus Infra is providing reliable solution for fiber connections ,single mode fiber optic adaptors and multimode fiber optic adaptors available for your choose. SC UPC OM3 Simplex SX Fiber Optic Connector Optical Adapter are flange type, single mode adaptors are with zirconia sleeve while multimode fiber adaptors are with bronze sleeve.
With High performance of High size precision and Good repeatability and Good temperature stabilization, Focus Infra's Fiber Optic Adapters have a good reputation in the market.
Feature:
1. Fiber optic adapter LC
2. Apply for CATV, LAN, Telecom network, test equipment, LC connectors
3. Multimode or Single Mode, OM3,OM4 available
4. Quad
5. Ceramic sleeve, ABS housing
6. Insertion Loss≤ 0.2dB, Return Loss≥ 45dB (pc), ≥ 60dB (apc)
7. Operating temp.: -40° C~+85° C
8. Standard plugging force: 2~6N
9. Durability > 1000 times
10. Color: Blue (pc/SM), Green (apc), Beige (pc/MM), Acid blue (OM3),Purple(OM4)
Specification:
Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
APC | < 0.2 | ||||
SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
APC | < 0.2 | ||||
ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 |
