Model Number: Single Mode, SM
Use: FTTH, FTTX, FTTA, CATV, LANs
Insertion Loss: <0.2db
Application: Fiber Connection
Description:

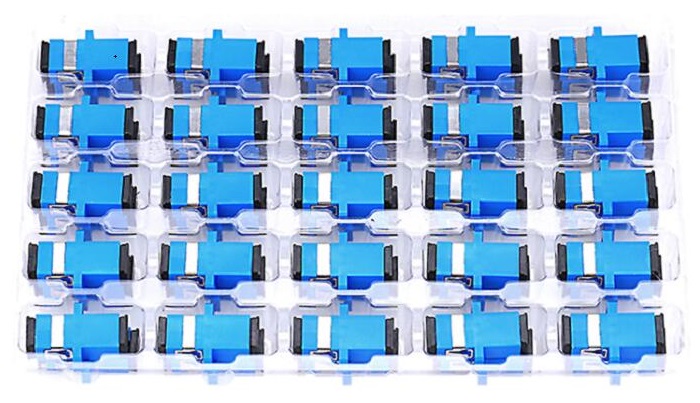

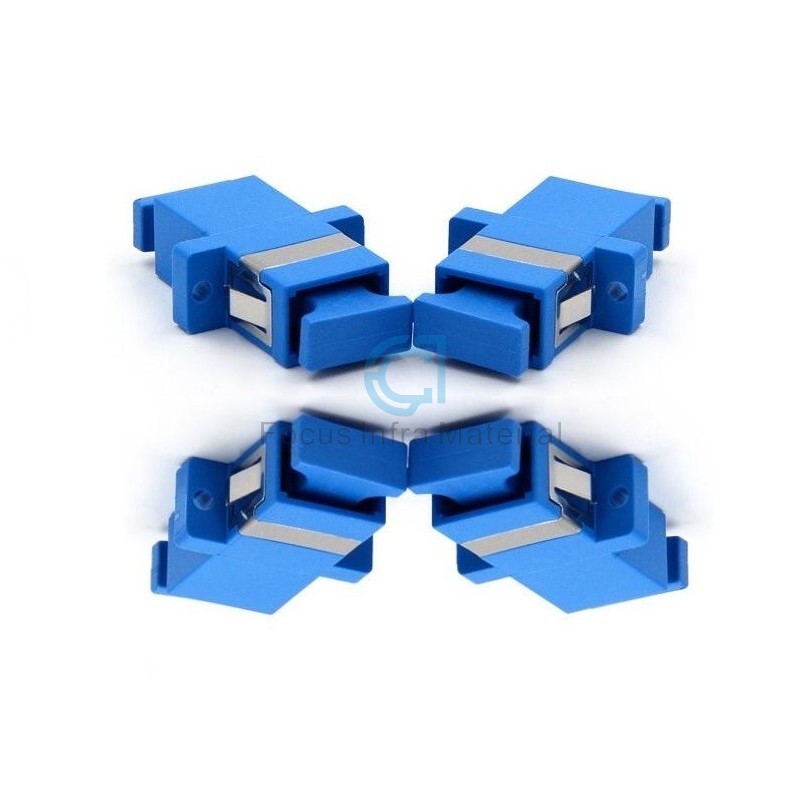

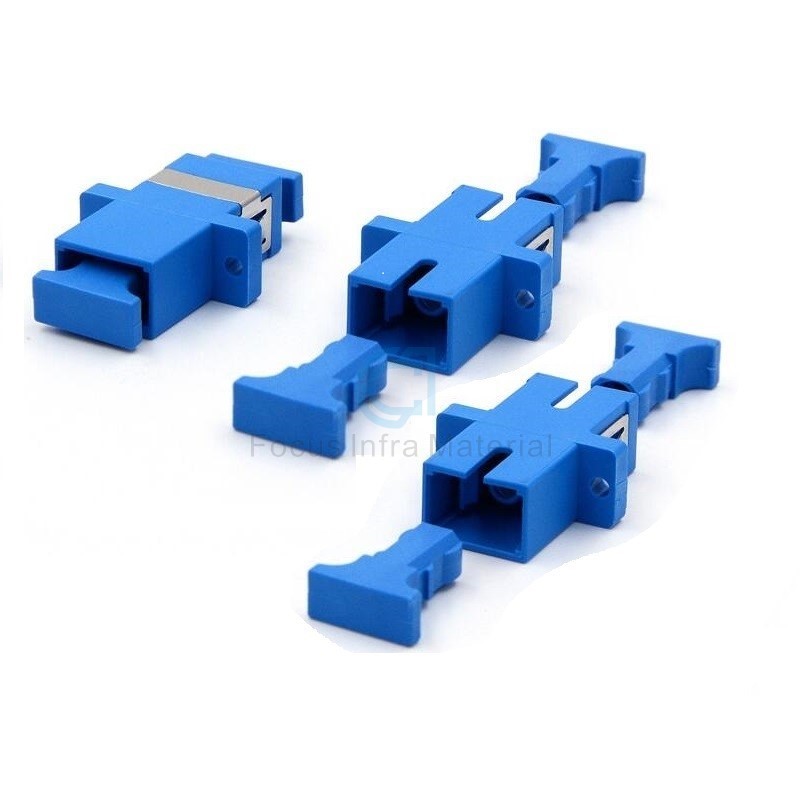

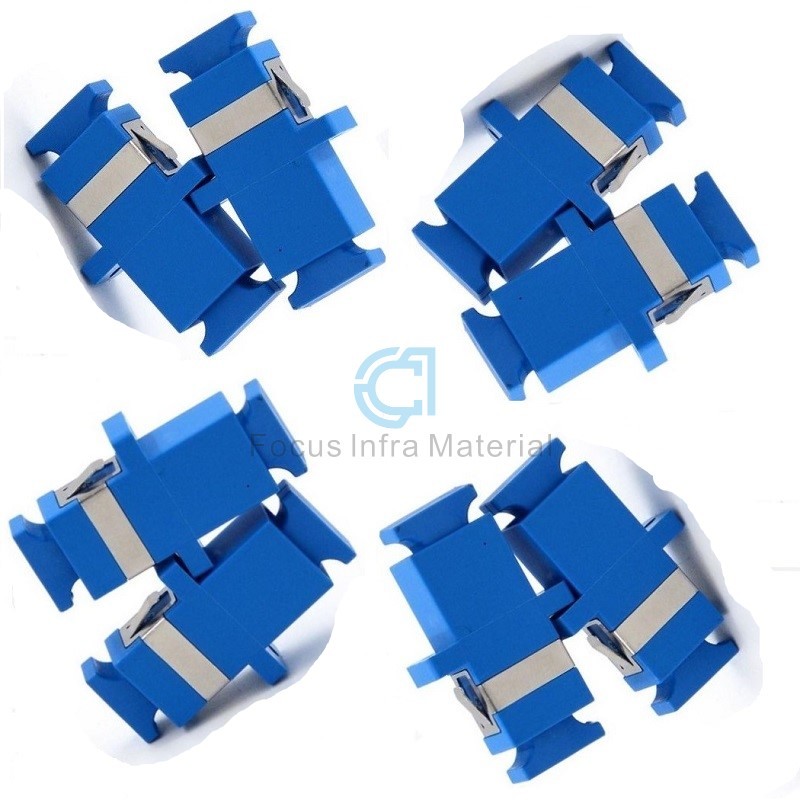

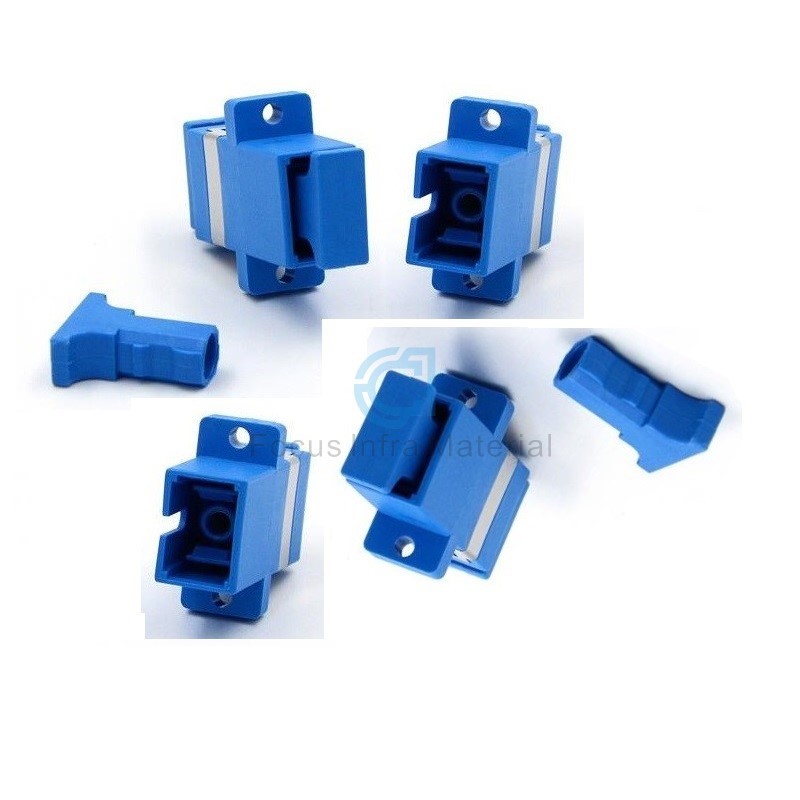

Blue Color Simplex Single Mode SM SX Optical Connector Fiber Optic Adapter are designed for mounting in standard rectangular cut out style panels. Focus Infra also supply the metal housing SC fiber optic adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types.

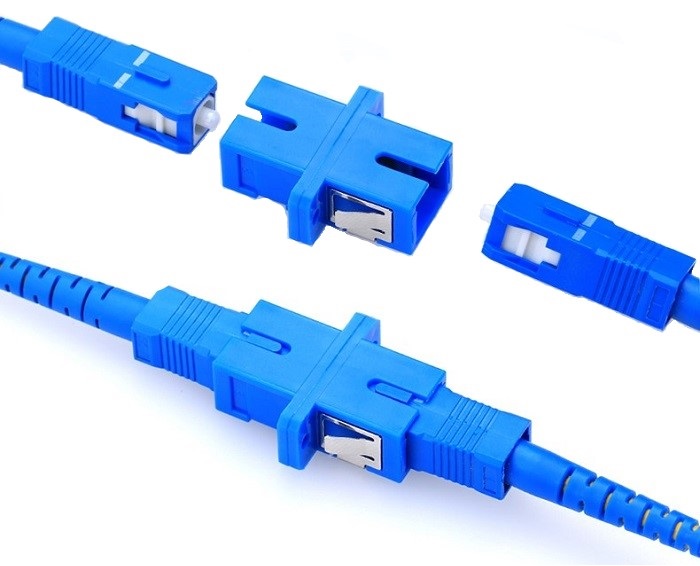

When connecting two multimode fibers, you should always make sure they are the same core diameter (50/125 or 62.5/125). A mismatch here will cause attenuation in one direction (where the larger fiber is transmitting light into the smaller fiber). Focus Infra’s Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
Features:
1. High size precision.
2. Good repeatability.
3. Good changeability.
4. Good temperature stabilization.
5. High wearable.
Specification:
Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
APC | < 0.2 | ||||
SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
APC | < 0.2 | ||||
ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 |
