Model Number: LC UPC
Insertion Loss: <0.2db
Return Loss: >50db
Flange: With Flange / Without Flange
Description:

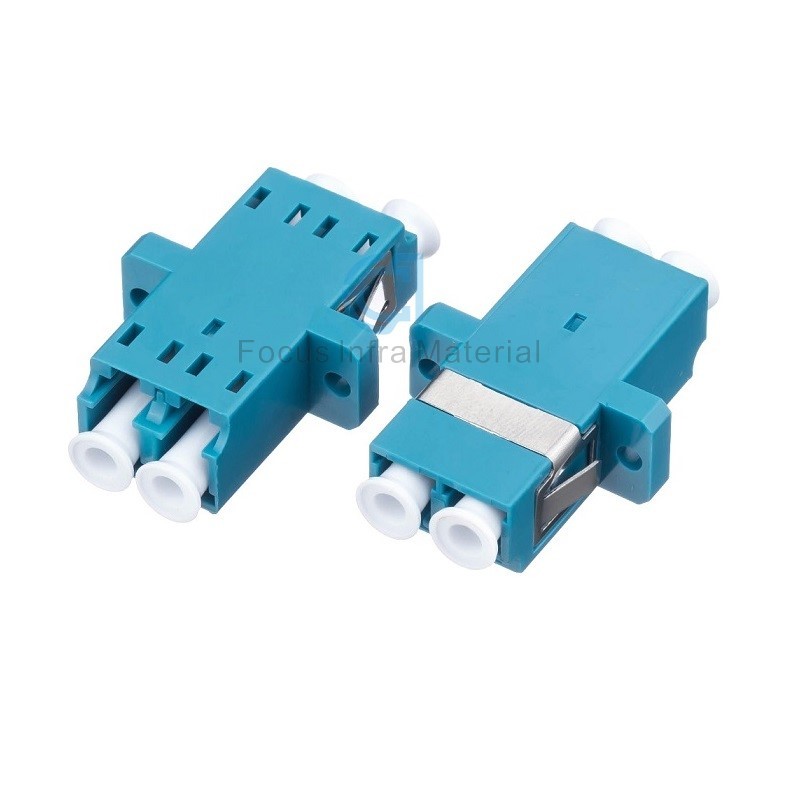

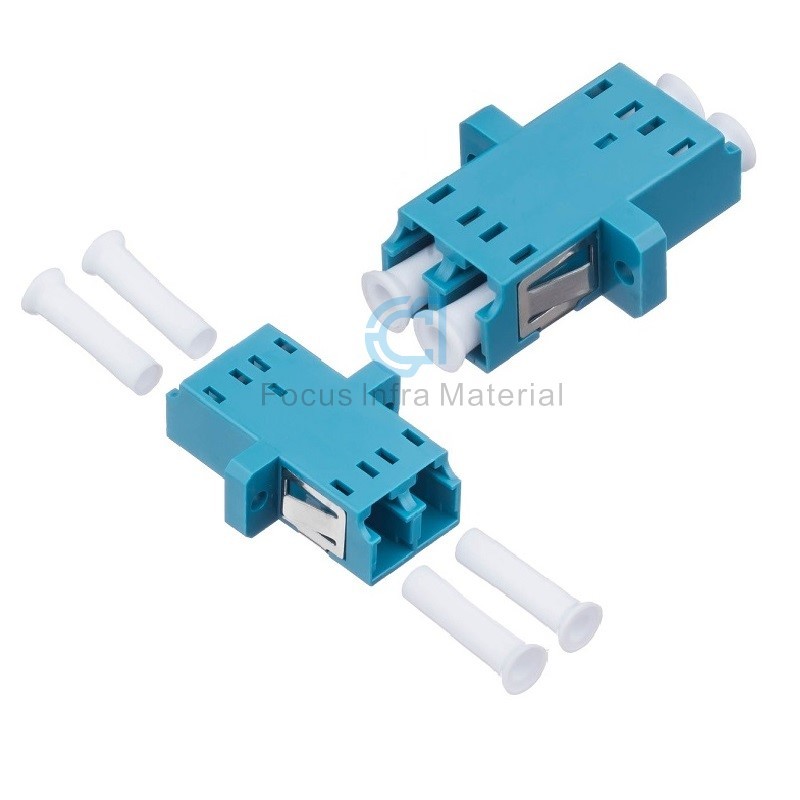

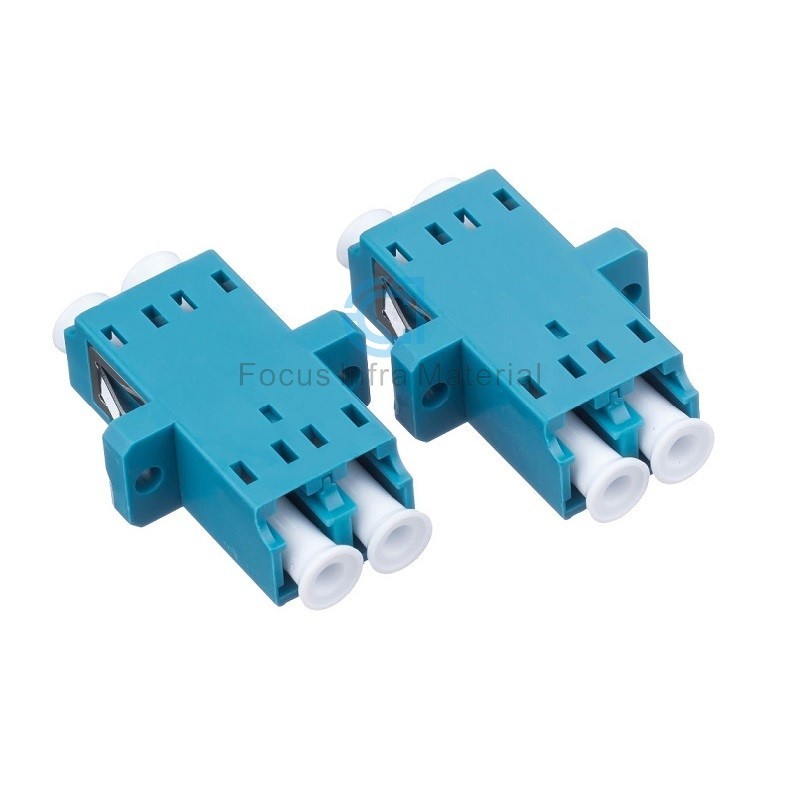

SM DX LC UPC Single Mode Duplex Fiber Optic Adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection. LC fiber optic adaptors are all plastic housing; there are simplex LC adaptors and duplex LC adaptors, usually duplex LC fiber adaptors are with SC footprint. The LC fiber adaptors colors are same as SC fiber optic adaptors: blue for single mode PC, beige for multi mode PC and green for single mode APC. LC fiber optic adaptors are with bronze sleeve for multimode and zirconia sleeve for single mode.
Both ends of the fiber optic adapter can be inserted into fiber optic connectors of different interface types to realize the conversion between different interfaces such as FC, SC, ST, LC, MTRJ, MPO, E2000, etc. It is widely used in optical fiber distribution frames (ODF), optical fiber communication equipment, Instruments, etc., superior performance, stable and reliable.
Specification:
Type | Insertion loss(db) | Tensility resist(g) | Inser and pull times | Temperature(℃) | |
FC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
APC | < 0.2 | ||||
SC | PC | < 0.2 | 200-600 | 1000 | -40-+80 |
APC | < 0.2 | ||||
ST | < 0.2 | 200-600 | 1000 | -40-+80 | |
LC | < 0.2 | 200-600 | 1000 | -40-+80 | |
MU | < 0.2 | 200-600 | 1000 | -40-+80 | |
MIRJ | < 0.2 | 200-600 | 1000 | -40-+80 | |
E-2000 | < 0.2 | 200-600 | 1000 | -40-+80 | |
FC-SC | < 0.2 | 200-600 | 1000 | -40-+80 | |
FC-ST | < 0.3 | 200-600 | 1000 | -40-+80 | |
SC-ST | < 0.2 | 200-600 | 1000 | -40-+80 |
