Model Number : FOCC-F-17
Cores: 8 Cores
Cable Port: 4 IN 8 OUT
Texture Of Material: ABS, PC

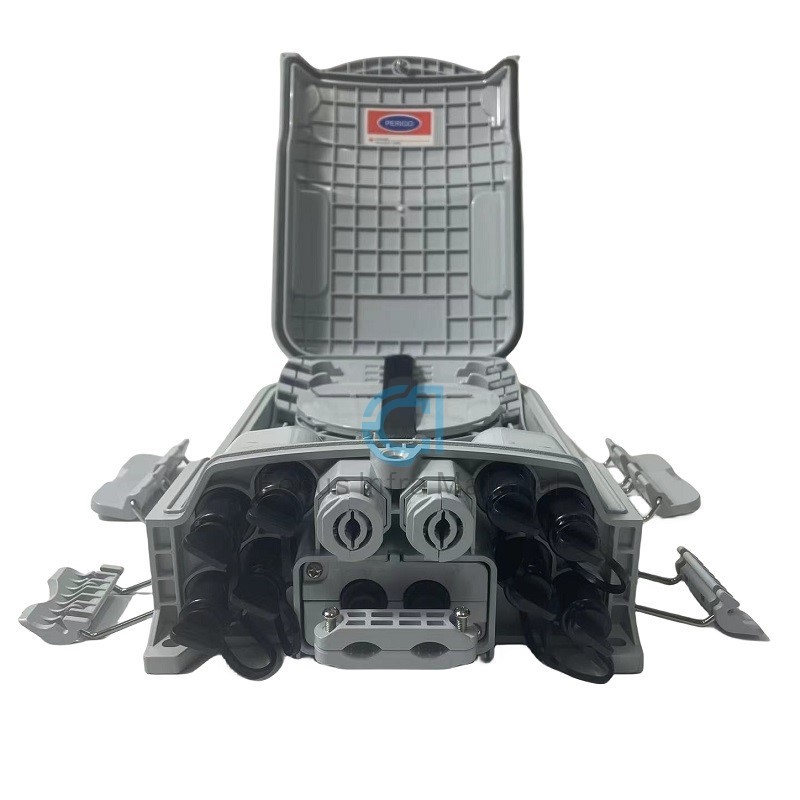

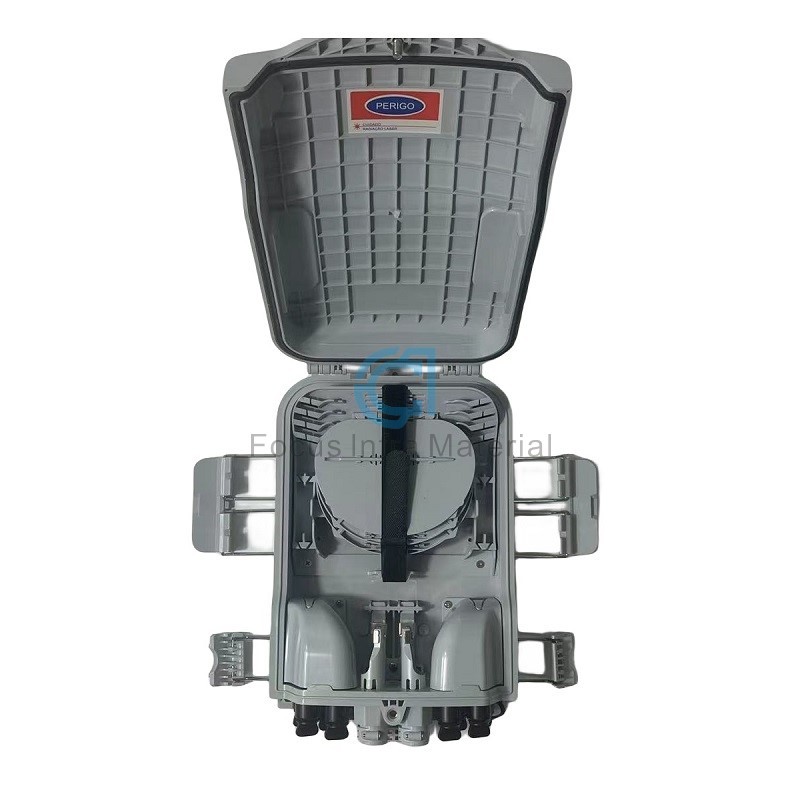

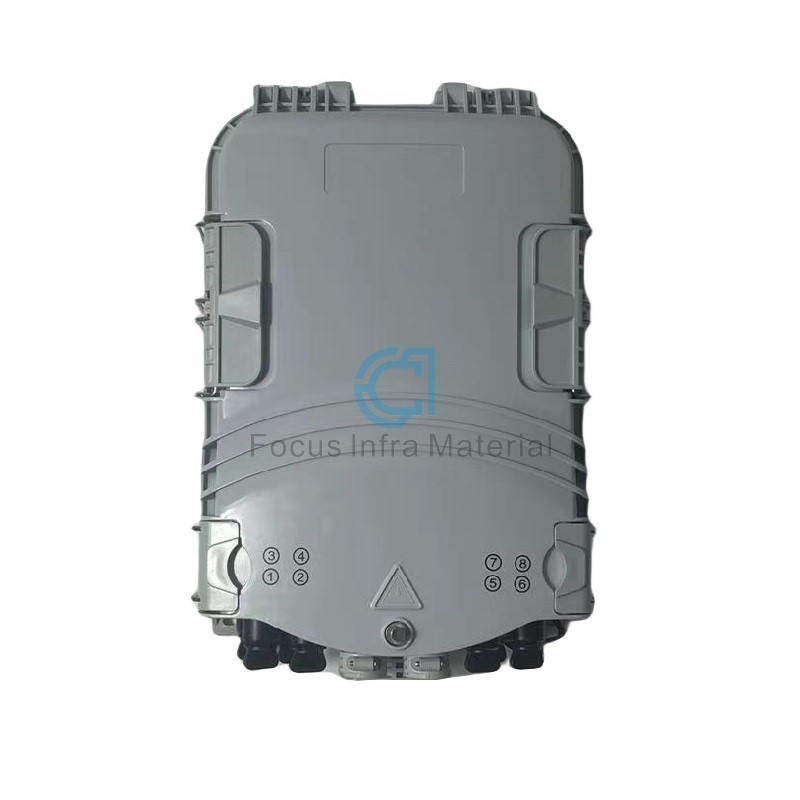

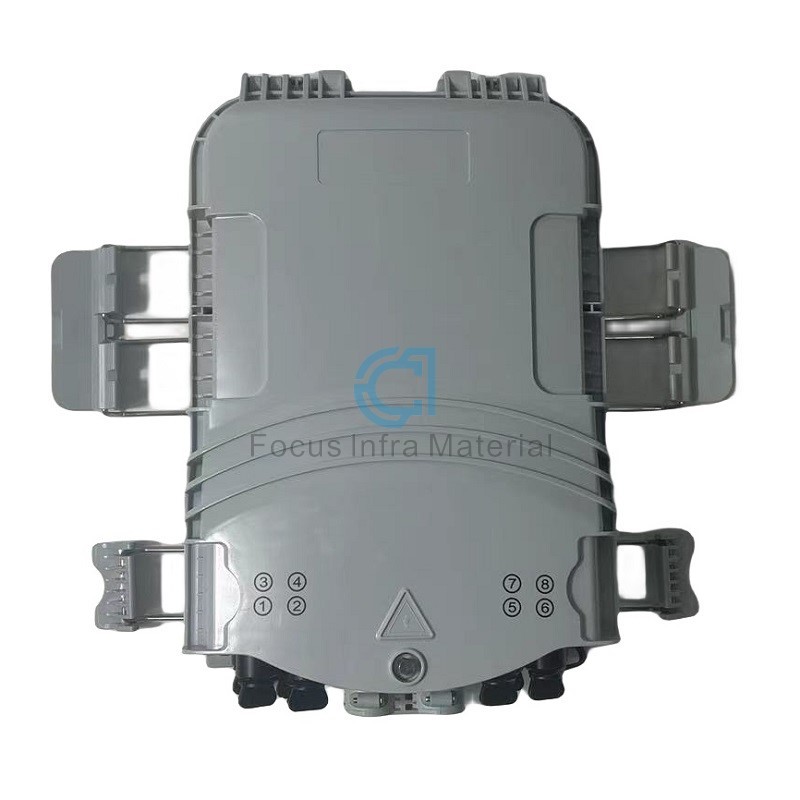

Caja Fiber Box 8/16 Core Fiber Terminal Box PC+ABSMaterial NAP
Description:
The NAP Box is used as the termination point for the feeder cable to connect to the drop cable in the FTTx communication network system. Fiber splicing, splitter, and distribution can be done in this box, and meanwhile it provides protection for the FTTx network building.
Feature:
1. PC+ABS material used ensures the body strong and light..
2. Wet-proof, water-proof, dust-proof, anti-aging
3. Easy installations: Ready for wall mount – installation kits provided
4. Space saving: Double-layer design for easier installation and maintenances
5. Easy installations: Ready for wall mount – installation kits provided.
6. Protection level up to IP55
7. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Applications:
FTTH project & FTTX Deployments
Optical LAN & WAN & CATV
Telecommunication Network
Local Area Network
Specification:
Focus Infra Materials | FOCC-F-17 |
Outdoor 8 Core Fiber Optic Distribution Box | |
Product dimensions(mm) | 320*210*100 |
In and out port | 4 in, 8 out |
Material | PC, ABS, customizable |
Color | Black, gray, white, customizable |
Install the application (applicable environment) | Indoor, outdoor. (wall mount, pole mount, aerial) |
NET weight of product(kg) | 1.7 |
Number of boxes packed | 10 |
Dimensions of cartons(cm) | 55*35.5*45 |
Gross weight (kg) | 18 |
