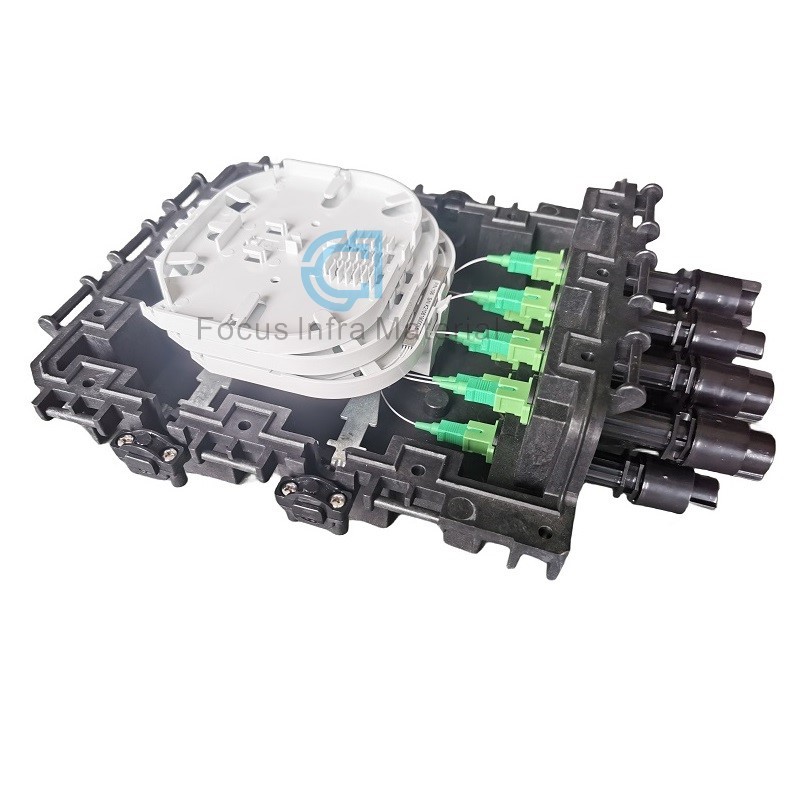

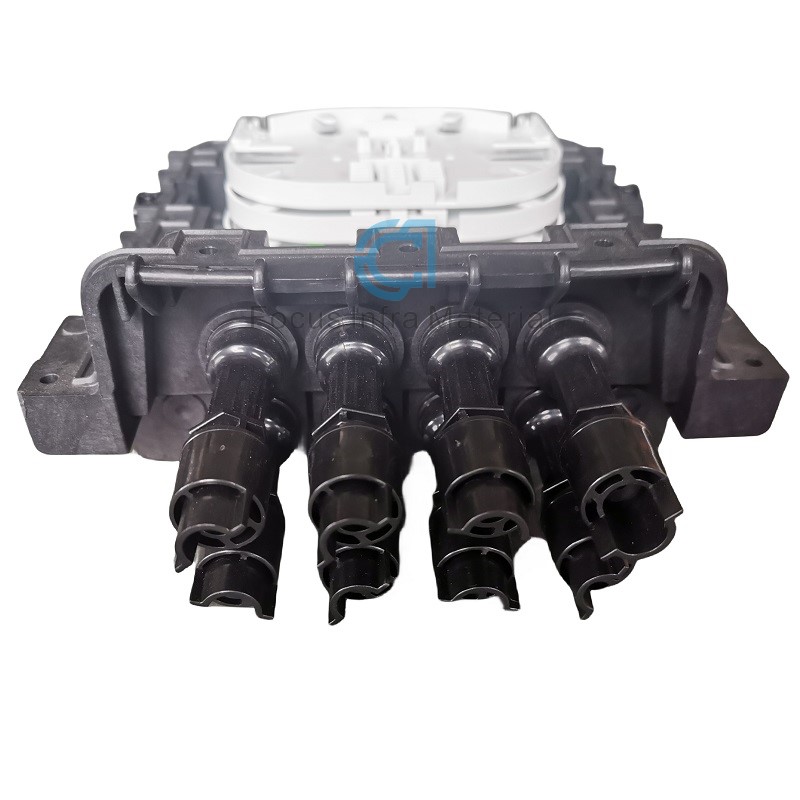

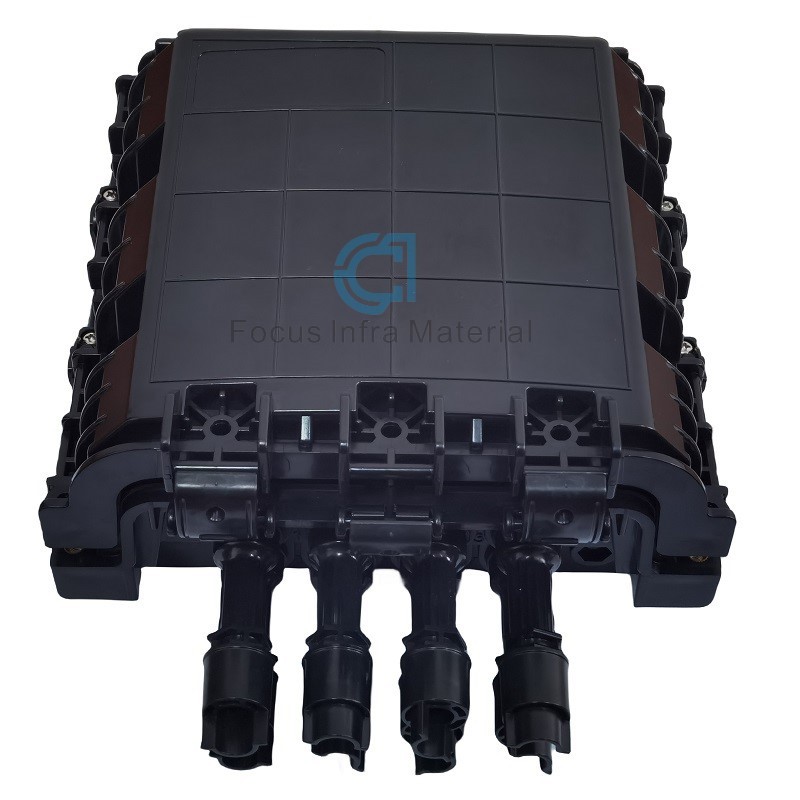

Fiber Distribution Box Pole Wall Mounted Fiber Optic Splice Closure Cajas NAP

Model Number : FOCC-F-16
Cores: 8 Cores
Cable Port: 4 IN 8 OUT
Texture Of Material: ABS, PC

Fiber Distribution Box Pole Wall Mounted Fiber Optic Splice Closure Cajas NAP


Description:

The NAP Box is used as the termination point for the feeder cable to connect to the drop cable in the FTTx communication network system. Fiber splicing, splitter, and distribution can be done in this box, and meanwhile it provides protection for the FTTx network building.


Feature:

1. PC+ABS material used ensures the body strong and light..

2. Wet-proof, water-proof, dust-proof, anti-aging

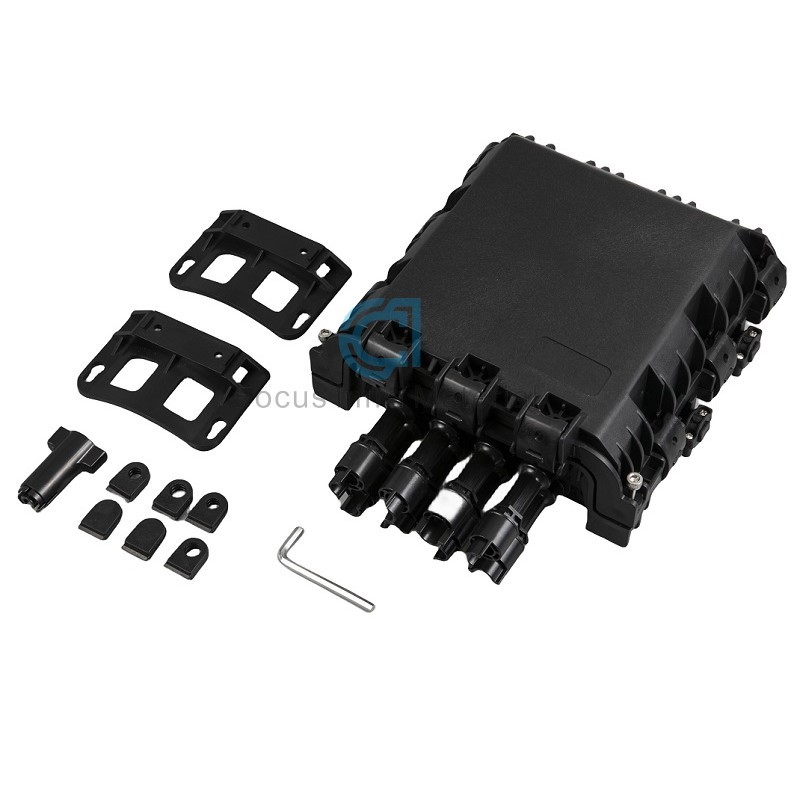

3. Easy installations: Ready for wall mount – installation kits provided

4. Space saving: Double-layer design for easier installation and maintenances

5. Easy installations: Ready for wall mount – installation kits provided.

6. Protection level up to IP55

7. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.



Applications:

FTTH project & FTTX Deployments

Optical LAN & WAN & CATV

Telecommunication Network

Local Area Network




Specification:

Focus Infra Materials

FOCC-F-16

                                                           Outdoor 8 Core Fiber Optic Distribution Box

Product dimensionsmm

328*247*124

In and out port

4 in, 8 out

Material

PC, ABS, customizable

Color

Black, gray, white,   customizable

Install the   application (applicable environment)

Indoor, outdoor. (wall   mount, pole mount, aerial)

NET weight of   product(kg)

1.6

Number of boxes packed

10

Dimensions of   cartons(cm)

                           65*34*52

Gross weight (kg)

18
