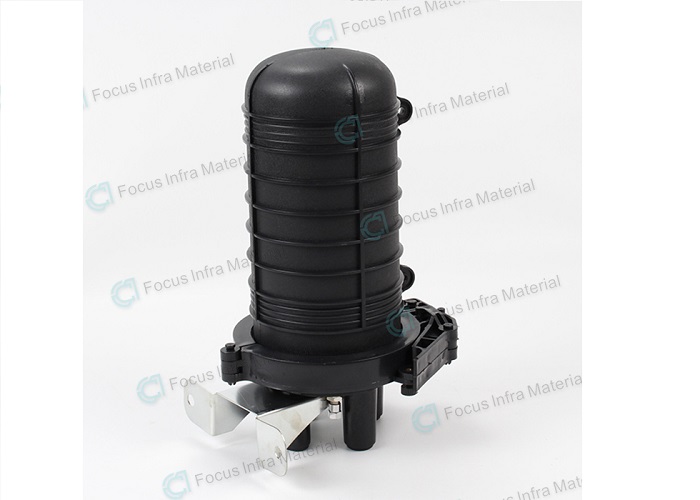

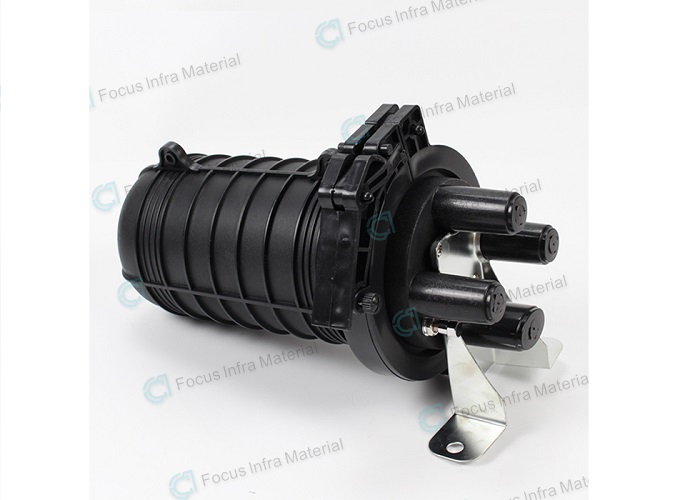

Dome Type Vertical 1 Inlets 3 Outlets Pipeline Buried 12 24 48 Cores Fiber Optical Splice Closure

Model Number : FS-J-006
Cable Port: 1 Inlets 3 Outlets
Scope Of Application: 12 Core To 48 Core
Product Size: 320*160mm

Description:



  Dome Type Vertical 1 Inlets 3 Outlets Pipeline Buried 12 24 48 Cores Fiber Optical Splice Closure, also known as Dome Type Vertical 1 Inlets 3 Outlets Pipeline Buried 12 24 48 Cores Fiber Optical Splice Joint Box, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength. The solid shell and main structure of optical cable junction box can endure the worst environmental changes, and play a flame retardant role at the same time. Waterproof effect, so that vibration, impact, cable tension, twist and so on are protected.





Features:

Ageing resistance & ultraviolet radiation resistance
Advanced internal structure design
Easy and fast to fix fiber cable
Easy and fast to increase and reduce.

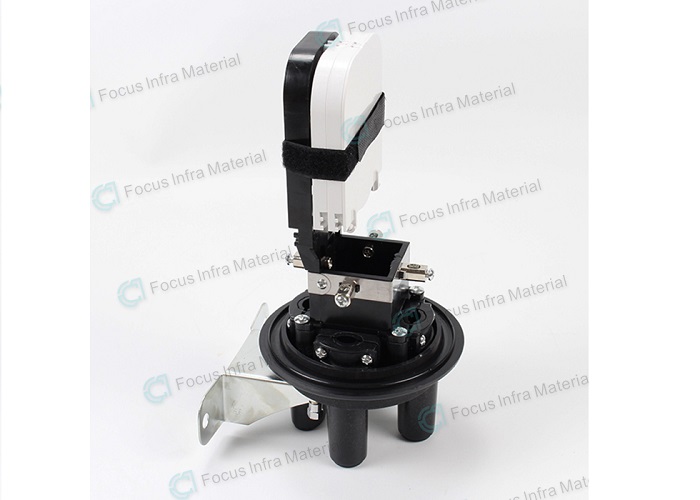

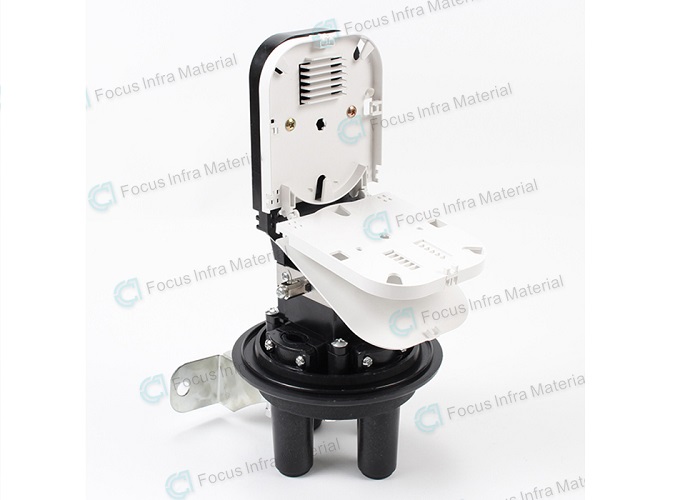

The closure is spacious enough for winding and storing fibers



Specification:



Product name Dome Type Vertical Fiber Optic Splice Box
Protection level IP68
Scope of application 12 core to 48 core
Gross weight 2.15 kg
Main material Plastic
Scope of use Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature - 40 °C ~ + 60 °C
Service life ≥20 years
Application scope FTTH FTTB FTTX Network
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1200N
