Model Number : FS-J-019
Cable Port: 4 Inlets 4 Outlets
Scope Of Application: 12 Core To 144 Core
Main Material: PC Alloy

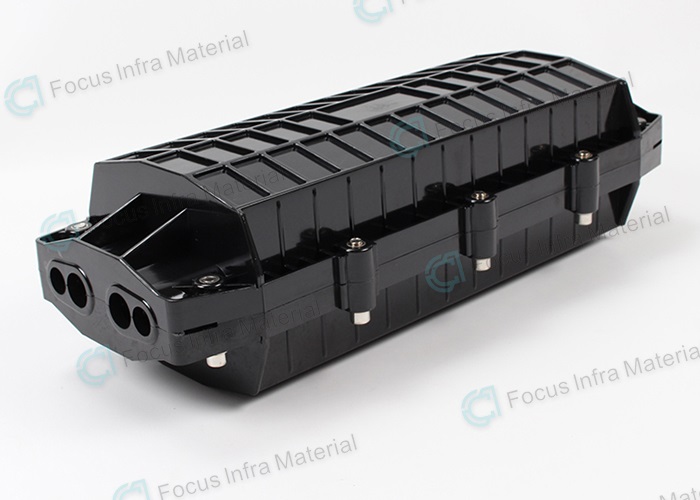

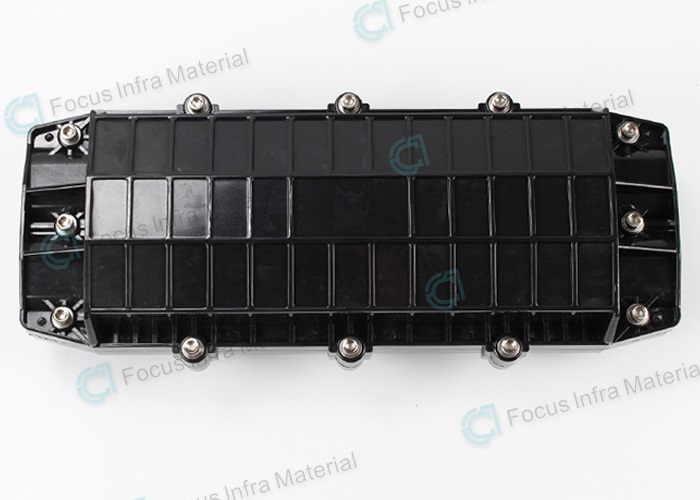

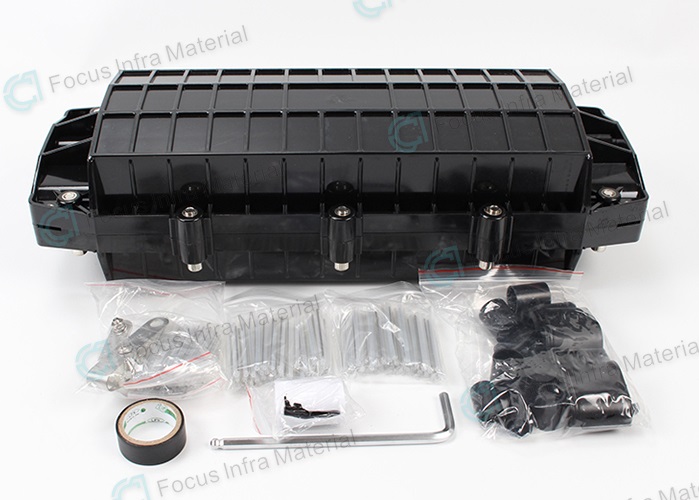

Horizontal Type 4 Inlets 4 Outlets 144 Cores FTTH Fiber Optical Cable Splice Protect Joint Box
Description:
According to the appearance structure can be divided into Dome type cable joint box and horizontal cable joint box. Horizontal Type 4 Inlets 4 Outlets 144 Cores FTTH Fiber Optical Cable Splice Protect Joint Box, also known as Horizontal Type 4 Inlets 4 Outlets 144 Cores FTTH Fiber Optical Cable Splice Protect Joint Closure, is the place where the end of optical cable is connected. Horizontal Type 4 Inlets 4 Outlets 144 Cores FTTH Fiber Optical Cable Splice Protect Joint Box are widely apply for the connecting of optical cable.It Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network. it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.
Specification:
Product name | Horizontal Type Vertical Fiber Optic Splice Box |
Protection level | IP68 |
Scope of application | 12 core to 144 core |
Gross weight | 2.8 kg |
Main material | PC alloy |
Scope of use | Outdoor Aerial Dome,Buried,pole mount type outdoor |
Ambient temperature | - 40 °C ~ + 60 °C |
Service life | ≥20 years |
Application scope | FTTH FTTB FTTX Network |
Atmospheric pressure | 70kPa~106kPa |
Insulation resistance | >2*10MΩ/500V(pc) |
Tensile strength | >1200N |
Features:
IP68 Water-proof design for outdoor uses;
Grouping function: 1 inlet 4 outlet can meet most requirements;

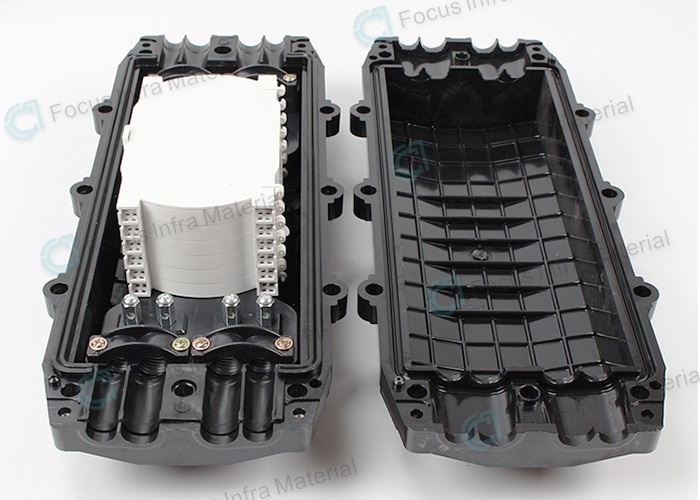

Splice tray: using cascading structure, no need to take other splice tray when do operation;
Sealing Technology: The reopen components, or reusable self-adhesive rubber strips to ensure a good air tightness and water resistance;
