FC UPC 3mm Fiber Optic Jumper Cable Simplex Mode FTTH System Connections

Model Number: FC UPC to FC UPC
Color: Orange/Yellow/ Blue/Aqua for choice
Cable Diameter: 0.9mm/2.0mm/3.0mm Cable
Application: FTTH System Connections To CATV Telecommunication Networks

3.0mm FC UPC-FC UPC Simplex Mode FTTH Fiber Jumper Cable Fiber Optic Patch Cord


Description:

3.0mm FC UPC-FC UPC Simplex Mode FTTH Fiber Jumper Cable Fiber Optic Patch Cord, also known as 3.0mm FC UPC-FC UPC Simplex Mode FTTH Fiber Jumper Cable Fiber Optic connector. refers to that connector plugs are installed at both ends of the optical cable to realize the active connection of the optical path; One end with a plug is called a pigtail. Optical fiber patch cord / cable is similar to coaxial cable, except that there is no mesh shielding layer. The center is a glass core for light propagation. In multimode fiber, the diameter of the core is 50 μ m~65 μ m. The diameter of the single-mode fiber core is 8 μ m~10 μ m. The core is surrounded by a glass envelope with a lower refractive index than the core to keep the optical fiber in the core. On the outside is a thin plastic jacket to protect the envelope.

A patch cord can be split into three crucial components, the connector, the cable and the manufacturing process. These three areas all contribute to the performance of a patch cord, but above all the manufacturing process is the one that defines the performance of the assembly. And it can be combinated any items, including angled (angle polish) SCA, MUA, STA, LCA, MPO Angled.



Technical Parameters
PARAMETER                   UNIT          FC,SC,LC ST,MU
SM MM SM MM
PC          UPC           APC          PC          PC           UPC          PC
Insertion Loss(Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30
Operating Wavelength nm 1310 1510
Exchangeability dB ≤0.2
Vibration dB ≤0.3
Operating Temperature -40℃ to 75℃
Storage Temperature -40℃ to 85℃
Cable Diameter mm Φ3.0 Φ2.0 Φ0.9 or customized
Material of the jacket   PVC or LSZH or customized
Color fo the jacket   SM yellow, OM1,OM2 orange, OM3 aqua,or customized
Single mode fibe   ITU-T G652, or G655, or G657
Multi monde fiber   ITU-TG.651
Fiber type   9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3)


3.Application

1. Communication rooms

2. FTTH (Fiber to The Home)

3. LAN (Local Area Network)

4. FOS (fiber optic sensor)

5. Fiber Optic Communication System

6. Optical fiber connected and transmitted equipment

7. Defense combat readiness

8. Telecommunication networks
9. Fiber optic communication networks
10. CATV, LAN, MAN, WAN, Test &Measurement



Features

1. Low Insertion loss

2. High return loss

3. Good Repeatability

4. Good Interchange

5. Excellent Environmental Adaptability

6. SM & MM available

7. Standard & custom configurations

8. Meets Telecordia-GR-326-CORE specifications

9. Low insertion loss

10. Ultra low back reflection

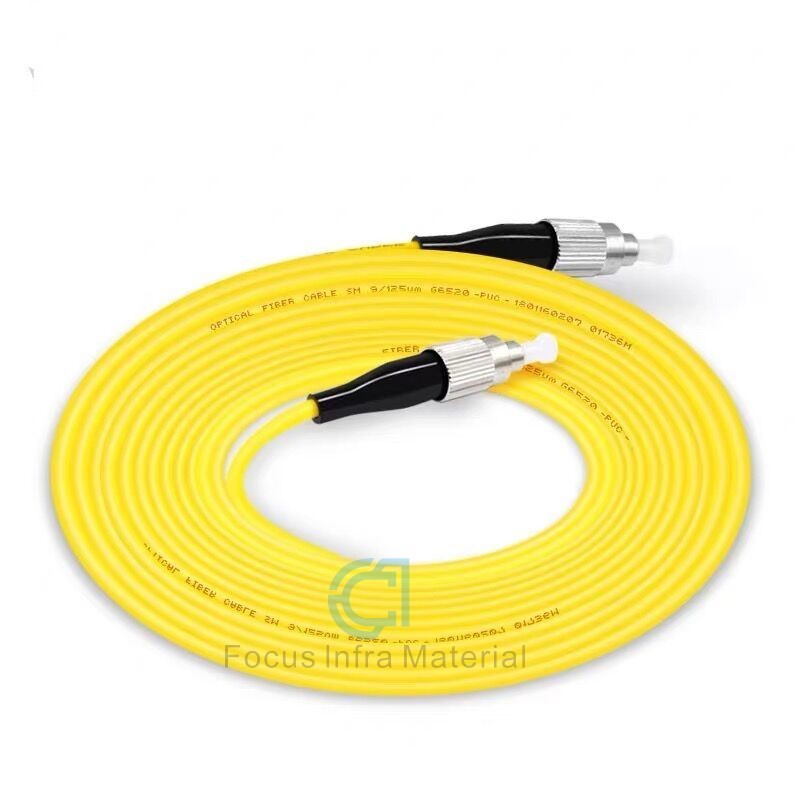

FC UPC 3mm Fiber Optic Jumper Cable Simplex Mode FTTH System Connections 0

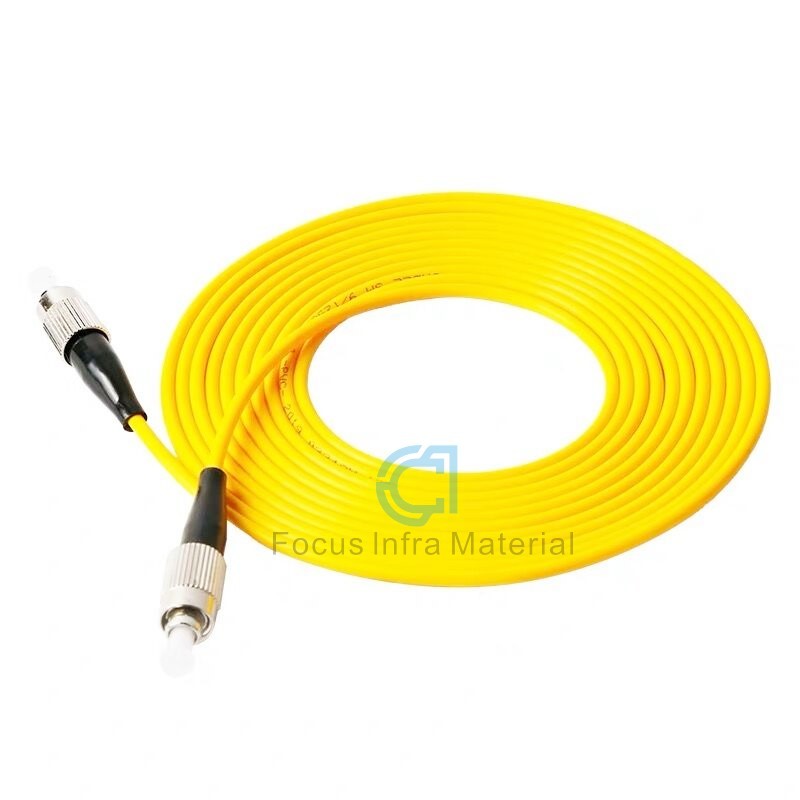

FC UPC 3mm Fiber Optic Jumper Cable Simplex Mode FTTH System Connections 1

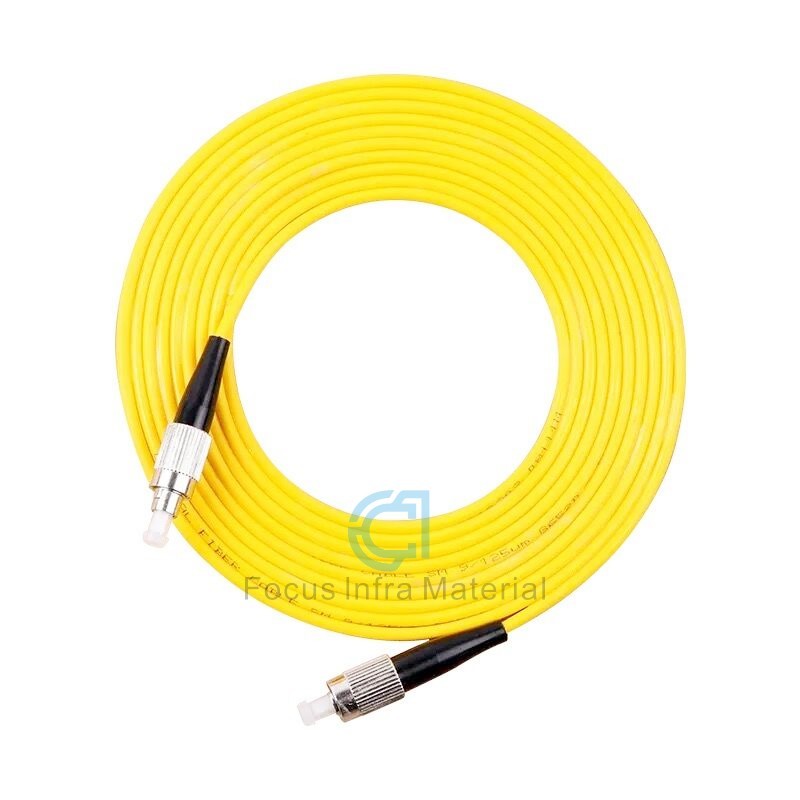

FC UPC 3mm Fiber Optic Jumper Cable Simplex Mode FTTH System Connections 2
