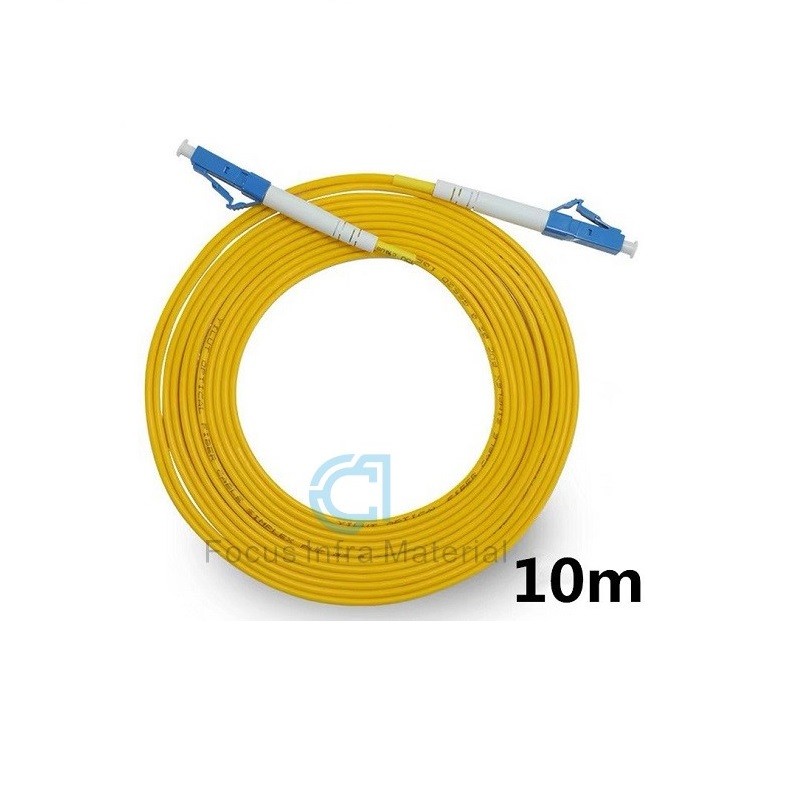

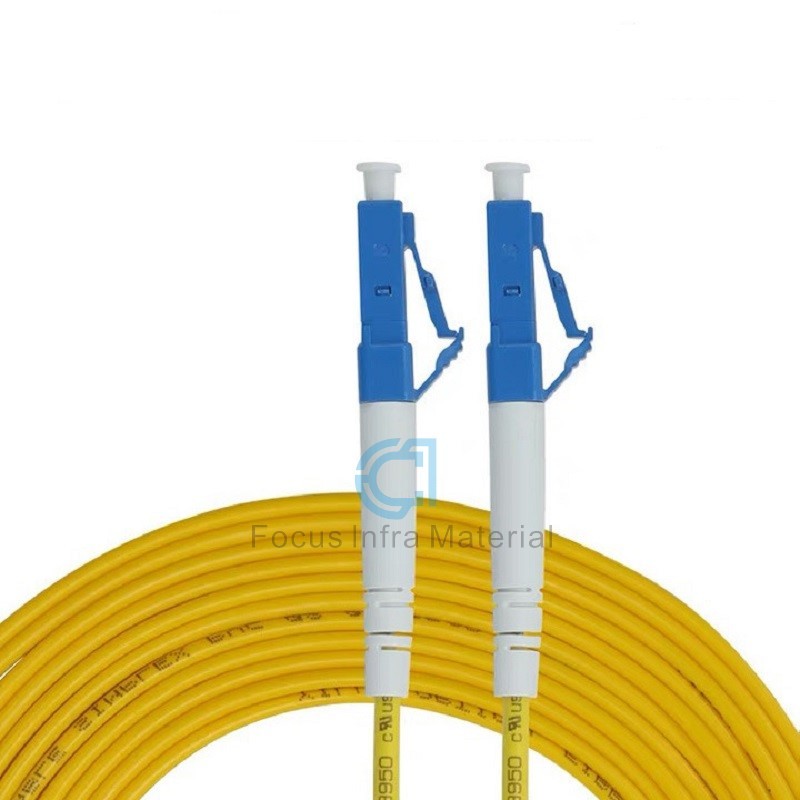

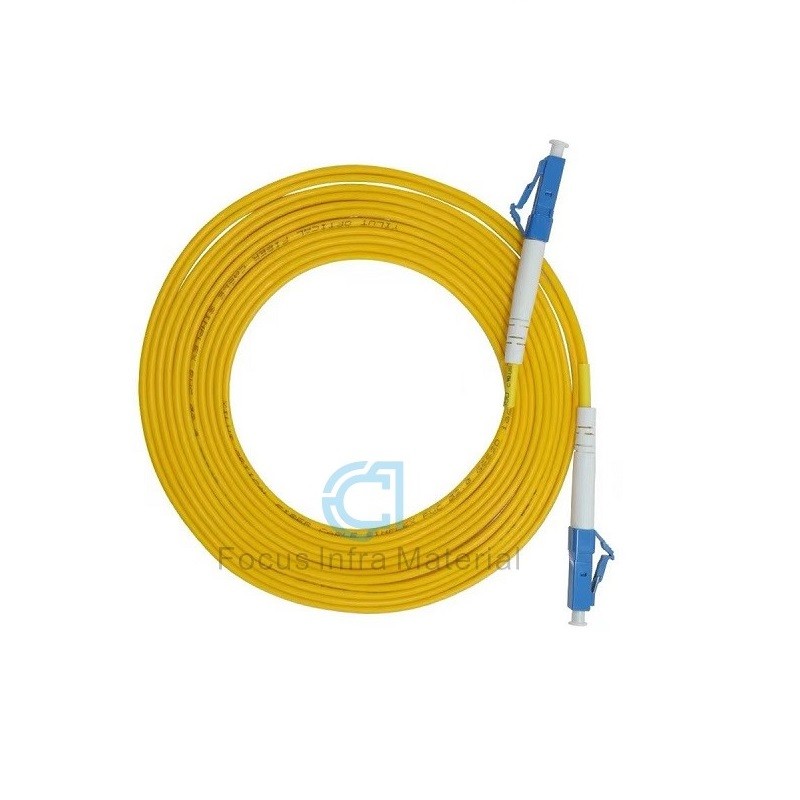

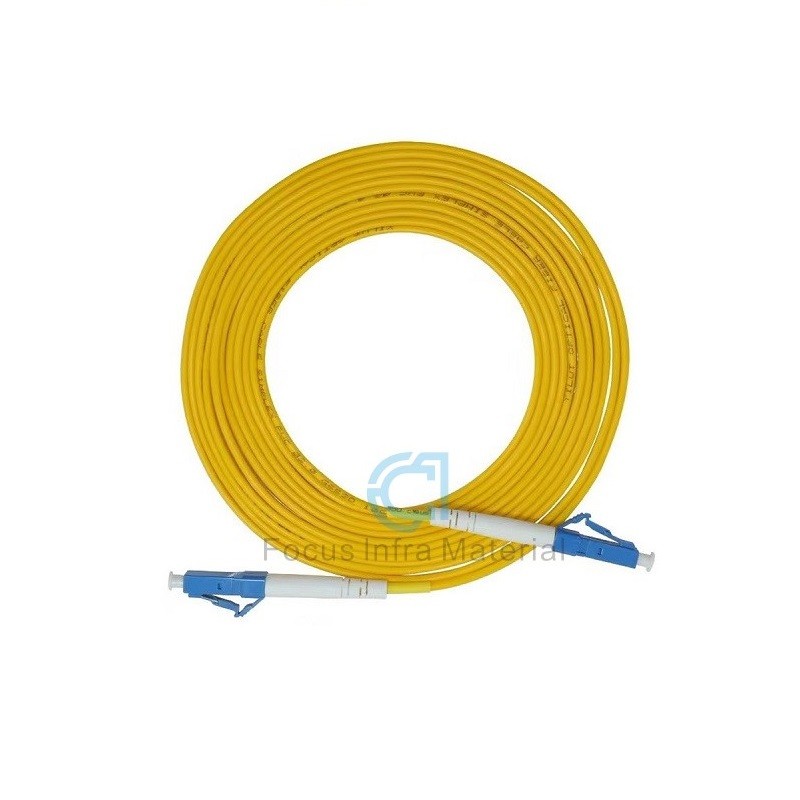

LC UPC TO LC UPC Simplex Fiber Optic Patch Cords

Mode Type: SM Single Mode
Connector Type: LC UPC To LC UPC
Outer Jacket: PVC/LSZH
Cable Diameter: 2.0mm/3.0mm Cable

LC UPC-LC UPC Simplex 2.0mm or 3.0mm Jumper Cable Fiber Optic Patch Cord


Description:


Chengdu Focus Infra Materials company is a leading manufacturer and supplier of fiber optic cable products such as fiber optic patch cables, MPO fiber optic cables, fiber optic pigtails, fiber optic attenuators, fiber optic connectors, fiber optic adapters, fiber media converters, fiber optic transceivers and much more. Every product manufactured by us, is put through stringent quality control standards and procedures to provide only premium quality product to the client. As such our fiber optic patch cables are guaranteed to meet and also go beyond the expectations of the customers.

LC UPC-LC UPC Simplex 2.0mm or 3.0mm Jumper Cable Fiber Optic Patch Cord is used as a jumper from the equipment to the optical fiber wiring link. It has a thick protective layer, which is generally used for the connection between optical transceiver and terminal box. It is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and LAN.

Single mode fiber: generally, the optical fiber jumper is represented by yellow, and the connector and protective sleeve are blue; Long transmission distance.

Multi mode fiber: generally, the optical fiber jumper is represented by orange or gray, and the connector and protective sleeve are beige or black; Short transmission distance.



Technical Parameters
PARAMETER                   UNIT          FC,SC,LC ST,MU
SM MM SM MM
PC           UPC          APC          PC          PC          UPC          PC
Insertion Loss(Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30
Operating Wavelength nm 1310 1510
Exchangeability dB ≤0.2
Vibration dB ≤0.3
Operating Temperature -40℃ to 75℃
Storage Temperature -40℃ to 85℃
Cable Diameter mm Φ3.0 Φ2.0 Φ0.9 or customized
Material of the jacket   PVC or LSZH or customized
Color fo the jacket   SM yellow, OM1,OM2 orange, OM3 aqua,or customized
Single mode fibe   ITU-T G652, or G655, or G657
Multi monde fiber   ITU-TG.651
Fiber type   9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3)


Application

1. Communication rooms

2. FTTH (Fiber to The Home)

3. LAN (Local Area Network)

4. FOS (fiber optic sensor)

5. Fiber Optic Communication System

6. Optical fiber connected and transmitted equipment

7. Telecommunication networks
8. Fiber optic communication networks
9. CATV, LAN, MAN, WAN, Test &Measurement
10. Military industry Optical access network



Features

1. Low Insertion loss

2. High return loss

3. Excellent Environmental Adaptability

4. Meets Telecordia-GR-326-CORE specifications

5. Low insertion loss

6. Ultra low back reflection

7. For 3.0mm, 2.0mm jacket or 900μm buffer.
