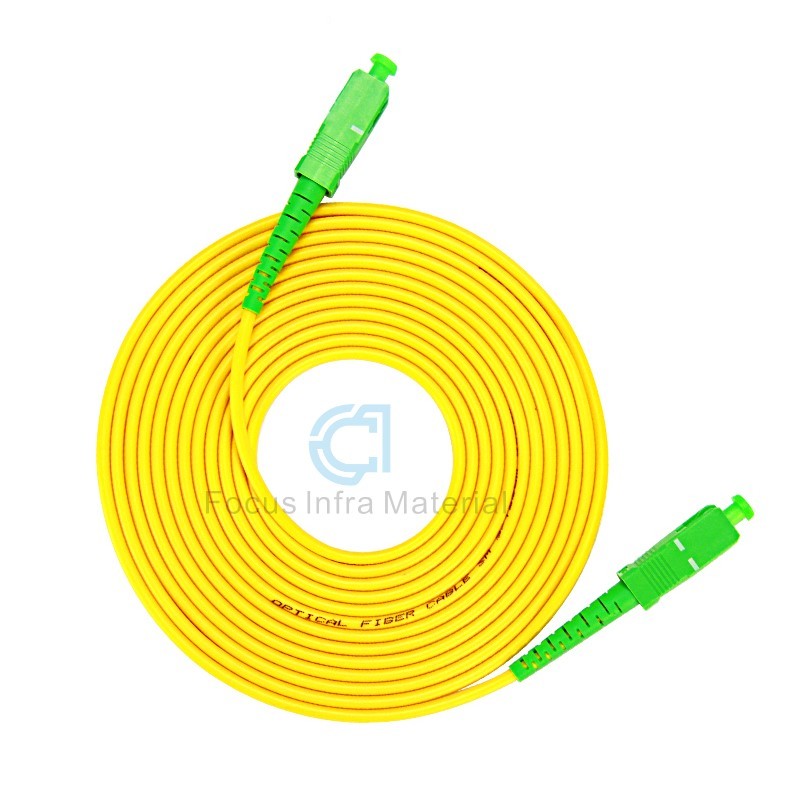

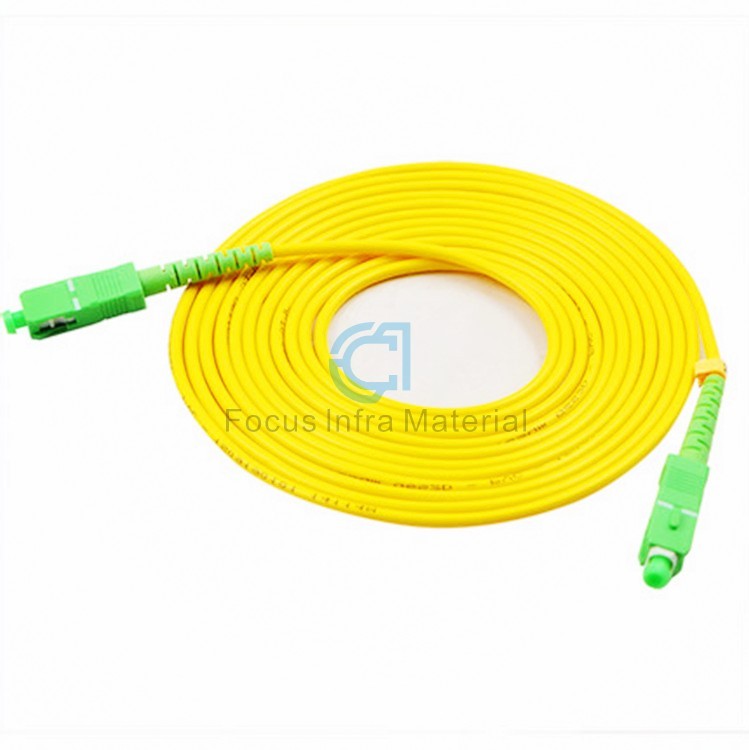

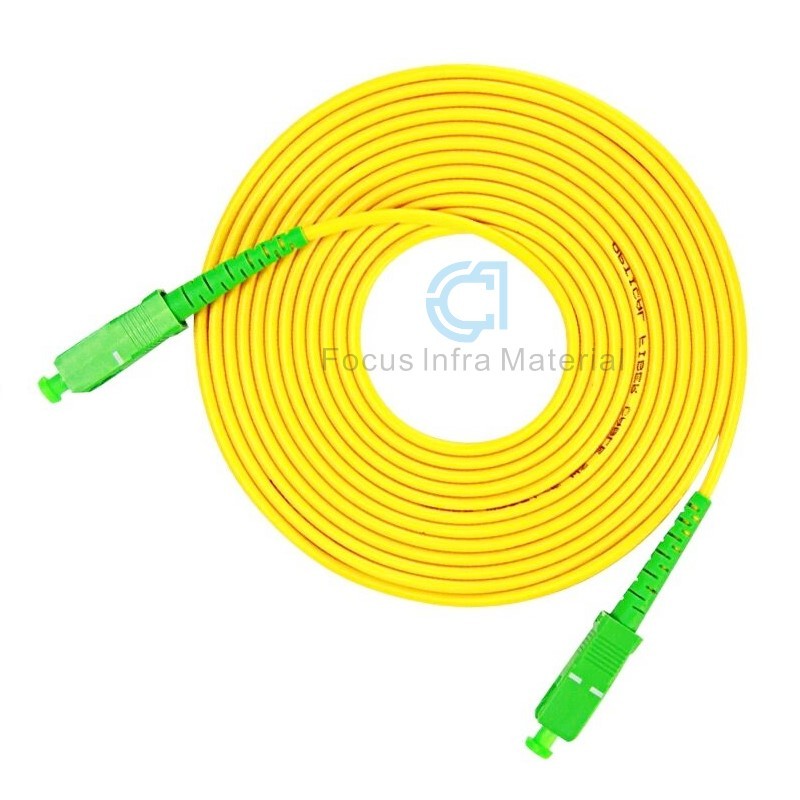

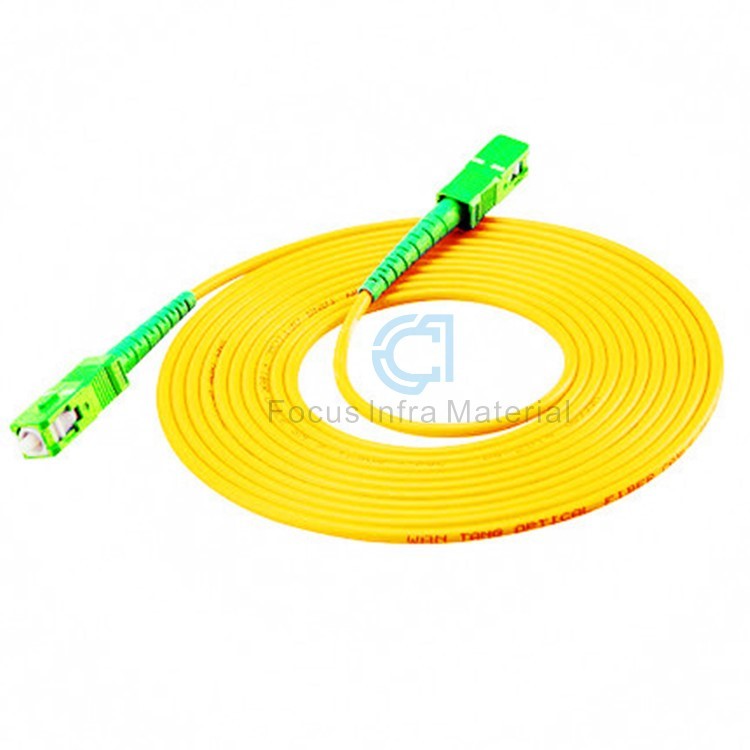

SC APC 2mm Fiber Optic Patch Cords Single Mode FTTH System Connections

SC APC 2mm Fiber Optic Patch Cords Single Mode FTTH System Connections

Model Number: SC APC to SC APC
Mode Type: SM SX Singlemode Simplex
Outer Jacket: LSZH
Cable Diameter: 2.0mm/3.0mm Cable

SC APC 2mm Fiber Optic Patch Cords Single Mode FTTH System Connections

Description

SC APC Simplex Singlemode 2.0mm or 3.0mm LSZH Fiber Optic Patch Cord Cable is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. SC type Simplex Singlemode 2.0mm or 3.0mm LSZH Fiber Optic Patch Cord Cable is with the connector connecting GBIC optical module. Its shell is rectangular. Chengdu Focus Infra Materials company is manufacturing different type of fiber optic patch cord and pigtasl. welcome to contact us at yuki.hecy@cdfocusinfra.com for more details.

Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).

Technical Parameters
PARAMETER	UNIT	FC,SC,LC				ST,MU
		SM			MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC
Insertion Loss(Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30
Operating Wavelength	nm	1310 1510
Exchangeability	dB	≤0.2
Vibration	dB	≤0.3
Operating Temperature	℃	-40℃ to 75℃
Storage Temperature	℃	-40℃ to 85℃
Cable Diameter	mm	Φ3.0 Φ2.0 Φ0.9 or customized
Material of the jacket		PVC or LSZH or customized
Color fo the jacket		SM yellow, OM1,OM2 orange, OM3 aqua,or customized
Single mode fibe		ITU-T G652, or G655, or G657
Multi monde fiber		ITU-TG.651
Fiber type		9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3)
