Model Number: SC to LC
Connector Type: LC SC ST FC MU MPO
Outer Jacket: PVC/LSZH/OFNP/OFNR
Cable Diameter: 0.9mm/2.0mm/3.0mm Cable
Length: 1M, 2M, 3M, 5M, 10M, 15M, 25M
Fibra Optica SC LC UPC Patchcord Pigtail for FTTH
Description:
Fiber optic pigtail is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box.

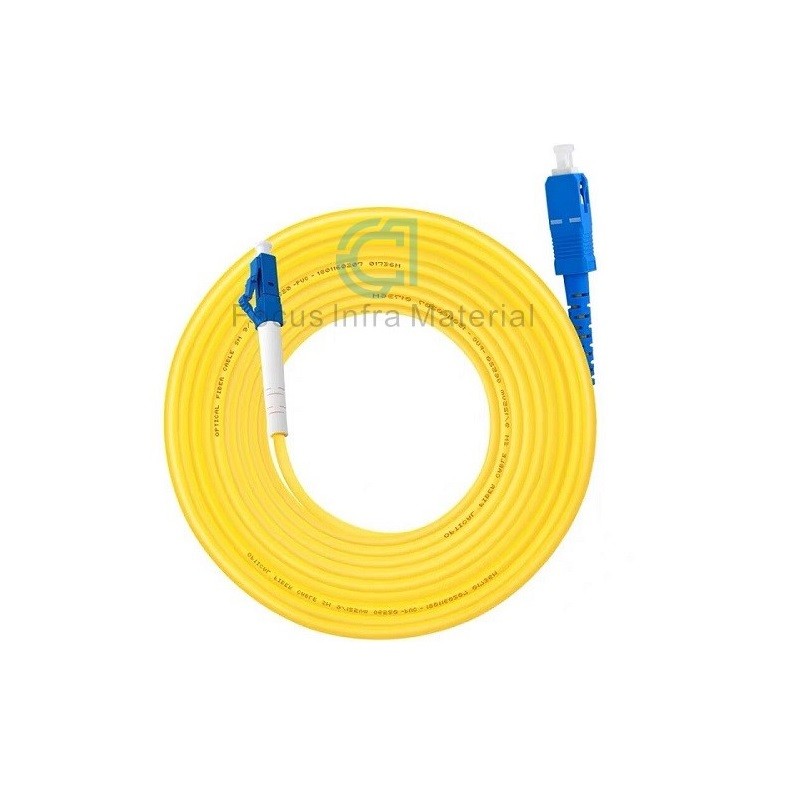

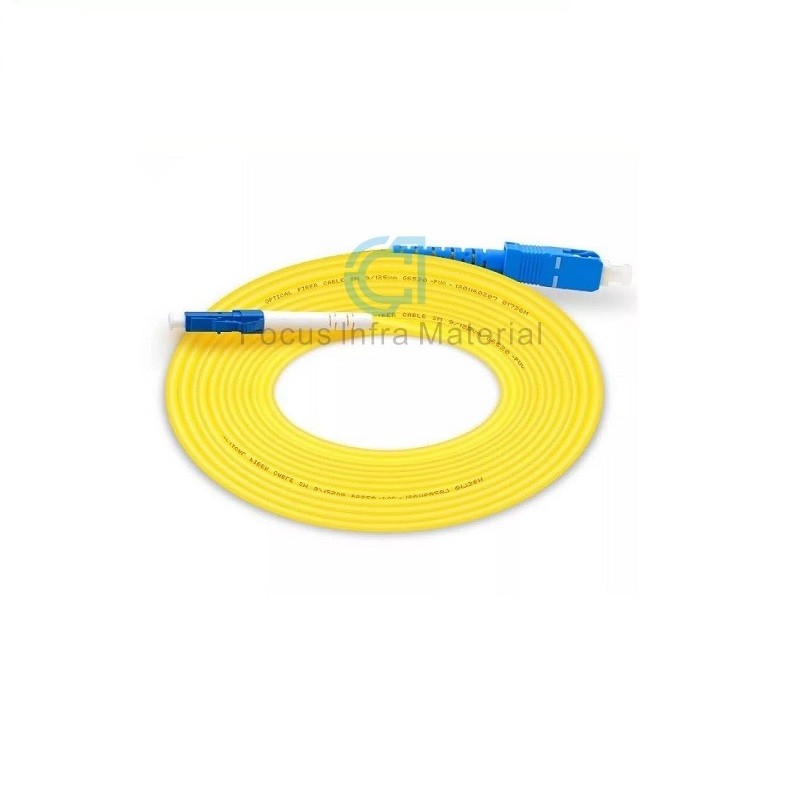

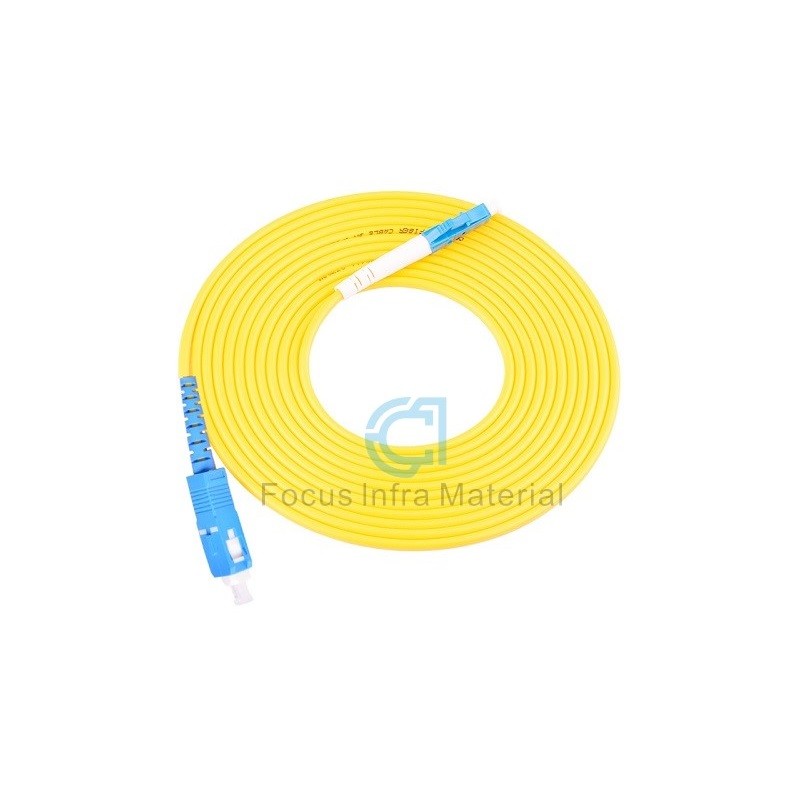

The Fibra Optica SC APC to LC UPC Simplex 2.0mm PVC Single Mode Fiber Patch Cable Jumper Fiber Patch Cord is used as a jumper from the equipment to the optical fiber wiring link. It has a thick protective layer, which is generally used for the connection between optical transceiver and terminal box. It is applied in some fields such as optical fiber communication system, optical fiber access network, optical fiber data transmission and LAN. Chengdu Focus Infra Materials company is manufacturing a wide range of fiber optic products to support fiber optic network solutions.
SC type optical fiber jumper with the connector connecting GBIC optical module. Its shell is rectangular. The fastening method is plug-in pin latch type without rotation (most used on routers and switches).
Technical Parameters | ||||||||
PARAMETER | UNIT | FC,SC,LC | ST,MU | |||||
SM | MM | SM | MM | |||||
PC | UPC | APC | PC | PC | UPC | PC | ||
Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
Operating Wavelength | nm | 1310 1510 | ||||||
Exchangeability | dB | ≤0.2 | ||||||
Vibration | dB | ≤0.3 | ||||||
Operating Temperature | ℃ | -40℃ to 75℃ | ||||||
Storage Temperature | ℃ | -40℃ to 85℃ | ||||||
Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized | ||||||
Material of the jacket | PVC or LSZH or customized | |||||||
Color fo the jacket | SM yellow, OM1,OM2 orange, OM3 aqua,or customized | |||||||
Single mode fibe | ITU-T G652, or G655, or G657 | |||||||
Multi monde fiber | ITU-TG.651 | |||||||
Fiber type | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) |
Application:
1. Communication rooms
2. FTTH (Fiber to The Home)
3. LAN (Local Area Network)
4. FOS (fiber optic sensor)
5. Fiber Optic Communication System
6. Optical fiber connected and transmitted equipment
7. Defense combat readiness
8. Telecommunication networks
9. Fiber optic communication networks
10. CATV, LAN, MAN, WAN, Test &Measurement
Characteristics:
1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPCAPC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5. Cable Diameter: 3.0mm,2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customized
