Model Number: LC UPC to LC UPC
Cable Diameter: 2.0mm/3.0mm Cable
Mode Type: MM Multimode DX Duplex
Fiber Type: OM3

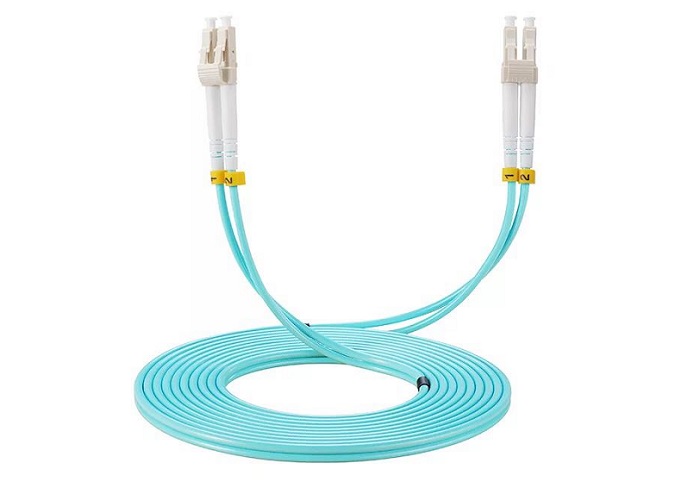

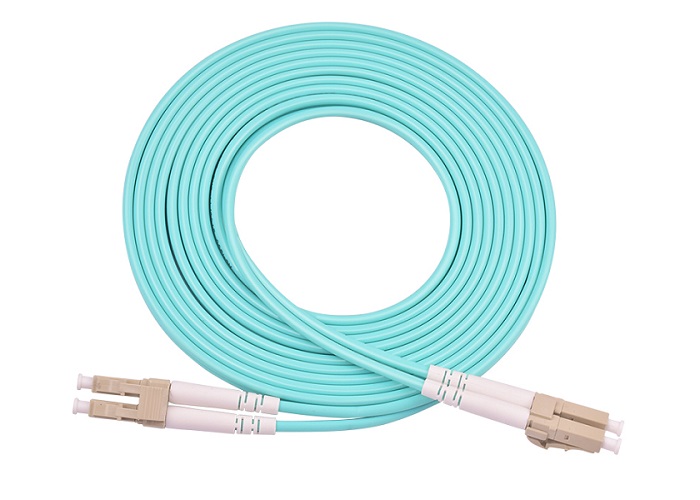

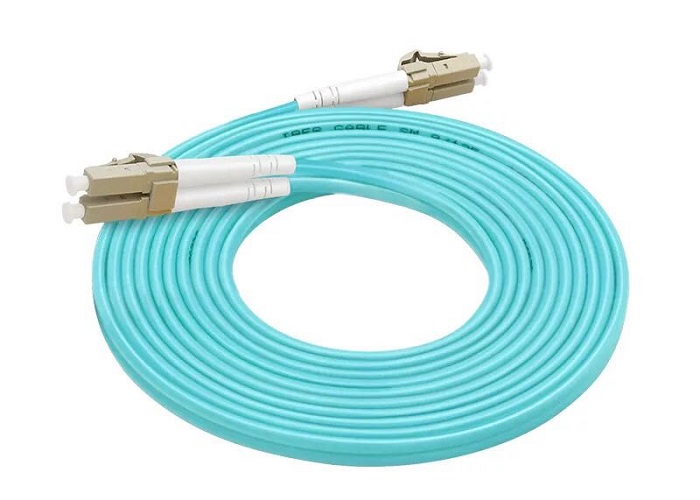

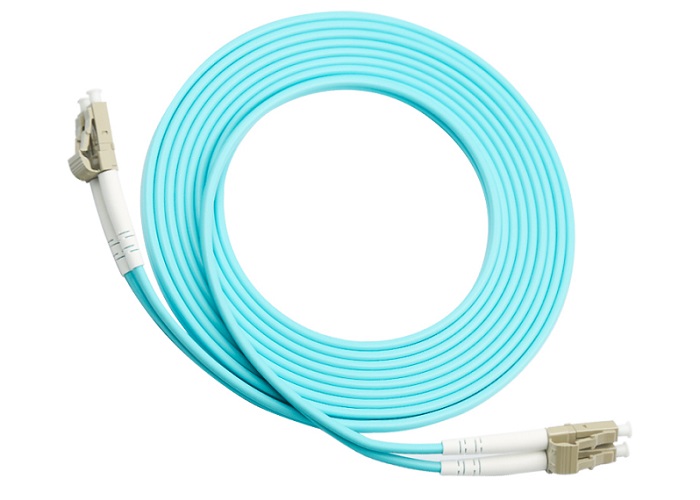

OM3 LC-LC UPC Multimode Duplex 2.0mm or 3.0MM Fiber Optic Patch Cord
Description:
OM3 LC-LC UPC Multimode Duplex 2.0mm or 3.0MM Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. LC type optical fiber jumper: connector connecting SFP module, which is made of modular jack (RJ) latch mechanism with convenient operation.
A patch cord can be split into three crucial components, the connector, the cable and the manufacturing process. These three areas all contribute to the performance of a patch cord, but above all the manufacturing process is the one that defines the performance of the assembly. And it can be combinated any items, including angled (angle polish) SCA, MUA, STA, LCA, MPO Angled.
Technical Parameters | ||||||||
PARAMETER | UNIT | FC,SC,LC | ST,MU | |||||
SM | MM | SM | MM | |||||
PC | UPC | APC | PC | PC | UPC | PC | ||
Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 |
Operating Wavelength | nm | 1310 1510 | ||||||
Exchangeability | dB | ≤0.2 | ||||||
Vibration | dB | ≤0.3 | ||||||
Operating Temperature | ℃ | -40℃ to 75℃ | ||||||
Storage Temperature | ℃ | -40℃ to 85℃ | ||||||
Cable Diameter | mm | Φ3.0 Φ2.0 Φ0.9 or customized | ||||||
Material of the jacket | PVC or LSZH or customized | |||||||
Color fo the jacket | SM yellow, OM1,OM2 orange, OM3 aqua,or customized | |||||||
Single mode fibe | ITU-T G652, or G655, or G657 | |||||||
Multi monde fiber | ITU-TG.651 | |||||||
Fiber type | 9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3) |
Application:
1. FTTH (Fiber to The Home), LAN (Local Area Network), FOS (fiber optic sensor)
2. Fiber Optic Communication System
3. Optical fiber connected and transmitted equipment
4. Defense combat readiness
5. Telecommunication networks
6. Fiber optic communication networks
Features:
1. Low Insertion loss
2. High return loss
3. Excellent Environmental Adaptability
4. SM & MM available
6. Standard & custom configurations
7. Meets Telecordia-GR-326-CORE specifications
8. Ultra low back reflection
