SC APC to LC UPC Patchcord Duplex 2.0mm PVC Single Mode Fiber Jumper Cable Patch Cord

Mode Type: SM DX Singlemode Duplex
Cable Diameter: 2.0mm Cable
Ferrule End -face: SC APC To LC UPC
Outer Jacket: PVC

 SC APC to LC UPC Patchcord Duplex 2.0mm PVC Single Mode Fiber Jumper Cable


Description:

 SC APC to LC UPC Patchcord Duplex 2.0mm PVC Single Mode Fiber Jumper Cable is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. SC APC to LC UPC Patchcord Duplex 2.0mm PVC Single Mode Fiber Jumper Cable is with the connector connecting GBIC optical module. Its shell is rectangular.

The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables.

According to different transmission media, optical fiber jumpers can be divided into common single-mode and multi-mode jumpers of silicon-based optical fiber, as well as other optical fiber jumpers with plastic as transmission media.



Features:

1. Low Insertion loss

2. High return loss

3. Excellent Environmental Adaptability

4. SM & MM available

6. Standard & custom configurations

7. Meets Telecordia-GR-326-CORE specifications

8. Ultra low back reflection



Technical Parameters
PARAMETER                  UNIT         FC,SC,LC ST,MU
SM MM SM MM
PC         UPC        APC         PC         PC        UPC         PC
Insertion Loss(Typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30
Operating Wavelength nm 1310 1510
Exchangeability dB ≤0.2
Vibration dB ≤0.3
Operating Temperature -40℃ to 75℃
Storage Temperature -40℃ to 85℃
Cable Diameter mm Φ3.0 Φ2.0 Φ0.9 or customized
Material of the jacket   PVC or LSZH or customized
Color fo the jacket   SM yellow, OM1,OM2 orange, OM3 aqua,or customized
Single mode fibe   ITU-T G652, or G655, or G657
Multi monde fiber   ITU-TG.651
Fiber type   9/125 μm(OS1), or 62.5/125μm(OM1), or 50/125μm(OM2,OM3)

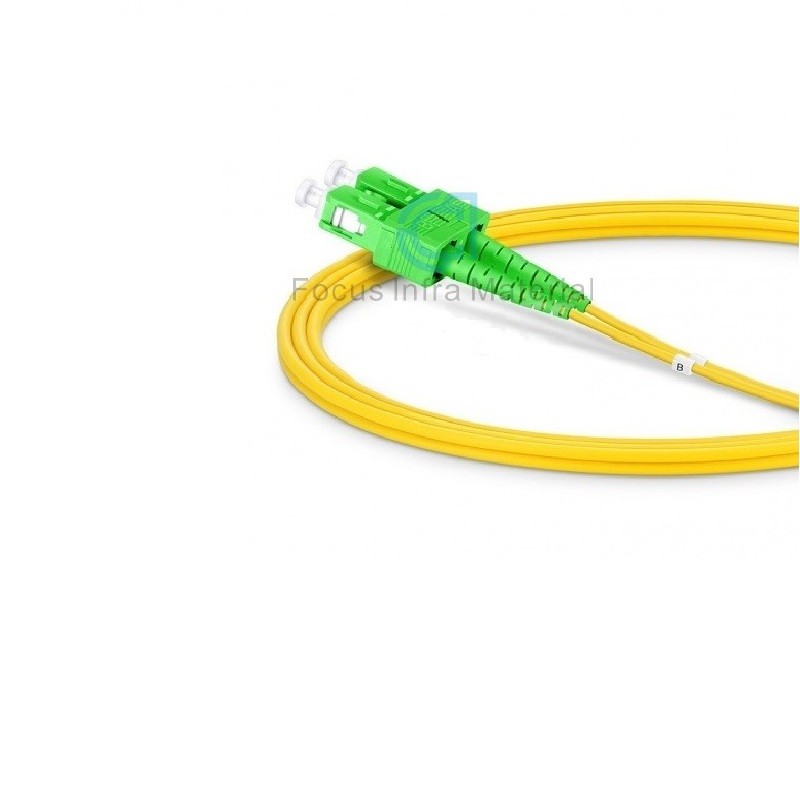

PVC Single Mode 2mm SC LC Duplex Patch Cord 1310nm 1510nm 0

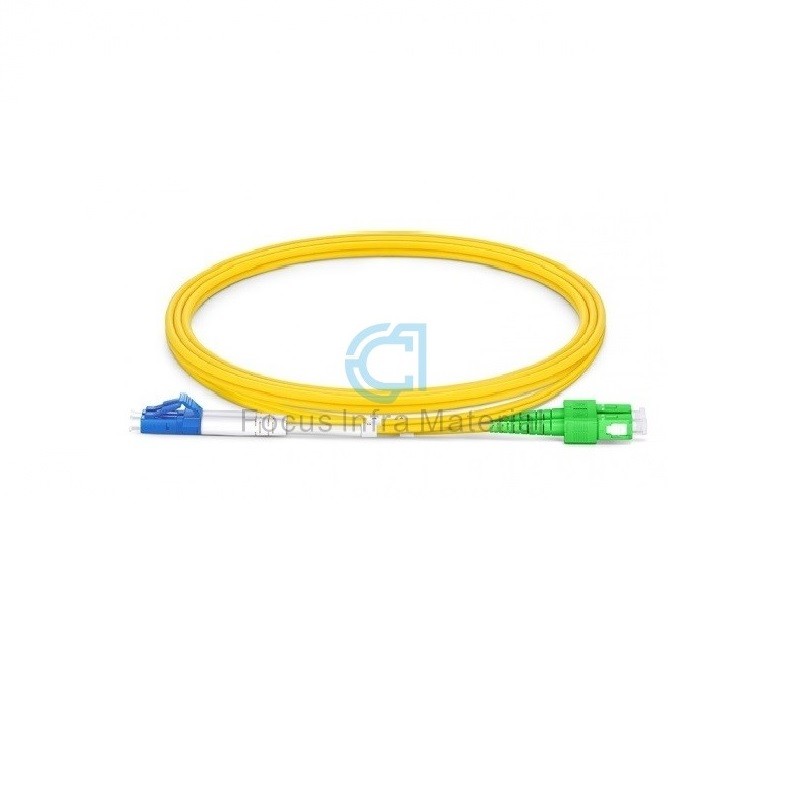

PVC Single Mode 2mm SC LC Duplex Patch Cord 1310nm 1510nm 1

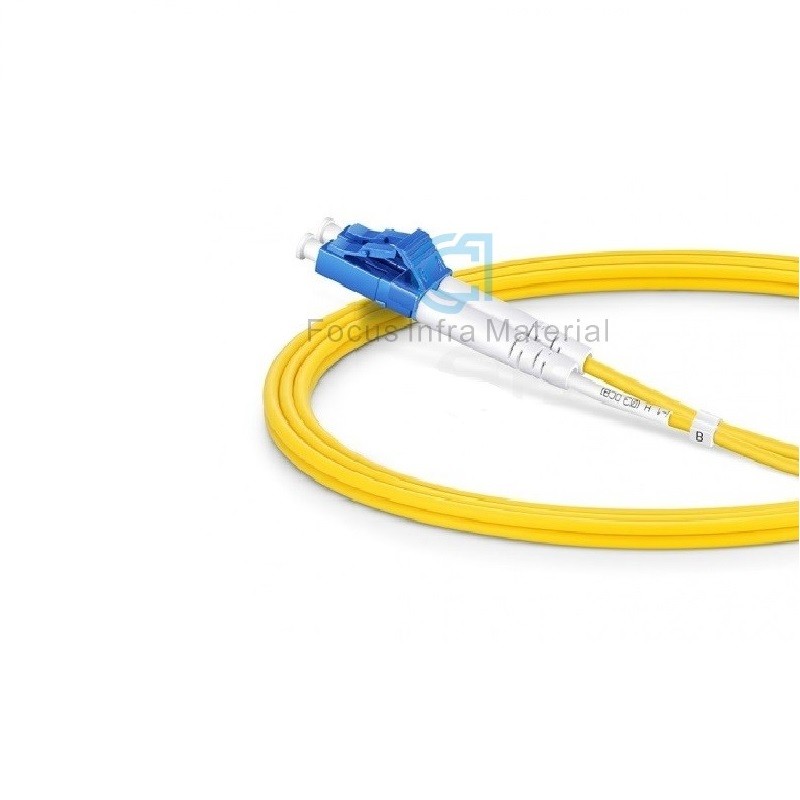

PVC Single Mode 2mm SC LC Duplex Patch Cord 1310nm 1510nm 2

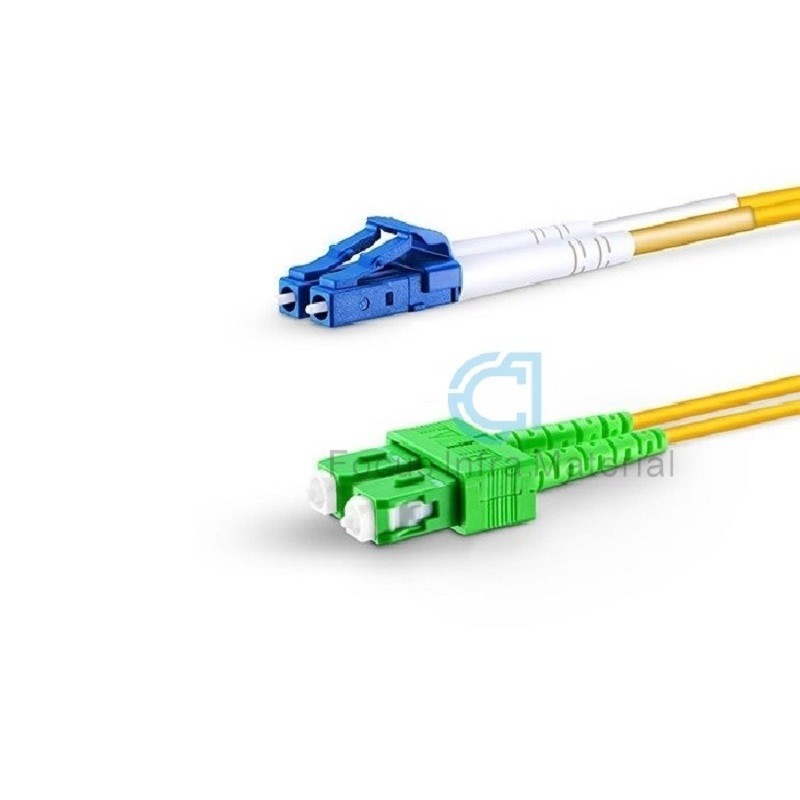

PVC Single Mode 2mm SC LC Duplex Patch Cord 1310nm 1510nm 3
