FTTH IP68 Dome Type 1 Inlets 2 Outlets 12 24 Cores Cable Splice Closure

Model Number: FS-J-013
Cable Port: 1 Inlets 2 Outlets
Scope Of Application: 12 Core To 24 Core
Product Size: 330*80mm

Description:



  FTTH IP68 Dome Type 1 Inlets 2 Outlets 12 24 Cores Cable Splice Closure, also known as FTTH IP68 Dome Type 1 Inlets 2 Outlets 12 24 Cores Cable Splice Joint Box, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. FTTH IP68 Dome Type 1 Inlets 2 Outlets 12 24 Cores Cable Splice Closure are widely apply for the connecting of optical cable. It Suitable for straight-through, diverging and connection of FTTH, FTTB all kinds of optical communication passive network. FTTH IP68 Dome Type 1 Inlets 2 Outlets 12 24 Cores Cable Splice Closure is used for the protective connection and fiber distribution between two or more optical cables, it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.



Features:

Ageing resistance & ultraviolet radiation resistance
Advanced internal structure design
The closure is spacious enough for winding and storing fibers
Widely used in communication, network system, CATV cable TV, optical cable network system

There are thermal shrinkage seal types and mechanical seal types as sealed.



Specification:



Product name Dome Type Vertical Fiber Optic Splice Box
Protection level IP68
Scope of application 12 core to 24 core
Gross weight 0.9 kg
Main material PC
Scope of use Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature - 40 °C ~ + 60 °C
Service life ≥20 years
Application scope FTTH FTTB FTTX Network
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1200N

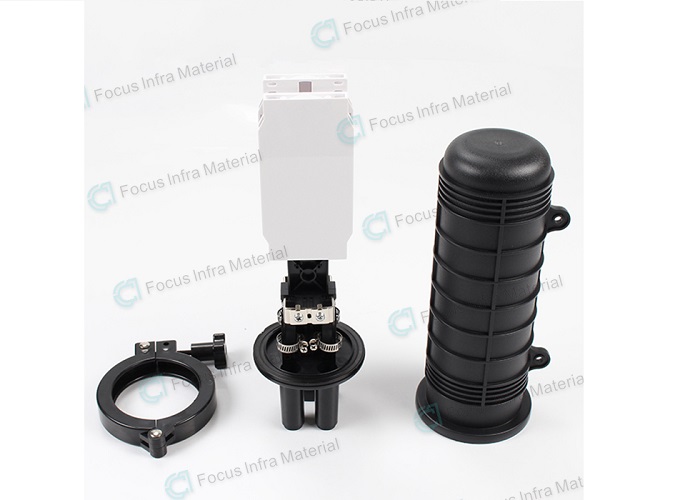

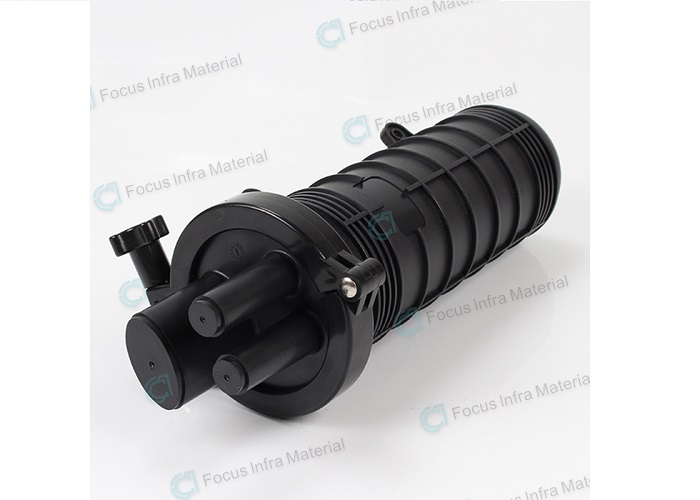

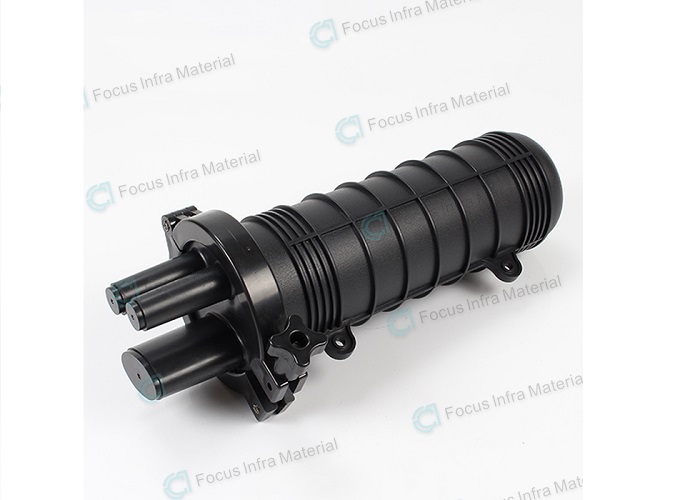

IP68 Fiber Optic Splice Closure 1 Inlets 2 Outlets FTTH Joint Box 0IP68 Fiber Optic Splice Closure 1 Inlets 2 Outlets FTTH Joint Box 1IP68 Fiber Optic Splice Closure 1 Inlets 2 Outlets FTTH Joint Box 2

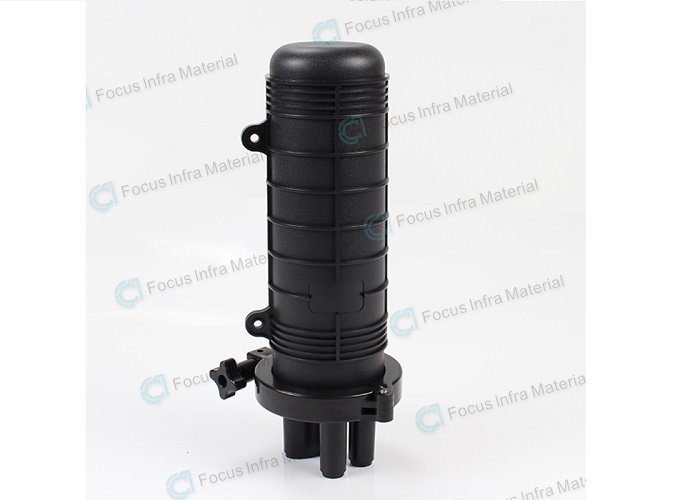

IP68 Fiber Optic Splice Closure 1 Inlets 2 Outlets FTTH Joint Box 3IP68 Fiber Optic Splice Closure 1 Inlets 2 Outlets FTTH Joint Box 4
