48 72 96 Core Horizontal Type Outdoor Aerial Dome Fiber Optical Splice Closure

Model Number : FS-J-022
Cable Port: 2 Inlets 2 Outlets
Scope Of Application: 12 Core To 96 Core
Product Size: 430*190*110mm

Description:



  According to the appearance structure can be divided into Dome type cable joint box and horizontal cable joint box. 48 72 96 Core Horizontal type Outdoor Aerial Dome Fiber Optical Splice Closure, also known as 48 72 96 Core Horizontal type Outdoor Aerial Dome Fiber Optical Splice Box, is the place where the end of optical cable is connected. 48 72 96 Core Horizontal type Outdoor Aerial Dome Fiber Optical Splice Closure are widely apply for the connecting of optical cable.It Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network. it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.



Classification:



According to the appearance structure can be divided into cap cable joint box and horizontal cable joint box;

According to the optical cable laying method, overhead, pipeline (tunnel) and direct burial types;

According to the optical cable connection mode is divided into direct connection and differential connection;





Specification:



Product name 96 core Horizontal Type Cable Joint Box
Protection level IP68
Scope of application 12 core to 96 core
Gross weight  3.3 kg
Main material ABS
Scope of use Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature - 40 °C ~ + 60 °C
Service life ≥20 years
Application scope FTTH FTTB FTTX Network
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1200N



Features:



IP68 Water-proof design for outdoor uses;

Splice tray: using cascading structure, no need to take other splice tray when do operation;

Used for direct transmission of outdoor cable in aerial,

duct and direct buried application
Used for branching connection and protect the joint

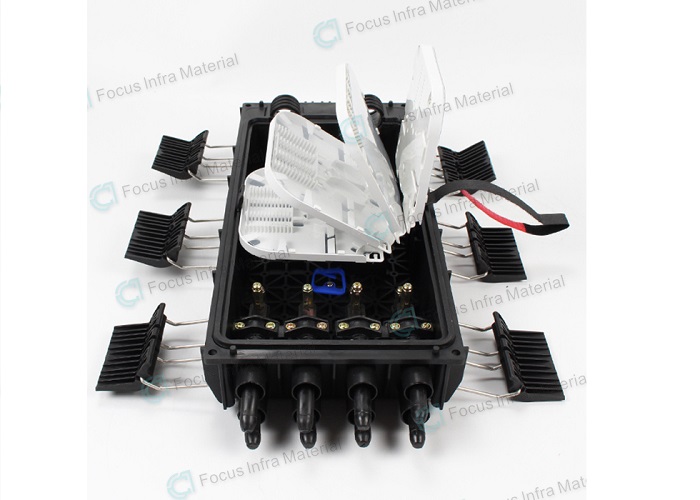

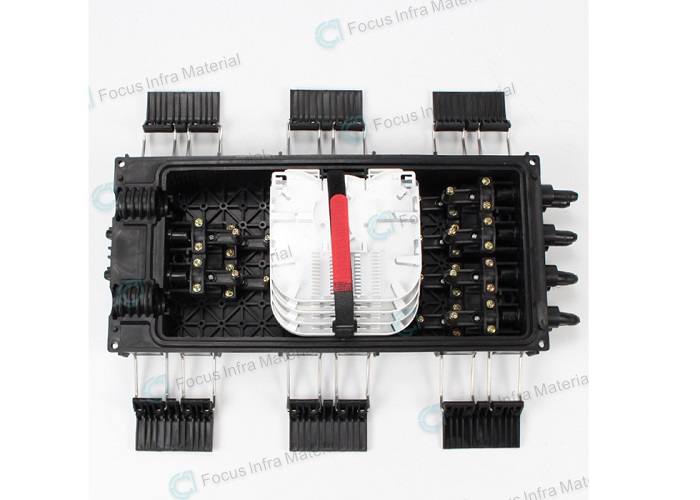

48 72 96 Core Outdoor Fiber Splice Enclosure Optic 2 Inlets 2 Outlets 048 72 96 Core Outdoor Fiber Splice Enclosure Optic 2 Inlets 2 Outlets 1

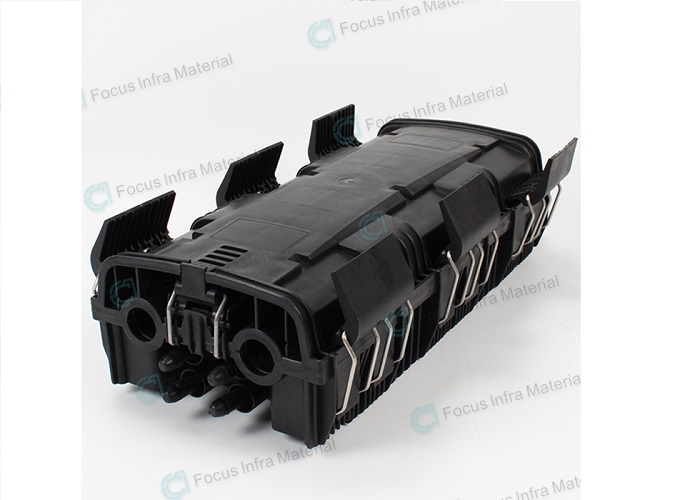

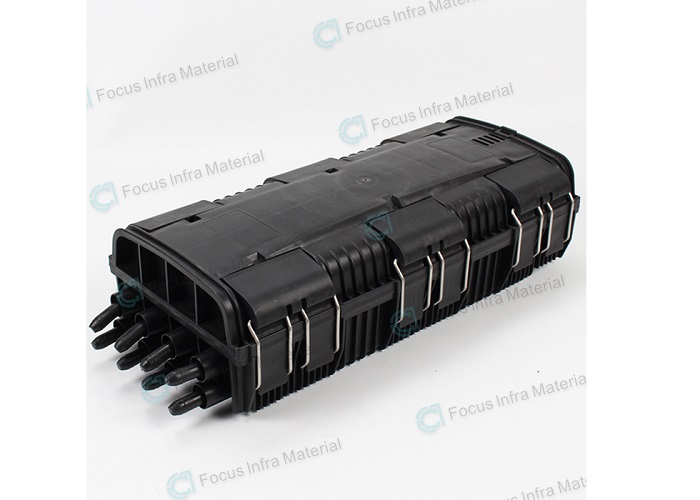

48 72 96 Core Outdoor Fiber Splice Enclosure Optic 2 Inlets 2 Outlets 248 72 96 Core Outdoor Fiber Splice Enclosure Optic 2 Inlets 2 Outlets 3
