Dome Type Vertical Pipeline Buried Duct Mounting 96 Core Fiber Optic Splicing Closure

Model Number: FS-J-007
Cable Port: 2 Inlets 2 Outlets
Scope Of Application: 12 Core To 96 Core
Product Size: 400*200mm

Description:



  Plastic Dome Type Vertical Pipeline Buried Duct Mounting 96 Core Fiber Optic Splicing Closure, also known as Plastic Dome Type Vertical Pipeline Buried Duct Mounting 96 Core Fiber Optic Splicing Joint Box, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength.





Features:

Ageing resistance & ultraviolet radiation resistance
Advanced internal structure design
Easy and fast to fix fiber cable
The closure is spacious enough for winding and storing fibers

Close device: no need special tools for easy installation and re open
Grouping function: 2 inlet 2 outlet can meet most requirements
Splice tray: using cascading structure, no need to take other splice tray when do operation





Application

Aerial, underground, wall-mounted, pole-mounted, duct-mounted.



Specification:



Product name Dome Type Vertical Fiber Optic Splice Box
Protection level IP68
Scope of application 12 core to 96 core
Gross weight 2.25 kg
Main material PC
Scope of use Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature - 40 °C ~ + 60 °C
Service life ≥20 years
Application scope FTTH FTTB FTTX Network
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1200N

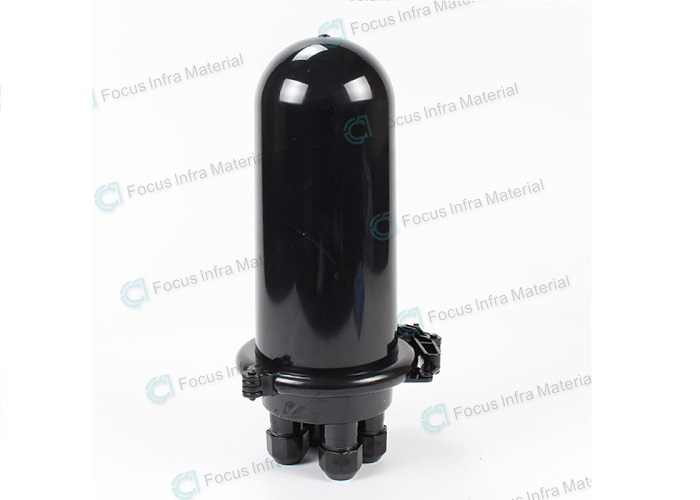

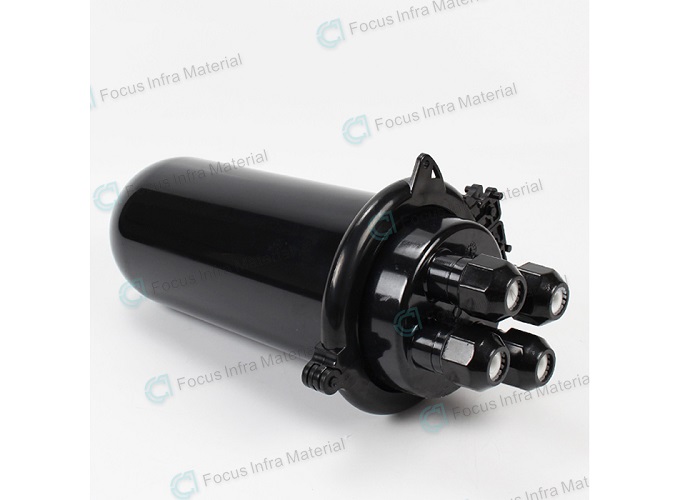

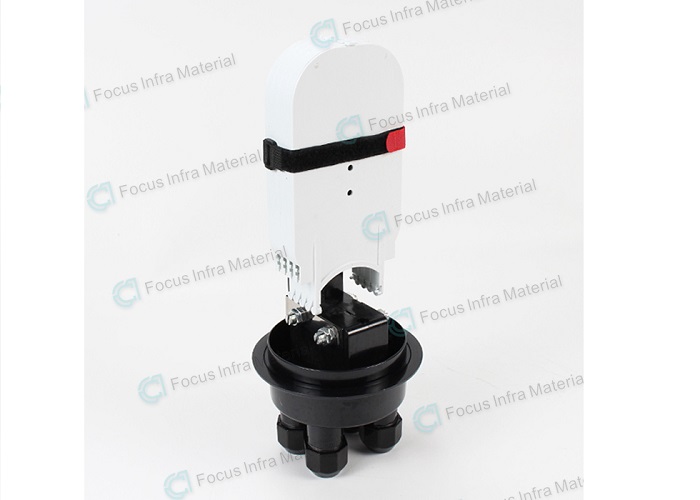

IP68 Fiber Optic Splice Closure Vertical Pipeline Fiber Joint Box 400*200mm 0IP68 Fiber Optic Splice Closure Vertical Pipeline Fiber Joint Box 400*200mm 1IP68 Fiber Optic Splice Closure Vertical Pipeline Fiber Joint Box 400*200mm 2
