Dome Type Vertical 2 Inlets 2 Outlets Pipeline Buried Duct Mounting Fiber Optical Splice Closure

Model Number: FS-J-004
Cable Port: 2 Inlets 2 Outlets
Scope Of Application: 12 Core To 48 Core
Product Size: 420*215mm

Description:



  Dome Type Vertical 2 Inlets 2 Outlets Pipeline Buried Duct Mounting Fiber Optical Splice Closure, also known as 2 inlets 2 outlets Outdoor Aerial Dome Type Fiber Splice joint box, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength. The solid shell and main structure of optical cable junction box can endure the worst environmental changes, and play a flame retardant role at the same time. Waterproof effect, so that vibration, impact, cable tension, twist and so on are protected.



Specification:



Product name Dome Type Vertical Fiber Optic Splice Box
Protection level IP68
Scope of application 12 core to 48 core
Gross weight 2.8 kg
Main material Plastic
Scope of use Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature - 40 °C ~ + 60 °C
Service life ≥20 years
Application scope FTTH FTTB FTTX Network
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1200N

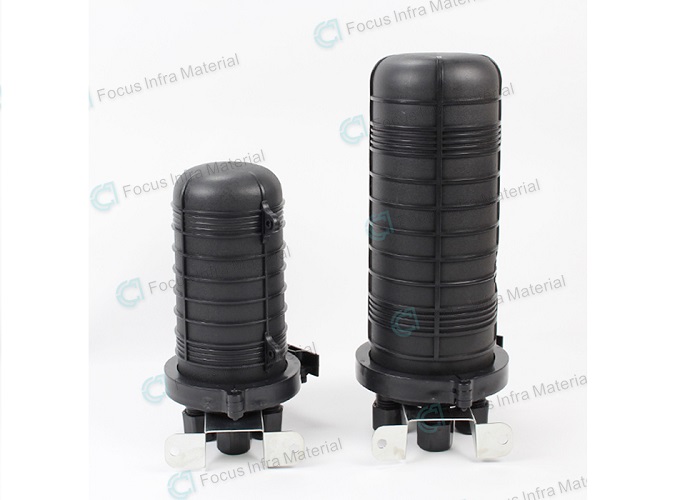

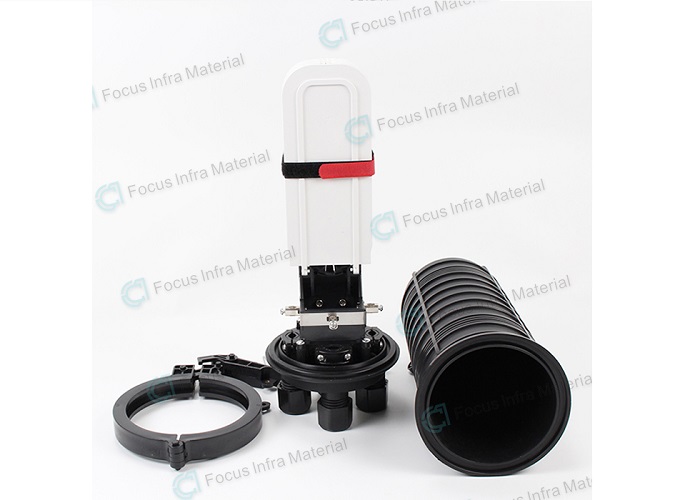

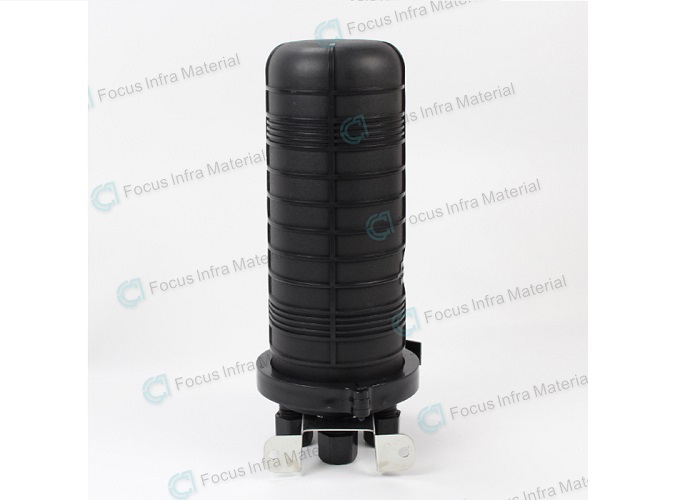

Plastic Dome Vertical Fiber Optic Splice Closure Pipeline Buried Duct Mounting 0Plastic Dome Vertical Fiber Optic Splice Closure Pipeline Buried Duct Mounting 1Plastic Dome Vertical Fiber Optic Splice Closure Pipeline Buried Duct Mounting 2

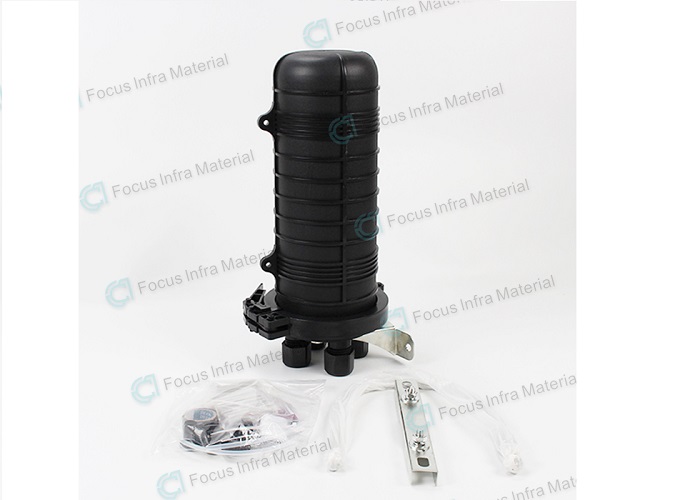

Plastic Dome Vertical Fiber Optic Splice Closure Pipeline Buried Duct Mounting 3
