Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box

Model Number : FS-J-017
Cable Port: 1 Inlets 1 Outlets
Scope Of Application: 12 Core To 48 Core
Product Size: 280*200*90mm

Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box


Description:

  According to the appearance structure can be divided into Dome type cable joint box and horizontal cable joint box. Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box, also known as Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box Closure, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box is widely apply for the connecting of optical cable.Fiber Optical Splice Joint Protect 48 Core Fiber Optic Cable Splice Enclosure Box are widely apply for the connecting of optical cable.It Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network. it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.



Specification:

Product name Dome Type Vertical Fiber Optic Splice Box
Protection level IP65
Scope of application 12 core to 48 core
Gross weight 2.15 kg
Main material Plastic
Scope of use Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature - 40 °C ~ + 60 °C
Service life ≥20 years
Application scope FTTH FTTB FTTX Network
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1200N



Features:

Vertical dome type fiber optic splice junction enclosure, with metal hoop;

ABS&PP alloy material used ensures the body strong and light;

IP65 Water-proof design for outdoor uses;

The application of temperature: -40℃~60;

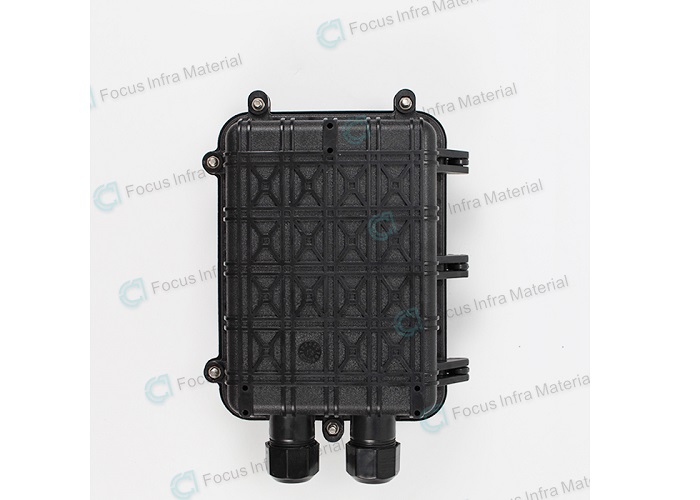

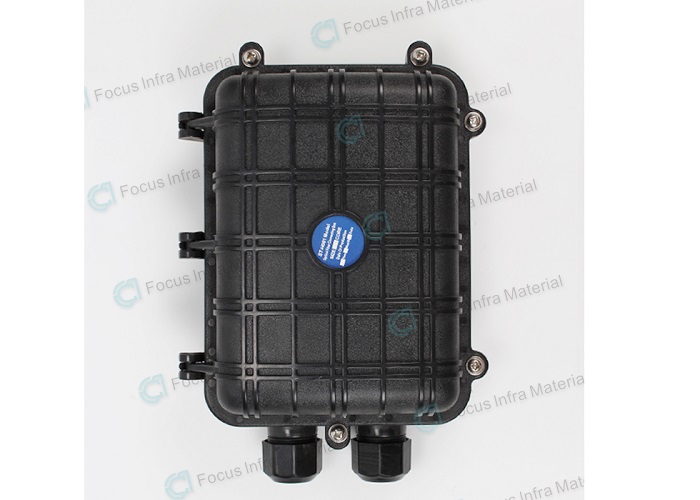

ABS IP65 Fiber Optic Joint Closure 48 Core 280*200*90mm 0ABS IP65 Fiber Optic Joint Closure 48 Core 280*200*90mm 1

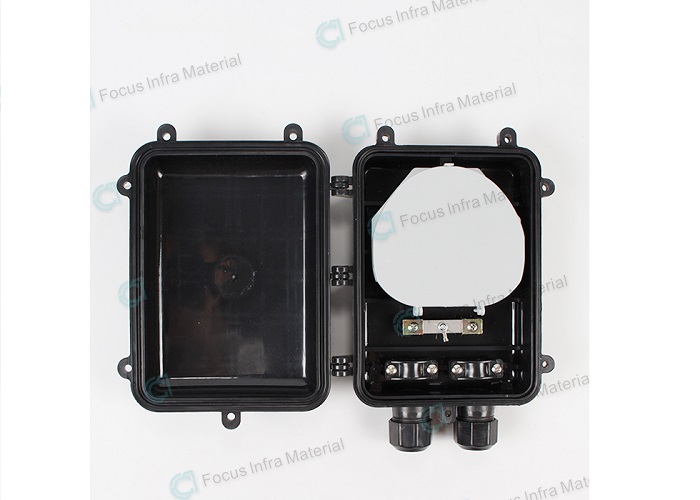

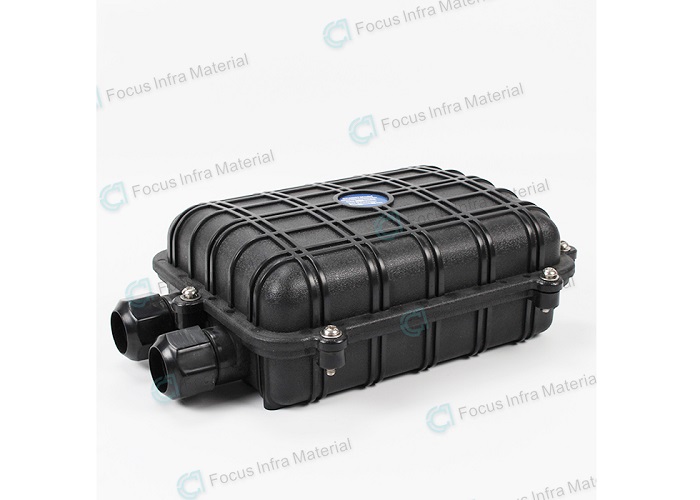

ABS IP65 Fiber Optic Joint Closure 48 Core 280*200*90mm 2ABS IP65 Fiber Optic Joint Closure 48 Core 280*200*90mm 3
