Model Number: FS-J-010
Cable Port: 2 Inlets 2 Outlets
Scope Of Application: 12 Core To 144 Core
Protection Level: IP 66

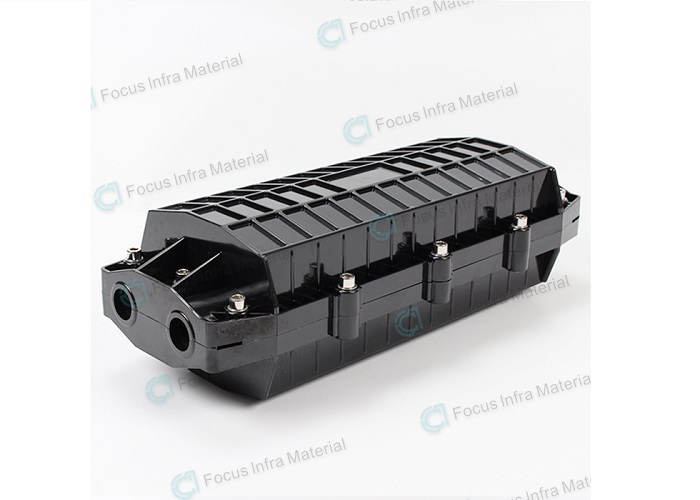

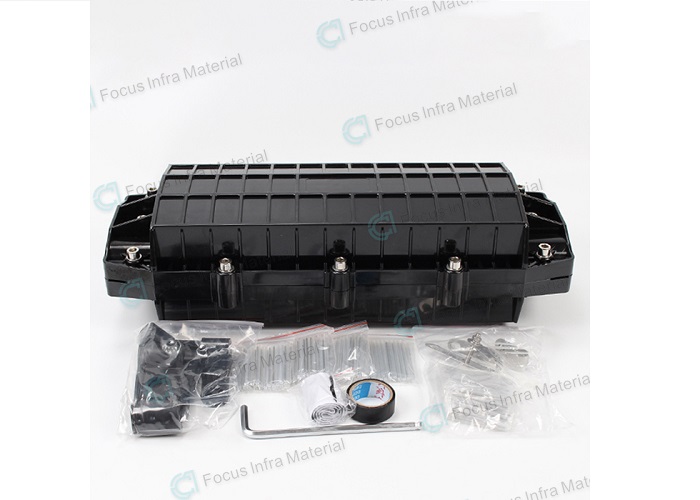

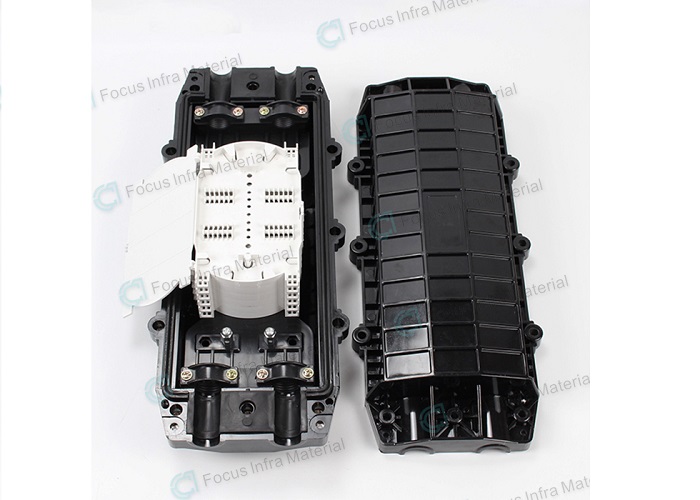

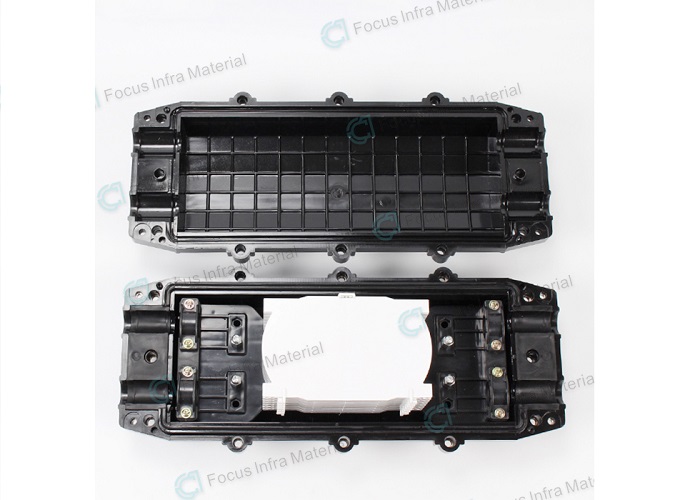

144 Core Horizontal Type Aerial Dome FTTH Fiber Optic Splice Box
Description:
144 Core Horizontal type Aerial Dome FTTH Fiber Optic Splice Box, also known as 144 Core Horizontal type Aerial Dome FTTH Fiber Optic Splice Closure, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. It also has excellent mechanical strength. The solid shell and main structure of optical cable junction box can endure the worst environmental changes, and play a flame retardant role at the same time. Waterproof effect, so that vibration, impact, cable tension, twist and so on are protected. 144 Core Horizontal type Aerial Dome FTTH Fiber Optic Splice Box is used for the protective connection and fiber distribution between two or more optical cables, it is one of the common equipment of user access points, mainly completing the outdoor connection between wiring cable and household cable, and the cassette or simple optical separator can be installed according to the FTTX access needs.
Features:
1. According to the appearance structure can be divided into cap cable joint box and horizontal cable joint box;
2. According to the optical cable laying method, overhead, pipeline (tunnel) and direct burial types;
3. According to the optical cable connection mode is divided into direct connection and differential connection;
4. There are thermal shrinkage seal types and mechanical seal types as sealed.
5. Fiber optic splice closures are widely apply for the connecting of optical cable.
6. Suitable for straight-through, diverging and connection of FTTH. FTTB all kinds of optical communication passive network.
