96 Fibers Horizontal Outdoor Aerial Dome 2 Inlets 2 Outlets Fiber Optical Splice Closure

Model Number: FS-J-012
Cable Port: 2 Inlets 2 Outlets
Scope Of Application: 12 Core To 96 Core
Product Size: 450*170*100mm

Description:



  96 Fibers Horizontal Outdoor Aerial Dome 2 Inlets 2 Outlets Fiber Optical Splice Closure, also known as 96 Fibers Horizontal Outdoor Aerial Dome 2 Inlets 2 Outlets Fiber Optical Splice Closure, is the place where the end of optical cable is connected. Then it is connected to optical switch through optical fiber jumper to prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature. 96 Fibers Horizontal Outdoor Aerial Dome 2 Inlets 2 Outlets Fiber Optical Splice Closure are widely apply for the connecting of optical cable. It Suitable for straight-through, diverging and connection of FTTH, FTTB all kinds of optical communication passive network.



Features:

Ageing resistance & ultraviolet radiation resistance
Advanced internal structure design
The closure is spacious enough for winding and storing fibers
Widely used in communication, network system, CATV cable TV, optical cable network system





Specification:



Product name Horizontal Type Vertical Fiber Optic Splice Box
Protection level IP65
Scope of application 12 core to 96 core
Gross weight 1.3 kg
Main material ABS
Scope of use Outdoor Aerial Dome,Buried,pole mount type outdoor
Ambient temperature - 40 °C ~ + 60 °C
Service life ≥20 years
Application scope FTTH FTTB FTTX Network
Atmospheric pressure 70kPa~106kPa
Insulation resistance >2*10MΩ/500V(pc)
Tensile strength >1200N

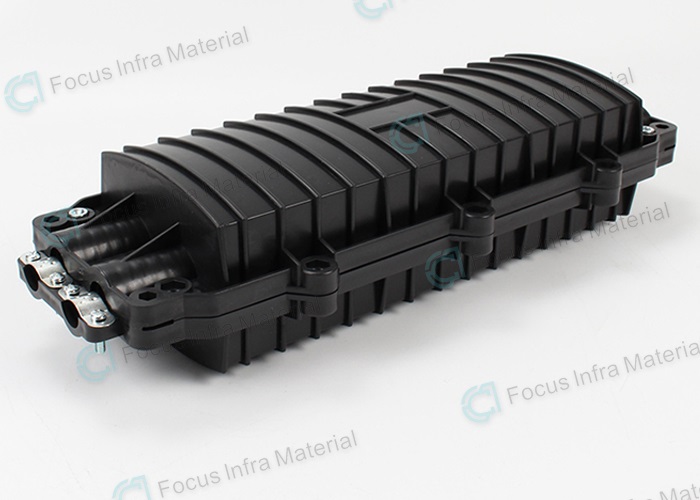

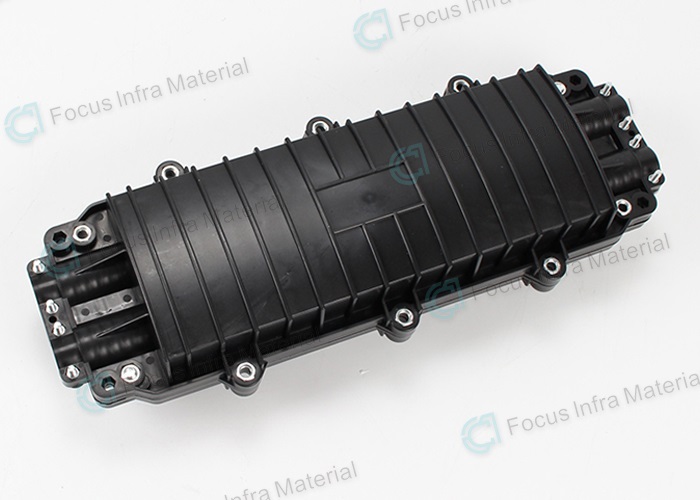

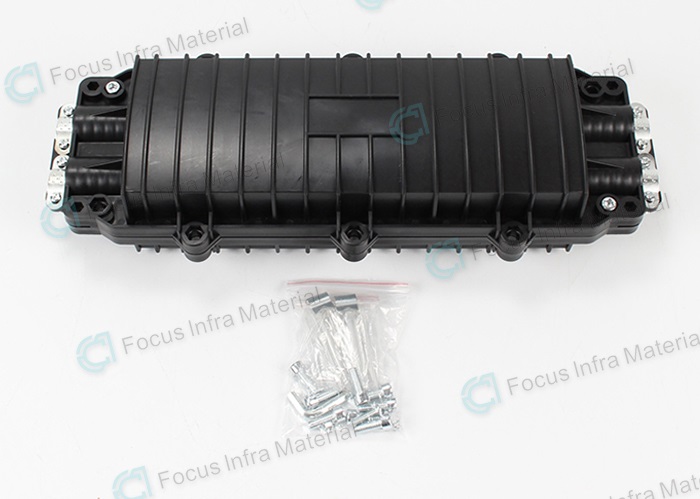

96 Fibre Dome Enclosure 2 Inlets 2 Outlets 096 Fibre Dome Enclosure 2 Inlets 2 Outlets 196 Fibre Dome Enclosure 2 Inlets 2 Outlets 2



96 Fibre Dome Enclosure 2 Inlets 2 Outlets 3
